Start CNC biz planning usually begins with a part drawing and a question about price. The useful answer is simpler than most quotes suggest. A CNC job is a series of decisions about how a cutter reaches material, how rigid the setup stays while it cuts, and how the finished dimensions get verified. Everything else follows from those three things.

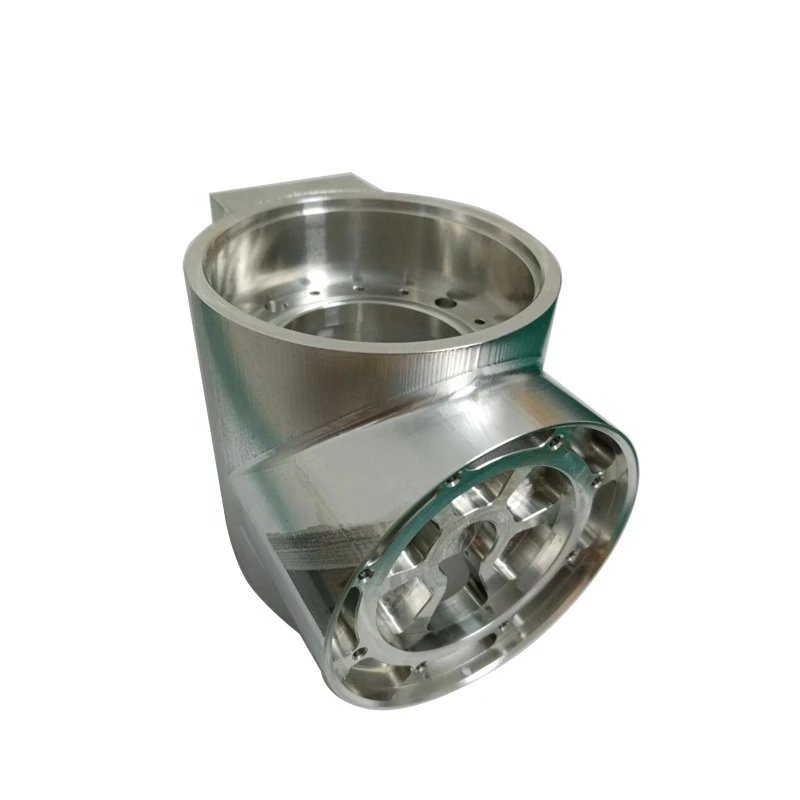

The machine type is a consequence, not a starting point. A three-axis mill works when every feature is reachable from one direction. Add an undercut, a cross-hole, or a face that must stay perpendicular to a bored bore, and the part needs either a second setup or a fourth and fifth axis. Each added setup costs time and adds a small stack-up of error.

Cutting tools set the real boundary. A Ø6 mm end mill cannot clear a 4 mm internal corner radius without leaving material. A deep pocket with a 3:1 depth-to-diameter ratio needs a smaller cutter, which deflects more, so the shop has to slow the feed. That is why two parts with the same bounding box can quote very differently.

Material choice changes the whole picture again. Aluminium 6061 cuts fast and holds ±0.005 mm without much effort. Inconel and Ti-6Al-4V move heat into the tool instead of the chip, so speeds drop and tool life shrinks. The geometry may be identical. The process is not.

A workpiece is only as accurate as the fixture holding it. A vise clamping a thin plate will bow it. When the vise opens, the part springs back and the measured flatness is gone. Thin walls below 1 mm, long slender shafts, and rings all behave this way.

The fix is usually a soft jaw machined to the part profile, or a vacuum plate for flat work. Sometimes the shop machines the part in a stressed state and then removes material evenly from both sides. That is a process decision, not a machine decision, and it belongs in the DFM review.

Thermal drift matters once a run gets long. A spindle that runs for hours grows, and the Z datum creeps with it. Shops handle this by re-probing the tool, using coolant consistently, and keeping the shop at a stable temperature. On a ±0.005 mm part, a few degrees of ambient swing is visible on the CMM.

When a drawing needs a true position of 0.02 mm across a 300 mm bolt pattern, one setup on a five-axis center with a Ø400 mm rotary table is often more reliable than three setups on a three-axis machine. Fewer setups means fewer datum transfers, and datum transfers are where tolerance disappears.

Machining time is the biggest line item, and it is set by material removal rate. A part that removes 200 cm³ of aluminium may take 15 minutes. The same volume in 17-4PH stainless can take an hour. Quoting by weight or by bounding box misses this entirely.

Setup and programming are fixed costs. A complex five-axis part with 12 tool changes and two fixtures may carry 3 hours of setup before the first good part exists. That cost spreads across the order. One prototype carries all of it. A 500-piece run carries almost none of it per part.

Surface finish adds time in a predictable way. As-machined at Ra 1.6–3.2 μm is standard. Pushing to Ra 0.8–1.6 μm needs a finishing pass with a smaller stepover. Getting to Ra 0.2–0.8 μm usually means a separate polishing or lapping step after machining, not a slower cutter path.

Tolerance is the third lever. Going from ±0.05 mm to ±0.005 mm changes the inspection plan, the fixturing, and often the machine. It is worth asking whether the function of the part actually needs the tight number, or whether a looser callout on a non-critical face would do the same job for less money.

Inspection is not a final step bolted onto the end. It starts at raw material. A certificate for 6061-T6 is worth checking against the actual heat number, because the temper affects both machinability and final strength.

In-process checks catch drift before a whole batch is wrong. On a tight feature, the operator measures the first part, then a mid-run part, then the last one. If the trend moves, the offset gets adjusted. Waiting until the end means scrapping the run.

Final inspection uses the equipment the tolerance deserves. Calipers are fine for ±0.1 mm. A CMM is needed for true position and profile. Surface finish gets checked with a profilometer when the drawing calls out an Ra value. Reports are available on request.

For medical and automotive work, the paper trail matters as much as the measurement. ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 cover quality, automotive, medical devices and information security. Which one applies depends on where the part ends up.

A quotation with a DFM analysis comes back within 12 hours. That review often catches a corner radius that cannot be cut, a tolerance that adds cost without adding function, or a wall too thin for the chosen material. Fixing it on paper is free.

Production can start within 24 hours of approval, and parts ship in 3–5 days for most geometry. That window assumes the material is in stock and the drawing is frozen. A change after the first article means the setup work is partly wasted.

Historical late-delivery probability sits below 2%. It is not a promise, but it is a useful number when you are comparing suppliers and deciding how much buffer to build into your own schedule.

There is no minimum order quantity. One prototype and a 10,000-piece run both fit the same process. The difference is how the fixed costs spread, not whether the shop will take the job.
