Aluminum Alloy Wheels CNC: How the Cutting Process Works
This page explains what actually happens when an aluminum wheel is cut on a CNC machine, which alloys go on which machine, and where the process hits its limits. It is written for automotive engineers and sourcing staff who need to judge a wheel program before placing an order.
Why Aluminum Alloy Wheels CNC Starts With the Blank
A wheel is unsprung mass, so every gram removed from the rim changes how the suspension responds. Aluminum alloy gives a density near one third of steel, and a forged or billet blank can be thinned in the spoke web where stress is low. That is the whole engineering argument for aluminum in one sentence.
Cast aluminum wheels come out of a mold close to final shape, then get a light trim cut on the mounting face and bead seat. Billet and forged wheels start from a solid disc or a pressed forging, and the CNC removes most of the material you see between the spokes. The second route costs more per part but lets the designer place metal exactly where the load path runs.
The blank also sets the grain flow. A forging pushes material along the spoke direction, so the finished spoke keeps a continuous grain line from hub to rim lip. A billet disc has no such flow, which is why billet wheels are usually a little heavier for the same stiffness. Neither is wrong. They solve different problems.
One more thing decides the blank: the mounting face and the bead seat have to stay concentric after every cut. If the blank is not stable, no toolpath will fix it later. We check blank straightness and hardness before the first operation, not after.
Which Aluminum Alloys Suit Wheel Machining
Most machined wheels use 6061-T6, 6082, or 7075. The 6xxx grades cut cleanly, weld and anodize well, and hold a bead seat within a few hundredths of a millimeter. 7075 gives higher yield strength but is less forgiving at the rim lip and needs sharper tools and lighter depths of cut.
Cast wheels are a different family. ADC12 and similar die-casting alloys machine fast but contain porosity, so a polished lip can open small voids. If the finish is cosmetic, that matters more than the strength number on the data sheet.
For a street wheel, 6061-T6 covers most needs. For a track or forged-look part where stiffness per gram is the goal, 7075 or a 6082 forging is the better call. We keep 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075, and ADC12 in stock for exactly this reason.
Heat treatment state matters as much as the grade name. A 6061 billet in T6 machines differently from the same alloy in T4, and the difference shows up as chatter on thin spokes. Tell us the temper before quoting, not after the first article fails.
How 5-Axis Toolpaths Cut a Wheel in One Setup
A wheel has features on both faces and around the full circumference. On a 3-axis mill you machine one face, flip the part, re-datum, and machine the other. Every flip adds a concentricity error between the mounting face and the bead seat.

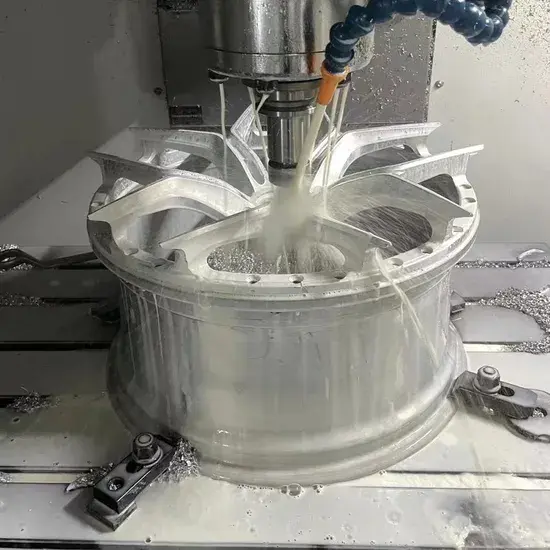

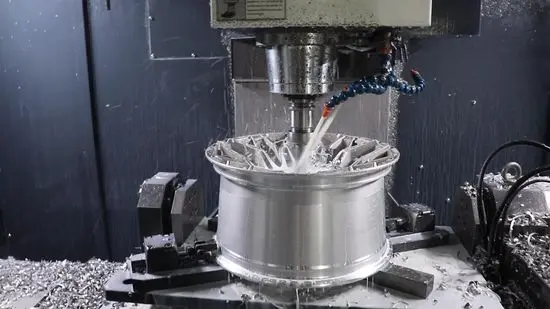

A 5-axis center with a Ø400 mm rotary table holds the wheel once. The trunnion tilts the part so the tool reaches the spoke windows, the rim lip, and the back pad without re-clamping. Concentricity then depends on the machine, not on the operator. That is the main reason we run wheels on our 16 simultaneous 5-axis machining centers.

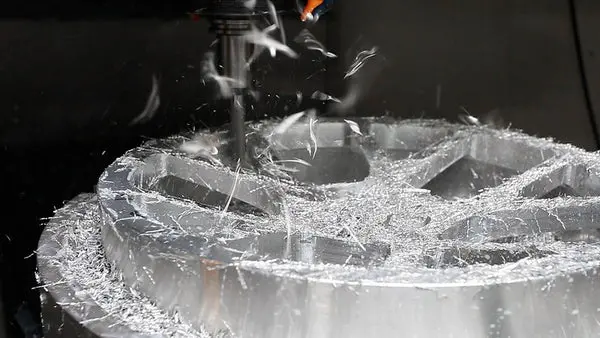

Roughing removes the bulk with a Ø12–16 mm end mill at 2–3 mm axial depth. Semi-finish leaves 0.3–0.5 mm on the bead seat and the mounting face. Finish cuts use a smaller tool with a 0.1–0.2 mm stepover to hold the surface where the tire seals.
The valve stem hole and lug holes usually run on the same setup, which keeps their positions tied to the bore. Drilling them on a second machine is where most wheel programs lose their tolerance stack.
Runout, Balance, and Surface Finish Limits
Two numbers decide whether a wheel feels right at speed: radial runout at the bead seat and lateral runout at the mounting face. Both are checked against the center bore, not against the outside lip. A wheel can look perfect and still shake if the bore is off.
GreatLight holds ±0.005 mm (±0.0002 in) on the wheel bore and the mounting face. Surface finish on the bead seat runs Ra 0.8–1.6 μm so the tire bead seats without leaking. Cosmetic faces get Ra 0.2–0.8 μm before anodizing or powder coating.
Balance correction is not a machining operation, but machining decides how much correction is needed. A wheel that leaves the machine with low runout needs less drill correction and keeps more material in the rim. That is a weight saving you get for free.
Finish options that work on wheels include anodizing (clear, color, hardcoat), powder coating, and bead blasting. Laser marking for part numbers works down to 1.5 mm character height. Anything finer than that will not survive a tire change.
Cast vs Forged vs Billet Wheel Machining
Pick the route that matches the volume and the load case
| Route | Typical alloy | Stock removal | Best for |
|---|---|---|---|
| Cast + trim cut | ADC12, A356 | Light, 0.5–1.5 mm | High volume, cosmetic focus, lower cost |
| Forged + CNC finish | 6082, 6061-T6 | Moderate, 2–5 mm | Track use, stiffness per gram, grain flow |
| Billet from solid | 6061-T6, 7075 | Heavy, 60–80% removed | Prototypes, low volume, custom spoke design |
| Cast + full CNC face | ADC12, 6061 | Moderate to heavy | Reproduction wheels, deep concave spokes |
When to Machine and When to Cast
If you need one-off or low-volume wheels with a custom spoke and tight bore tolerance, machine from billet or a forging. If you need thousands of identical wheels at low cost per part, cast the shape and CNC only the mounting face, bead seat, and lug holes.
Aluminum Alloy Wheels CNC: Common Questions
Can a cast wheel be fully machined to look like a forged wheel?
You can machine the face and open the spoke windows, and the surface will look similar after anodizing or powder coating. What you cannot change is the inside of the casting. Porosity and grain structure stay where they were cast, so the strength per gram stays a casting number, not a forging number.
What tolerance should I specify on the center bore?
For most passenger wheels, a bore tolerance of ±0.02 mm sits comfortably inside what a 5-axis center holds. GreatLight can hold ±0.005 mm when the wheel design allows a rigid setup. Tightening beyond that usually adds cost without changing how the wheel balances.
Does wheel size change which machine runs the part?
Yes. Our largest travel is 4,000 × 400 × 150 mm, which covers large-diameter rims and wide barrels. Compact wheels often run on a 500 × 500 × 450 mm or 500 × 310 × 200 mm machine. The Ø400 mm rotary table sets the practical limit for single-setup 5-axis work.
How do you keep the lug holes aligned with the center bore?
Lug holes and the bore are cut in the same setup, so their positions are tied to one datum. If a design forces a second setup, we re-datum on the finished bore and check position with a CMM before the run continues.
What surface finish do you recommend for the bead seat?
Ra 0.8–1.6 μm is the working range. Smoother than that gives no sealing benefit and costs cycle time. Rougher than Ra 3.2 μm risks a slow leak at the bead, especially on a low-profile tire.
Can you machine a single prototype wheel before a production run?
We have no minimum order quantity, so one prototype is fine. Quotation and a free DFM analysis come back within 12 hours, and production can start within 24 hours of approval. Prototype parts typically ship in 3–5 days.
Send Us Your Wheel Drawing
Upload a STEP file and get a quote plus a free DFM analysis within 12 hours. Uploads stay confidential, and an NDA is available on request.
