SGETAL TOL Tool Machine Application and Analysis of Applications

• 1
  Key takeaways
• 2
  What the SGETAL TOL tool machine application has to survive
• 3
  Matching stage count to axis travel
• 4
  Material selection for SGETAL TOL tool machine application covers
• 5
  Machined end plates and mounting interfaces
• 6
  Finishing and surface protection
• 7
  When a machined telescopic cover is the wrong answer
• 8
  Cover choice by working condition

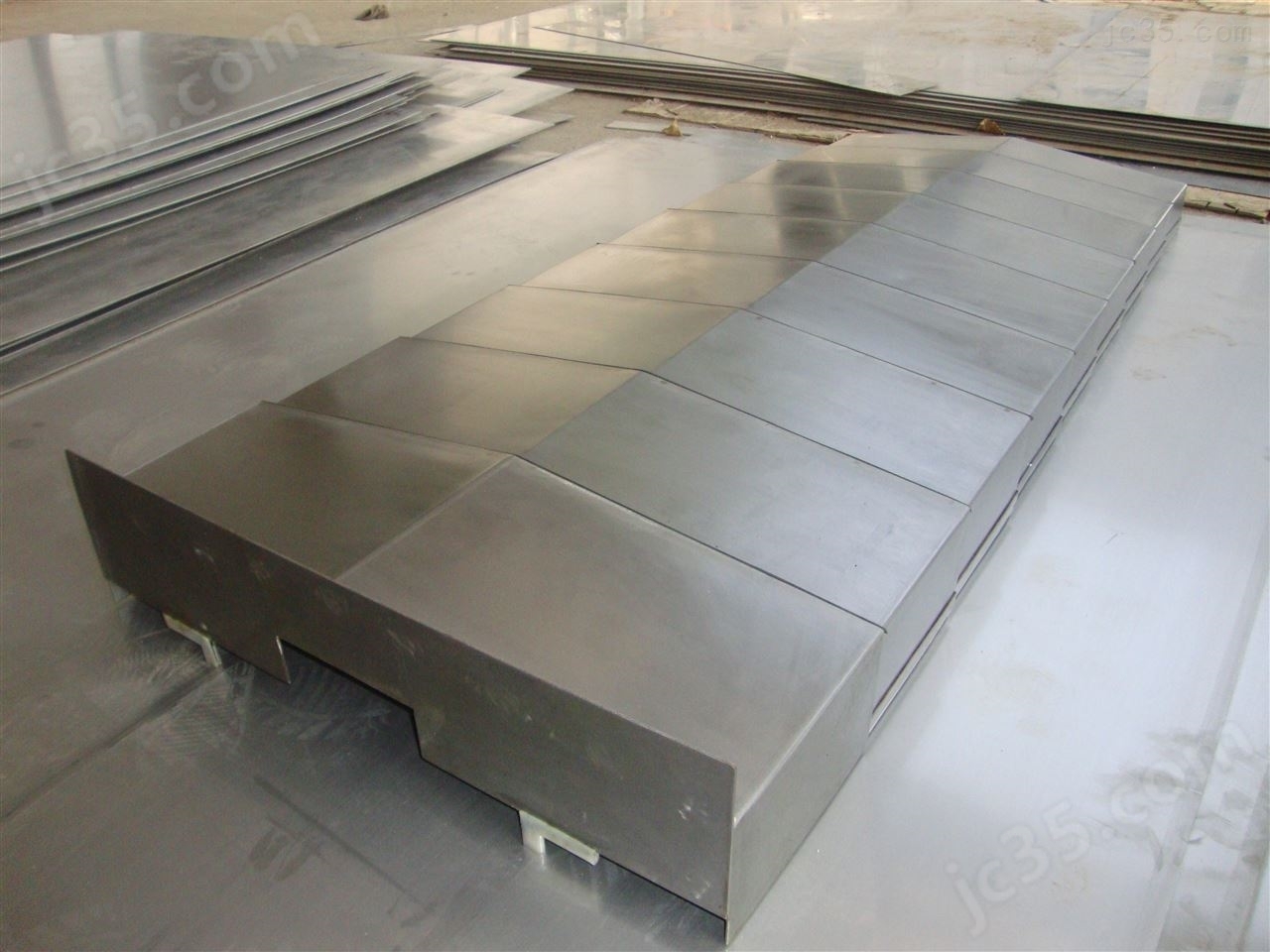

A telescopic cover sits in the worst spot on a machine tool. Hot chips land on the top plate, coolant runs down the side, and the whole stack collapses and extends several hundred times per shift. The SGETAL TOL tool machine application is judged by how long the sliding stages keep their clearance under that load, not by how the cover looks on a pallet.

Three loads act at once. Mechanical load comes from the weight of the extended stack and from an operator leaning on the top plate during setup. Thermal load comes from chips at 400–600 °C on cast iron and steel work. Chemical load comes from coolant, way lube, and fine dust that turns into a paste inside the rails.

A cover that only handles one of the three fails early. Hardened steel resists chips but rusts under water-based coolant. Thin stainless survives the coolant but dents when a 20 kg tool holder drops on it. The design has to trade these off against the axis travel.

Start from the axis data, not the cover. Stroke length, closed height, and mounting hole pitch set the stage count. A 4,000 mm travel needs six or more stages; a 500 mm compact axis usually runs two or three.

• 1
  Chip impactTop plate dents are the most common field failure.
• 2
  Coolant dragFluid pulled into the rail by the extending stage.
• 3
  Abrasive pasteFine cast iron dust mixed with way lube.
• 4
  Operator contactTool holders and hands resting on the cover.

Stage count is a ratio. Each stage adds roughly 100–140 mm to the usable stroke when the overlap is set correctly. Divide the total travel by the per-stage stroke and round up. That number decides the closed height, which is what limits the machine footprint.

Overlap is the part most people get wrong. If stages overlap too little, the cover opens past the rail and exposes the way. If they overlap too much, closed height grows and the cover bottoms out before the axis reaches its limit. A 0.3–0.8 mm running clearance between adjacent sheets is a workable band for most cast iron and steel covers.

Box-type stages behave differently from flat sheets. A box section resists bending across a wide span, so a 1,200 mm wide cover can run four stages instead of six. Flat sheets are lighter and cheaper but need more support rollers on wide axes.

On a mill-turn center with a Ø400 mm rotary table, the cover often has to wrap a curved path. That is where formed and welded stages beat flat ones. The bend radius has to be set from the turret swing, not from the cover size.

• 1
  Travel ÷ 120 mmRough stage count before overlap is added.
• 2
  0.3–0.8 mmRunning clearance between adjacent sheets.
• 3
  Box vs flatBox sections cut stage count on wide covers.
• 4
  Curved pathSet bend radius from turret swing, not cover size.

Material choice follows the coolant and chip mix first, then the weight budget. Cold-rolled steel and cast iron work well on dry cutting and on machines that see mostly cast iron chips. The surface work-hardens slightly and resists denting better than thin stainless.

Once water-based coolant is in the picture, 304 stainless is the default. It holds up to continuous wet cutting and does not need a coating. For machines running chlorinated or acidic coolant, 316 or 316L is the safer pick even though it machines slower and costs more per sheet.

Aluminium covers show up on high-speed axes where moving mass matters. A 6061-T6 stage weighs about a third of the same steel stage, which lets a servo move the cover faster without adding load. The trade-off is wear: aluminium rails gall against aluminium, so the sliding faces need a steel or polymer insert.

For aggressive chip loads, 17-4PH or hardened tool steel on the top plate and standard 304 on the lower stages keeps cost down while protecting the exposed surface.

• 1
  Dry cuttingCold-rolled steel or cast iron stages.
• 2
  Water-based coolant304 stainless as the default.
• 3
  Aggressive coolant316 or 316L, slower to machine.
• 4
  Light and fast6061-T6 with steel or polymer wear inserts.

The end plates are where a cover set either drops onto the machine or turns into a fitting job. Most rails already have a bolt pattern, and the cover has to land on it without slotting holes on site. That means the plate hole pattern and the plate-to-stage weld position both need to be controlled.

Machined plates held to ±0.05 mm on hole position and ±0.1 mm on thickness give a predictable fit. Laser-cut and welded tabs usually drift more, and the drift shows up as a cover that tilts and binds after a few weeks.

Where a cover meets a linear rail, a wiper or lip seal keeps chips out of the bearing. The seal spec follows axis speed. Below 30 m/min, a simple felt or polymer wiper is enough. Above that, a lip seal with a light preload holds up better and stops coolant from being dragged in.

Height alignment matters as much as the hole pattern. If the top plate sits 1 mm high, the first stage takes the load instead of the rail, and the cover wears at one corner. Shim points on the mounting plate let the fitter correct that without re-machining.

• 1
  ±0.05 mmHole position on machined end plates.
• 2
  Below 30 m/minFelt or polymer wiper is sufficient.
• 3
  Above 30 m/minLip seal with light preload.
• 4
  Shim pointsCorrect height without re-machining.

Bare steel covers rust at the edges within weeks of wet cutting. A finish is not cosmetic here; it decides how the sliding faces wear against each other. The finish also has to survive the chips that scrape across it every cycle.

Powder coating gives the thickest barrier and hides weld marks, but it builds 60–100 μm and can change the running clearance between stages. If the clearance is tight, powder coat has to be accounted for in the sheet thickness or the stages will bind.

Black oxide and electroless nickel are thinner options that keep dimensions stable. Electroless nickel adds 10–25 μm per side and resists coolant well. Black oxide is cheaper but needs an oil film to stay effective.

For aluminium stages, hardcoat anodizing at 25–50 μm gives a wear surface that resists galling against steel inserts. Clear anodizing is thinner and mostly decorative; it does not hold up on a sliding face.

• 1
  Powder coating60–100 μm build, adjust clearance.
• 2
  Electroless nickel10–25 μm per side, coolant resistant.
• 3
  Black oxideCheap, needs an oil film.
• 4
  Hardcoat anodize25–50 μm on aluminium wear faces.

Not every axis needs this. If the machine runs dry, has a short stroke under 200 mm, and rarely sees chips, a bellows or a simple fixed guard costs less and needs no maintenance. A telescopic cover adds stages, seals, and a service interval.

High-speed light axes are another case. A cover that weighs several kilograms on a small servo adds inertia and slows the axis. Roll-up covers or fabric shields move less mass, though they do not survive hot chips.

If the axis sees fine abrasive dust and no coolant, a cover with tight running clearance can seize because the dust packs the rails. In that case wider clearance and a periodic dry clean beat a tighter seal.

The honest rule: specify a telescopic cover when chips are hot, coolant is wet, or the stroke is long enough that an exposed way would wear. Outside that, a simpler shield usually wins.

• 1
  Short dry strokeBellows or fixed guard is cheaper.
• 2
  Light fast servoRoll-up or fabric shield moves less mass.
• 3
  Dry abrasive dustWider clearance plus dry cleaning.
• 4
  Hot chips or wet coolantTelescopic cover earns its cost.
