Small module means the tooth size is small. In practice, module 0.2 to 1.0 mm covers most micro gears used in medical handpieces, robot joints, drone actuators and instrument drives. At module 0.5, the whole tooth height is roughly 1.1 mm and the circular pitch is about 1.57 mm. There is very little metal between the root and the bore.

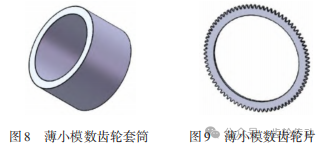

Ultra-thin adds a second constraint. The rim or web behind the teeth is often thinner than one tooth height, sometimes 0.3 to 0.8 mm. The blank behaves like a spring, not like a rigid body. Cutting forces push the rim away from the cutter, then the rim springs back after the tooth is gone. That is where profile error starts, before any tool wear enters the picture.

So ultra-thin small module gear cutting is not just "small hobbing". It is a stiffness problem with a size problem stacked on top. Two shops can run the same hob and the same blank and still get different lead error, because one of them controlled the support behind the rim and the other did not.

The upstream questions matter more than the machine brand. How is the blank held? Is the web solid or pierced? Does the part have a hub to grip, or only a thin disc? Answer those first, then choose the cutting method.

Tooth cutting is an interrupted cut. The hob or cutter enters and exits many times per second, so the load is not steady. On a solid gear blank the reaction is small. On a 0.5 mm rim the same load bends the rim toward the tool, and the tooth is cut at the deflected position.

The effect scales with rim height cubed. Halve the rim thickness and stiffness drops by roughly a factor of eight. That is why a design change from 1.0 mm to 0.5 mm rim thickness is not a small tweak. It often pushes a stable process into a scrap-generating one.

Heat adds a second movement. Cutting at 8,000 to 12,000 rpm with a small carbide hob raises local temperature at the tooth tip. A thin rim heats fast and grows, then cools and shrinks after the cut. Diametral size can drift across a batch by more than the tooth thickness tolerance if the cycle has no dwell.

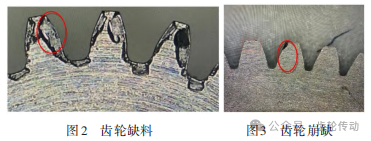

Chip evacuation is the third factor. In a module 0.3 tooth space, the chip is a fine curl that packs easily. Recutting a chip doubles the force on a tooth that is 0.7 mm tall. Air blast or through-spindle coolant keeps the space clear; flood coolant at low pressure often does not.

Hobbing is the default for external spur and helical micro gears. A single-start hob generates the full profile in one pass, and the process is fast once the setup holds. It suits module 0.3 to 1.0 with a hub or a firm web. On a free thin disc with no hub, hobbing can be the wrong first choice.

Gear shaping uses a pinion cutter that strokes along the tooth. It handles shoulders, internal teeth and cluster gears that a hob cannot reach. Cycle time is longer, and the cutter wears at the tip. For internal micro gears or a gear next to a flange, shaping is often the only practical route.

Milling a gear with a form cutter or on a 5-axis machine works for prototypes and low volumes. The profile is copied from the tool or interpolated from CAM, so accuracy depends on the tool form and the machine's dynamic response. It is slower, but it needs no special gear machine and it can cut a thin disc with light, controlled passes.

Grinding and skiving come later in the chain. Profile grinding after heat treatment corrects distortion on hardened micro gears, but a 0.2 mm module grinding wheel is fragile and the stock allowance must be small. Skiving is fast on thin-walled internal gears, yet it needs a rigid setup and is not a fix for a floppy blank.

Clamping decides more than the cutter does. A thin disc gripped on its outer rim will ovalize. Grip the bore or a hub, and support the web with a close-fitting backing plate. For a pierced web, a low-pressure vacuum chuck or a soft collet with a matching arbor keeps runout under 0.01 mm without crushing the part.

Workholding for a 0.5 mm rim should be checked with a dial indicator at the tooth line, not at the hub. If runout at the rim is three times the runout at the hub, the fixture is bending the part, and the teeth will follow that bend. Fix the fixture before touching speeds and feeds.

For hobbing micro gears, start conservative. Cutting speed of 80 to 150 m/min with a coated carbide hob and feed of 0.05 to 0.15 mm per revolution per hob start is a reasonable opening range. Climb milling and a single finishing pass reduce the load on the rim compared with a roughing-plus-finishing sequence on the same tooth.

Coolant choice follows the chip. A module below 0.5 mm produces fine chips that flood coolant cannot flush. Use an air-oil mist or high-pressure through-spindle coolant aimed at the cut, and add a short dwell before retracting so the rim returns to size before the next part starts.

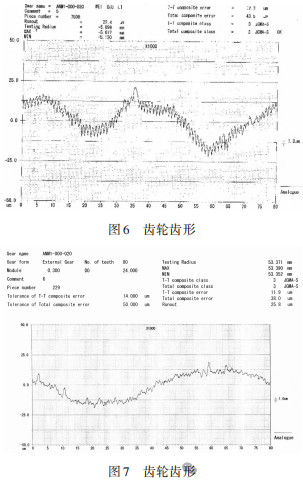

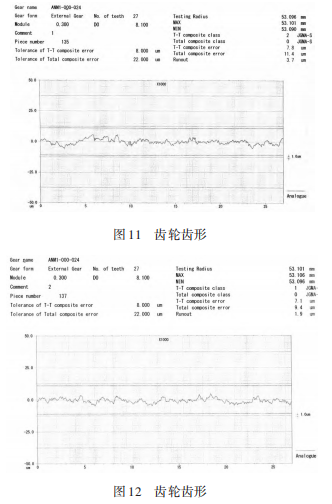

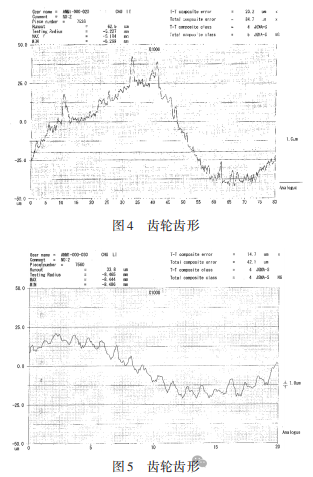

A 0.3 mm module tooth is too small for a standard mechanical probe. Double-flank roll testing is the practical shop-floor check: it rolls the gear against a master and reports center distance variation and runout in one trace. It is fast and it catches rim deflection that shows up as a wobble.

For profile and lead data, use a gear measuring center with a 0.5 mm or smaller stylus and optical alignment. The measurement itself can disturb a thin part, so support the gear the same way it is supported in the fixture. Measuring a free disc on a flat plate gives a number that does not match the assembly.

Functional checks still matter. Run the gear pair at the intended load and listen for the mesh frequency. A thin gear that passes single-part inspection can still sing in a gearbox if the rim flexes under torque. If the design allows, plate thickness or a small rib often fixes more than another 0.005 mm of tooth tolerance.

Document the setup with the part. Runout limit, backing plate, clamp pressure and coolant type belong on the traveler. When the next batch runs three months later, those notes prevent a repeat of the same deflection problem.
