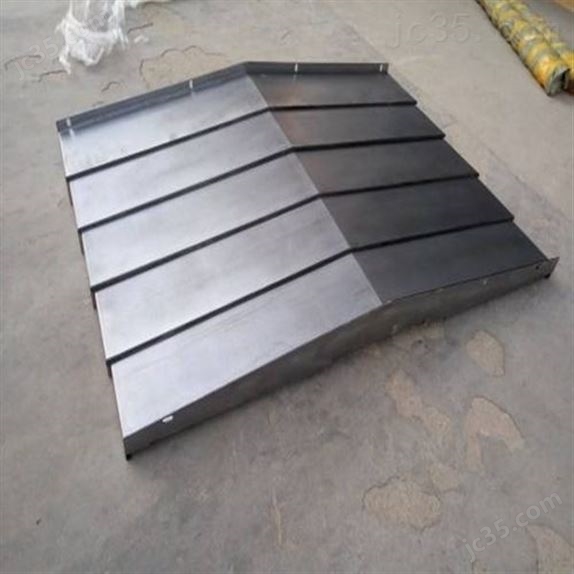

Repair of Common Defects for the Machine-Tool Guide Protection Cover of the Steel Plate

• 1
  Symptom, Cause, and Field Action for Steel Guide Covers
• 2
  Why Steel Covers Lag and How to Restore Smooth Travel
• 3
  Distortion in Steel Cover Plates: Causes and Cold Correction
• 4
  Seal Degradation: Material Choice and Installation Limits
• 5
  Impact Damage and Bent End Plates: Straighten or Replace
• 6
  When Repair of Common Defects Is Worth It and When to Replace
• 7
  Step by Step: Repair of Common Defects on a Steel Guide Cover

Lag shows up as a jerky slide, a rising servo load, or a cover that stops short of full extension. On a steel telescopic cover, the usual cause is a mix of contamination and lost lubrication. Fine cast iron dust and coolant residue pack into the gap between segments. The slide strips then run dry, and friction climbs until the axis drive fights the cover.

Before you order parts, measure the actual drag. Push the cover through its full stroke by hand with the axis disabled. A healthy steel cover moves with light, even resistance. If one segment binds, the problem is local. If the whole stack drags, the issue is lubrication or alignment, not a single plate.

The repair sequence matters. Flush the segments with clean coolant or a mild alkaline cleaner, blow dry with filtered air, then apply a lithium EP 2 grease to the slide strips. Do not use heavy moly grease on telescopic covers. It traps chips and turns into an abrasive paste within days.

If the cover still lags after cleaning, check the wiper blades. Worn wipers let chips ride under the first plate. Replace them with polyurethane or nitrile wipers sized to the rail profile. A 1 mm gap at the wiper lip is enough to feed swarf into the stack.

• 1
  Hand-test firstDisable the axis and push the cover through full stroke. Local binding points to a bent segment.
• 2
  Clean, then greaseFlush with mild alkaline cleaner, dry with filtered air, then apply lithium EP 2.
• 3
  Inspect wipersA 1 mm lip gap lets chips under the plate. Replace wipers before they wear the rail.

Steel cover plates distort when one face gets more heat than the other. Hot chips land on the top surface while coolant sprays the underside. The temperature difference between a thick mounting flange and a thin shield section is often 40–60 °C. That is enough to bow a 2 mm plate over a 1,000 mm span.

Waviness changes the geometry of the cover. The segments no longer nest cleanly, and the seal line opens. You will see coolant streaks on the rail and a cover that rattles at high feed. Measure flatness with a straight edge and feeler gauge before deciding on a repair.

Cold correction works for mild distortion. Support the plate on hardwood blocks and apply a controlled load with a press or a dead-blow mallet. Work in small passes and re-measure after each one. Do not heat a distorted plate with a torch. Local heating adds new residual stress and the bow returns within weeks.

If flatness deviation exceeds 3 mm over a 1,000 mm span, or the plate has a visible crease, replace the segment. A straightened plate rarely holds its shape under a running machine. The cost of a new segment is lower than the downtime from a cover that fails again in a month.

• 1
  Measure before you bendUse a straight edge and feeler gauge. Under 3 mm over 1,000 mm can be cold-corrected.
• 2
  Never torch a cover plateLocal heat adds residual stress. The bow comes back within weeks.
• 3
  Replace creased segmentsA crease means the plate has yielded. Straightening will not restore flatness.

Seal failure is the most common reason a steel guide cover leaks. Nitrile rubber is the default in many covers, and it swells in contact with ester-based coolants and way oil. Swelling leads to compression set, then micro-tearing at the lip. Once the lip tears, chips travel straight to the rail.

FKM seals resist oil and coolant far better than nitrile. They hold their shape up to 200 °C and do not swell in the same fluids. The trade-off is cost and stiffness. FKM seals need a cleaner groove and a smoother mating surface. A rough groove will cut an FKM lip during installation.

Check the groove depth before switching materials. An FKM seal with the same cross-section as the nitrile seal it replaces may sit too proud. Measure the installed height and confirm 10–15% compression. Too little compression leaks. Too much compression causes the lip to fold.

For covers that see heavy cast iron dust, a double lip seal or a felt wiper plus an FKM lip works well. The felt catches the coarse particles, and the FKM lip keeps the fine dust out. Replace both at the same interval so you do not have to open the cover twice.

• 1
  Nitrile swellsEster-based coolants and way oil cause compression set and lip tearing.
• 2
  Switch to FKMResists oil and coolant, holds shape to 200 °C. Needs a clean, smooth groove.
• 3
  Confirm 10–15% compressionToo little leaks. Too much folds the lip during installation.

A crashed tool or a dropped workpiece dents the end plate of a steel cover. The dent itself is minor. The problem is the misalignment it creates. A bent end plate pushes the first segment off the rail line, and the wiper no longer contacts the guide surface.

Straighten small dents with a dead-blow mallet on a flat steel block. Work from the edges toward the center. Check the rail alignment with a dial indicator after every few strikes. A plate that is straight but twisted will still bind, so check both flatness and twist.

If the end plate is creased or the mounting holes are elongated, replace it. Welding a cracked end plate is possible, but the heat-affected zone will be softer than the parent metal. On a cover that sees 4,000 mm of travel, that soft zone becomes a fatigue crack within months.

After any impact repair, re-check the cover travel by hand and then at low feed. Run the axis at 10% rapid for ten cycles and watch for a change in motor load. A load spike at the same position every cycle means the cover is still misaligned.

• 1
  Check twist, not just flatnessA straight but twisted end plate still binds. Use a dial indicator on the rail.
• 2
  Replace creased platesWelding softens the heat-affected zone. Fatigue cracks follow within months.
• 3
  Verify at low feedRun 10 cycles at 10% rapid. A repeating load spike means misalignment remains.

Repair of common defects makes sense when the cover structure is sound. Cleaning, re-lubricating, and replacing wipers or seals are field jobs that take a few hours. They restore function without removing the cover from the machine. These repairs cost a fraction of a new cover and keep the machine running.

Replacement is the better choice when the plates have yielded. A creased plate, a cracked weld, or flatness deviation over 3 mm per 1,000 mm cannot be corrected in the field. The same applies when more than two segments are damaged on a telescopic stack. The alignment between segments is set at the factory and is hard to restore on site.

Use motor load data to support the decision. If the axis load stays high after cleaning and re-lubrication, the cover geometry is the problem. If the load returns to normal, the repair was enough. This is a simple check that avoids replacing a cover that only needed wipers.

For covers on high-duty machines, keep one spare segment set on the shelf. A 3–5 day lead time on a new segment is normal for custom profiles. Having the spare on hand turns a week of downtime into a single shift of work.

• 1
  Repair when structure is soundWipers, seals, and lubrication are field jobs that restore function in hours.
• 2
  Replace when plates have yieldedCreases, cracks, and flatness over 3 mm per 1,000 mm need new segments.
• 3
  Use motor load as a verdictIf load stays high after cleaning, the geometry is the problem.
