Every milling quote is the sum of four things: material, setup, cycle time and finishing and inspection. Suppliers who skip one of these lines are either guessing or padding. When you compare quotes, put them side by side on those four lines and the spread usually explains itself.

Material is rarely just the price per kilogram. A part hogged out of a 150 mm plate may lose 70 percent of the stock as chips, and that scrap is billed at the same rate as the finished part. Near-net blanks cost more up front and often cut total cost, because you buy less machining time and fewer tools.

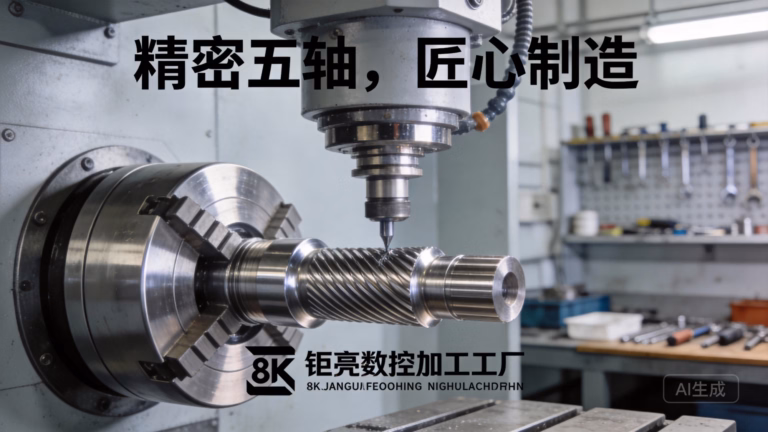

Setup is charged per unique orientation. A bracket machined from one face is one setup. The same bracket with a cross-hole and a back-side pocket is three, plus a fixture. On a 3-axis machine those setups run one after another; a 5-axis center can reach five faces in one setup and remove that cost, but the machine rate is higher per hour.

• 1
  MaterialGrade, form and buy-to-fly ratio; certified stock costs more than generic.
• 2
  SetupOne charge per orientation plus fixturing, amortized over the batch.
• 3
  Cycle timeSpindle minutes driven by removal volume, tolerance and finish.
• 4
  Finishing and inspectionDeburr, anodize, plating, CMM time and documentation.

Removal volume is the first lever. A pocket 40 mm deep and 12 mm wide in 6061 is routine. The same pocket in 316L stainless takes longer per pass, wears tools faster and often forces a smaller stepover, so the cycle time can double or triple without any change to the drawing.

Feature access is the second lever. Deep holes with a length-to-diameter ratio above 4:1 need longer tools, peck cycles and lower feed rates, and the tool can deflect and drift off position. Features on multiple faces push you toward more setups or a 5-axis machine. Neither is wrong; they are different cost structures.

Thin walls are the third. Walls under 1 mm in aluminum and under 1.5 mm in steel chatter, and chatter shows up as poor finish and out-of-tolerance dimensions. Adding a roughing pass, leaving stock, and taking a light finishing pass is the usual fix, and it costs spindle time.

Sharp internal corners cost too. A cutter has a radius, so a true zero-radius corner needs EDM or a corner-relief note. Designers who call out a 0.5 mm internal radius on a 12 mm deep pocket are asking for a small, fragile tool and a slow feed.

General tolerances of ±0.1 mm rarely change the process. Going to ±0.025 mm starts to matter. At ±0.005 mm you are no longer just machining; you are controlling thermal growth, tool wear and fixture stiffness, and you are gauging far more often. That is where the price for CNC milling machining services separates a general shop from a precision one.

Surface finish behaves the same way. Leaving a face as machined at Ra 1.6–3.2 μm is normal output. Pushing to Ra 0.8–1.6 μm is a finishing pass with a fresh insert. Ra 0.2–0.8 μm often means a separate operation, either a fine finishing pass or hand polishing, and hand work does not scale with volume.

Inspection is the line buyers forget. A shop that checks every part on a CMM is buying machine time it must bill. A shop that samples is faster and cheaper, and is the right choice when the feature is not safety-critical. For medical and automotive work, 100% inspection and full records are part of the deliverable, not an add-on.

Ask which dimensions are actually critical. A drawing with 60 tight tolerances when 8 matter will be quoted high by every honest shop. Mark the functional dims and let the rest run general tolerance; that single change often moves a quote more than any negotiation.

At one part, setup and programming dominate. At 100 parts, cycle time and material start to dominate. At 10,000 parts, tooling, automation and inspection strategy dominate. The same part can be cheap at one volume and expensive at another, so a quote only means something with the quantity attached.

Certifications change overhead, not machining. ISO 9001 covers a basic quality system. IATF 16949 adds automotive traceability, PPAP discipline and change control. ISO 13485 adds device-level documentation and validation. ISO 27001 covers how your drawings and CAD files are protected. A shop holding all four runs a heavier back office, and that is reflected in the rate.

Material certification is separate. Certified 7075-T7351 or Ti-6Al-4V ELI arrives with mill certs and heat-lot traceability, which costs more than generic stock of the same alloy. If your application does not require traceability, say so and save the paperwork cost.

Location affects logistics and communication more than the machine rate. A domestic shop may quote higher per hour but absorb shipping time and customs. An offshore shop may quote lower per part but you carry freight, duty and a longer feedback loop. Both can work; pick the one that matches your program risk.

The first trap is a price with no basis. If the quote does not name the machine, the setup count or the cycle time, the shop is estimating from a photo and will find the real number later, usually after you have committed.

The second trap is a missing inspection line. Cheap quotes often assume the part is right. When a tight bore comes back undersized, the rework is on your schedule, not theirs. Confirm the inspection plan before you compare prices.

The third trap is an unrealistically short lead time. A shop that promises a complex 5-axis part faster than its own cycle time allows is either outsourcing it or planning to rush it past inspection. Rush and quality do not travel together.

The fourth trap is a rock-bottom unit price tied to a huge MOQ. If your demand is uncertain, that inventory is a cost, not a saving. No minimum order quantity lets you run one prototype first and confirm the process before committing to a production run.
