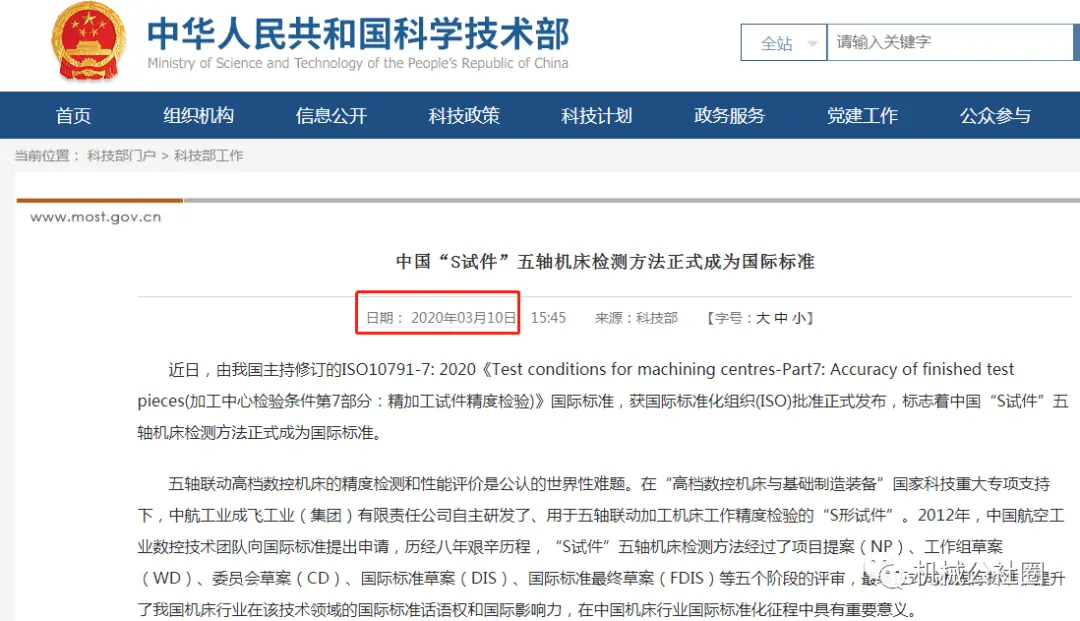

A five-axis linkage machine tool can pass a static ballbar check and still cut a bad surface. The reason is simple: static tests move one axis at a time, while a real part moves all five at once. The S-type part was written into the ISO 10791-7 acceptance work for exactly that gap. Its surface is a continuous curve, so the tool path asks X, Y, Z and both rotary axes to change together across the whole cut.

The part is not a production component. It is a measuring artifact. The geometry removes straight-line travel and forces the controller to interpolate through changing rotary angles. Any mismatch between the commanded point and the actual tool tip shows up as a form error on the finished surface, not as an alarm on the screen.

For a shop buying capacity, this matters because two machines with the same published tolerance can behave very differently here. One holds ±0.005 mm on the S curve. The other drifts 0.03 mm at the ends of the arc, where the rotary axis reverses. The S-type test is what separates them.

Test pieces are usually cut in aluminium such as 6061 or 7075, then measured on a CMM. That keeps the cutting load low, so the error you measure comes from the machine and the controller, not from tool deflection.

• 1
  Simultaneous motionAll five axes interpolate through the cut, unlike a ballbar circle test.
• 2
  Form error, not size errorDeviations show as surface shape, so a CMM is needed to quantify them.
• 3
  Controller behaviour includedServo tuning, look-ahead and rotary reversal all feed into the result.

Five error families dominate the result. First is geometric error: squareness between linear axes, and the offset between the rotary axis centerline and the spindle. Second is rotary positioning error, including backlash when a table reverses direction. Third is dynamic error, which is how far the tool lags behind the command during fast direction changes.

Fourth is the kinematic model inside the controller. A five-axis machine has parameters that describe where each rotary axis sits in space. If those numbers are slightly off, the controller tilts the table to a slightly wrong angle, and the tool tip misses the intended point. This error is invisible on a three-axis machine because there are no rotary axes to model.

Fifth is thermal drift. The part is cut over tens of minutes, and the spindle and linear ways warm up. A machine that cuts a clean S at minute five can show a 0.01 to 0.02 mm shift at minute forty. Running the test twice in one day tells you whether the machine has warmed into a stable state.

So the S-type result is a combined number. When it is out of spec, the next job is to isolate which of the five families is responsible, using ballbar runs, rotary calibration and a test cut after a warm-up cycle.

• 1
  GeometricSquareness and rotary centerline offset relative to the spindle.
• 2
  KinematicController parameters that map rotary angles to tool-tip position.
• 3
  Dynamic and thermalServo lag during reversals, plus drift as the machine warms up.

The test is a light cut in aluminium. It does not load the spindle heavily, and it does not push the machine to its torque limit. A machine that passes cleanly may still show deflection when you cut 17-4PH or Ti-6Al-4V with a long tool. Treat the S-type result as a check on the motion system, not on the whole cutting process.

Workpiece size is another limit. The standard test piece is small. Its geometry does not excite the errors that appear when a large part swings far from the rotary center, where small angular errors become large linear ones. For a part 400 mm across, an angular error of 0.01° moves the edge by roughly 0.07 mm. The test piece will not show that.

Cutting time is also short. Thermal drift and tool wear across a six-hour run are outside the scope of the test. If your production runs are long, ask for a repeat test after a full warm-up cycle rather than a cold single pass.

Finally, the test says nothing about setup repeatability in your own fixture. A machine can be perfect and the job still drifts because the fixture locates on a rough cast surface. Check the fixture and the work offset routine before blaming the machine.

• 1
  Light cut onlyAluminium test pieces do not represent high-load cutting.
• 2
  Small envelopeErrors that grow with part radius stay hidden.
• 3
  Short runThermal drift over hours is not covered.

At GreatLight we treat the S-type cut as one gate among several, not as the only proof. Our 16 simultaneous 5-axis machining centers are checked with a test cut after installation, after any collision repair, and after a rotary axis service. The part is measured on a CMM and the form error is recorded against the machine history.

For production parts, we run a first-article inspection that matches the drawing callouts. That covers profile, position and surface finish at the features that matter, not just on a test curve. Wall sections, bore-to-bore position and sealing faces get measured on the same setup that made them.

Our general machining tolerance is ±0.005 mm, with surface finish down to Ra 0.2–0.8 μm when a drawing calls for it. Those numbers only hold if the motion system is healthy, which is why the test cut and the machine history stay linked.

If a job needs a machine envelope larger than the test piece, we say so up front and plan the check around the part, not around the standard artifact. A Ø400 mm rotary table and travels up to 4,000 × 400 × 150 mm cover most of the work we quote, but the verification plan follows the part.
