OECHSLER uses 3D printed shock-absorbing fabric to create travel backpacks
A German manufacturer replaced foam padding with a printed elastomer lattice. This page explains the mechanics behind that lattice, the print parameters that control its feel, and where the approach stops making sense. Written for engineers and sourcing teams who need to judge whether printed cushioning belongs in their own product.

In this article
- 1
- 2
- 3
- 4
- 5
- 6
What OECHSLER uses 3D printed lattice fabric to replace
OECHSLER uses 3D printed shock-absorbing fabric to create travel backpacks, which means a lattice of elastomer struts now does the job that closed-cell foam did for decades. The change is not cosmetic. Foam absorbs energy by crushing cells permanently. A printed lattice absorbs energy by bending struts elastically, then returning to its original shape.
That difference matters to anyone who has opened a five-year-old backpack and found the shoulder straps flattened into cardboard. Foam loses roughly a third of its thickness after repeated compression cycles at body weight. An elastomer lattice printed at 0.6 mm to 1.2 mm strut diameter holds its geometry far longer, because the deformation stays below the yield point of the material.
There is a tradeoff. Foam is cheap, isotropic, and forgiving of a bad CAD model. A lattice is none of those things. Every strut carries a defined load path, so a poorly placed node creates a stress riser that tears after a few thousand cycles. The engineering effort moves from choosing a foam density to designing the cell.
For engineers evaluating this route, the question is not whether printed cushioning works. It is whether your product has a load profile stable enough to justify the design work and the higher per-part cost.
- 1FoamCrushing deformation, low cost, degrades with cycles
- 2Printed latticeElastic deformation, higher cost, geometry holds
- 3HybridLattice in high-load zones, foam elsewhere
How the lattice geometry controls shock absorption
A shock-absorbing lattice works like a spring array, not like a solid. Each unit cell has a strut angle, a strut diameter, and a node spacing. Those three numbers set the stiffness. Change the strut diameter from 0.8 mm to 1.2 mm and the cell stiffness rises roughly with the fourth power of diameter. Small print changes produce large feel changes.

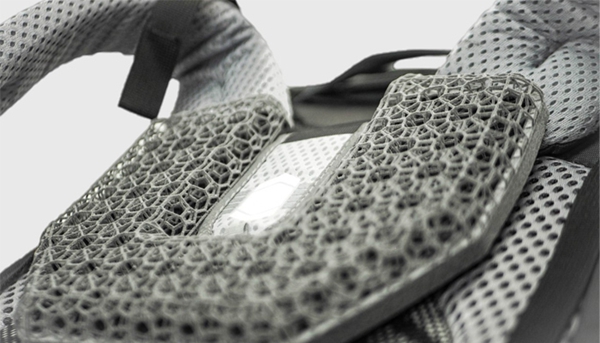

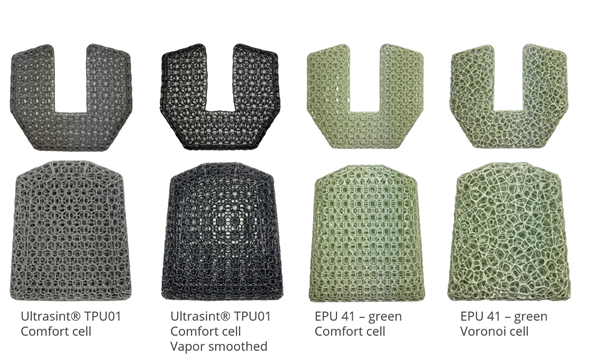

Most printed cushioning uses one of three cell types. A body-centered cubic cell is soft and easy to print. A diamond cell is stiffer and better under shear. A re-entrant auxetic cell gets wider when pulled, which helps it wrap a curved shoulder strap without buckling. For a backpack strap, the auxetic option often wins because the pad must bend around the body.
Cell size relative to pad thickness sets the number of deformation layers. A 12 mm pad with 4 mm cells gives three layers, which is enough for progressive stiffening: soft at light load, firm at heavy load. A 12 mm pad with 12 mm cells gives one layer and a snappy, less comfortable response.
Print orientation is the silent variable. Struts printed at a shallow angle to the build plate carry load along their layer lines and delaminate early. Rotating the part in the slicer by 30 to 45 degrees often doubles fatigue life without changing a single CAD dimension.
- 1Strut diameter0.6–1.2 mm typical; stiffness scales steeply
- 2Cell typeBCC soft, diamond stiff, auxetic for curves
- 3Layer countThree or more layers gives progressive stiffening
- 4OrientationAvoid shallow strut angles to the build plate
Print parameters that decide whether the pad survives
Material choice comes first. Thermoplastic polyurethane at 85A to 95A Shore hardness covers most wearable cushioning. Softer grades feel better but sag under a 15 kg load. Harder grades resist creep but transmit impact. For a travel backpack carrying 10 kg to 20 kg, 90A is a reasonable starting point.
Layer height has an outsized effect on fatigue. A 0.2 mm layer height gives strong interlayer bonding and a smooth strut surface. Pushing to 0.3 mm speeds the print by a third but leaves voids between roads that crack under cyclic load. If the part cycles more than 10,000 times, stay at 0.15 mm to 0.2 mm.
Infill density in a lattice is not like infill in a solid part. The lattice is the part. You print at 100 percent of the lattice geometry and control density by cell design, not by slicer infill percentage. Turning infill down to 40 percent just removes struts and creates random voids.
Cooling and print speed interact with strut diameter. Thin struts below 0.6 mm need slower speeds and more cooling or they wobble. Thick struts above 1.5 mm trap heat and stay soft in the core, which shows up as a permanently compressed pad after a few weeks of use.
- 1Shore hardness85A–95A for wearable cushioning; 90A is a safe start
- 2Layer height0.15–0.2 mm for parts that cycle heavily
- 3Lattice densitySet by cell design, not slicer infill percentage
- 4Strut rangeBelow 0.6 mm wobbles; above 1.5 mm traps heat
How to test a printed cushion before tooling up
Build a compression test rig before you print a full strap. A simple setup with a load cell and a stepper-driven platen costs less than a single production mold. Cycle the pad 10,000 times between 0 N and 300 N and log the force-displacement curve every 1,000 cycles.
Watch for three failure modes. First, permanent set: the pad does not return to its original height. Anything above 5 percent set after 10,000 cycles means the struts are yielding. Second, delamination between layers, which shows as a horizontal split at a node. Third, node fracture, where two struts meet and the stress concentrates.
If the curve shifts to the right, the pad is stiffening, which usually means the material is aging or the cells are compacting. If it shifts to the left, the pad is softening, which means fatigue cracks are forming. Both are disqualifying for a product with a multi-year warranty.
Test at the temperature your product will see. A pad that feels perfect at 22 °C can turn glassy at −5 °C and transmit every bump through the strap. Order samples in two hardness grades and test both before committing.
- 1Cycle target10,000 cycles at 0–300 N for a strap pad
- 2Set limitAbove 5 percent permanent set is a fail
- 3TemperatureTest at the coldest and hottest use conditions
When printed cushioning is the wrong answer
Printed lattices lose on cost per part at volume. A foam pad costs cents. A printed pad costs dollars, and the gap does not close with scale the way machined metal does, because print time scales linearly with part volume. Above roughly 50,000 units a year, foam or molded silicone usually wins on total cost.
They also lose when the load path is unpredictable. A backpack strap sees a fairly repeatable load. A general-purpose bumper on a tool that gets dropped at random angles does not. Random load paths force you to over-design every strut, which removes the weight advantage that made the lattice attractive.
Size is a constraint too. Large lattice parts take long to print and warp as they cool. If the cushion is longer than about 300 mm, consider splitting it into segments or switching to a molded elastomer with a printed surface layer.

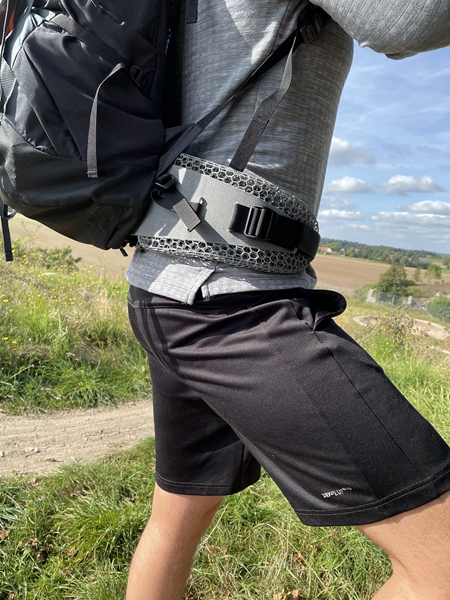

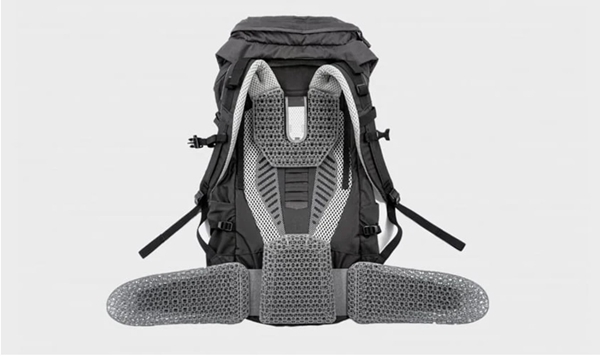

There is a middle path. Use printed lattices only where the load is highest, such as the shoulder strap root and the lumbar contact zone, and keep foam in low-load areas. This keeps the comfort benefit while holding cost down.
- 1High volumeAbove 50,000 units a year, foam or molded silicone wins
- 2Random loadsOver-design removes the weight advantage
- 3Large partsAbove 300 mm, segment or switch process
Printed lattice vs foam vs CNC-machined pad
Use this table to pick a process based on load profile, volume, and geometry.
| Criterion | Printed lattice | Foam | CNC-machined pad |
|---|---|---|---|
| Best for | Repeatable load paths | High volume, simple pads | Rigid structural pads |
| Typical unit cost | Dollars per part | Cents per part | Tens of dollars per part |
| Volume sweet spot | 1 to 50,000 units | Above 50,000 units | 1 to 500 units |
| Geometry freedom | Very high, internal cells | Low, uniform density | Medium, no internal cells |
| Fatigue behavior | Elastic recovery if designed well | Permanent set over years | No recovery, rigid |
| Tooling needed | None | Mold or die | None |
| Lead time for first part | Days | Weeks for tooling | Days |
| Main risk | Node fracture, delamination | Compression set | Weight, no cushioning |
The verdict on printed cushioning
If your load path repeats and you need the pad to survive more than a few thousand cycles, print the lattice. If you need millions of cheap pads and comfort is secondary, mold them. For everything between, print the high-load zones and fill the rest with foam.
Questions engineers ask about printed cushioning
Can a printed lattice really replace foam in a load-bearing strap?
Yes, if the load path is predictable and the strut geometry is tuned to that load. A well-designed lattice at 90A Shore hardness handles a 15 kg to 20 kg backpack load without permanent set.
It fails when the load path shifts. A strap that gets twisted, crushed, or snagged repeatedly will concentrate stress at a few nodes and crack there.
What is the minimum strut diameter that still prints reliably?
Below 0.6 mm, struts wobble during printing and the nozzle drags them sideways. Above 1.5 mm, the core stays hot and soft, and the pad compresses permanently after a few weeks.
The workable band for TPU on a well-tuned printer is 0.6 mm to 1.2 mm.
How many cycles should a prototype survive before I trust the design?
Run at least 10,000 compression cycles between 0 N and 300 N, and check the force-displacement curve every 1,000 cycles.
Permanent set above 5 percent, or a visible shift in the curve, means the design is not ready for a multi-year warranty.
Does print orientation matter for fatigue life?
It matters more than most engineers expect. Struts printed at a shallow angle to the build plate carry load along layer lines and separate early.
Rotating the part 30 to 45 degrees in the slicer often doubles fatigue life with no CAD change.
When should I switch from printed lattice to CNC-machined parts?
Switch when the pad must be rigid, when it carries structural load, or when internal cells are not needed. A machined pad holds ±0.005 mm tolerances and takes surface finishes that printing cannot match.
Printed lattices win only when cushioning and geometry freedom matter more than rigidity.
Can I mix printed lattice and machined metal in one assembly?
Yes, and it is common. A machined aluminum bracket sets the mounting geometry, and a printed TPU lattice handles the cushioning.
Keep the interface flat and give the lattice a mechanical key so it does not shear off the metal under side load.
