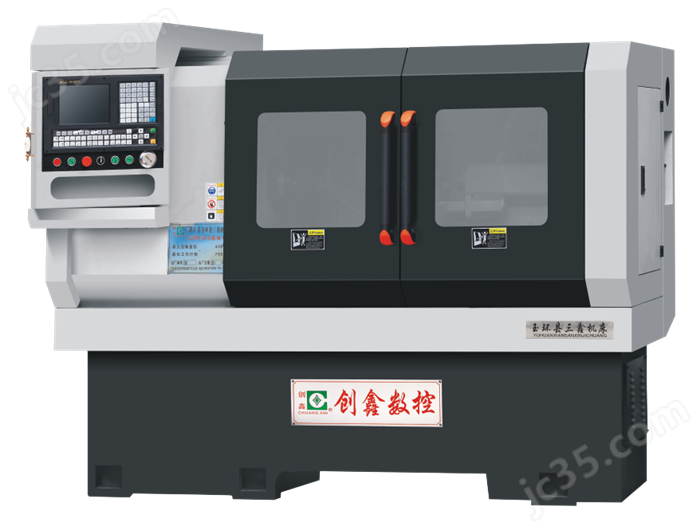

CNC Automatic Lathes: Market Trends, Price Trends and a Selection Guide
This page is for engineers and sourcing staff who need to buy turned parts, or decide whether a job belongs on a CNC automatic lathe at all. We cover what moves the price, which machine class fits which part, and the checks that separate a real quote from a guess.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Which turning route fits your part
Match the part to the machine class before you discuss price.
| Part and volume | Machine class | Typical tolerance | Watch out for |
|---|---|---|---|
| Ø2–20 mm, 50k+ parts/yr | Cam automatic lathe | ±0.01 mm | Hard to change once cams are cut |
| Ø2–32 mm, 1k–50k parts/yr | CNC sliding headstock | ±0.005 mm | Needs straight, clean bar ends |
| Ø20–65 mm, batch work | CNC fixed headstock | ±0.01 mm | Bar whip above 3,500 rpm |
| Ø65–120 mm, low volume | CNC chucker with bar feeder | ±0.015 mm | Part-off burr on thin walls |
| Mixed family, 200–2,000 off | Mill-turn center | ±0.01 mm | Higher hourly rate |
| Prototype, 1–50 off | 3-axis lathe, bar or billet | ±0.02 mm | Manual load time dominates |
What actually moves the price of CNC automatic lathes
Machine list price is the least useful number in a purchasing conversation. On a real part, the cost sits in bar stock, cycle time, tool wear and inspection. Two shops can run the same Ø12 mm 303 stainless part on comparable CNC automatic lathes and land 40 percent apart on unit price, because one runs a 22 s cycle and the other runs 34 s.
Cycle time comes from the part, not the brochure. A part with two cross holes, a slot and a 0.5 mm wall will always run slower than a plain bushing. The machine class sets the floor; the feature list sets the actual number. Send a drawing with tolerances and a material callout, and the cycle estimate becomes something you can argue about.
Material availability is the second lever. 303 and 304 stainless, 6061 aluminium and C36000 brass are stocked in most service centers in standard bar diameters. Inconel, Ti-6Al-4V and beryllium copper usually need to be ordered, and that adds days before the machine is even loaded. On a 3–5 day shipping promise, material lead time is often the binding constraint, not machining.
Tooling cost spreads over the run. On 200 parts, a form tool and a custom collet are a visible share of the quote. On 20,000 parts, the same tooling is noise. This is why a shop should quote the same drawing at two volumes. If the low-volume price looks strange, ask what setup is being amortized.
- 1Bar diameter drives machine classA Ø4 mm part does not need the same spindle as a Ø60 mm part.
- 2Feature count drives cycle timeCross holes, slots and thread milling add seconds each.
- 3Stock material drives the calendarExotic alloys add days before setup starts.
Market trends behind CNC automatic lathes in 2026
The clear trend is toward smaller bar capacity with more axes. Sliding-headstock machines in the Ø2–32 mm range now cover work that used to need two operations on separate machines. That matters to buyers because a part that used to be quoted as two setups can now be quoted as one, and one setup is cheaper and more repeatable.
The second trend is bar feeder automation reaching lower price points. Automatic bar loading is no longer a premium option reserved for high-volume shops. For a 500-part run, unattended night shifts change the economics. The machine keeps cutting after the operator leaves, and the next morning there is a full bin of parts.
Third, inspection is moving in-process. Shops that run lights-out need a way to catch drift without an operator standing at the spindle. Probing and tool-life monitoring reduce scrap on long runs. Buyers should ask how the shop detects a worn insert at hour six of an unattended run.
Prices for standard machine classes have been fairly stable. What changes faster is the price of the parts, because cycle time and automation keep improving. When a supplier quotes a turned part today and again in eighteen months, the difference usually comes from process, not from the machine invoice.
- 1More axes in less floor spaceOne setup replaces two operations on many small parts.
- 2Automation is no longer premiumBar feeders and night shifts now pay off at lower volumes.
- 3In-process checks enable lights-outProbing and tool-life alarms hold tolerance without an operator.
When a CNC automatic lathe is the wrong answer
Automatic lathes are built around a bar. If the part has to come from a casting or a forging, the bar feeder is irrelevant and a chucker or a mill-turn center is the honest choice. Pushing a casting onto a bar-fed machine means extra fixturing and a slower cycle, and the quote will show it.
Thin walls are the second limit. A Ø30 mm tube with a 0.4 mm wall will deflect during part-off and during any secondary operation. Sometimes the answer is a sacrificial support, sometimes it is a different process. A shop that promises a clean 0.4 mm wall without discussing support is not being straight with you.
Very low volume with tight tolerance is the third case. A single Ø8 mm part at ±0.005 mm may take a full setup, a test cut and a gauge study. That is a real cost. It is not a reason to refuse the job; it is a reason to expect a setup line in the quote rather than a pure per-part price.
Finally, geometry that needs long reach or deep pockets may not fit the turning envelope at all. Turret travel and tool clearance are finite. Send the 3D model, not just the drawing, and let the shop check the envelope before you commit.
- 1Castings and forgingsBar-fed machines assume bar stock.
- 2Walls under 0.5 mmDeflection shows up at part-off.
- 3Long reach, deep pocketsCheck the turning envelope first.
Tolerance, inspection and the paperwork behind CNC automatic lathes
Tolerance claims mean nothing without a gauge. When a shop says ±0.005 mm, ask which feature, which gauge, and how often the feature is checked. On a long unattended run, the practical question is how many parts get measured per hour. If the answer is one part per shift, the tolerance is being assumed, not controlled.
Certification matters more than it used to. ISO 9001:2015 covers the quality system. IATF 16949:2016 is what automotive and EV buyers ask for. ISO 13485:2016 shows up on medical device work. ISO 27001:2022 covers information security, which matters when you send CAD files and drawings to an overseas supplier.
Ask what happens to the inspection data. A report on request is normal. A shop that keeps in-process records and can send them with the shipment saves your incoming inspection time. On a first article, request the dimensional report with the parts, not after a rejection.
Confidentiality is a purchasing issue, not a legal footnote. Uploads should be handled as confidential by default, and an NDA should be available on request before you send the full model. If a supplier hesitates on that, treat it as a signal.
- 1Name the gaugeMicrometer, CMM or air gauge; each has a different uncertainty.
- 2Match the certificate to the industryIATF 16949 for automotive, ISO 13485 for medical.
- 3Ask for first-article data with the partsNot after the parts are rejected.
Volume, lead time and how to read a quote
Lead time on a bar-fed job has three parts: material, setup and run. Material is often the longest. Standard stainless and aluminium bar can move in a day or two. Exotic alloys take longer. Setup on a CNC automatic lathe is faster than on a cam machine, but it is still hours, not minutes. Run time is simply parts times cycle time divided by machine hours.
A 3–5 day shipping window is realistic for standard materials on a short run once setup is done. That window is not a promise that every part will be shipped in three days. Ask the supplier to state which materials and which quantities fall inside the window. A vague answer usually means the window is aspirational.
Volume breaks are the fastest way to test a quote. Ask for the same drawing at 50, 500 and 5,000 pieces. If the price per part barely moves between 50 and 5,000, the setup cost is being hidden somewhere else. If the 50-piece price looks high and the 5,000-piece price looks normal, that is a well-built quote.
Setup should be a separate line item. When setup is folded into unit price, you cannot tell whether you are paying for the machine or for the fixturing. A transparent quote lists material, setup, machining rate and any finishing. Compare quotes line by line, not on the total.
- 1Ask for three volume breaks50, 500 and 5,000 pieces on the same drawing.
- 2Separate setup from unit priceYou cannot audit a blended number.
- 3Pin the lead-time window to a materialStandard bar and exotic bar behave differently.
Step by step: selecting a supplier for turned parts
Work through these in order. Each step removes a class of bad quotes.
- 1Classify the part firstWrite down bar diameter, material, tightest tolerance, thinnest wall and annual volume. If the bar diameter is under Ø32 mm and the volume is above 1,000, a CNC automatic lathe is a candidate. If the part starts as a casting, stop here.
- 2Send a drawing with real tolerancesInclude GD&T, surface finish and any critical feature. Mark the datum. A drawing with ±0.1 mm on everything and one ±0.01 mm bore tells the shop where to spend time. If everything is tight, expect a higher quote and slower cycle.
- 3Request the quote at three volumes50, 500 and 5,000 pieces. Watch how setup amortizes. A flat curve often hides setup inside the unit price. Ask for setup as a separate line.
- 4Check the inspection planAsk which gauge measures the critical feature, how many parts per hour are checked, and whether an inspection report ships with the parts. On thin walls and tight bores, request a first-article report.
- 5Confirm material and lead time togetherState the alloy and the temper. 6061-T6 and 6061 behave differently. Ask how many days the bar takes to arrive, then add setup and run. Do not accept a lead time without a material attached.
- 6Ask about finishing earlyAnodizing, plating and passivation add days and can change dimensions. A ±0.005 mm bore that gets hardcoat anodized will not stay ±0.005 mm. Raise finishing before the quote, not after.
- 7Agree on documentationMaterial certs, inspection reports and an NDA if the design is sensitive. Uploads should be confidential by default. Get the paperwork agreed before the first cut, not after the first shipment.
Questions buyers ask about CNC automatic lathes
How many parts do I need before a CNC automatic lathe makes sense?
It depends on the part more than the number. A simple Ø10 mm spacer can be economical at 500 pieces on a bar-fed CNC lathe because setup is short. A part with four cross holes and a tight bore needs more volume to absorb setup and tooling.
As a rough rule, below 100 pieces a manual or 3-axis lathe is often cheaper per part. Above 1,000 pieces, a bar-fed CNC automatic lathe usually wins. Between those, ask for both quotes and compare the setup line.
Why does the same drawing come back with very different quotes?
Cycle time assumptions are the usual cause. One shop assumes a 22 s cycle, another assumes 34 s. Over 5,000 parts, that is hours of machine time.
Material sourcing is the second cause. A shop with the bar in stock quotes differently from one that has to order it. Ask each supplier to state the cycle time and the material source they assumed.
What tolerance can a bar-fed CNC automatic lathe hold in production?
On a stable process with a clean bar and a rigid setup, ±0.005 mm is achievable on a turned diameter. That is not the same as holding ±0.005 mm on every feature of every part without checking.
In production, expect the shop to hold tighter on the features that are gauged frequently and looser on cosmetic dimensions. Ask which features carry the tight tolerance and how they are measured.
Does anodizing or plating change the dimensions?
Yes. Hardcoat anodizing builds a layer that can shift a diameter by a few thousandths of a millimeter or more, depending on the coating thickness. Plating does the same in the other direction if it is a build-up.
If a bore or a shaft has a tight tolerance and also a coating, state it in the RFQ. The shop can then machine to a pre-plate dimension. This is one of the most common causes of a rejected first article.
What should be in the inspection report?
At minimum, the measured values for the critical features, the gauge used and the date. On a first article, include all dimensions called out on the drawing, not just the tight ones.
On production runs, a sampling plan is normal. Ask how many parts per hour are checked and what triggers a process stop. A report that shows one part per shift for a tight bore is not real process control.
How do I protect a design when I send it overseas?
Send only what the shop needs to quote. A profile and a few critical dimensions are enough for a first pass. Keep the full model until an NDA is signed.
Uploads should be treated as confidential by default, and an NDA should be available on request. If a supplier will not sign one before seeing the model, that is useful information about how they handle drawings.
Quote your turned part against a real process plan
Send a drawing and a target volume. We will come back with a process route, a cycle estimate and a quote at up to three quantities, within 12 hours.
12-hour quote±0.005 mm toleranceNo MOQ100% inspection
