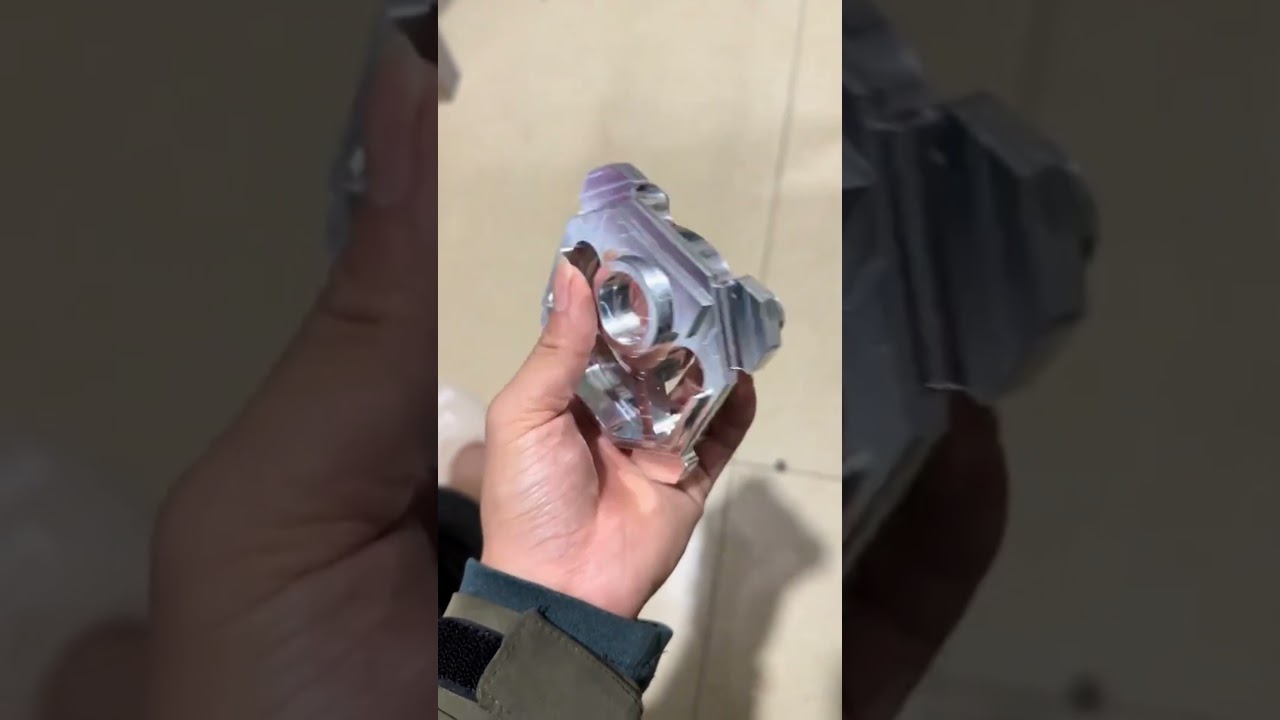

What a Gleaming CNC Workpiece Really Tells You
A gleaming CNC workpiece looks good in a photo, but what does the shine actually prove? This page explains why light reflects differently off machined metal, which process parameters create that look, and when a mirror finish is the wrong call. Written for engineers and buyers who need to judge a part from its surface, not from a caption.

Why a Gleaming CNC Workpiece Reflects Light That Way
Light does not care how much a part cost. It only cares about the shape of the surface it hits. A gleaming CNC workpiece reflects light in a tight, narrow band because the surface irregularities are smaller than the wavelength of visible light, roughly 0.4 to 0.7 μm. When those irregularities grow larger than that, light scatters in many directions and the part looks matte.
The scale that matters here is Ra, the arithmetic mean roughness. It averages the height of peaks and valleys along a measured line. Ra 0.2–0.8 μm reads as bright and near-mirror on aluminum. Ra 0.8–1.6 μm still catches light in a soft sheen. Ra 1.6–3.2 μm is a normal as-machined surface, and most photos of shiny parts fall in that middle band once lighting is added.
Here is the part most buyers miss. Polishing, bead blasting, or anodizing can change how the surface looks without changing how it was cut. A part can look like glass because a tumbler ran over it for six hours, while the underlying geometry is still loose. Shine is a clue, not a certificate.
So we treat the gleam as a starting point for questions. Which tool left that pattern? Was the finish measured or just photographed? Does the drawing call for that Ra, or is it decoration applied after the fact? The answers tell you more than the reflection.
- 1Ra sets the shineBelow roughly 0.8 μm, aluminum starts to look bright in normal light.
- 2Post-processing hides the cutTumbling or plating changes appearance without changing the toolpath.
- 3Measure, do not eyeballA profilometer gives a number. A photograph gives an impression.
Which Cutting Parameters Carve That Finish
The surface left by a cutter is a copy of the tool path, scaled down. Feed per tooth, spindle speed, and tool nose radius set the height of the cusps between passes. Raise the feed too far and those cusps grow; the part still cuts clean, but the light breaks up. This is why two shops running the same program can ship parts that look different.
Tool geometry matters as much as the numbers. A sharp, polished carbide insert with a large nose radius and a positive rake angle shears aluminum instead of smearing it. A worn edge rubs the material, leaves a torn surface, and shows up as a dull patch under a lamp. On 6061-T6 we often run finishing passes at 0.05–0.15 mm depth with feeds tuned to the nose radius, then confirm with a profilometer.
Rigidity decides whether the finish survives the whole part. Chatter from a long overhang or a loose vise leaves a regular ripple pattern, and no amount of polishing removes the cause. On our 16 simultaneous 5-axis machining centers, we shorten tool overhang and support thin walls before chasing a better number. A stable setup at Ra 1.6 μm beats an unstable one that reads Ra 0.8 μm on the first 20 mm and Ra 3.2 μm at the end.
Coolant and chip evacuation round out the picture. Aluminum needs flood coolant or high-pressure air to clear chips from the cut zone. Recut chips scar the wall they rub against, and the damage shows as random scratches rather than a repeating pattern. If the scratches run in inconsistent directions, look at chip clearance before blaming the tool.
- 1Feed per toothThe main lever on cusp height between passes.
- 2Nose radius and rake angleSharp geometry shears; a dull edge rubs and tears.
- 3Setup rigidityChatter leaves ripples that polishing cannot fix.
- 4Chip evacuationRecut chips produce random scratches, not patterns.
Machined Shine versus Polished Shine
There are two ways to reach a bright surface, and they behave differently in service. A machined finish is produced by the cutter itself, so the tool marks are shallow and aligned with the direction of travel. A polished finish removes material from the top of the peaks with abrasive media, which flattens the profile but can round edges and blur sharp internal corners.
For sealing faces, bearing bores, and sliding surfaces, the machined route is usually the right one. It keeps the geometry the drawing calls for and leaves a surface that holds lubricant in a controlled way. An O-ring groove polished by hand can lose the corner radius that makes the seal work. A bore polished after machining can go out of round without anyone noticing until assembly.
Polishing earns its place on visible covers, optical housings, and parts where appearance is the function. It is also the right answer when a customer wants a specific cosmetic grade across a batch, since tumbling and vibratory finishing apply evenly to complex shapes. The trade-off is that it hides the evidence of the cut.
When we quote a part, we ask which of the two the drawing intends. If the callout is only Ra, either route can satisfy it. If the callout includes a corner radius, a flatness band, or a sealing function, the machined finish stays under our control and the polished option needs a closer look.
- 1Machined finishTool marks align with travel; geometry stays predictable.
- 2Polished finishFlattens peaks, rounds edges, hides the original cut.
- 3Sealing and sliding facesUsually better left as-machined.
How Material Choice Changes the Look
Aluminum and stainless steel do not shine the same way at the same Ra. Aluminum 6061 and 6082 cut easily and reflect brightly because the material is soft and the chips clear well. Stainless 304 and 316 work-harden at the cutting edge, so a light finishing pass can burnish the surface instead of cutting it, which produces a hard, bright skin over a rough profile.
Titanium behaves differently again. Ti-6Al-4V conducts heat poorly, so heat builds at the edge and the tool dulls faster. A gleaming titanium surface usually means a fresh tool, low cutting speed, and generous coolant, not a lucky pass. When the finish drops off partway through a run, we change the insert before the surface degrades further.
Copper alloys and brass are the easiest to bring to a high shine. C36000 free-cutting brass machines to a near-mirror surface with standard tooling. Beryllium copper and C101 are softer and tend to smear, so the tool needs to be sharp and the depth of cut small. Smearing looks bright in a photo but leaves a torn microstructure that can fail a dimensional check later.
Plastics follow their own rules. POM and ABS cut cleanly and take a fine finish with sharp single-flute tooling and high spindle speed. PEEK and carbon fibre are abrasive, so tool wear drives the finish. On carbon fibre, a dull tool pulls fibers instead of cutting them, and the result is a fuzzy surface that no polishing will fix.
- 1AluminumSoft and bright; clears chips easily at finishing depth.
- 2StainlessWork-hardens; a light pass can burnish, not cut.
- 3TitaniumHeat at the edge; shine depends on a fresh tool.
- 4Plastics and compositesSharp tooling decides whether fibers are cut or pulled.
When a Gleaming Finish Is the Wrong Call
A high shine is not free. Fine finishing passes run slower, use more tool changes, and sometimes require a second operation on a separate machine. On a bracket that bolts inside a machine frame, that cost buys nothing. We have seen drawings call for Ra 0.4 μm on a surface that never touches anything, and the money would have been better spent on a tighter tolerance elsewhere.
There are also functional surfaces where a smooth finish hurts. Some castings and bonded joints need a controlled roughness for adhesive to grip. A mirror finish on an aluminum plate can reduce bond strength compared with a bead-blasted surface. The same applies to certain painted parts, where a slightly rough substrate helps the coating adhere.
Then there is inspection. A polished surface hides small defects, including porosity, hairline cracks, and the faint witness marks left by a previous operation. For safety-critical parts in aerospace or medical devices, we often prefer a machined or bead-blasted finish because the surface tells the inspector what happened.
The practical rule is to match the finish to the function. If the surface seals, slides, or is measured, specify it and hold it. If the surface is only seen, pick a finish that looks consistent across the batch and skip the rest. Shine is a tool, not a goal.
- 1Hidden surfacesA fine finish inside a frame is paid for and never seen.
- 2Bonded jointsAdhesives need a controlled roughness to grip.
- 3Critical inspectionPolishing can hide porosity and hairline cracks.
Surface Finish Callouts and What They Suit
Ra values are typical ranges for aluminum and stainless. Confirm the callout against the part function before quoting.
| Ra range | Typical look | Where it fits | Watch out for |
|---|---|---|---|
| Ra 0.2–0.8 μm | Near-mirror, tight reflection | Sealing faces, bearing bores | Slower passes, higher cost |
| Ra 0.8–1.6 μm | Bright sheen, visible tool path | Sliding surfaces, visible covers | Chatter shows up clearly |
| Ra 1.6–3.2 μm | Matte as-machined | Brackets, frames, hidden faces | May not meet cosmetic spec |
| Bead blasted | Even, low-glare texture | Bonded joints, painted parts | Removes fine witness marks |
| Polished by hand | Uniform cosmetic shine | Visible housings, consumer parts | Rounds edges, blurs corners |
Match the finish to the function
If the surface seals, slides, or is measured, specify a machined Ra and hold it. If the surface is only seen, choose a finish that repeats across the batch and put the savings into tolerance or lead time.
Questions engineers ask about surface finish
Can you tell if a part was machined well just by looking at it?
No. A bright surface tells you the peaks are small, not that the dimensions are correct. A part can be polished to a mirror and still be out of round.
Use the shine to start a conversation. Ask for the Ra value, the inspection report, and which operation produced the finish.
What Ra should I put on a drawing?
Start from the function. Sealing and sliding surfaces usually need Ra 0.2–0.8 μm. Visible covers are fine at Ra 0.8–1.6 μm. Hidden faces can stay as-machined at Ra 1.6–3.2 μm.
Adding a tighter callout than the function needs raises cost and lead time without improving the part.
Why does the finish change partway through a batch?
Tool wear is the usual cause. A fresh insert cuts cleanly, then the edge dulls and starts rubbing. The surface gets brighter or rougher depending on the material.
Chatter from a shifting setup does the same thing. If the change appears at a consistent depth or feature, look at the setup before the tool.
Does anodizing change the surface finish?
It changes appearance more than it changes texture. Anodizing builds a thin oxide layer that can brighten or darken the part and flatten color variation.
The underlying Ra stays close to what the cutter left. If the drawing calls for a specific Ra, that value should be measured before the coating goes on.
Can you hold ±0.005 mm and Ra 0.8 μm on the same part?
Yes, on stable setups and with the right tooling. The combination is common on sealing bores and bearing seats.
It helps to keep the finishing pass light and to measure both the dimension and the surface. We inspect 100% before shipment and can supply reports on request.
What is the finest finish you can produce?
Our tightest listed surface range is Ra 0.2–0.8 μm, reached with fine finishing passes and controlled tooling. Below that, polishing or lapping takes over.
Tell us the function and we will say whether the number is realistic for the geometry, the material, and the batch size.
