Laser Treatment: A Huge Jump in Tool Treatment
A process-level look at laser treatment for cutting tools and hard-material parts. You will see how pulsed ablation removes diamond and CBN, which geometries it suits, and when grinding or EDM still wins.
How Laser Treatment Removes Hard Material
Laser treatment works by focusing short pulses onto a small spot. The absorbed energy heats a thin surface layer past its vaporization point in nanoseconds. Material leaves as vapor and fine debris, not as a chip that needs a shear plane. That is the whole reason the process handles polycrystalline diamond (PCD), cubic boron nitride (CBN) and CVD diamond coatings that dull a grinding wheel in minutes.

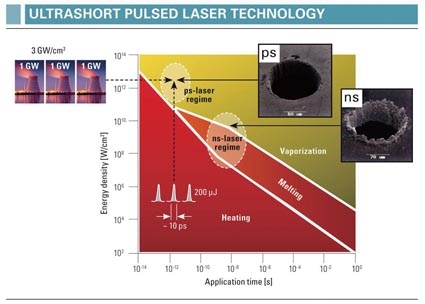

The cut is thermal, so the heat-affected zone matters more than the removal rate. Pulse width in the nanosecond to picosecond range keeps the zone shallow, often a few micrometres. Too long a pulse spreads heat sideways and graphitizes diamond at the edge. Too short a pulse with too much energy per pulse leaves micro-craters that show up later as chipping.
Spot size sets the smallest feature you can hold. A 20–50 μm focus spot resolves a cutting edge radius down to roughly 5 μm, which is why laser treatment can finish a PCD insert edge without a separate lapping step. Below that scale, the beam waist and the motion platform become the limit, not the material.
Because there is no mechanical force, thin and fragile tools survive the process. A 0.5 mm PCD reamer or a CVD-coated drill does not bend or crack on contact, since nothing touches it. The trade-off is time: removal is volumetric and slow compared with grinding a soft steel shank.
Parameters That Decide the Result
Four settings control almost everything: pulse width, pulse energy, repetition rate and spot overlap. Overlap is the one operators underestimate. At 50% overlap you get a continuous kerf; at 80% you get a smooth wall but three times the cycle time and far more redeposited debris.
Assist gas changes the cut as much as the beam does. Compressed air or nitrogen clears molten droplets and limits oxidation on CBN. On PCD, oxygen-rich assist can attack the cobalt binder between diamond grains, so we keep the gas clean and the pulse short.
Focus position is a second hidden variable. Cutting at the focal point gives the narrowest kerf and the steepest wall. Cutting 0.2–0.5 mm above focus widens the kerf and tapers the wall, which is useful for clearing a roughing pass before a finishing pass.
Redeposition is the most common quality complaint. Vaporized material lands back on the surface as a loose layer of diamond or binder. A light bead blast or an ultrasonic bath after laser treatment removes it. If the layer stays, the first cut in service spalls it off and the edge radius jumps.
Where Laser Treatment Fits in a Machine Shop
Laser treatment is a finishing and shaping route, not a replacement for milling. On a PCD face mill, the steel body is still turned and milled to ±0.005 mm. The laser only forms the diamond edge and the chip breaker. Keeping those two jobs separate keeps cost sane.
For a solid CBN insert, laser treatment can cut the edge geometry directly and skip the diamond-wheel grinding pass. Cycle time is often longer, but you avoid wheel wear, dressing and coolant disposal. Shops making small batches of special edge forms tend to prefer it for that reason alone.
Hard-material parts beyond cutting tools also fit. Laser treatment drills cooling holes in turbine blades, trims CVD-coated nozzles and cuts fine slots in ceramic fixtures. The common thread is a hard, brittle surface that resists a rotating cutter.
It does not suit deep pockets in soft steel, high-volume simple holes, or any feature needing a mirror finish across a large area. For those, 3-axis milling, EDM or a dedicated grinder stays cheaper per part.
Limits and Failure Modes to Watch
The main limit is aspect ratio. A laser kerf narrows as it goes deeper, and past roughly 10:1 the wall tapers and the bottom stops clearing. If a feature needs a 0.3 mm slot 5 mm deep, laser treatment alone will struggle; plan a two-sided cut or accept a taper.
Thermal damage is the second risk. On diamond, over-energy turns the surface to graphite, which looks dark and cuts poorly. On steel adjacent to a PCD layer, an over-wide heat-affected zone can soften the braze that holds the tip. Both show up in a hardness or Raman check, not always by eye.
Surface finish from laser treatment is directional. Walls carry fine vertical striations that read as Ra 0.8–1.6 μm. If the drawing calls for Ra 0.2–0.8 μm, add a light lap or polish after. Claiming a mirror finish straight off the laser is not realistic.
Finally, throughput. Removing a cubic millimetre of PCD takes far longer than milling the same volume of aluminium. Laser treatment pays off on small, hard, high-value features, not on bulk stock removal.
Pairing Laser Treatment With CNC Machining
Most parts we see need both. The steel or aluminium body is machined on 5-axis to tolerance, then the hard insert or coating receives laser treatment. Splitting the work this way means the soft geometry is cut at high speed and only the hard surface goes to the slower process.
Fixture design carries the accuracy across the two setups. A common datum, a dowel-pin nest or a reamed bore keeps the laser pass aligned to the milled pocket. Without that, a 20 μm edge offset shows up as an uneven chamfer.
Inspection should match the feature. Edge radius and wall taper need a toolmaker's microscope or a white-light scanner; surface finish needs a profilometer; hardness near the heat-affected zone needs a microhardness traverse. A caliper tells you nothing useful here.
For prototypes, the order matters less and speed matters more. We quote laser treatment and CNC together, with a free DFM review inside 12 hours, so a one-off tool can be tested before anyone commits to a production route.
Laser Treatment vs Grinding vs EDM
Compare the three routes on the features that actually drive cost.
| Factor | Laser treatment | Grinding | EDM / wire |
|---|---|---|---|
| Materials | PCD, CBN, CVD, ceramics | Hardened steel, carbide | Any conductive metal |
| Edge radius | About 5 μm with a 20–50 μm spot | 1–3 μm, best finish | 10–30 μm, recast layer |
| Force on part | None | Radial load, can crack thin tools | None |
| Tool wear cost | No wheel, no wire | Wheel dressing and replacement | Wire consumed per cut |
| Cycle time | Slow for bulk removal | Fast on flats and cylinders | Slow, but deep cuts are fine |
| Non-conductive parts | Yes | Yes, with a suitable wheel | No |
| Best use | Hard edges, small batches, fine slots | Volume flats and diameters | Deep pockets, sharp internal corners |
Which Route to Pick
Pick laser treatment when the feature is hard, brittle, small and low in volume, such as a PCD edge or a CVD-coated nozzle. Pick grinding for volume flats and diameters that need Ra 0.2–0.8 μm. Pick EDM when the part is conductive and the feature is a deep pocket or a sharp internal corner.
Common Questions
Can laser treatment replace diamond-wheel grinding on PCD inserts?
For edge forming and small batches, often yes. The laser shapes the diamond edge and the chip breaker without wheel wear or dressing.
For high-volume inserts needing Ra 0.2–0.8 μm on a flat rake face, grinding is still faster and cheaper per part. Many shops run laser for the edge and grind only the face.
Does the laser leave a heat-affected zone in the diamond?
It leaves a shallow zone, usually a few micrometres, when pulse width stays in the nanosecond range. The visible sign is a dark, graphitized skin.
Keep pulse energy low, use clean assist gas and remove redeposited debris after the pass. A Raman check or a microhardness traverse confirms the zone depth.
What tolerance can laser treatment hold?
Feature position follows the fixture, so ±0.005 mm is achievable when the laser pass is datumed to a milled bore or pin nest.
Edge radius depends on spot size. A 20–50 μm focus spot resolves roughly a 5 μm edge radius; finer than that, the beam waist limits you.
Which materials are a poor fit?
Soft steels and aluminium are a poor fit for bulk removal, since milling is far faster for the same volume.
Deep narrow slots beyond about 10:1 aspect ratio also fight the process because the kerf tapers and the bottom stops clearing.
How do I remove debris left on the surface?
A light bead blast or an ultrasonic bath in a suitable cleaner removes the loose redeposited layer.
Skip this step and the layer spalls during the first cut, which changes the effective edge radius and can cause chipping.
Can laser treatment and CNC machining be quoted together?
Yes. Send the drawing with the hard features marked, and we return a quotation plus a free DFM analysis within 12 hours.
No minimum order quantity applies, so a single prototype and a 10,000-part run go through the same route.
