Key Technologies of the MAKINO MOLD Machining Center
A mold cavity is not a flat plate with holes. It is a deep, thin-ribbed 3D form that must hold size after hardening, polishing, and hundreds of thousands of shots. This page explains what the MAKINO MOLD machining center actually does differently at the spindle, the structure, the thermal loop, and the CAM side, so an engineer or buyer can judge which parts belong on this class of machine and which do not.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
Why a mold cavity is a different machining problem
A mold cavity is a closed 3D form with steep walls, deep ribs, and small corner radii. The tool often reaches 6 to 10 times its diameter below the parting line. At that depth a 6 mm ball nose cutter deflects, chatters, and leaves a witness line that the polisher has to remove by hand. Hand polishing is where most mold schedules slip, so the machine has to cut a finish that needs little or no benching.
Mold materials make this harder. P20 at 30 HRC cuts reasonably. A hardened insert at 52 to 62 HRC does not. Cutting forces rise, tool life drops, and any vibration shows up directly in the surface. High-speed machining with light radial engagement is the usual answer. The machine must spin fast, accelerate fast, and stay geometrically stable while doing it.
Geometry also forces a five-axis move. Draft angles, undercuts, and deep side walls cannot all be reached from three directions. Tilting the tool keeps a shorter, stiffer portion of the cutter in the cut and lets a ball nose run on its side rather than on its tip. That single change cuts both deflection and cycle time on cavity walls.
- 1Deep ribsReach-to-diameter above 6:1 is where deflection starts to matter.
- 2Hardened steelAbove 50 HRC, tool load and vibration control decide the finish.
- 3UndercutsA tilted tool reaches faces a three-axis setup cannot.
Spindle and structural stiffness: where the MAKINO MOLD machining center earns its name
A mold spindle runs two jobs that pull in opposite directions. It needs 20,000 rpm or more for small cutters in finishing, and it needs torque at low speed for roughing a 16 mm insert cutter in a hardened block. The practical compromise is a high-frequency spindle with a ceramic or hybrid bearing set and an oil-air lubrication loop, paired with a rigid tool holder interface such as HSK-A63 or a shrink-fit holder.
Stiffness is not only the spindle. The load path runs from the cutter through the holder, the spindle nose, the ram or column, the linear guides, and into the bed. A machine built for mold work typically uses a box-in-box or bridge structure with a short spindle overhang. Every 100 mm of extra overhang roughly doubles the bending at the tool tip, which is why mold machines keep the Z axis short and move the work instead.
Casting mass matters too. A heavier bed damps the 1,000 to 3,000 Hz chatter that appears when a small cutter engages hard steel. That is why mold machines are often heavier than a general-purpose VMC of the same travel. The weight is not for show. It is the spring in the system that absorbs vibration before it reaches the surface finish.
- 1Speed and torque together20,000 rpm finishing plus low-speed roughing in one spindle.
- 2Short Z overhangKeeps tool-tip deflection under control at full reach.
- 3Damping massHeavy castings push chatter frequencies away from the cut.
Thermal control and motion accuracy in mold finishing

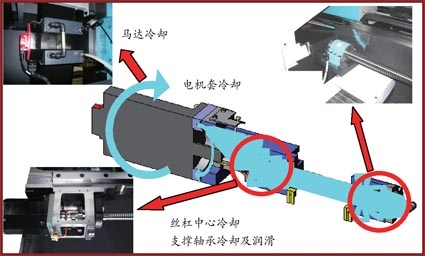

A mold finishing pass can run 8 to 20 hours. Over that time the spindle, ball screws, and guides heat up. A 5 °C rise across a 500 mm column can move the tool tip by 10 to 20 μm, which is more than the ±0.005 mm tolerance on a core insert. That is why mold machines use cooled ball screws, a cooled spindle jacket, and temperature sensors that feed the CNC's compensation model in real time.
The same logic applies to the room. A shop that swings 8 °C between day and night will chase size all week. Mold cells usually sit in a controlled area within a few degrees, and the machine is allowed to warm up through a spindle run-in cycle before the first finishing pass. Skipping that step is a common cause of the first-off part being out of tolerance.
Motion accuracy is the second half. A mold surface is thousands of tiny arcs, and the control has to blend them without overshoot. Look at the block processing time and the look-ahead depth in the control specification. Short block times, in the range of a few milliseconds, let the machine keep feed rate through small radii instead of slowing at every corner. That is what turns a faceted surface into a smooth one.
- 1Cooled ball screwsRemoves the largest single source of long-run drift.
- 2Controlled roomA few degrees of shop swing is worth more than a spec sheet.
- 3Look-ahead depthShort block times keep feed rate through small radii.
Toolpath and cutter strategy that make the technologies pay off
A stiff machine with a bad toolpath still makes a bad mold. The finishing strategy for a cavity wall is usually a constant stepover along a steep surface, with the stepover set by the scallop height you can accept. For a 6 mm ball nose at Ra 0.8 μm, that stepover is often in the 0.05 to 0.10 mm range. Tighter than that and cycle time climbs faster than the polishing saving.
Chip load should stay constant through the pass. That means the CAM software has to vary feed rate as the engagement angle changes on a curved wall. Trochoidal or dynamic roughing does the same job in the roughing stage, keeping radial engagement low and heat out of the cutter. On hardened steel this is the difference between one cutter per cavity and five.
Cutter choice follows the geometry. A ball nose for the floor and gentle walls, a bull nose or a tapered tool for deep ribs, and a small flat end mill for the corners a ball cannot reach. Shrink-fit holders reduce runout to a few microns, which matters more on a 3 mm cutter than on a 12 mm one. Runout of 10 μm on a small cutter is enough to break it in hard steel.
- 1Scallop-driven stepoverSet stepover from the finish you can polish out, not from habit.
- 2Constant chip loadFeed rate has to track the engagement angle on curved walls.
- 3Low runout holdersA few microns of runout decides small-cutter tool life.
When this class of machine is the wrong choice
Mold machines are built for deep, hard, high-finish forms. Put a simple 2D bracket on one and you pay for capability you do not use. A three-axis VMC with a 500 × 500 × 450 mm envelope handles most plate work, fixtures, and housings at a lower hourly rate. The mold machine's value shows up only when the part has deep 3D surfaces or hard material.
Very large molds are another boundary. A mold base beyond the machine's travel has to be split or moved to a larger gantry machine. The same applies to parts that need a rotary table bigger than Ø400 mm for continuous five-axis work. Past that size, the setup changes and so does the cost model.
Soft plastics and prototype cavities are a third case. If the mold runs a few hundred shots in aluminium or a soft steel, a three-axis cut with a light hand polish is often faster and cheaper than a full five-axis finishing cycle. The technology is not free. It has to be matched to the shot count and the material.
- 1Simple 2D platesA three-axis VMC is cheaper per hour and just as accurate.
- 2Oversize mold basesBeyond the machine travel, the part has to be split.
- 3Short-run soft toolingAluminium cavities rarely justify a full five-axis finish pass.
Mold finishing options compared
Use this to judge which process fits a given cavity feature.
| Feature | Best process | Typical tolerance | Finish after cut |
|---|---|---|---|
| Flat floor, open pocket | Three-axis milling | ±0.01 mm | Ra 1.6–3.2 μm |
| Steep cavity wall | Five-axis ball nose | ±0.005 mm | Ra 0.8–1.6 μm |
| Deep thin rib | Five-axis tapered tool | ±0.005 mm | Ra 0.8–1.6 μm |
| Hardened insert, 52–62 HRC | High-speed hard milling | ±0.005 mm | Ra 0.2–0.8 μm |
| Sharp internal corner | EDM after milling | ±0.005 mm | Ra 0.8–1.6 μm |
| Mirror optical surface | Hard mill plus polish | ±0.005 mm | Ra 0.2–0.8 μm |
The verdict
If the part has deep 3D walls in hardened steel and needs a finish you can polish in under an hour, use a mold-class five-axis machine. If it is a flat plate, a housing, or a short-run aluminium cavity, a three-axis VMC will hit the same tolerance for less money.
Common questions
Can a five-axis machine hold ±0.005 mm on a deep cavity?
Yes, if the thermal loop is controlled and the first finishing pass runs after a warm-up cycle. On a long cavity pass, drift is the main risk, not servo error.
We run 16 simultaneous five-axis centers and inspect 100% of parts before shipment. Reports are available on request.
When should hard milling replace EDM?
When the corner radius is larger than the cutter can reach and the feature is not a sharp internal corner. Hard milling removes the electrode and the sinker cycle.
Sharp internal corners still need EDM. In practice most molds use both, with milling doing the bulk of the material removal.
What stepover gives Ra 0.8 μm on a 6 mm ball nose?
Usually 0.05 to 0.10 mm, depending on the cutter geometry and the material hardness. Set it from the scallop height you can polish out.
Going tighter than that adds cycle time faster than it saves polishing time.
Does the shop temperature matter more than the machine spec?
For long finishing passes, yes. A few degrees of room swing moves the tool tip more than most axis errors on the spec sheet.
Mold cells should sit in a controlled area and let the machine warm up before the first finish cut.
