Judging Machining by Chips: The Theory Behind the Curl

• 1
  Key takeaways
• 2
  What Happens at the Shear Plane Before the Chip Curls
• 3
  Judging Machining by Chips: The Seven Forms You Will See
• 4
  Chip Color as a Temperature Map
• 5
  When Chip Reading Stops Being Useful
• 6
  Chip Breakers, Feed, and Depth: What Actually Changes the Form
• 7
  How Chip Behavior Changes Across Common Materials
• 8
  Putting Chip Reading Into a Shop Routine
• 9
  Chip Form, Likely Cause, and First Adjustment

Every chip begins as a compressed wedge of metal ahead of the cutting edge. The tool pushes into the workpiece, stress builds along a narrow band called the shear plane, and the metal separates there. The angle of that plane decides almost everything downstream. A steep shear plane gives a thick, short chip. A shallow one gives a long, stringy chip that wraps around the tool.

That angle is not fixed. It moves with rake angle, cutting speed, and the work material's ductility. Aluminium 6061 shears at a shallow angle and produces long chips even at moderate feeds. Gray cast iron shears in a brittle mode and breaks into segments on its own. This is why the same insert behaves differently in 6061 and in 4140.

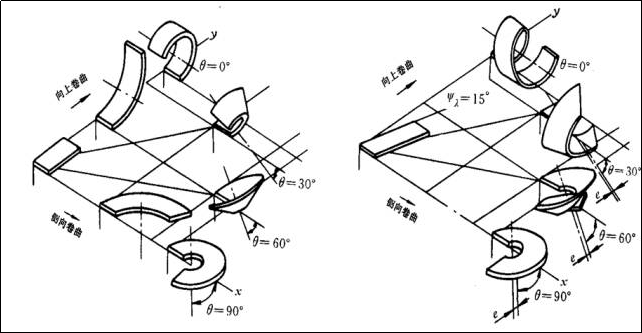

The chip also rubs the rake face as it slides away. That contact zone reaches high temperature and pressure, and it is where the curl radius is set. A chip that leaves the rake face with a tight radius will hit the workpiece or the tool holder and break. One that leaves flat will keep going.

Understanding this matters because it tells you which knobs actually work. If the shear plane is wrong, no chip breaker geometry will save the cut. If the shear plane is right, a modest breaker groove is enough to fold the chip and break it.

• 1
  Rake angleMore positive rake raises shear angle and shortens the chip.
• 2
  Cutting speedHigher speed lowers shear strength and can lengthen the chip.
• 3
  Material ductilityDuctile metals shear smoothly; brittle ones fracture early.

On a real machine you will see seven recurring chip forms. Each one maps to a specific condition at the edge. Reading them takes practice, but the mapping is consistent enough to use as a first check before you touch a dial.

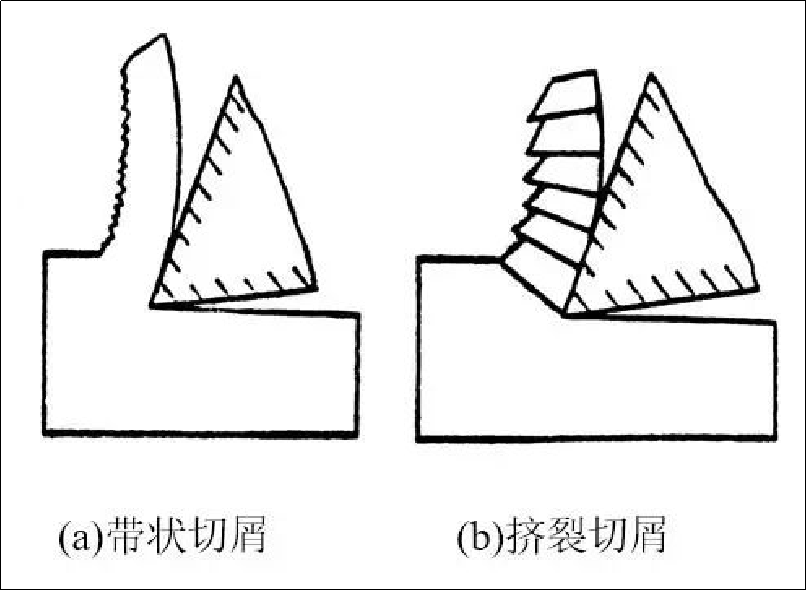

Continuous chips come off as a smooth ribbon. They are normal in aluminium and low-carbon steel at high speed. If the ribbon is long enough to wrap the tool, raise feed per revolution or change the breaker groove. Continuous chips are not a defect by themselves, but they are a handling problem.

Built-up edge chips look torn and rough on one side. The workpiece material is welding to the edge and breaking off in cycles. You will see this at low speed in ductile steel and in some stainless grades. Raising surface speed or switching to a coated grade usually clears it.

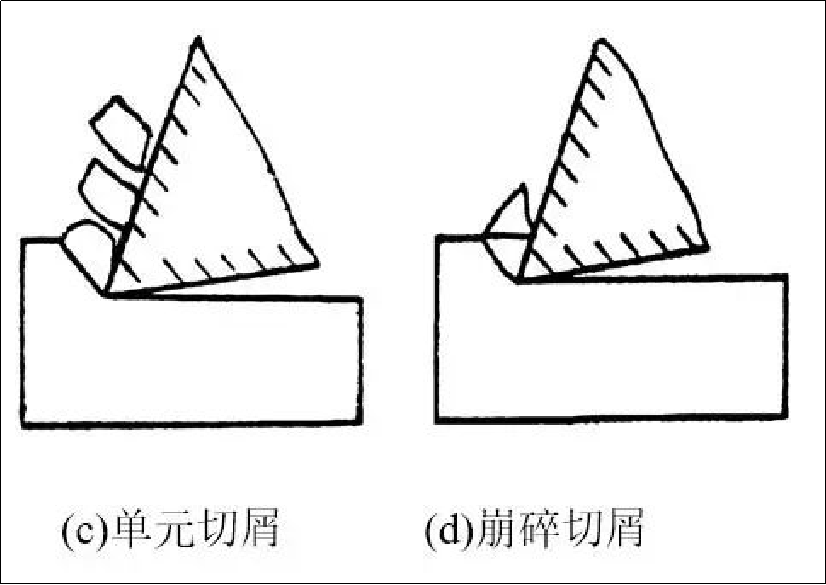

Segmented chips break into regular pieces with visible shear bands. This is normal in titanium and in hardened steel above 45 HRC. The segments are a sign the cut is working, not failing. Do not chase a continuous chip in Ti-6Al-4V; you will not get one.

C or 6 shaped chips are the target form for most turning. The chip curls, hits the workpiece or the holder, and snaps at a repeatable length. If you get these, the feed and speed are close to right and the breaker is doing its job.

Needle and powder chips are the warning forms. Needles mean the chip is too thin and the edge is rubbing. Powder means you are below the minimum chip thickness for the edge radius. Both waste tool life and leave a poor surface, even if the part still measures in tolerance.

Glowing or sparking chips mean the cutting zone is above the material's safe range. In steel, sparks at the tool tip usually mean speed is too high for the grade or coolant is not reaching the edge. Stop and check before you burn the insert.

• 1
  Continuous ribbonRaise feed or adjust breaker groove.
• 2
  SegmentedNormal in titanium and hard steel.
• 3
  Needle or powderFeed too light; edge is rubbing.

Chip color is an oxide film, and the film thickness tracks the temperature the chip reached as it left the cut. This gives you a rough thermometer without a pyrometer. The reading is not exact, but the bands are wide enough to be useful.

At the low end, a silver or light straw chip means the cutting zone stayed under roughly 200 °C. That is a cool cut. It is normal in aluminium and in finishing passes on steel. If you see straw on a roughing pass in 4140, you are probably running conservative parameters.

A brown or bronze chip sits around 300 °C. This is the working range for many steel roughing operations. The edge is hot but stable, and tool life is usually good if coolant flow is steady.

Blue chips mean the chip left the cut above roughly 400 °C. In carbon steel this is often where you want to be for productive roughing, but in stainless and titanium it signals that heat is not leaving with the chip fast enough. Check coolant delivery and reduce speed if the insert is chipping.

Dark gray or black chips with a rough surface mean the edge has been running hot for a while. Look for a worn flank or a built-up edge that has broken away. Color reading is most reliable on a steady roughing cut; on interrupted cuts the chip temperature swings and the color becomes noisy.

• 1
  Silver to strawUnder about 200 °C; cool cut.
• 2
  Brown to bronzeAround 300 °C; normal steel roughing.
• 3
  BlueAbove about 400 °C; watch heat balance.

Chip reading is a first-pass diagnostic, not a metrology method. It tells you the cut is in a plausible range. It does not tell you the part is in tolerance. We still inspect 100% of parts before shipment, with raw material checks, in-process monitoring, and final inspection, because a good chip can sit next to a dimension that has drifted.

The method also loses resolution on light cuts. On a finishing pass at 0.1 mm depth and 0.05 mm/rev feed, the chip is a thin foil. It has almost no bending stiffness, so it curls randomly and breaks for reasons unrelated to the cut. Reading finish-pass chips is mostly a waste of time.

Short engagements are another blind spot. In a 5-axis cycle where the tool enters and exits a pocket every few seconds, chip form changes faster than you can watch it. The same applies to small-diameter end mills in deep cavities, where the chip has to travel up a long flute before you see it.

Finally, chip form depends on the tool you are using. A chip that looks wrong on a positive-rake finishing insert may be perfectly normal on a negative-rake roughing insert. Read chips against the specific insert geometry and the specific material, not against a generic chart.

For production work, the useful move is to log chip form alongside speed, feed, and depth for each operation. After a few runs you have a baseline. Then any change in chip form becomes a signal that something moved, whether it is tool wear, material batch, or coolant flow.

• 1
  Light finishing cutsChip is too thin to read reliably.
• 2
  Short engagementsForm changes faster than you can observe.
• 3
  Insert-specificJudge against the geometry in the cut.

Three variables move chip form in a predictable way. Feed per revolution is the strongest. Doubling feed roughly doubles chip thickness, which stiffens the chip and makes it break earlier. If a chip is too long, feed is usually the first knob to turn.

Depth of cut changes the width of the chip, not its thickness. Wider chips are stiffer and break more easily, but they also load the insert harder. On a 4,000 mm bed mill cutting a long rail, a wide chip at moderate feed can break cleanly while the same feed at a narrow depth produces a ribbon.

Cutting speed acts through the material's shear strength. Higher speed softens the work material ahead of the edge and can lengthen the chip or turn a segmented chip into a continuous one. In titanium this transition happens quickly, which is why speed control is critical in Ti-6Al-4V.

The chip breaker groove is a shaping tool, not a fix for wrong parameters. A groove that is too narrow for the feed will fold the chip too tightly and cause it to jam. One that is too wide will not break the chip at all. Match groove width to the feed range printed on the insert box.

Coolant has a smaller effect on form than most people expect. High-pressure through-tool coolant helps by lifting the chip off the rake face and clearing it from the cut, but it does not change the shear plane. If the form is wrong, fix speed and feed first.

• 1
  Feed per revolutionStrongest control on chip thickness and breakage.
• 2
  Depth of cutChanges chip width and stiffness.
• 3
  Groove widthMust match the feed range on the insert box.

Aluminium 6061 and 7075 shear easily and produce long chips unless the breaker is aggressive. At high speed the chip can weld to the edge and form a built-up edge, which shows up as a rough, torn chip surface. Higher rake angles and polished flutes help. On 5-axis work in thin-wall aluminium, chip evacuation matters more than form because packed chips will deflect the part.

Stainless 304 and 316 work harden quickly. A light feed lets the edge rub, which raises hardness at the surface and shortens tool life. The chip from a correct cut is short and often colored brown or blue. If you see a thin, needle-like chip in 316, increase feed before you change anything else.

Steel 4140 and 4340 behave well across a wide range. A brown chip at moderate speed is a good sign. In hardened 4340 above 40 HRC, chips become segmented and the cutting forces spike with each segment. Rigidity and tool holding matter more than chip form at that hardness.

Titanium Ti-6Al-4V gives segmented chips by nature and concentrates heat at the edge. Long continuous chips in titanium are a warning that speed is too high or the edge is dull. Inconel behaves similarly but with stronger work hardening. In both, the goal is a short, segmented chip and steady coolant.

Plastics like POM and PEEK produce continuous chips that can wrap and melt. Sharp, polished tooling with high rake and air blast works better than flood coolant, which can cause thermal shock on some grades. For carbon fibre, chip form is not the issue; dust control and edge quality are.

• 1
  AluminiumLong chips; watch built-up edge at high speed.
• 2
  Stainless 304/316Feed heavy enough to avoid work hardening.
• 3
  Ti-6Al-4VSegmented chips are normal; heat is the risk.

The value of chip reading comes from doing it consistently, not from doing it cleverly. A simple routine works: check the chip at the start of each operation, note the form and color, and compare it to the baseline for that operation. If it matches, keep running. If it does not, stop and check feed, speed, and tool wear before the part is affected.

This routine catches problems early. A change from C-shaped chips to needles usually means the insert has worn and the effective edge radius has grown. A change from brown to blue usually means coolant flow has dropped or speed has drifted. Both are fixable in minutes if you catch them at the machine.

It also helps communication. When a machinist tells a process engineer that the chip went from segmented to continuous, that is a concrete observation. It narrows the diagnosis faster than a description of surface finish or a sound.

At GreatLight we run 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis machining centers, 12 four-axis mills, and 27 three-axis machines. Chip form is part of the in-process check on every setup, alongside dimensional checks. It is a cheap signal and it catches problems before they reach the inspection bench.

Tolerance on our work is ±0.005 mm, and surface finish ranges from Ra 0.2–0.8 μm on fine work to Ra 1.6–3.2 μm as machined. Chip reading supports those targets but does not replace the gauge. Use it as an early warning, then verify with measurement.

• 1
  Start of every operationNote form and color against the baseline.
• 2
  Change is the signalA shift in form usually means wear or coolant.
• 3
  Verify with a gaugeChip reading is a warning, not a measurement.
