Machine Tool Status Monitoring with Intelligent Audio Technology
Audio-based machine tool status monitoring listens to the cut instead of watching the spindle load. This page explains the sensor chain, the frequency bands that matter, and where the method works and where it does not.

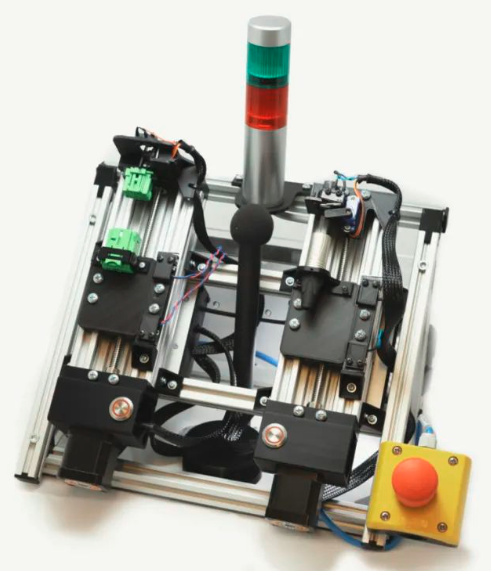

What machine tool status monitoring actually listens to
Every metal cutting operation radiates sound. The cutting edge shears the workpiece, chips slide over the rake face, and the spindle and feed drives add their own tones. A microphone 300 mm from the cut picks up the airborne part of that energy. An accelerometer bolted to the fixture or the spindle housing picks up the structure-borne part. Together they carry information about what the tool is doing right now.
The two channels are not redundant. Airborne sound is easy to install and needs no contact, but the shop floor is loud and the signal is diluted by distance, coolant spray and enclosure panels. Structure-borne vibration survives that noise, yet it only carries what travels through the metal path between tool and sensor. Most working systems record both and compare them.
What makes the signal usable is that cutting is periodic. A two-flute end mill at 8,000 rpm produces 267 impacts per second, so its tooth-passing frequency sits near 267 Hz with harmonics stretching into the kilohertz range. Wear, chipping and chatter each change that harmonic pattern in a different way. The monitoring system is really a pattern matcher, not a sound recorder.
- 1Airborne channelMicrophone 200–400 mm from the cut, 20 Hz–20 kHz bandwidth.
- 2Structure-borne channelAccelerometer on fixture or spindle housing, 10 kHz sampling or higher.
- 3Time baseSpindle encoder index so each revolution is compared with the last.
The sensor chain from tool to decision
A practical chain has four links: transducer, conditioning, digitizing and feature extraction. The transducer is a piezoelectric accelerometer for vibration or a free-field microphone for airborne sound. Conditioning means a charge amplifier or IEPE supply, plus an anti-aliasing filter set below half the sampling rate. Digitizing at 48 kHz or 96 kHz keeps the full audible band and part of the ultrasonic band.
Feature extraction is where most of the engineering effort goes. Raw waveforms are too large to store for every part, so the system reduces each cut to a small vector: RMS level, spectral centroid, band energies, and the amplitude of the tooth-passing frequency and its first few harmonics. Those numbers are compared against a baseline recorded with a fresh tool on the same operation.
Temperature drifts, coolant flow changes and fixture clamping force all shift the baseline slightly. A single absolute threshold will trigger false alarms within a shift. The usual fix is a rolling reference: the system keeps a moving average of the last N good parts and flags deviation from that, not deviation from a fixed number. On a machine running 200 parts per shift, N is typically 20 to 50.
Sampling rate and sensor placement decide the ceiling of the whole system. If the accelerometer is mounted with a magnet on a painted casting, the mounting resonance can sit near 2 kHz and mask the band where chipping shows up. Stud mounting with a thin layer of coupling grease moves that resonance well above 10 kHz. The extra ten minutes of installation is worth more than any algorithm change.
- 1Mounting mattersStud mount above 10 kHz; magnet mount can lose the chipping band.
- 2Sampling48 kHz minimum, 96 kHz if you want the 15–20 kHz band.
- 3ReferenceRolling baseline of 20–50 known-good parts, not a fixed threshold.
Wear and chatter read differently in the spectrum
Gradual flank wear raises the contact area between tool and workpiece. Friction grows, so the broadband noise floor creeps up, especially between 2 kHz and 8 kHz. The tooth-passing harmonics stay in place but their relative heights change. This is a slow, monotonic trend, which is why wear detection works well with a rolling baseline and a trend alarm rather than a spike detector.
Chatter looks nothing like wear. It appears as a narrow peak at a frequency that is not a multiple of the tooth-passing frequency, usually somewhere between 300 Hz and 3 kHz depending on the tool overhang and the workpiece stiffness. The peak grows within a few revolutions. Once regenerative chatter starts, surface finish degrades fast, so the useful response window is short. Detection within 100–200 ms is realistic on a modern controller.
Chipping and edge fracture are transient. They show as a short burst of high-frequency energy, often above 10 kHz, lasting only a few milliseconds. Catching them needs continuous sampling, not periodic snapshots. A system that samples one 50 ms window per second will miss most fractures and will also miss the early chatter growth that precedes them.
- 1WearSlow rise of 2–8 kHz noise floor over many parts.
- 2ChatterNarrow non-harmonic peak, 300 Hz–3 kHz, grows in seconds.
- 3ChippingMillisecond burst above 10 kHz; needs continuous sampling.
Where audio monitoring earns its keep, and where it does not
The method performs best on operations that repeat. A production run of the same part on the same machine with the same tool gives a stable baseline, so a 5 percent shift in band energy means something. On high-mix, low-volume work, the baseline is rebuilt for almost every job and the false alarm rate climbs. In that setting, audio monitoring is better used as a trend tool across a family of similar parts than as a per-part gate.
Material matters too. Aluminum and brass cut cleanly and produce strong, repeatable harmonics. Ductile stainless and titanium produce built-up edge and smeared chips, which add low-frequency noise that varies with coolant pressure. Castings with hard spots or inclusions generate bursts that look like chipping. Those bursts come from the workpiece, not the tool, and a system that cannot separate them will stop good parts.
There is also a physical limit on what sound can tell you. A microphone cannot see a dimension. It can tell you the cut has changed, but not whether the bore is 0.02 mm oversize. Audio monitoring complements, and does not replace, in-process probing or post-process CMM inspection. Most shops that run it well use audio for fast anomaly detection and keep metrology for the final verdict.
- 1Good fitRepetitive production, stable fixturing, known tool life.
- 2Poor fitOne-off parts, frequent setup changes, unknown material batches.
- 3Not a metrology toolDetects change, cannot measure size or position.
Which monitoring channel fits which failure mode
Match the sensor to the fault you are trying to catch.
| Failure mode | Best channel | Typical band | Response time |
|---|---|---|---|
| Gradual flank wear | Airborne + structure-borne | 2–8 kHz noise floor | Minutes to hours |
| Regenerative chatter | Structure-borne | 300 Hz–3 kHz | 100–200 ms |
| Edge chipping | Structure-borne | Above 10 kHz | Under 50 ms |
| Spindle bearing fault | Structure-borne | BPFO / BPFI harmonics | Hours |
| Tool breakage | Both | Broadband burst | Under 20 ms |
| Coolant starvation | Airborne | Low-frequency rumble | Seconds |
Pick the channel before you pick the algorithm
If your problem is slow tool wear on a repeating job, an airborne microphone with a rolling baseline is enough and costs the least. If your problem is chatter or edge fracture, mount an accelerometer rigidly on the fixture and sample continuously, because no amount of post-processing recovers a signal you never captured.
Questions engineers ask next
How much does an audio monitoring setup cost per machine?
It depends on channel count and whether you need continuous sampling. A single-channel airborne kit with an IEPE microphone, conditioning and a data acquisition card is the cheapest entry point. Adding a second accelerometer channel, a spindle encoder tap and continuous 96 kHz streaming roughly doubles the hardware cost.
Will coolant spray and chip guards ruin the microphone signal?
They reduce signal-to-noise ratio but do not destroy it. A directional microphone aimed at the cut, positioned behind a simple splash shield, still resolves the 2–8 kHz wear band. If the enclosure is fully closed and the microphone must sit outside, structure-borne sensing becomes the better primary channel.
Can the same system detect spindle and axis faults?
Yes, if the accelerometer is mounted on the spindle housing rather than the fixture. Bearing defect frequencies appear as harmonics of the ball pass frequencies and evolve over hours, which suits a slow trend alarm. Axis ball screw faults show up as periodic impulses tied to the axis position, so they need a position signal alongside the audio.
How do you set thresholds without flooding the operator with alarms?
Start with a rolling baseline of 20 to 50 known-good parts and set the first alarm at three standard deviations above that mean. Run it in shadow mode for two weeks and log every trigger without stopping the machine. Adjust the band and the window until the false alarm rate is below one per shift, then enable the stop.
Does audio monitoring replace in-process probing?
No. Audio tells you the cut has changed; a probe or CMM tells you the part is in tolerance. They answer different questions. Shops that use both typically let audio catch the anomaly within milliseconds and let metrology confirm whether the affected parts must be scrapped.
What sampling rate do we need for tool breakage detection?
Tool breakage produces a broadband burst lasting a few milliseconds, so you need continuous sampling rather than periodic windows. A 96 kHz rate with no gaps and a simple energy threshold on the high band will catch most fractures. Lower rates with duty-cycled sampling will miss them.
