Improved CNC milling of aerospace X-antenna parts

X-antenna parts are light, thin-walled and easy to scrap. This page explains what actually moves during improved CNC milling of aerospace X-antenna parts, which process changes hold the geometry, and when a part should not be milled this way at all.

Get Instant Quote Talk to an Engineer

±0.005 mm5-axis, 4,000 mmRa 0.8–1.6 μm

Improved CNC milling of aerospace X-antenna parts on a high accuracy custom machined frame

On this page

1
Why an X-antenna part fights back at the spindle
2
What improved CNC milling actually changes
3
Fixtures that let the part relax instead of trapping stress
4
Material choice changes how much the frame moves
5
Inspection points that catch a bad frame early
6
Six process steps that hold the geometry
7
Process routes for thin-walled antenna frames

The problem

Why an X-antenna part fights back at the spindle

Around 90% of the wall thickness on a typical X-antenna blank is removed before the part is finished. What is left is a light, low-rigidity frame with four thin arms. The stiffness that held the blank together is gone, and every remaining cut is now working on a spring.

The arms are the problem. Each one is a cantilever, so tool pressure bends it away from the cutter, then it springs back and the flank rubs. The wall measures in tolerance on the machine and drifts after unclamping.

Thermal load adds to it. Aluminium 6061 and 7075 remove fast, but a heavy radial cut pushes a lot of heat into a thin section. That section grows, the cutter takes a deeper bite, and the next pass cuts oversize. Heat and deflection feed each other.

This is why the same program behaves differently on the second part. The first part removes the stock that was stiffening the frame. By the last arm, the workpiece has almost no support left.

So improved CNC milling of aerospace X-antenna parts is less about a faster spindle and more about controlling where the cutting force goes, and when.

Rigidity is a budget. Spend it on the cuts that set the final dimensions, not on roughing that could have been done while the blank was still solid.

1
Long cantilever armsDeflect under normal finishing feeds
2
Thin floorsDrum and chatter between ribs
3
Uneven stock removalInternal stress releases late in the cycle

Mechanism

What improved CNC milling actually changes

Most shops chasing tighter walls reach for a smaller stepover. That helps, but it is the last lever, not the first. The first lever is the order of operations: keep the blank stiff for as long as possible and cut the weak features last.

The second lever is tool engagement. A small radial depth of cut with a high axial depth keeps the flute in contact with a thin, consistent chip. The cutter pushes along the wall instead of into it, and the side load on the arm drops.

The third is thermal stability. Flood coolant aimed at the cut zone, a warm-up cycle before the finishing passes, and a pause between roughing and finishing all reduce the size change between measurement and final cut.

None of these are exotic. They are choices about sequence, engagement and heat, made before the first chip.

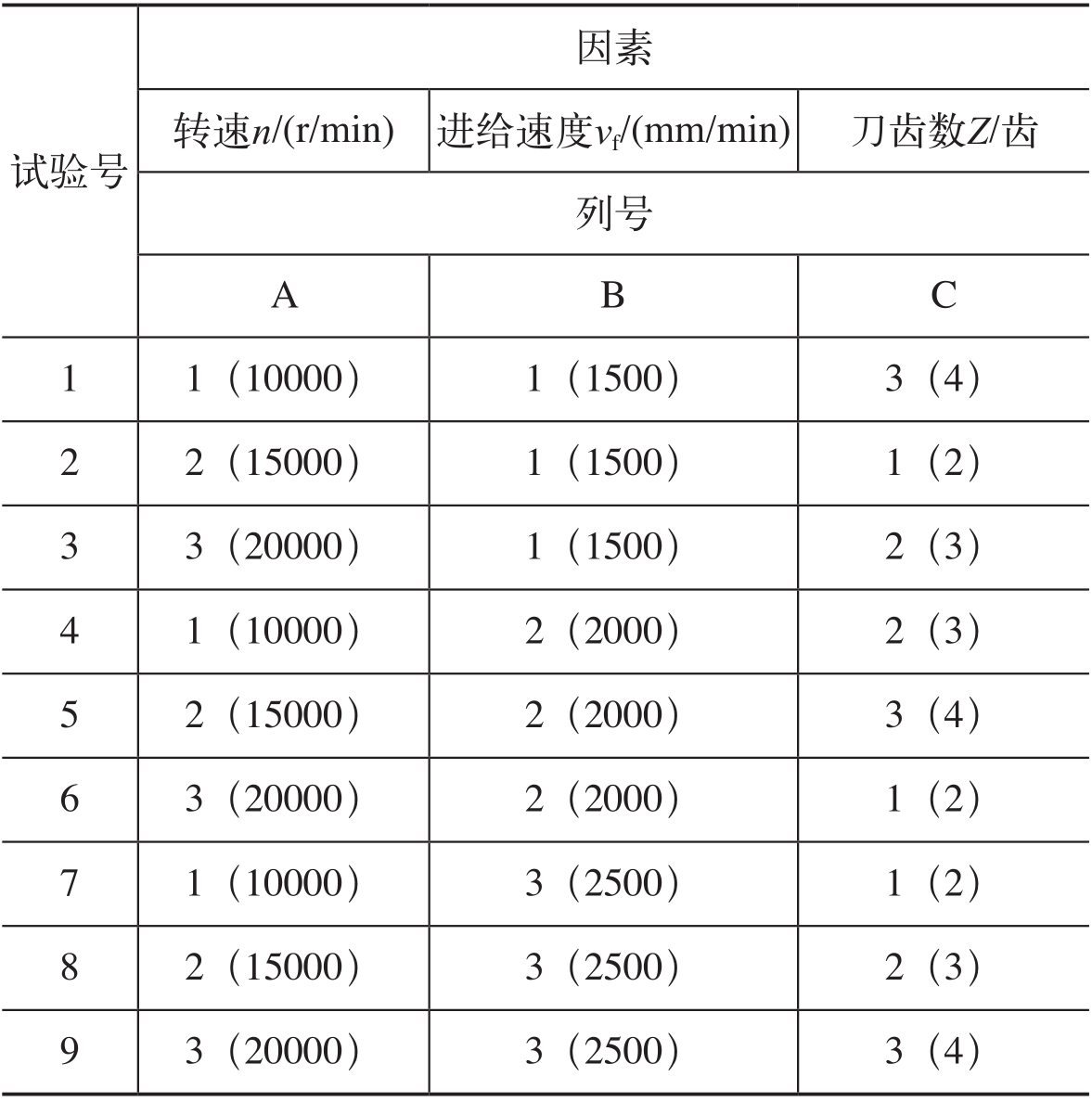

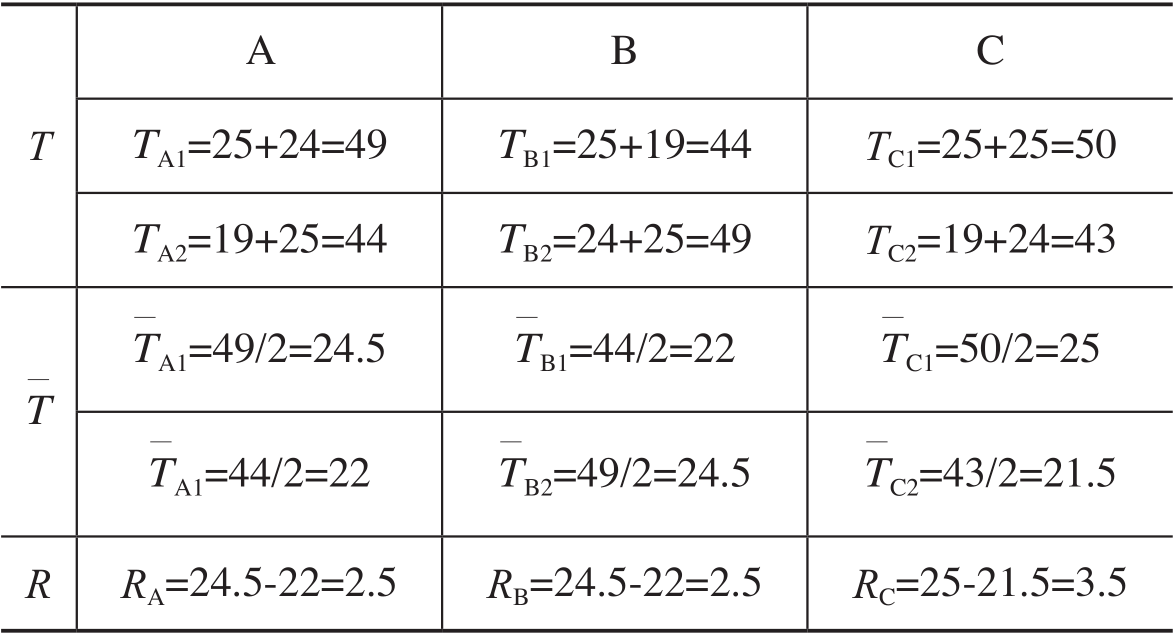

A high-speed spindle helps mostly because it lets you take smaller chips at a higher feed per tooth. Chatter is a function of tooth frequency and part stiffness, so changing spindle speed shifts the frequency away from the resonance of the arm.

That is the whole idea behind improved CNC milling of aerospace X-antenna parts: move the excitation away from the part, not make the part stiffer than it can be.

1
Sequence firstLeave ribs and webs in until the last operation
2
Engagement secondShallow radial, deep axial, constant chip load
3
Heat thirdFlood coolant, stable spindle speed, no cold starts

Fixtures

Fixtures that let the part relax instead of trapping stress

A vise on a thin frame is a stress machine. It clamps the part into shape, the cutter removes material against that clamped geometry, and the part springs when the jaws open. The error is not in the toolpath.

Vacuum nests and soft-jaw pockets that match the finished profile spread the load over a large area. Conformal supports under the arms hold the part where it is weak without pinching it.

For parts that must be held hard, sequence the clamping: clamp for roughing, semi-clamp for finishing, and use only light pressure for the last pass. Some shops program the finishing pass at reduced clamp pressure and accept a slower cycle.

On a 5-axis setup, check tool and holder clearance under the arms before the part is on the table. A holder that clears in the CAM simulation can still rub when the actual gauge length is longer.

Mark the clamping zones on the drawing. It saves a scrapped frame on the first run.

1
Vacuum or soft jawsSpread clamping over a large area
2
Conformal supportsHold arms without pinching them
3
Stage the clamp pressureHeavy for roughing, light for finishing

Materials

Material choice changes how much the frame moves

6061-T6 is the safe default for X-antenna frames. It cuts clean, holds a Ra 0.8–1.6 μm finish without extra work, and the residual stress in plate is predictable if the supplier states the condition.

7075-T6 gives higher strength for the same wall, which lets you thin the arms further. It also moves more after machining, so plan a stress-relief pass and expect to re-datum once.

Titanium TC4 (Ti-6Al-4V) and Inconel are used when the antenna sees heat or vibration. Both cut with much higher cutting forces, so a wall that works in aluminium will chatter in titanium. Add 0.2 mm to the minimum wall or change the support scheme.

Magnesium AZ31B and AZ91D are light and machine quickly. They need chip control and fire-safety handling, which limits the number of shops that will quote them.

Stainless 17-4PH in the H900 condition is a middle route for corrosion resistance, but it work-hardens. Keep the radial engagement low and never let the tool rub.

1
6061-T6Default choice, stable and forgiving
2
7075-T6Stronger, but plan for stress relief
3
Ti-6Al-4VHigher force, thicker wall or better support
4
17-4PHCorrosion resistant, avoid rubbing

Quality

Inspection points that catch a bad frame early

The first inspection is not the finished part. It is the blank: check the plate thickness and flatness before the first cut. A plate that is 0.3 mm out of flat will machine into a frame that is 0.3 mm out of plane.

In-process checks on arm thickness catch the drift while there is still stock to remove. A simple micrometer reading at three points along each arm, taken after the semi-finish pass, tells you whether the next pass should stay on the nominal offset.

Final inspection covers wall thickness, true position of the mounting holes, flatness of the mounting face, and surface finish. For aerospace work, the reports travel with the parts.

A ±0.005 mm callout on a thin arm is a shop capability statement, not a target. Measure it in a temperature-stable room, on a released part, or the number means nothing.

1
IncomingPlate thickness and flatness
2
In-processArm thickness after semi-finish
3
FinalWall, true position, flatness, finish

In practice

Six process steps that hold the geometry

1
1. Model the residual stress, not just the shapeAsk for the blank condition and the rolling direction. On 7075 plate, expect 0.1–0.3 mm of movement after the skin is removed. Leave 0.5 mm of stock on both faces for a stress-relief pass.
2
2. Fix the datum on the finished sideMachine a reference pad first and use it for every later setup. On a 5-axis machine with a Ø400 mm rotary table, one setup removes the datum shift that ruins a four-setup route.
3
3. Rough with the blank still stiffUse a 12–16 mm end mill, 2–3 mm radial engagement and full depth where the tool allows. Remove 60–70% of the stock before any thin arm is exposed.
4
4. Rest the arms before finishingSupport the free end of each arm with a sacrificial tab 3–5 mm thick, or a soft-jaw nest cut to the finished profile. Tabs are cut off in the last operation.
5

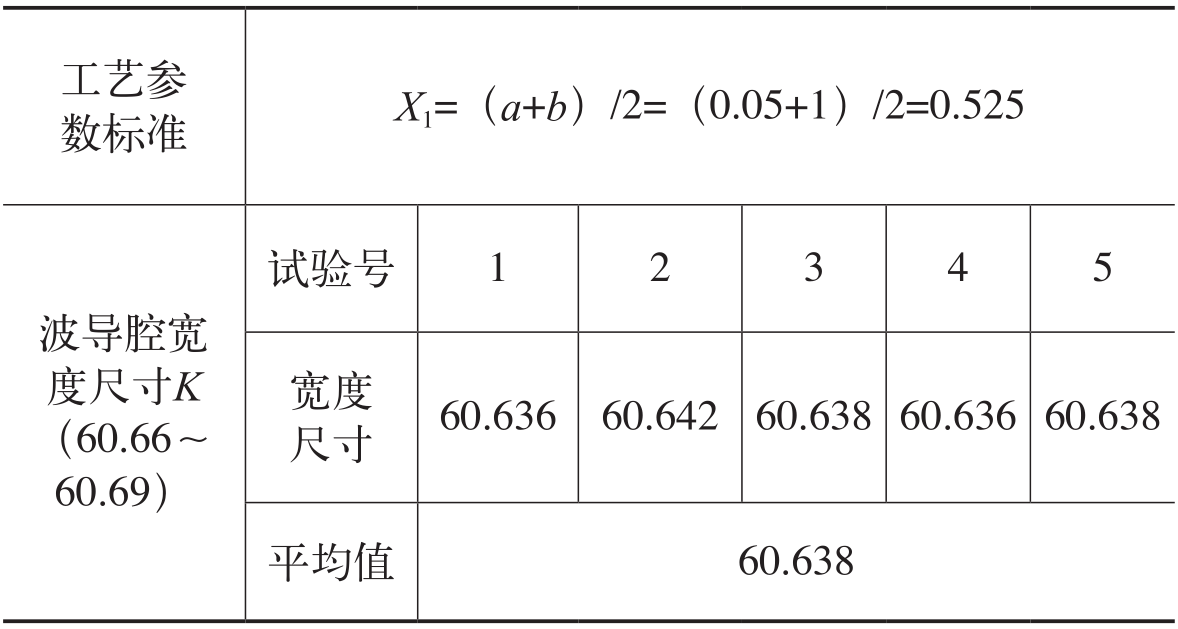

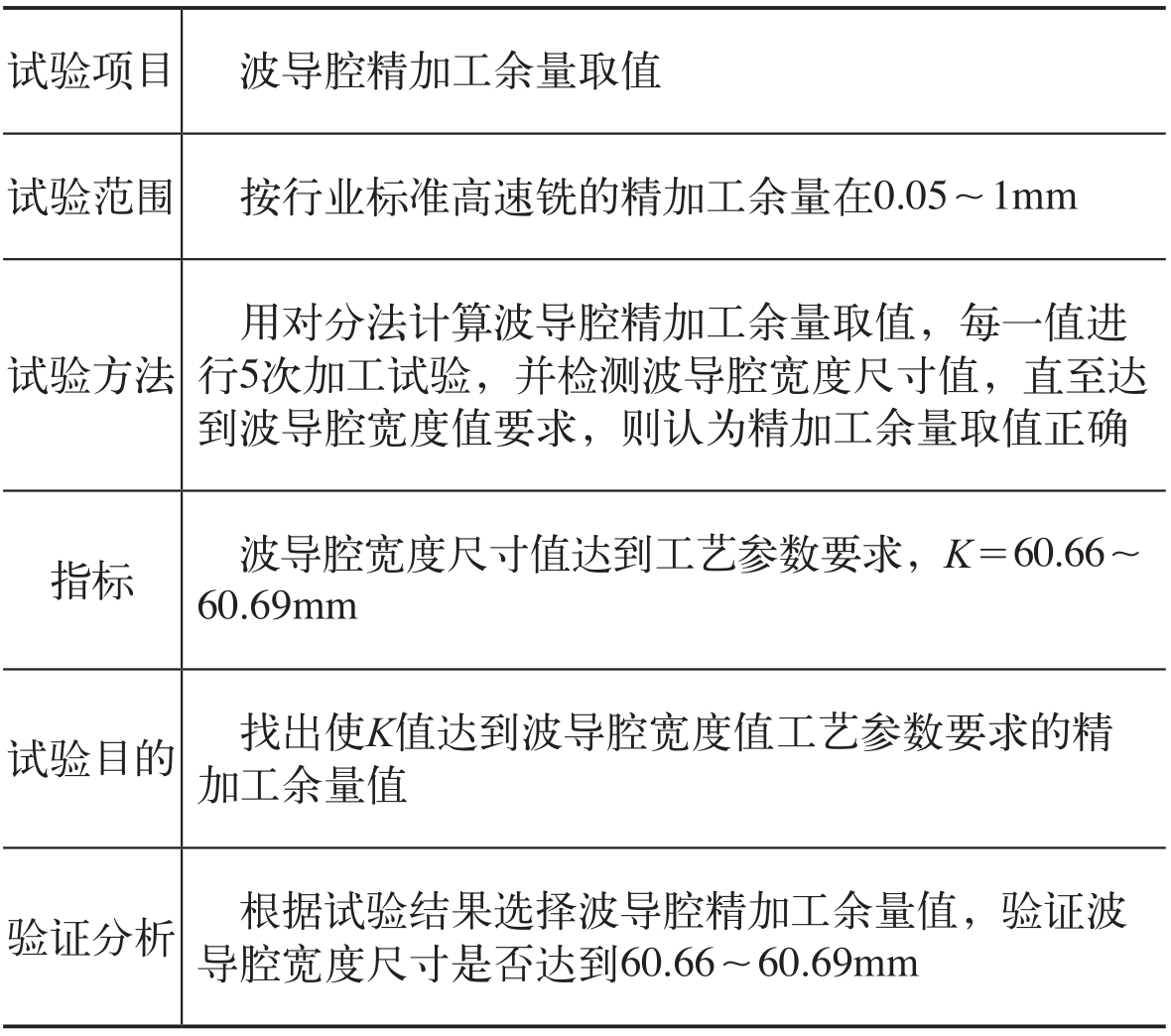

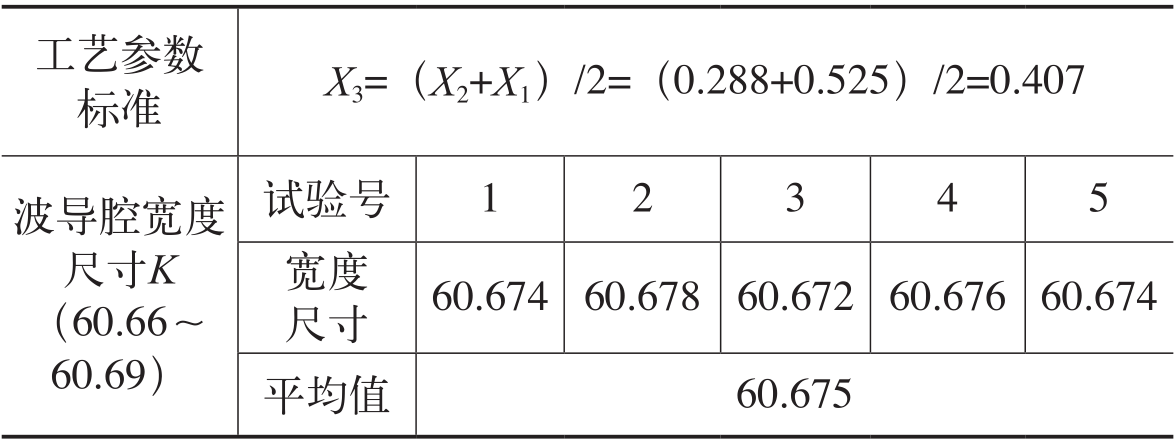

5. Finish with constant engagement0.2–0.4 mm radial, 3–5× diameter axial, and feed per tooth kept constant through corners. Drop the feed at the arm ends by 30% instead of letting the tool dwell.
6
6. Measure hot, then measure coldCheck the wall on the machine, release the clamps, wait 10–15 minutes, and check again. If the two readings differ, the fixture is the problem, not the program.

Judgement

Process routes for thin-walled antenna frames

Choose by wall thickness, quantity and tolerance, not by habit.

Route	Best for	Wall limit	Watch out
3-axis milling, multiple setups	Simple frames, low quantity	Above 1.5 mm	Datum shift between setups
4-axis milling with rotary table	Parts with radial features	1.0–1.5 mm	Rotary backlash on finish passes
5-axis milling, single setup	Complex X frames, tight true position	0.8–1.5 mm	Fixture access under the arms
5-axis plus adaptive toolpaths	Thin arms, ±0.005 mm callouts	0.6–1.2 mm	Longer cycle, needs CAM experience
Mill-turn	Frames with a central hub	Above 1.5 mm	Limited to rotationally reached faces
Wire EDM for the slots	Hardened or very thin webs	Below 0.8 mm	Slow, no 3D contours

When to mill and when to walk away

If the wall is above 1.0 mm and the quantity is under a few hundred, improved CNC milling of aerospace X-antenna parts from billet is the right route. If the arms are below 0.6 mm, or the frame is longer than 1,500 mm with open ends, choose a different design: add a bonded or riveted stiffener, or move to a formed and machined assembly. Milling a part that cannot hold itself is not a machining problem.

Get Instant Quote Talk to an Engineer

FAQs

Common questions

How thin can the wall be before milling stops working?

For aluminium frames on a 5-axis machine with conformal supports, 0.6–0.8 mm is the practical floor for a reliable ±0.005 mm result. Below that, the arms deflect under their own cutting load and the finish pass becomes a spring cut.

If the design needs 0.5 mm arms, either add a stiffener or move the thin webs to wire EDM after milling the rest.

Does a 5-axis machine remove the need for multiple setups?

It removes datum shift, which is the largest single source of error on an X-frame. One setup on a simultaneous 5-axis center keeps every face in the same coordinate system.

It does not remove the need for support. The arms still need a nest or tabs, because the machine cannot stiffen a part it is cutting.

Why does the part measure well on the machine and fail after unclamping?

The clamps were holding the part in shape. When they release, the stored stress from roughing and clamping redistributes and the frame springs.

The fix is sequence and support, not a tighter tolerance on the cutter. Stress-relief passes, lighter clamp pressure for finishing, and supports under the arms are the usual answer.

Which aluminium should we specify for an antenna frame?

6061-T6 unless the strength requirement says otherwise. It has predictable residual stress in plate and machines to Ra 0.8–1.6 μm without special tooling.

Use 7075-T6 when you need the strength for a thinner arm, and budget for a stress-relief pass plus one re-datum.

Can the slots be milled instead of EDM'd?

Slots wider than 2 mm and deeper than 4× the tool diameter can be milled with a long-reach cutter at low radial engagement. Below that, tool deflection and chip evacuation make EDM the better route.

Milling first and EDM only the critical slots is common on hybrid frames.

What finish suits an aerospace antenna frame?

Anodizing, clear or hardcoat, is the usual choice for aluminium frames because it adds corrosion resistance without changing dimensions much.

For conductive surfaces, use conductive anodizing or masking on the grounding pads. Bead blasting before anodizing gives a uniform matte look.
