Most shallow-thread complaints are not tapping errors. They come from a process sequence where the thread is cut before a coating, a weld, or a final facing operation, and that later step eats into the usable depth. Anodizing adds 5-25 μm per surface. Hardcoat anodizing can add more. On an M4 hole with 6 mm of thread, a heavy coating plus a light face cut can leave you with three usable turns.

Welding is the second common cause. When a boss is welded near a threaded hole, the weld bead can creep over the first pitch. The operator then faces the weld flush, and the facing tool removes the top of the thread at the same time. The hole still looks tapped. It is not.

A third cause is the bottoming tap itself. A standard taper tap leaves 3-5 incomplete threads at the bottom. If the print calls for 1.5 × Ø full thread and the programmer only gave 1.2 × Ø of drilled depth, the last pitches never form. No amount of re-tapping fixes a hole that is too short to begin with.

Plating is quieter but just as damaging. Electroless nickel at 25 μm per side closes the thread flanks on a fine pitch. The screw starts two turns in and binds. The operator assumes the thread is shallow. Often the depth is fine, but the pitch diameter has shrunk.

Read the drawing before you touch the part. Find the callout: thread size, pitch, depth, and thread class. If the depth is given as a thread depth, that is full thread, not drill depth. That single distinction explains a large share of the repair jobs we see.

• 1
  Coating growthAnodize, hardcoat, and EN plating all reduce the clearance between flanks.
• 2
  Weld overrunBead or spatter reaches the first pitch and gets faced off later.
• 3
  Short drill depthTap cannot form full threads where there is no material.
• 4
  Pitch diameter shrinkFine pitches lose fit before they lose depth.

Do not start with a tap. Start with a measurement. The number you need is the full-thread depth: the length over which the thread flanks are complete and within the pitch diameter tolerance. A caliper on the hole mouth tells you nothing useful.

Screw in a known-good gauge or a mating fastener by hand until it seats. Mark the screw flush with the surface. Back it out and measure from the mark to the end. That is your usable depth. Compare it to the print. On an M6 × 1.0 hole with a 12 mm callout, 9.5 mm of usable thread is a real defect.

For blind holes, use a depth gauge with a narrow blade so it reaches the last full thread. For through holes, check both sides. A hole can be full depth on the entry side and short on the exit side after a chamfer or a deburr pass.

Run a thread gauge on the pitches that do exist. If a GO gauge enters and a NO-GO gauge also enters, the problem is oversize, not shallow. Those two defects have completely different repair routes, and confusing them wastes a part.

Record the numbers before cutting. Depth available, depth required, pitch, class, material, and heat-treat condition. That record decides the repair method and it protects you if the customer questions the result.

• 1
  Use a mating screwA screw gives the functional depth. Calipers give the geometric hole.
• 2
  Check both endsChamfers and deburr passes shorten the exit side of through holes.
• 3
  GO / NO-GO firstSeparate oversize from shallow before choosing a method.
• 4
  Write it downDepth, pitch, class, material and hardness belong on the repair sheet.

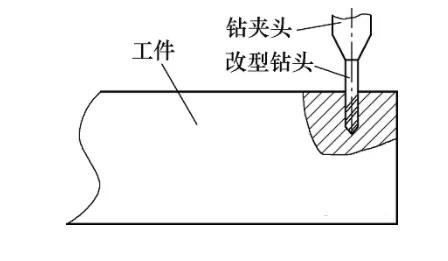

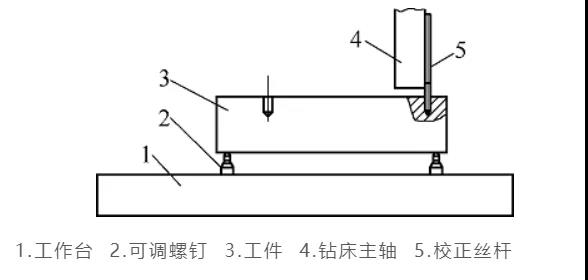

There are four practical routes: re-tap deeper, install an insert, re-drill and tap to the next size, or weld and re-machine. Each one has a cost and a risk. The right choice depends on wall thickness, heat-treat condition, thread class, and whether the part is cosmetic.

Re-tapping is the cheapest and the least invasive. It works when the minor diameter is still clean and you only need 2-4 more pitches. It fails when the hole is already at the bottom of the material or when the first pitches are galled.

Inserts are the workhorse repair for production parts. A wire insert keeps the original screw size, restores full thread depth, and carries load across more pitches than the original thread. A key-locking insert is better where vibration is present. Both need a larger tapped hole, so check the wall thickness first.

Going up one size is acceptable when the mating screw can change. M8 from M6, for example. It is simple and strong. It is also the fastest way to fail a customer inspection if the drawing controls the fastener.

Weld repair gives you new material to cut. It also brings distortion, hardness change, and a heat-affected zone. On a hardened part or a thin wall, welding usually costs more than making a new part.

• 1
  Re-tapCheapest. Needs clean minor diameter and 2-4 pitches of extra room.
• 2
  InsertKeeps screw size, adds load capacity. Needs wall thickness.
• 3
  Next size upSimple and strong. Only if the fastener can change.
• 4
  Weld and re-machineNew material, new problems. Distortion and hardness loss.

A repaired hole is only finished when it gauges correctly. The GO gauge must pass by hand over the full thread depth. The NO-GO gauge must not enter more than 2.5 turns. If the NO-GO enters further, the thread is oversize and the repair failed, even if the screw feels tight.

Torque testing is the second check. Tighten the mating screw to the specification for the size and class, then back it out. Inspect the thread flanks for galling or pulled material. A repair that passes the gauge but galls on the first assembly is not a repair.

Check the surface around the hole. Re-tapping can lift a burr at the chamfer. Inserts can sit proud if they are not set below the surface. Weld repair can leave a hard spot that chips the tap on the next operation.

For parts under ISO 9001:2015 or IATF 16949:2016 control, the repair needs a record. Method, operator, date, gauge result, and any deviation. We keep 100% inspection before shipment and supply reports on request, which is what most customers ask for when a repair is involved.

If the part is a safety item, do not repair it at all without engineering approval. A repaired thread in a brake caliper or a lifting eye is a different risk class from a repaired thread in a cover plate.

• 1
  GO / NO-GOGO by hand to full depth. NO-GO no more than 2.5 turns.
• 2
  Torque and back outLook for galling or pulled flanks after the first assembly.
• 3
  Check the surfaceBurrs at the chamfer, proud inserts, hard spots from welding.
• 4
  Keep a recordMethod, operator, gauge result, deviation. Required under ISO 9001 and IATF 16949.

The cheapest repair is the one you never need. Most shallow-thread problems start in the process plan, not on the machine. Fix the plan and the defect disappears.

Drill depth must cover full thread depth plus the tap lead plus chip clearance. For a blind hole, a common rule is thread depth plus 3-4 pitches of drill depth. On a 1.0 mm pitch, that is 3-4 mm of extra drill travel. It costs seconds and saves parts.

Call out the thread depth on the drawing as full thread, and state the minimum. Ambiguity is where defects live. If the drawing says M8 × 1.25 and nothing else, the shop will make its own assumption.

Sequence coating and welding before the final thread if the geometry allows. If the thread must be cut first, mask the hole during anodizing or plating. Masking is cheaper than a repair.

Use a spiral-flute bottoming tap for blind holes and keep the tool life records. A dull tap cuts undersize and leaves a rough flank, which shows up later as a shallow-thread complaint. Replace taps on a count, not on feel.

• 1
  Add drill depthThread depth plus 3-4 pitches of drill travel for blind holes.
• 2
  State the depthGive full-thread depth and minimum on the drawing.
• 3
  Order the operationsCoating and welding before final tapping where possible.
• 4
  Mask the holeCheaper than a repair on anodized and plated parts.
• 5
  Track tap lifeReplace on count. Dull taps cut undersize.
