How to Increase Productivity in CNC Machine Operations

• 1
  Where the gains usually come from
• 2
  Measure first: what increase productivity in cnc machine work really means
• 3
  Tooling and cutting parameters that hold up in production
• 4
  Cut setup time with five-axis and better fixturing
• 5
  Maintenance and programming habits that keep spindles turning
• 6
  Build inspection into the cycle instead of after it
• 7
  A practical sequence to raise output this month
• 8
  Which productivity lever fits your part

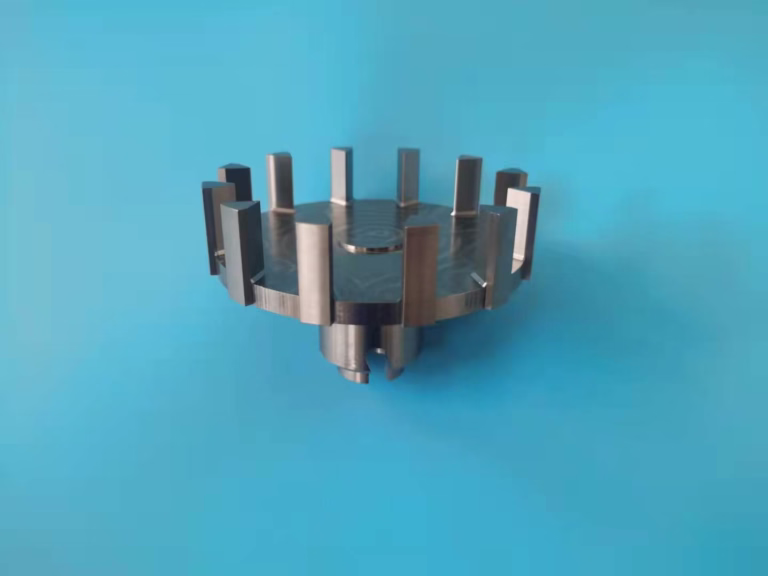

Productivity is good parts per hour, not spindle hours. A machine that runs 20 hours but produces 12 hours of conforming parts is less productive than one that runs 14 hours and ships everything. Before changing speeds or buying equipment, separate the cycle into three numbers: setup time, cut time and non-cut time (tool changes, probing, waiting, rework).

On a typical 50-part batch of a 6061 bracket, we see setup at 25-35% of the total, cut time at 45-55% and non-cut at 15-25%. Those ratios shift with batch size. On a 500-part run, setup drops under 10% and the constraint becomes tool life and chip evacuation.

Write the numbers on a whiteboard by the machine. Operators will point out the real bottleneck faster than any software report. In our Dongguan plants we review these three numbers at shift handover, which is how most of our process changes start.

• 1
  SetupFixture change, zero setting, first-article checks.
• 2
  Cut timeTime the tool is in the material removing stock.
• 3
  Non-cutTool changes, probing, chip clearing, waiting for inspection.
• 4
  YieldFirst-pass conforming parts divided by parts started.

Most cycle-time gains come from cutting data, not from a faster spindle. For 6061-T6 with a 12 mm carbide end mill, we run 3,000-4,000 rpm and 1,500-2,500 mm/min at 8-12 mm axial depth and 40-50% radial engagement. Pushing feed without enough radial engagement just wears the corner.

In 304 stainless, drop surface speed to 100-150 m/min with a coated carbide tool and keep feed per tooth at 0.05-0.12 mm. Too light a chip work-hardens the surface and the next pass cuts harder material. That is a common cause of sudden tool breakage on stainless.

Coolant direction matters as much as coolant type. Aim high-pressure flood at the cutting edge, not at the part. On deep pockets, through-spindle coolant clears chips that otherwise get recut and dull the flutes within a few minutes.

Test a new material on one part with a short program before releasing the full batch. Record the result: tool, speed, feed, depth and tool life in parts per edge. That log is the most useful document in the shop.

• 1
  Aluminum 6061-T63,000-4,000 rpm, 1,500-2,500 mm/min, 8-12 mm axial depth.
• 2
  304 stainless100-150 m/min, 0.05-0.12 mm per tooth, never rub.
• 3
  Titanium Ti-6Al-4V40-60 m/min, high-pressure coolant, rigid setup.
• 4
  AvoidReusing a worn edge because the part still looks acceptable.

Five-axis machining pays off when a part has features on four or more faces. Machining five faces in one setup removes the re-clamp error and the queue time between operations. On complex housings and brackets, that is often 40-60% of the total lead time.

It does not pay off on a flat plate with two drilled holes. Programming and verification take longer, and the machine hour rate is higher. Match the machine to the geometry, not to the brochure.

For three-axis work, quick-change fixturing and pre-set tool holders cut setup more than any control feature. Keep a duplicate holder for every high-use tool so the offset is already known. Use a probe to set work offset in under two minutes instead of indicating every time.

Zero-point clamping systems with a repeatability of about 0.005 mm let you move a pallet from the mill to the lathe or to the CMM without re-zeroing. That single change removes a whole class of waiting time.

• 1
  Good five-axis candidateFeatures on 4+ faces, tight true position between them.
• 2
  Poor candidateFlat plates, simple turned parts, one-face milling.
• 3
  Fixture ruleIf setup takes longer than the first part, redesign the fixture.

Unplanned downtime rarely comes from a broken spindle. It comes from a chipped tool, a clogged chip conveyor, a low way-lube reservoir or a probe that drifted. A daily check sheet with 8-10 items takes five minutes and prevents most of it.

Spindle warm-up is not optional on high-speed machines. Run the warm-up cycle after any stop longer than four hours. Thermal growth of 0.01-0.02 mm shows up as a size drift on the first ten parts of the shift.

On the programming side, use a template with proven speeds, feeds, safe Z heights and tool-change positions. Restart from a safe plane after any interruption. A single wrong restart position scraps the part and often the fixture too.

Simulate every new program before it runs on the machine, and dry-run the first part with the tool 50 mm above the stock. This catches the mistakes that cost the most time: wrong offsets, wrong tool numbers and rapid moves into the vise.

• 1
  DailyCoolant level and concentration, way lube, air pressure, chip conveyor.
• 2
  WeeklyFilter check, spindle taper clean, probe calibration check.
• 3
  Every new jobSimulate, dry-run, then first article.

Final inspection finds problems too late. In-process probing catches a size drift while there is still stock to correct. On a critical bore, probe every 20th part and adjust the offset in the control rather than stopping the machine for a manual check.

Set the inspection plan from the drawing tolerances. A ±0.005 mm bore and a ±0.2 mm slot do not deserve the same sampling rate. Spending the same time on both slows the line without improving quality.

Keep first-article reports and in-process records with the job. When a customer asks for data, the report is already there. That avoids the stop-and-search that eats an afternoon of production time.

For materials or features we have not run before, we do a DFM review within 12 hours and flag the features that will drive cost or risk. Fixing a design issue before the first chip is the cheapest productivity tool available.

• 1
  Probe critical featuresEvery 20th part on tight bores and datums.
• 2
  Sample loose featuresFirst and last part of the batch is usually enough.
• 3
  Keep records with the jobFirst article, tool log, in-process checks.
