How to Ensure the Safety of Cutting Tools During High-Speed Cutting in a Twin-Spindle Machining Center

• 1
  Key takeaways
• 2
  Balance Grade: The First Limit on Cutting Tools During High-Speed Cutting
• 3
  Holder Retention and Pull Force at High rpm
• 4
  Coolant Delivery and Chip Evacuation
• 5
  In-Cut Monitoring: Spindle Load, Acoustic, and Power
• 6
  Twin-Spindle Handoff and Thermal Drift
• 7
  How to Set Up and Run a Safe High-Speed Job
• 8
  Which Check Catches Which Failure

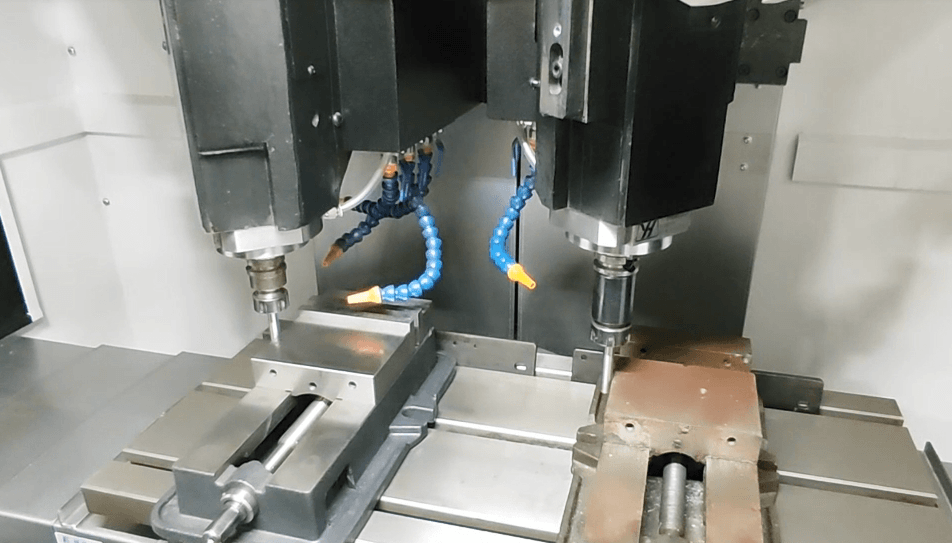

A twin-spindle center shares one bed, one coolant ring, and usually one chip conveyor. When one spindle spins a holder at 18,000 rpm, the vibration travels through the casting to the other spindle. That is why balance matters more here than on a single-spindle mill.

ISO 1940-1 sets balance grades. For high-speed cutting, aim for G2.5 at the maximum spindle speed, not at the rated speed printed on the holder. A holder balanced at 12,000 rpm and then run at 18,000 rpm is out of spec, even though the label says balanced.

Check the assembly, not just the holder. Pull stud, collet nut, collet, and tool all add unbalance. A 12 mm carbide end mill with a 40 mm gauge length stays inside G2.5 at 20,000 rpm when the whole stack is balanced together. Swap in a longer tool and the grade drifts.

Balance degrades with wear. Collet nuts lose preload, chips pack into the nut slots, and coolant residue dries on the taper. Recheck balance every 500 spindle hours, or after any crash, spindle change, or holder repair.

A quick field test: run the empty spindle to the target rpm and watch the vibration readout. Then load the holder with the tool and run again. If the vibration rises by more than 0.5 mm/s RMS, the stack is out of balance. Rebuild it before cutting.

At 10,000 rpm, centrifugal force starts to open the spindle taper. The tool holder no longer sits on the full taper contact you set at zero speed. Pull force holds it in place. Lose that force and the holder creeps out, then releases mid-cut.

Measure retention force with a pull-force gauge, not by feel. On a BT30 or HSK-A63 spindle, a typical healthy range is 8–12 kN for BT30 and 12–18 kN for HSK-A63. The machine builder supplies the exact number. Anything below the low end goes to maintenance before the next high-speed job.

Two parts wear: the retention knob and the Belleville springs inside the drawbar. Knobs wear at the thread root and the gripper groove. Springs lose preload after thousands of clamp cycles. Replace knobs on a fixed interval, and test spring force every 2,000 hours.

The twin-spindle layout adds a trap. The two spindles often share a hydraulic or pneumatic supply. A pressure drop on one side changes clamp behavior on the other. Log clamp pressure per spindle, not per machine.

Check the taper contact too. Blue the taper and look for a contact band above 80 percent. A holder that has spun or been crashed shows a narrow band near the small end. That holder will not hold at speed, no matter how good the pull force reads.

High-speed cutting moves a lot of material per minute. If chips sit in the flute, the edge rubs instead of cutting, and the temperature climbs. Through-spindle coolant at 20–70 bar clears the flute and cools the edge at the same time.

Pressure matters more than flow. A 6 mm carbide drill in 6061 aluminium needs roughly 20–30 bar to break the chip and push it out. Below 15 bar, chips weld to the flute and the drill snaps on the next peck.

Aim the nozzles at the cut, not at the part. On a twin-spindle center, the second spindle often works on the back side where the coolant ring cannot reach. Add a dedicated line or a rotary union at the Ø400 mm rotary table so the back side gets the same pressure.

Filter the coolant. A 50 μm filter keeps fines out of the through-spindle path. When the filter clogs, pressure drops on the spindle that is cutting and climbs on the idle one. Watch the pressure gauge, not just the flow meter.

Check chip evacuation on the second spindle separately. Chips from the first cut can fall into the second work zone. A short air blast before the clamp closes saves a broken tap later.

You cannot watch two spindles at once. Put sensors on both. Spindle load, spindle power, and acoustic emission each catch a different failure mode, and none of them sees everything.

Spindle load catches a dull edge and a hard spot in the material. Set a warning band at 70 percent of the proven load and a stop band at 90 percent. On a 15 kW spindle, that is roughly 10.5 kW warning and 13.5 kW stop.

Acoustic emission catches chipping and small cracks. A chipped edge makes a sharp broadband spike. Trend the signal over the tool life. When the baseline drifts up by 20 percent, change the tool at the next safe point.

Power monitoring catches a broken tool only after it breaks. Use it as a backstop, not as the primary signal. Combine it with a tool-life counter based on actual cutting time, not on cycle count.

Set different alarm levels per spindle. The second spindle often runs a finishing pass with a lower load. Copying the first spindle's thresholds onto the second one gives you either false stops or missed events.

The handoff between spindles is where most high-speed jobs lose size. The first spindle cuts a warm part, then the second spindle picks it up colder, or the part cools between ops. Thermal drift moves the tool tip by several microns.

Warm up both spindles before the first cut. Run a 20–30 minute warm-up cycle at the target rpm. A cold spindle grows in Z by 20–40 μm over the first hour of cutting. If you skip warm-up, the first ten parts run out of tolerance.

Probe the part on the second spindle before the finishing cut. A touch probe re-datum takes about 15 seconds and corrects thermal drift plus clamp repeatability. Without it, you are trusting a number that changed since the last setup.

Check clamp repeatability on both sides. A worn chuck jaw or a dirty collet seat moves the part 10–20 μm between loadings. Clean the seat every shift and measure repeatability weekly with a test bar.

Keep the tool offsets separate. Operators sometimes copy offsets from spindle one to spindle two. The two spindles have different gauge lengths and different thermal states. Copy the geometry, not the wear offset.
