How to carry out daily maintenance and upkeep of a gantry machining center electrical cabinet
A gantry machining center maintenance routine for the electrical cabinet that a shift operator can finish in 15 minutes. This guide covers what to look at, what limits to record, and which faults each check prevents. Written for maintenance techs and machine operators who keep large gantry machines running through long cuts.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
What goes wrong inside a gantry machining center electrical cabinet

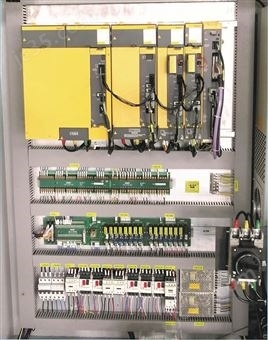

The gantry cabinet holds the spindle drive, the axis drives, the PLC, and the power supply for a machine that may run 20 hours a day. It sits near the floor of a large machine, so it breathes the same air the cut does: cast iron dust, aluminum chips, and coolant mist. None of that belongs on a circuit board.
Two failure paths cause most downtime. The first is heat. Every 10 °C rise above the rated ambient temperature roughly halves the life of an electrolytic capacitor in a drive. The second is contamination. A conductive chip that lands across two terminals on a contactor will arc, and the arc takes the contactor and sometimes the drive with it.
Dust also builds on heat sink fins. A layer 1 mm thick acts like a blanket, and the fan keeps running while the drive slowly cooks. Operators rarely notice until the drive trips on overheat during a heavy cut, usually at night when nobody is watching the load meter.
The routine below targets those two paths. It is written for a gantry machining center, but the sequence works on any large cabinet. Adjust the temperature limits to the drive manufacturer's data sheet, because those numbers override anything written here.
- 1Heat kills capacitorsRated ambient plus 10 °C can cut drive life in half.
- 2Chips conductOne chip across a contactor terminal can arc and weld contacts.
- 3Dust insulatesFins clogged with 1 mm of dust stop shedding heat.
What to check before the first shift starts
Start with the machine off and the main breaker locked out if your plant policy requires it. Most daily checks do not need the cabinet open at all. Look at the outside first: door gasket, fan grilles, filter mat, and the cable entry plate at the bottom.
Read cabinet temperature from the panel gauge or a handheld IR thermometer aimed at the exhaust grille. A cabinet running 5–10 °C above shop ambient is normal. Above 15 °C over ambient with the fans running means airflow is restricted or a fan has stopped.
Check the three-phase input voltage and log it. Phase imbalance above 2% stresses the rectifier in every drive on the bus. If your plant has a voltage sag when the big gantry spindle accelerates, note the time; that sag is often the real cause of a nuisance undervoltage trip.
Smell matters. A sharp, acrid odor near the exhaust means insulation is overheating somewhere in the cabinet. Ozone smell points at a failing contactor or a loose connection arcing under load. Both warrant opening the cabinet before the next shift, not after the next breakdown.
- 1Normal rise5–10 °C above shop ambient with fans running.
- 2Warning riseMore than 15 °C above ambient, or a rising trend over days.
- 3Phase imbalanceKeep below 2% between the three phases.
- 4Smell testAcrid or ozone odor means open the cabinet now.
Checks that need the door open
Lock out the main breaker and verify zero energy at the drive terminals before you touch anything. Wait for the DC bus to bleed down; most drives need 5 minutes or more, and the bus holds a lethal charge long after the display goes dark.
Inspect the filter mat. Hold it up to a light; if you cannot see through it, replace it. A pleated filter with 60–70% arrestance is a common choice for machine cabinets, but follow the drive maker's airflow spec. Never run the cabinet without a filter to improve cooling.
Look at fan blades and heat sink fins with a flashlight. A soft brush and low-pressure air, under 2 bar, clears most buildup. Blow away from the cabinet, not into it, and never spin a fan with compressed air; overspeed destroys the bearings.
Check terminal lugs with a torque wrench on the schedule in your maintenance plan. Thermal cycling loosens them. Look for discolored insulation, brown marks on busbars, and any white residue that suggests moisture has been condensing inside the enclosure.
- 1Bleed timeWait 5 minutes or more after lockout before touching the DC bus.
- 2Filter ruleIf light does not pass through the mat, replace it.
- 3Air pressureKeep cleaning air under 2 bar and blow away from the cabinet.
- 4Lug checkRetorque to the drive maker's spec and look for browning.
Cabinet cooling and why the door stays shut
Most gantry cabinets use one of two cooling schemes: filtered forced air, or a closed-loop air conditioner. Filtered air is simpler and cheaper, but it only works if the shop air is reasonably clean and the filter is changed on time. A cabinet air conditioner costs more and needs its own maintenance, yet it keeps chips and mist out entirely.
If the machine runs in a shop with heavy cast iron dust, go with the closed-loop unit. Filtered air will pull that dust in no matter how good the mat is, and iron dust plus humidity is the worst combination for a drive. If the shop is clean and the cabinet sits away from the cutting zone, filtered air is usually enough.
Set the cabinet air conditioner thermostat to keep internal temperature at or below the drive maker's rated ambient, typically 40–45 °C. Do not chase a lower number; running the unit flat out wastes energy and shortens its compressor life. Clean the condenser coil on the same schedule as the cabinet filter.
Never leave the door open to cool the cabinet. It seems to help on a hot afternoon, but it pulls in exactly the contamination the routine is trying to keep out. If the cabinet runs hot with the door shut, fix the airflow, not the door.
- 1Closed loopBest for shops with heavy dust or mist near the machine.
- 2Filtered airFine for clean shops with the cabinet away from the cut.
- 3ThermostatTarget the drive maker's rated ambient, often 40–45 °C.
- 4Door openNever a cooling fix; it pulls chips and mist into the drives.
Step by step: the 15-minute daily cabinet routine
Do these in order at the start of each shift.
- 11. Walk up and lookWith the machine idle, check the door gasket, fan grilles, and filter mat from outside. Look for chips piled against the cabinet base and coolant streaks on the door. Two minutes.
- 22. Read and log temperatureAim an IR thermometer at the exhaust grille or read the panel gauge. Record it. Normal is 5–10 °C above shop ambient. Flag anything above 15 °C over ambient or a rise of more than 4 °C from yesterday.
- 33. Check fans by sound and feelPut a hand near each grille; you should feel steady airflow. Listen for bearing whine or a slow, uneven spin. A stopped fan on a drive heat sink is a stop-work item, not a note for tomorrow.
- 44. Log input voltage and balanceRecord all three phase voltages. Keep imbalance below 2%. Note the time of any sag during spindle acceleration so the electrician can trace it.
- 55. Smell the exhaustAcrid or ozone odor means lock out and open the cabinet before the next shift. Do not run the machine and hope the smell clears.
- 66. Inspect filter and fins weeklyOn the weekly slot, lock out, wait 5 minutes for the DC bus, then check the filter mat against a light and clear fins with air under 2 bar. Replace the mat if light does not pass.
- 77. Torque and clean monthlyOnce a month, retorque terminal lugs to the drive maker's spec, vacuum the cabinet floor, and check for moisture or white residue. Log every value in the same sheet as the daily readings.
Daily readings, limits, and what each one warns about
Use these as a starting point and override with the drive manufacturer's data sheet.
| Check | Normal reading | Warning limit | Fault it prevents |
|---|---|---|---|
| Cabinet temperature | 5–10 °C above shop ambient | Above 15 °C over ambient | Drive overheat trip, capacitor aging |
| Input phase imbalance | Below 2% between phases | Above 2% | Rectifier stress, undervoltage trips |
| Filter mat | Light passes through | Light blocked or torn | Dust on boards, short circuits |
| Heat sink fins | Visible metal, no blanket | 1 mm or more of dust | Slow thermal drift, night trips |
| Fan airflow | Steady, quiet, even | Whine or no airflow | Hot spots on drive modules |
| Odor at exhaust | Clean, neutral | Acrid or ozone smell | Insulation failure, arcing contacts |
| Terminal torque | At maker's spec | Any loose lug | Arcing, contact welding, fire risk |
Common questions
How often should the cabinet filter be replaced?
In a shop with cast iron or graphite dust, check weekly and expect to replace every 4–8 weeks. In a clean shop with the cabinet away from the cutting zone, every 2–3 months is often enough.
The filter is cheap; a drive is not. If you are unsure, replace it. Never run the cabinet without a filter to improve airflow, even for one shift.
Can we keep the cabinet door open on hot days?
No. An open door pulls chips, dust, and coolant mist straight onto the boards. It also breaks the airflow path the fan was designed around, so cooling often gets worse, not better.
If the cabinet runs hot with the door shut, the filter is clogged, a fan has stopped, or the air conditioner needs service. Fix one of those three.
What cabinet temperature is too high for the drives?
Follow the drive manufacturer's rated ambient, which is commonly 40–45 °C for industrial drives, and note that the rating may be lower at full load. A cabinet reading 5–10 °C above shop ambient is normal.
A rise of more than 4 °C from the previous day is worth investigating even if the absolute number is still inside the limit. Trends catch problems that single readings miss.
Do we need a thermal camera for these checks?
Not for the daily routine. An IR thermometer aimed at the exhaust grille and a hand near each fan grille cover most of it.
A thermal camera earns its keep during monthly or quarterly inspections, when you want to compare lug temperatures across the busbars. A lug running 10 °C hotter than its neighbors is loose or corroded, even if the cabinet overall looks fine.
What should the daily log include?
Cabinet temperature, the three phase voltages, a note on fan airflow and noise, filter condition, and any smell at the exhaust. Add the date, the shift, and who signed off.
Keep the log in one place. The value of the sheet is the trend line, not any single entry. When a drive trips, the last two weeks of readings usually show the cause.
Is lockout required for every daily check?
No. Temperature, airflow, smell, and visual inspection are done with the machine idle and the door closed. Lockout is required before opening the door, and you must wait 5 minutes or more for the DC bus to bleed down.
Verify zero energy at the drive terminals before touching anything. Do not trust the display going dark as proof that the bus is discharged.
