Machining Problems of Central Tools: Symptom, Cause, Fix
A practical walk-through of the machining problems of central tools on horizontal and vertical machining centers. Written for process engineers and shop leads who need to trace a fault to its root, not swap inserts until the noise stops.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Symptom, likely cause, and what to change first
Read the left column, confirm the middle column with a dial indicator or a sound check, then apply the right column. Fix one variable at a time.
| Symptom | Likely cause | First action |
|---|---|---|
| Regular chatter marks on the wall | Tool overhang above 4 × Ø | Shorten the holder, add a stub arbor |
| High-pitched squeal at speed | Spindle speed too high for the insert grade | Drop speed 15–20%, keep feed per tooth |
| Insert corner breaks in 2–3 minutes | Thermal shock from flood coolant on hot carbide | Switch to air blast or reduce coolant flow |
| Hole drifts oval by 0.03 mm | Toolholder runout above 0.02 mm | Indicate the holder, replace if worn |
| Poor finish on the last pass | Tool deflection from heavy depth of cut | Take 0.2 mm finish pass at lower feed |
| Built-up edge on aluminium | Cutting speed under 150 m/min with uncoated tool | Use polished inserts, raise speed |
| Tool life drops after a weekend stop | Spindle warm-up skipped | Run a 10-minute warm-up cycle before cutting |
Fix the setup before you buy more inserts
Most central tool problems trace back to overhang, runout, or heat, not to the insert grade. Measure those three, change one variable at a time, and the tool life usually follows.
Why central tools fail on a machining center
A central tool problem almost never starts at the cutting edge. The insert is where the failure shows up, but the reason usually sits one step back: the holder, the spindle, the program, or the material batch. Before you change grades, measure the setup. A dial indicator on the tool taper and a quick runout check on a test bar answer more questions than a new box of inserts.
Rigidity sets the ceiling for everything else. When the tool hangs out more than four times its diameter, deflection grows faster than most shops expect. At Ø16 mm with 80 mm of overhang, a 1 mm depth of cut can push the tip off line by several hundredths of a millimeter. That shows up as taper, chatter, or a size that drifts across the part.
Thermal load is the second common root. Carbide handles heat well until the heat cycles too fast. Flood coolant on a hot insert cracks the coating, and the corner goes first. On interrupted cuts in 4140 or 17-4PH, an air blast often gives longer life than coolant because the temperature stays steadier.
The third is the material itself. A new heat of 304 stainless or Inconel can machine differently from the last one. Hardness varies, and work-hardening behavior changes with it. When a proven program suddenly fails, check the material certificate and run one test cut before touching the offsets.
- 1Measure before swappingRunout, overhang, and holder condition first
- 2Stiffness over speedShorten overhang before raising cutting speed
- 3Heat cycles crack carbideSteady temperature beats aggressive cooling
Tool geometry and material choice that avoid repeat failures

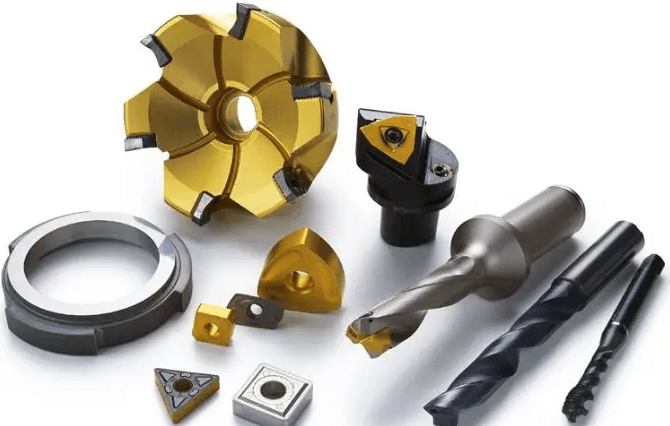

Tool material should follow the workpiece, not the other way around. For aluminium 6061 or 7075, uncoated polished carbide with a high rake angle clears chips fast and avoids built-up edge. For 304 and 316 stainless, a tougher substrate with a PVD coating handles the work-hardened layer better than a hard, brittle grade.
For hardened steels and high-temperature alloys, ceramic and CBN inserts hold an edge at speeds that would destroy carbide. They are not general-purpose tools. Use them on continuous cuts where the load stays steady, and keep the machine rigid. On interrupted cuts, they chip.
Geometry matters as much as grade. A positive rake reduces cutting force and helps on slender parts and thin walls. Negative rake is stronger and suits heavy roughing on castings and forgings. Relief angle and lead angle control how the force enters the part. A 45° lead angle spreads the load and is a good default for mixed work.
Coating choice is the last lever. TiAlN works well dry and at higher temperatures. AlTiN suits hard materials and dry cutting. For aluminium, no coating or a thin DLC layer beats a thick nitride film, which tends to drag and smear.
- 1AluminiumPolished uncoated carbide, high rake
- 2StainlessTough substrate, PVD coating
- 3Hardened steelCeramic or CBN, continuous cuts only
Cutting parameters: where most machining problems of central tools begin
Speed and feed are not independent numbers. They come from surface speed, tool diameter, and feed per tooth. If you change one, expect the other to move. Raising spindle speed without raising feed per tooth rubs the insert instead of cutting it, and the edge wears on the flank within minutes.
Depth of cut should stay predictable. On a rigid machine with a Ø12 mm carbide end mill in 6061, a 6 mm axial depth and 3 mm radial step-over is a reasonable roughing start. On a long-reach tool, cut that to 2 mm axial and run a finishing pass at 0.2 mm. The finishing pass is where you buy the surface finish, so keep the feed moderate and the speed steady.
Coolant strategy depends on the operation. Through-spindle coolant helps deep holes and keeps chips moving. For face milling on steel, an air blast or minimum quantity lubrication often beats flood, because it avoids thermal shock on the insert. On aluminium, flood coolant prevents chip welding and clears the flutes.
Watch the chips. Silver, curled chips that break cleanly mean the data is close. Blue or purple chips mean too much heat. Fine powder means the tool is rubbing. Chip color and shape tell you more in two seconds than a spreadsheet will in an hour.
- 1Feed per tooth firstThen adjust speed to control heat
- 2Finish pass is separate0.2 mm depth, moderate feed
- 3Read the chipsColor and shape show the real cutting condition
Setup, monitoring, and the checks that catch problems early
Most tool failures leave a warning. Spindle load climbs, sound changes, or the surface finish shifts before the corner breaks. A spindle load meter is cheap compared to a scrapped part. Set a baseline on the first good part and watch for a 10–15% drift. That drift is your signal to stop and inspect.
Toolholder condition deserves the same attention. Taper contact below 80% lets the tool move under load. Clean the taper and the spindle bore before every tool change. A small chip on the taper face can shift runout by 0.01 mm, which is enough to miss a ±0.005 mm tolerance on a bore.
Presetting tools offline cuts setup time and removes a common error source. Measure length and diameter on a presetter, enter the values, and let the machine verify with a touch probe. If the probe reading differs from the presetter by more than 0.01 mm, stop and find out why before running production.
On long runs, pull one part per shift and check the critical dimensions. Trend the numbers. A slow drift from 0.000 to 0.015 mm over 200 parts points to thermal growth or gradual tool wear, and you can correct it before the tolerance is gone.
- 1Baseline the load meterWatch for a 10–15% drift
- 2Keep taper contact cleanChips shift runout by 0.01 mm
- 3Trend dimensionsCatch thermal drift before scrap
Titanium, Inconel, and stainless: rules that hold up
Titanium TC4 (Ti-6Al-4V) conducts heat poorly, so the heat stays in the tool. Run lower surface speed than you would on steel, keep the feed per tooth high enough to stay out of the rubbing zone, and use plenty of coolant volume to clear chips. Never let the tool dwell. A stationary edge in titanium work-hardens the surface and dulls the next pass.
Inconel is worse on heat and worse on work hardening. Sharp edges, positive rake, and conservative depth of cut are the standard approach. Expect tool life measured in minutes, not hours, and plan for a tool change in the program. Rigid setups matter more here than on any other material.
Stainless 304 and 17-4PH sit in the middle. They work-harden if the feed is too light, so avoid a fine finishing pass with a dull tool. Keep the chip load above the work-hardened layer. If the surface starts to shine and the sound goes quiet, you are rubbing, not cutting.
For all three, the machine matters. Our 16 simultaneous 5-axis machining centers and 16 mill-turn centers run these alloys with rigid fixtures and short tool assemblies. On parts up to 4,000 mm, a stable setup removes most of the vibration that shortens tool life.
- 1TitaniumLow speed, high feed, no dwell
- 2InconelSharp edge, plan for frequent changes
- 3StainlessKeep chip load above the hardened layer
Step by step: trace and fix a central tool problem
Run these in order. Stop as soon as the symptom clears.
- 1Record the symptomWrite down the surface finish value, the dimension drift, and where on the part it appears. Photograph the insert wear. This takes two minutes and prevents guesswork later.
- 2Check runout and overhangIndicate the holder on a test bar. Keep runout under 0.02 mm. If overhang exceeds 4 × Ø, shorten the assembly before changing any cutting data.
- 3Inspect the insert under lightLook for crater wear, flank wear, chipping, or built-up edge. Each pattern points to a different cause: crater means heat, chipping means shock, built-up edge means speed too low.
- 4Verify the material batchCompare the certificate to the last good run. On stainless and titanium, a hardness shift of a few points changes the cutting behavior. Run one test cut on a scrap piece.
- 5Adjust one variableIf the edge is cratering, drop surface speed 15–20%. If it is chipping, switch to air blast or reduce coolant flow. Change one thing, then run three parts and re-check.
- 6Stabilize the setupAdd a support under long parts, reduce the axial depth of cut to 2 mm on long-reach tools, and confirm the fixture clamps near the cutting zone. Vibration usually starts at the fixture, not the tool.
- 7Set a monitoring baselineRecord spindle load and the first-part dimension. Pull one part per shift and trend the numbers. A 10–15% load drift or a 0.01 mm dimension drift is your early warning.
Questions engineers ask about central tool problems
How do I tell chatter from tool wear on a finished surface?
Chatter leaves a regular pattern with a repeatable pitch. Measure the spacing and compare it to the tool flute count and spindle speed. If the marks line up with the tooth passing frequency, the problem is vibration, not wear.
Tool wear tends to show as a gradual change in finish and a slow dimension drift. Chatter appears suddenly and often gets worse at a specific spindle speed. Change the speed by 10% and see if the marks move. If they do, it is chatter.
Is flood coolant always better than air blast?
No. On steel and hardened alloys, flood coolant can crack a hot carbide edge through thermal cycling. An air blast or minimum quantity lubrication keeps the temperature steadier and often extends tool life.
Flood coolant still wins on aluminium, deep-hole drilling, and any operation where chip evacuation is the main problem. Match the strategy to the failure mode, not to habit.
What runout is acceptable for a finishing tool?
Keep total runout under 0.02 mm for general milling, and under 0.01 mm for finishing and small-diameter tools. Above that, one flute does most of the cutting, wears fast, and pushes the size off.
Check runout with the tool clamped at the real cutting length. A holder that reads 0.005 mm at the taper can read 0.03 mm at the tip of a long tool.
How often should I replace inserts on a long run?
Base it on the trend, not the clock. Record the first-part dimension and the spindle load, then replace when load rises 10–15% or the dimension drifts 0.01 mm. Indexing on a fixed count alone wastes edges or scraps parts.
On titanium and Inconel, plan tool changes inside the program. Tool life is short and predictable, and a mid-cut failure costs more than the insert.
Can a machine with 4,000 mm travel hold ±0.005 mm?
Yes, with the right setup. The tolerance depends on thermal stability, fixture rigidity, and how the tool enters the cut, not on travel length alone. Long parts need support and a stable shop temperature.
We machine parts up to 4,000 mm on 127 CNC machines and hold ±0.005 mm on critical features. Inspection runs on 100% of parts before shipment, with reports on request.
What documentation helps when a problem keeps coming back?
Keep a short log per operation: tool grade, coating, speed, feed, depth of cut, coolant type, and the measured result. Photos of the worn edge are worth more than a paragraph of notes.
When you send a job to a supplier, include that log with the drawing. It shortens the DFM review and removes the guesswork on the first setup.
