A heat sink is a block of metal with a lot of surface area bolted on. The machining problem is always the same: how thin can the fin walls be before the cutter pushes them sideways. The ratio of fin height to fin thickness is the number you plan around. Below 8:1 the job is routine. Between 8:1 and 12:1 it needs care. Above 15:1 in aluminum, expect to slow down, use a smaller step-down, and accept more scrap on the first part.

Fin thickness itself has a floor. In aluminum 6061 a milled fin can hold 0.6 mm at 10 mm height with a 1.5 mm cutter, but pushing to 0.4 mm makes the wall chatter and spring back. In copper the same fin needs to be thicker, roughly 0.8 mm, because copper grabs the tool and deflects more. If your thermal model demands 0.3 mm fins, that is an extrusion or skiving job, not milling.

Gaps matter as much as walls. A 1.2 mm gap cut with a 1.0 mm end mill leaves 0.1 mm of clearance on each side, and a single burr closes it. Designers often specify 1.0 mm gaps and 1.0 mm fins, which forces a 1.0 mm cutter into a 1.0 mm slot. There is no room for runout. Open the gap to 1.3 mm or widen the kerf, and the part becomes machinable at the same airflow.

Base thickness is the anchor. For a 50 × 50 mm sink with 20 mm fins, a 4 mm base holds flatness through the cut. Drop to 2 mm and the base will bow as the fins release internal stress, especially in 6061-T6. A good rule is base thickness of at least one third of the fin height, and more if the sink mounts with screws near the center.

• 1
  Aluminum fin floor0.6 mm thick at 10 mm tall, cut with a 1.5 mm end mill.
• 2
  Copper fin floor0.8 mm thick at the same height, because of higher cutting forces.
• 3
  Gap ruleKeep at least 0.15 mm clearance per side around the cutter.

Aluminum 6061-T6 is the default heat sink alloy. It machines cleanly, holds a Ra 0.8–1.6 μm finish on fin walls, and takes anodizing well. Use a 3-flute carbide end mill with a ZrN or TiB2 coating, run 350–500 m/min surface speed, and keep the chipload between 0.02 mm and 0.05 mm per tooth. Too low a chipload rubs the material and builds a built-up edge that tears fin roots. Also check for a proper chip evacuation path, because aluminum chips weld to each other and jam a 1.2 mm slot fast.

Copper C110 is the other common choice, and it behaves differently. It conducts heat away from the cut, so the tool stays cooler, but it also work-hardens and sticks to cutting edges. Drop surface speed to 150–250 m/min, use 2-flute uncoated carbide or a diamond-like coating, and cut with a positive rake. Copper wants a slightly heavier chipload, around 0.05–0.08 mm per tooth, to avoid rubbing. Expect tool life in copper to be roughly half of what you get in 6061.

Beryllium copper is a special case. It machines well and gives better thermal performance than C110, but the dust is toxic. It needs coolant flood, sealed enclosure, and chip handling procedures. We machine it, but the drawing has to say so up front, because the setup and cleaning time is not the same as plain copper. Do not send beryllium copper parts into a general aluminum batch.

Tool wear shows up first at the fin root, not the tip. A worn corner radius will push the material instead of cutting it, and the fin roots start to look polished. Check the tool after every 30 to 40 minutes of cutting in copper. In aluminum you can usually run 90 minutes before the finish drifts. If the fin wall starts to show a bright band, change the tool before the next pass, not after the part is finished.

• 1
  6061-T6 parameters350–500 m/min, 0.02–0.05 mm/tooth, 3-flute ZrN carbide.
• 2
  C110 parameters150–250 m/min, 0.05–0.08 mm/tooth, 2-flute uncoated carbide.
• 3
  CoolantFlood coolant for copper and beryllium copper; air blast is enough for 6061.

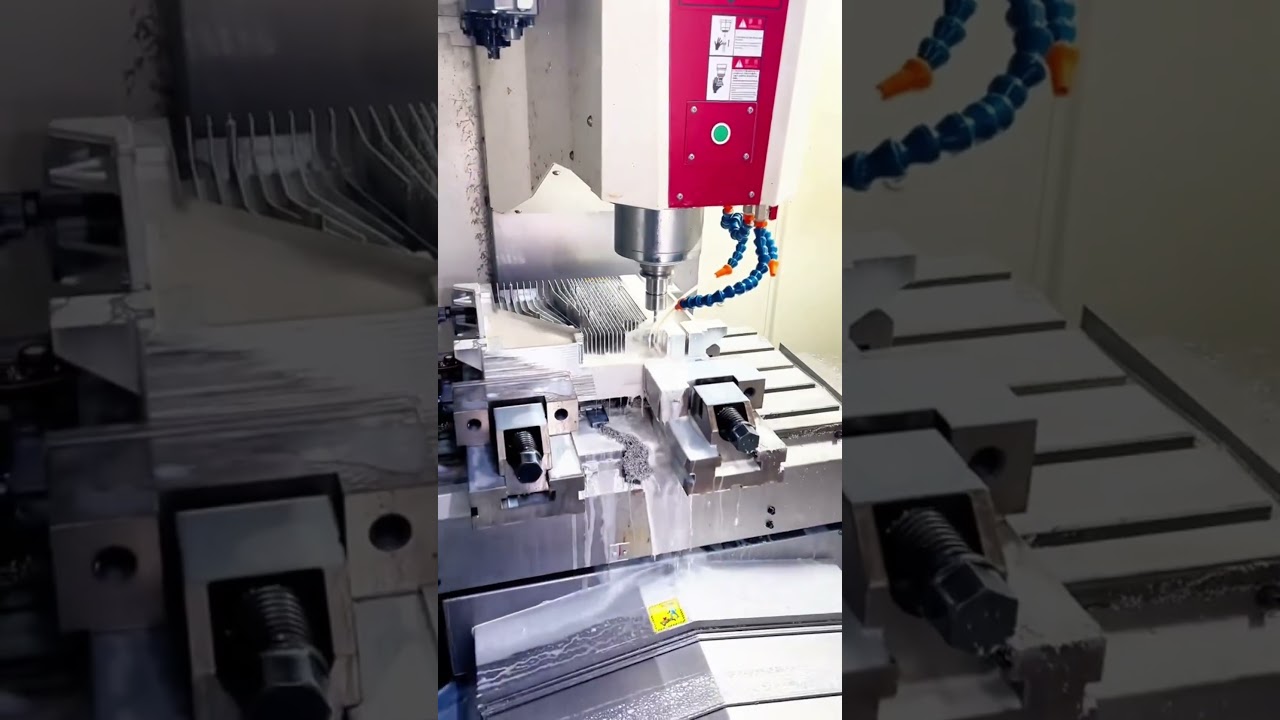

Climb milling is the default for fin walls. Conventional milling lifts the fin and leaves a burr on the exit edge, which is exactly where a thin wall is weakest. With climb milling the cutter pushes the wall into the solid base, so deflection goes into a stiff region. On a 5-axis machine we can also tilt the tool 3° to 5° so only the corner engages, which cuts side load on tall fins.

Step-down controls wall quality more than spindle speed. For a 10 mm tall fin, take 0.5 mm axial steps in aluminum and 0.3 mm in copper. Going deeper is faster but the wall springs back after the cutter passes, and the finished fin ends up thinner at the top than the drawing. If you have to remove a lot of stock between fins, rough with a larger cutter first and leave 0.15 mm on the walls for a finishing pass.

Workholding is where thin-base sinks fail. Vise jaws squeeze a 3 mm base and bow it before the cut even starts. Vacuum chucks or a sacrificial subplate with toe clamps at the corners hold the part flat without pinching it. For a 100 mm sink with 2 mm fins, support the base on a flat fixture plate so the fins hang free and the base cannot deflect downward.

Deep pockets between fins trap chips. Use through-spindle coolant or an air blast aimed at the slot, and program a retract that clears the fin top on every pass. A 1.2 mm slot full of aluminum chips will snap a small end mill in seconds. If the pocket is deeper than four times the cutter diameter, add a peck retract and cut the finishing pass from the bottom up.

• 1
  Axial step-down0.5 mm in aluminum, 0.3 mm in copper, for fins over 8 mm tall.
• 2
  Finishing stockLeave 0.15 mm on fin walls before the finishing pass.
• 3
  Fixture ruleSupport the base on a flat plate; do not clamp across it.

The fins move air. The base moves heat into the sink. If the base is not flat, the thermal interface material cannot bridge the gap and the junction temperature climbs. For a machined base, target 0.02 mm flatness over 100 mm, and 0.01 mm on a copper spreader with a direct die contact. Measure after machining, not before, because releasing the top stock unloads the base and it can move.

Surface finish on the base is a trade. A mirror finish sounds good but traps almost no thermal paste, and the contact can be worse than a lapped surface. Ra 0.8–1.6 μm is the practical band for a paste interface. For a direct metal contact or a soldered joint, go finer to Ra 0.2–0.8 μm and keep the base flat, because there is no paste to fill the valleys.

Anodizing adds 10–25 μm per surface and can round a fin tip. On a 0.6 mm aluminum fin that is a real change. If the gap is already tight, mask the fin tips or allow the growth in the drawing. Hardcoat anodizing is thicker and more brittle, so avoid it on fins under 0.8 mm. For copper sinks, plating changes the surface too; electroless nickel at 5–8 μm is common and does not close a well-designed gap.

Then check the whole stack. A finished sink with 20 fins at 1.2 mm gap has 20 chances for a burr. Run a pin gauge or an optical check across every gap before packing. We do 100% inspection before shipment, with raw material check, in-process monitoring, and final inspection, and reports are available on request. Catching one folded fin burr at the bench is cheaper than a field return.

• 1
  Base flatness target0.02 mm over 100 mm; 0.01 mm for direct die contact.
• 2
  Paste interface finishRa 0.8–1.6 μm; finer finishes can reduce paste contact.
• 3
  Anodize growth10–25 μm per surface; account for it on fins under 1 mm.

Heat sinks do not need the tightest tolerance on the whole part. The fin thickness and gap usually drive cost, while the mounting holes and base dimensions can sit at ±0.05 mm. Reserve the tight tolerance, down to ±0.005 mm, for the base flatness and the die contact face. Putting a ±0.01 mm tolerance on every fin wall multiplies inspection time without improving thermal performance.

Quantity changes the method, not just the price. One prototype sink is milled from plate, often with a short program and a single setup. At a few hundred parts, a dedicated fixture and a proven program cut the cycle time. Past roughly 5,000 parts, extrusion or die casting starts to beat milling on unit cost, but only if the fin geometry is simple enough. Between those two points, milling is usually the fastest route to a working part.

We run no minimum order quantity, from one prototype to 10,000+ part runs, and quotation with free DFM analysis comes back within 12 hours. Production can start within 24 hours, and parts ship in 3–5 days. If a fin ratio is not machinable, the DFM note will say so and suggest a gap or thickness change before the program is written.

Finishing adds time after the cut. Anodizing, plating, and bead blasting all need masking decisions on the thermal contact face. Tell us which faces touch the heat source and which faces move air. A masked base with an anodized fin pack is normal; anodizing the contact face is usually a mistake because the oxide layer insulates.

• 1
  Base tolerance±0.005 mm on the contact face, measured after machining.
• 2
  Mounting features±0.05 mm is enough for holes and outer profile.
• 3
  Volume switchMilling wins below roughly 5,000 parts for complex fins.
