High Efficiency Grinding Machine: How the Process Actually Cuts Cycle Time

• 1
  What Makes a High Efficiency Grinding Machine Different
• 2
  Where the Process Works and Where It Does Not
• 3
  The Parameters That Decide Cycle Time
• 4
  Heat, Burn, and Surface Integrity
• 5
  Accuracy the Process Can Hold
• 6
  Choosing Between Grinding, Milling, and Turning

A standard surface grinder removes maybe 0.01 mm per pass and sparks out for a long time. A high efficiency grinding machine removes 0.5 mm to 5 mm of stock in one pass at wheel speeds above 80 m/s. The abrasive grains cut instead of rub, so most energy goes into chip formation rather than friction.

The change is not one component. Higher wheel speed needs a stiffer spindle, a wheel rated for the surface speed, and a coolant jet that reaches the contact zone at the same velocity as the wheel. If coolant arrives late, the grain rubs, heat goes into the part, and you get burn instead of a finished surface.

The engineering meaning is simple. Cycle time drops because you take fewer passes and spend less time sparking out. The trade is that the machine must hold position under a much larger tangential force, and the operator must understand dressing and coolant pressure or the process will damage the workpiece.

• 1
  Higher wheel speed80–140 m/s instead of the 30–35 m/s used on conventional grinders.
• 2
  Stiffer loopSpindle, wheel, and fixture stiffness must rise together.
• 3
  Coolant velocityJet speed should match wheel surface speed at the contact zone.
• 4
  Dressing frequencySharper wheels cut cooler, so dressing is part of the cycle, not a delay.

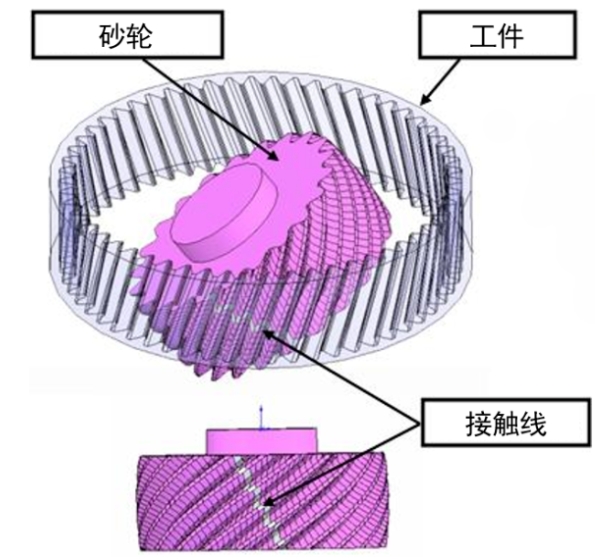

High efficiency grinding suits hardened steel above 50 HRC, thin-walled bearing races, and gear teeth that need a ground profile after heat treatment. Materials like 440C, 17-4PH, and tool steel are common. The process also works well on Inconel and titanium when wheel speed and coolant are matched to the lower thermal conductivity of those alloys.

It is a poor fit for soft aluminium and plastics. Those materials load the wheel and smear instead of forming a clean chip. If a part is aluminium and only needs Ra 1.6–3.2 μm, a 5-axis machining center will usually finish it faster and cheaper without a second setup.

Deep internal features are another boundary. Grinding a bore with a length-to-diameter ratio above 4:1 needs a long quill, and quill deflection grows faster than the diameter shrinks. At that point you either accept a slower feed or move the feature to a milling operation with a smaller tool.

• 1
  Good fitHardened steel, bearing races, gear flanks, hydraulic spools.
• 2
  Poor fitSoft aluminium, most plastics, unhardened low-carbon steel.
• 3
  Watch the ratioInternal grinding past 4:1 L/D needs a stiffer quill or a different process.

Wheel speed is the first lever. Going from 35 m/s to 100 m/s roughly triples the number of cutting edges passing the contact zone per second, which lets you raise the feed rate without increasing chip thickness. The limit is the wheel burst speed and the spindle bearing temperature.

Depth of cut per pass is the second lever. Creep feed grinding takes 0.5–6 mm in a single slow pass. The table feed drops to 1–10 mm/s, but the total time is often shorter than twenty shallow passes because there is no repeated spark-out between them.

Coolant pressure matters as much as the wheel. A jet at 8–15 bar through a coherent nozzle reaches the contact zone before it turns to vapor. On high-temperature alloys such as Inconel 718, we run higher pressure and check the part temperature after the first article to make sure no burn appears.

• 1
  Wheel speed80–140 m/s for high efficiency work; 30–35 m/s is conventional.
• 2
  Depth of cut0.5–6 mm per pass in creep feed mode.
• 3
  Coolant pressure8–15 bar, aimed to reach the arc of contact.
• 4
  Spark-outOften eliminated or reduced to 1–2 passes on a stiff machine.

Grinding sends almost all its energy into the contact zone as heat. Some leaves with the chip and coolant, the rest goes into the workpiece. When the energy input exceeds what coolant can remove, the surface tempers, and the part shows burn or a soft layer called rehardening.

A high efficiency grinding machine reduces burn risk by removing stock quickly, so the hot zone passes before heat soaks into the bulk. It also raises risk because the energy per second is higher. The balance is controlled by coolant delivery and by not letting the wheel glaze.

After grinding hardened steel, we check microhardness on a sample when the drawing calls for it. If a white layer or overtempered zone appears, the fix is usually a softer wheel grade, higher coolant pressure, or a shorter dressing interval, not a slower feed everywhere.

• 1
  BurnBlue or straw discoloration plus a microhardness drop near the surface.
• 2
  GlazingA shiny loaded wheel that rubs instead of cutting.
• 3
  Fix orderCheck coolant, then dressing, then wheel grade, then table feed.

On a stable setup with a dressed wheel and temperature-controlled coolant, grinding holds ±0.005 mm (±0.0002 in) on diameter and roundness under 0.003 mm. Surface finish lands between Ra 0.2 μm and Ra 0.8 μm for fine work, or Ra 0.8–1.6 μm for general finishing.

Those numbers depend on the part, not just the machine. A short stiff shaft reaches the tight end. A long slender shaft deflects under the same grinding force and needs steady rests or a reduced depth of cut. We normally state the tolerance we can hold after reviewing the drawing, not before.

Grinding also corrects distortion that appears after heat treatment. A part that warps in hardening can be ground back to size, which is why the process stays in the routing even when a milling step comes before it.

• 1
  Diameter±0.005 mm achievable on a rigid, temperature-stable setup.
• 2
  RoundnessUnder 0.003 mm on short, well-supported parts.
• 3
  FinishRa 0.2–0.8 μm fine, Ra 0.8–1.6 μm standard.
