High and Low Rail Turret Machine: How the Two Rail Sets Shape Your Part

• 1
  What the rails actually do on a high and low rail turret machine
• 2
  Why the turret holds many different types of tools
• 3
  Rail geometry, bed type and the accuracy you can expect
• 4
  Where the high and low rail layout stops being the right answer
• 5
  Running a turret job without losing size
• 6
  Turret lathe vs mill-turn vs 5-axis mill: which fits the part

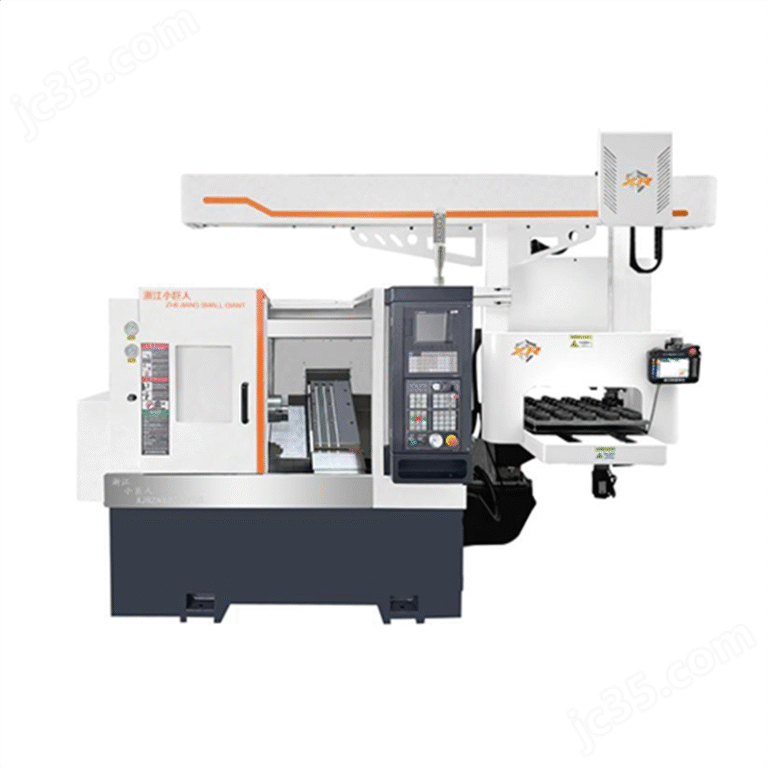

The name describes the guideway layout, not the tooling. One set of rails sits high on the bed and carries the turret saddle. A second set sits lower and guides the tailstock or a second carriage. Because the two sets are at different heights, the turret can travel past the tailstock without collision, and the tailstock can advance independently while the turret is still cutting.

That independence is the whole point. On a single-rail lathe, the tailstock and the turret share the same guideway, so one waits for the other. On a high and low rail turret machine, a shaft can be center-drilled, supported by the tail, then turned and bored without the operator pulling the part out and re-chucking it. Every re-chuck costs concentricity.

Rail height also changes the force path. The upper rail takes the cutting load closer to the tool tip, which shortens the bending moment on the saddle. Lower rails sit further from the cutting zone and mostly resist the tailstock thrust and the weight of long stock. That split is why these machines hold diameter tolerance better on long shafts than a flat-bed lathe of the same swing.

The trade-off is setup. Two rail systems mean two alignment procedures. If the upper and lower rails drift out of parallel by more than a few microns over the bed length, taper shows up in the turned diameter and no amount of tool compensation hides it cleanly.

• 1
  Upper railCarries the turret saddle; takes the main cutting load.
• 2
  Lower railGuides the tailstock or second carriage; takes thrust.
• 3
  ClearanceDifferent heights let both slides work in the same Z envelope.

A turret is a rotating tool carrier indexed by the CNC. A 12-station turret can hold OD turning holders, boring bars, drills, taps, and a probe, all pre-set offline. The machine does not stop for a tool change in the manual sense; it indexes and continues. That is what makes a high and low rail turret machine productive on parts that need several operations from one setup.

Station count matters less than station mix. Eight stations with a live-tool block for cross drilling and milling usually beats twelve stations of static holders, because the live block removes a second op. When you specify a machine, list the operations per part first, then count stations. Do not buy stations you will never index.

Tool holders repeat to a few microns when the turret is seated correctly. The failure mode is a worn coupling or chips on the seating face. Both show up as a sudden size shift after a tool change, not as gradual drift. If one station runs oversize and its neighbors do not, look at the seat before you touch the offsets.

For small lots, the setup dominates. Presetting holders offline and keeping a repeat job sheet cuts the first-article time considerably. That is a scheduling habit, not a machine feature, and it is where most of the gains sit for runs under a few hundred pieces.

• 1
  Static holdersTurning, facing, boring, threading, grooving.
• 2
  Live holdersCross drilling, milling flats, off-axis holes.
• 3
  ProbingIn-process size checks without breaking the setup.

Bed type sets the ceiling on accuracy. A flat-bed machine is easy to load and forgiving on heavy, short parts. An inclined bed lets chips fall clear and brings the tool closer to the operator's sight line, which helps on long shafts where thermal growth is already working against you. The rail layout and the bed angle are separate choices.

On our inclined-bed turning centers, the practical working tolerance is ±0.005 mm on diameters that fit the work envelope. Surface finish lands between Ra 0.8 and 1.6 μm on a normal turning pass, and Ra 0.2 to 0.8 μm when we add a fine finishing pass or a polished insert. Those numbers hold when the part is supported and the material is stable.

Long parts are a different story. A shaft at 20:1 length-to-diameter will deflect under its own cutting force no matter how good the rails are. The tailstock helps, and a steady rest helps more, but the limiting factor becomes the part, not the machine. If your feature tolerance is tighter than ±0.01 mm at that ratio, plan for a follow rest or a between-centers grind.

Thermal drift is the quiet one. A lathe that has run for two hours will hold size differently than one that started cold. We warm up spindles before first article on tight jobs and re-check the reference diameter after the first twenty parts. That practice is cheaper than sorting scrap later.

• 1
  Flat bedHeavy short parts, easy loading, more chip pooling.
• 2
  Inclined bedChip clearing, better sight line, long shafts.
• 3
  Steady restNeeded above roughly 10:1 length-to-diameter.

It is the wrong choice when the part has no rotational axis worth keeping. If 80 percent of the cycle is milling a flat face, a turret machine will spend most of its time indexing and interpolating. Move the job to a 5-axis mill and cut the cycle.

It is also wrong for very long, very slender work. Once the length-to-diameter ratio passes roughly 20:1, deflection and chatter dominate, and a dedicated between-centers process or a traveling-carriage lathe will beat a turret machine on both size and finish.

Volume changes the answer too. Under about fifty pieces, programming and setup can exceed the cutting time, so a simpler 3-axis lathe with a quick-change holder may be the honest pick. Above a few thousand pieces, a dedicated transfer or a bar feeder on the turret machine starts to pay back the fixturing.

Material matters at the edges. Titanium and Inconel cut hotter and work-harden, so the rail system has to be stiff enough to avoid rubbing. Aluminium rewards higher spindle speeds more than rail stiffness. Stainless sits in between and is usually the material where a high and low rail turret machine shows its advantage most clearly.

• 1
  Wrong forMostly prismatic parts, no true turning axis.
• 2
  Wrong forShafts above roughly 20:1 without a steady rest.
• 3
  Wrong forOne-off parts where setup outweighs cutting.
