Resin printing is a vat photopolymer process. A liquid resin sits in a tank, a light source cures one layer against a build plate or film, and the plate lifts to let fresh resin flow back. Layer thickness typically runs 0.025–0.1 mm, which is why small features and smooth surfaces come out far better than on a filament printer.

The trade-off is mechanical. Most standard resins are brittle after cure and lose strength as they absorb moisture. They are excellent for fixtures that only locate a part, for visual models, and for mold patterns. They are poor for anything that sees repeated impact, sustained heat above roughly 60 °C, or a threaded joint under load.

So the first question is not which brand to buy. It is what the part has to survive. A cover that sits on a bench and a bracket that holds a motor are two different material problems, and no single bottle solves both.

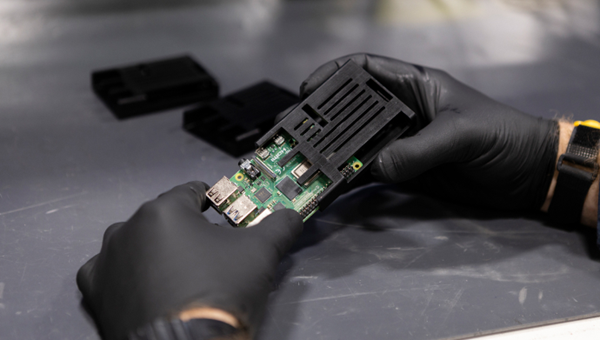

We see this often in our prototype work: a printed housing looks perfect on the desk and cracks at the first screw boss. The fix is either a change of resin or a change of process, and section four covers how to decide.

Sort your part into one of four jobs: visual, fit-check, functional, or castable. Visual parts need clarity or colour and nothing else, so a standard resin at 0.05 mm is enough. Fit-check parts need stable dimensions and a little toughness so they do not chip while you assemble them.

Functional parts carry load, rub against other surfaces, or live in a machine. Here you move to tough or engineering resins, which cure to a lower modulus but bend before they break. Expect to pay more per litre and to tune exposure again, because the formulation is different.

Castable resins are a separate family. They burn out cleanly for investment casting, but they are soft and shrink noticeably, so never use them as a dimensional reference. Print them only when the metal part is the goal.

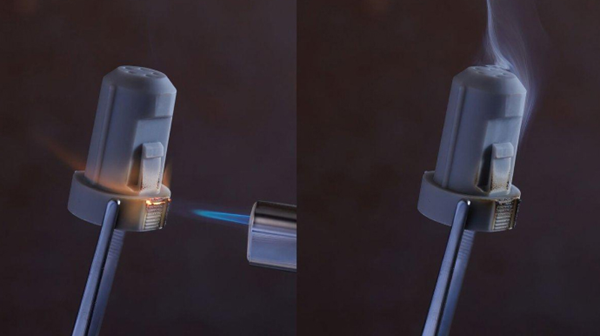

One more check: temperature. If the part sits near a motor, a lamp, or an engine bay, a cured resin will creep and distort. That is the point where we usually recommend aluminium or stainless instead, machined to ±0.005 mm and finished to Ra 0.8–1.6 μm.

• 1
  VisualStandard or clear resin, 0.05 mm layers, no load.
• 2
  Fit-checkTough resin, 0.05–0.08 mm layers, check hole sizes.
• 3
  FunctionalEngineering or tough resin, thicker walls, post-cure fully.
• 4
  CastableBurnout resin, allow for shrinkage, do not measure it.

Exposure time is the single setting that decides whether a print succeeds. Too short and the layer does not bond to the one below; too long and light bleeds sideways, closing small holes and thickening fine walls. Start from the resin supplier's range and run a test print with a row of small pillars and slots.

Layer height changes the exposure you need. Thinner layers need less cure per layer but more layers overall, so a 0.025 mm print can take three to four times as long as a 0.1 mm print of the same part. For most industrial fit checks, 0.05 mm is the practical middle.

Watch the bottom layers separately. They usually take 4–8 times the normal exposure to grip the plate, and over-curing them makes the part hard to remove and prone to a warped first centimetre. Lower the bottom count before you lower the main exposure.

Temperature matters more than most people expect. Resin below about 20 °C flows slowly and prints with visible layer lines and weak bonds. Keep the vat at 25–30 °C for consistent results, and stir the bottle before pouring.

Every photopolymer shrinks as it cures, and part of that shrink happens after printing, during post-cure under UV. Typical values sit between 0.5% and 3% depending on the family, and the shrink is not uniform: thin walls move more than thick bosses.

For a fit-check part, scale the model up by the supplier's shrink figure before slicing, then measure the first article and correct once. Do not chase the number on every print; one correction per resin batch is normally enough.

Post-cure is not optional for functional parts. A part taken off the plate is only partly reacted and will creep under load. Follow the supplier's time and temperature, and support the part so it does not sag while warm. Over-curing makes it brittle, so stay inside the window.

If a dimension has to hold to ±0.005 mm, or the part needs a real thread that will be tightened more than once, printing is not the right process. That is machined work, and we run it on 3-, 4-, and 5-axis centers with 100% inspection before shipment.

Printing wins on geometry that is hard to cut: internal channels, lattice, organic ribs, and small batches where tooling cost would dominate. It also wins when you need a part tomorrow and the shape is not load-bearing.

Machining wins on threads, bearing bores, flat sealing faces, and anything that is tightened repeatedly. It also wins when the part sees heat or fatigue. Our 5-axis centers hold ±0.005 mm and finish to Ra 0.2–0.8 μm when the drawing calls for it.

The practical route for many projects is both. Print a fit-check version to confirm the envelope and the hole positions, then machine the final part in 6061-T6, 17-4PH, or PEEK depending on the load and the environment.

We quote from a STEP file with a free DFM analysis inside 12 hours, and production can start within 24 hours. No minimum order quantity, from one prototype to 10,000+ parts. Uploads stay confidential and we sign an NDA on request.
