Explore Wire Cutting Machine Tools: How Wire EDM Removes Metal

• 1
  How a wire cutting machine tool actually cuts
• 2
  Why wire EDM uses multiple passes for tolerance
• 3
  When wire cutting is the wrong process
• 4
  What to design for when you explore wire cutting machine tools
• 5
  Wire EDM compared with milling and turning

A wire cutting machine tool uses a thin wire, usually brass or coated brass, as the electrode. The wire runs from a supply spool to a take-up spool and never touches the workpiece. A dielectric fluid, normally deionized water, fills the gap between wire and metal. The generator sends controlled pulses through that gap, and each pulse vaporizes a small amount of material. Thousands of pulses per second later, a kerf is formed.

This matters because there is no cutting force. A 0.25 mm wire can slice through 100 mm of hardened tool steel without pushing the part. Thin walls, small internal radii, and features that would deflect under an end mill are routine here. The wire diameter plus the spark gap sets the kerf, so a 0.25 mm wire typically leaves a 0.33–0.36 mm slot.

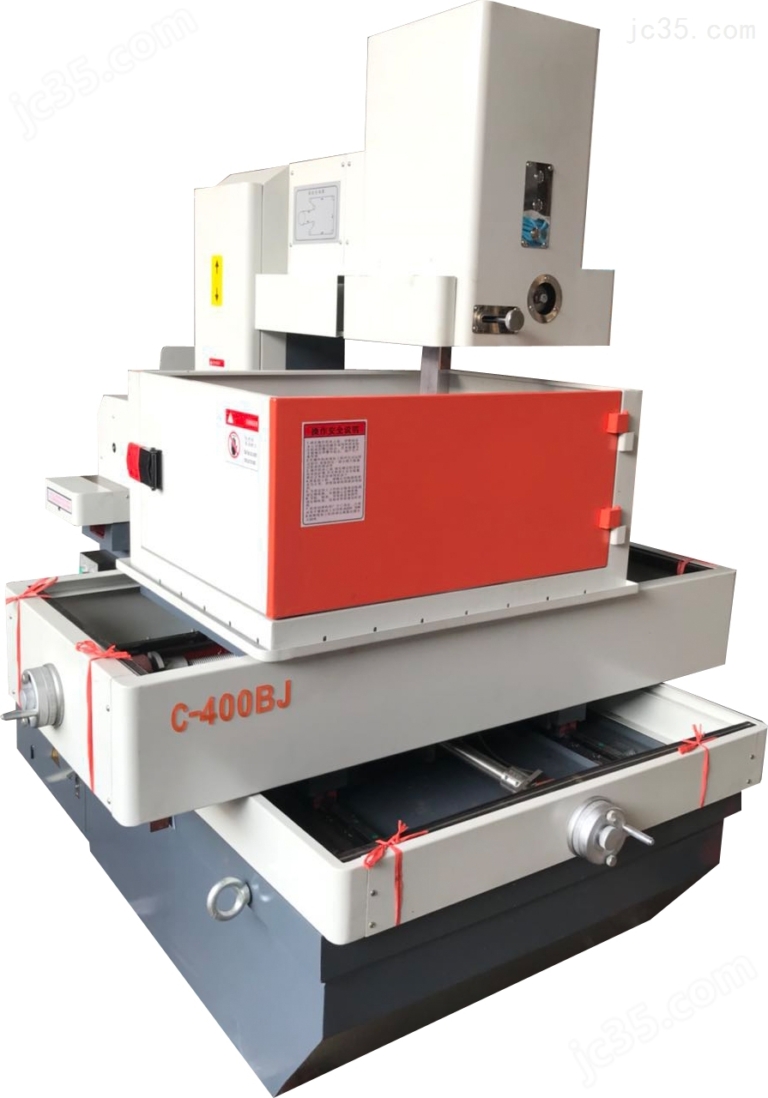

The part sits in a tank, submerged or flushed, while the worktable moves in X and Y. On a wire EDM with a tilting head, U and V axes move the upper wire guide so the wire can taper. That is how you cut a die with relief angle in one setup. The wire is single-use on most machines. It is consumed, not resharpened.

• 1
  ElectrodeBrass or coated brass wire, often 0.20–0.30 mm diameter.
• 2
  DielectricDeionized water, filtered and temperature-controlled.
• 3
  Cut pathWire travels vertically or tilted, never touches the part.
• 4
  ForceNone. No tool pressure, so thin sections hold shape.

A single roughing pass cuts fast but leaves a recast layer and a rough surface. On hardened steel, that surface can measure Ra 3.2–6.3 μm and carry microcracks. So wire EDM runs a sequence: one or more rough passes, then skim passes with lower energy. Each skim pass removes a few micrometres and improves surface finish.

For a typical tool steel die, a four-pass sequence might go from roughing to Ra 0.8–1.6 μm. A finishing sequence can reach Ra 0.2–0.8 μm. The trade-off is time. Each skim pass adds minutes, sometimes hours on tall parts. The wire also wears, and the machine compensates by adjusting offsets.

Tolerance is not uniform across the cut. The wire bends slightly from flushing pressure and from the taper angle. On a 100 mm tall part, holding ±0.005 mm on a straight wall is realistic with good flushing. On a 200 mm tall part, the same tolerance is harder. The wire lag at the bottom of the cut grows with height. If you need tight tolerance on a tall part, expect slower feed rates and more skim passes.

• 1
  Rough passHigh energy, fast removal, leaves recast layer.
• 2
  Skim passesLow energy, remove recast, improve Ra.
• 3
  Height effectTaller parts need slower feed for the same tolerance.

Wire EDM only cuts through material. It is a through-cut process. You cannot machine a blind pocket or a three-dimensional contour that does not pass through the part. If your part needs a pocket with a floor, wire EDM will not make it. Milling will.

The process also needs a start hole. The wire has to be threaded through the part, so you drill or EDM a small hole first, usually 0.3–0.5 mm larger than the wire. On a hardened part, that start hole itself may require small-hole EDM. This adds setup time and cost. For a simple through-slot in a soft plate, milling is faster and cheaper.

Electrical conductivity is mandatory. Plastics, ceramics, and most composites cannot be wire cut. You can cut conductive ceramics like some silicon carbides, but that is a specialty setup. For the common engineering materials, wire EDM handles steel, stainless, aluminium, copper, brass, titanium, and Inconel. Aluminium cuts fast but the oxide layer can disrupt the spark, so parameters need adjustment.

• 1
  Through-cuts onlyNo blind pockets, no floors, no 3D contoured cavities.
• 2
  Needs a start hole0.3–0.5 mm larger than wire diameter.
• 3
  Conductive materials onlyNo plastics, no standard ceramics, no dry composites.

The smallest internal corner radius equals the wire radius plus the spark gap. A 0.25 mm wire gives a corner radius around 0.16–0.18 mm. If your drawing calls for a sharp internal corner, that is not physically possible with wire EDM. You can get a sharp corner only if you allow a relief cut or if the corner is at an open edge.

Taper is another design lever. A wire EDM with U and V axes can cut up to around ±30° taper, depending on the machine and part height. That lets you cut a die with draft in one setup. But taper reduces the effective flushing, so the achievable surface finish and tolerance drop as the angle increases. For a 10° taper on a 50 mm tall part, expect a slightly rougher finish than the same part cut straight.

For parts that need both tight tolerance and a fine finish, plan the wire path so the critical surfaces are cut last. The final skim pass sets the tolerance. If a feature is cut in the first rough pass and never touched again, its tolerance will be looser. On our wire EDM work, we often leave 0.05–0.1 mm stock on critical walls for the skim passes.

• 1
  Corner radiusMinimum ≈ wire radius + spark gap, about 0.16 mm.
• 2
  TaperUp to ±30°, but finish drops as angle rises.
• 3
  Stock for skimLeave 0.05–0.1 mm on surfaces that need tight tolerance.
