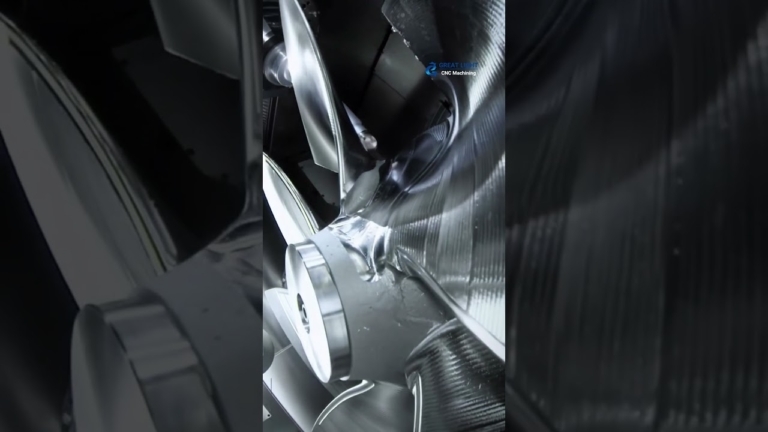

Impeller CNC Machining: What Happens in 20 Seconds

• 1
  Why an impeller is not a normal milled part
• 2
  What the 5-axis motion is actually doing
• 3
  Tool selection and the limits it sets
• 4
  Thin walls, deflection and the tolerance you can hold
• 5
  Roughing, finishing and the 20-second illusion
• 6
  Which impeller geometry fits which process

Most machined parts give the cutter a straight path. An impeller does not. The blade surface is a ruled or freeform sweep that changes angle along its length, so the contact point between tool and material moves continuously. Every pass leaves a different scallop height, and the next pass has to remove it without gouging the neighbor.

That is the whole difficulty. An impeller is a set of thin curved walls standing on a hub, spaced a few millimeters apart. The tool has to reach down between the walls, cut the full blade height, and pull out again. Reach and stiffness fight each other here. A long tool reaches the hub but bends under load.

The geometry also removes the option of simple indexing. On a three-axis machine you would need the tool axis perpendicular to the floor. On a twisted blade the surface normal is almost never vertical, so the tool approaches at an angle and the machine has to rotate the part or the spindle to hold that angle.

Read the drawing with one question in mind: can a rigid tool reach every point on the blade without touching the next blade? If the answer is yes, the part is a milling job. If it is no, you are looking at a different process or a design change.

A simultaneous 5-axis center moves two rotary axes while the three linear axes travel. On an impeller that means the tool tip follows the blade surface while the tool shank tilts away from the wall. The tilt is not decoration. It controls which part of the cutter touches the material.

Tilt the tool too little and the shank rubs the blade above the cutting zone. Tilt it too much and the effective cutting diameter shrinks, the surface speed drops, and the finish turns smeared. Tool suppliers publish a working tilt window for each cutter. On a typical tapered ball tool the usable range is roughly 10° to 20° of lead or tilt.

The rotary table does the other half of the work. A Ø400 mm table lets the part index between blade pockets without re-clamping, so all blades are cut in one setup. One setup means one datum. That matters more than speed on a part with 12 or 20 identical blades.

Not every impeller needs five axes. A low-count open impeller with straight radial blades can often be cut on a 4-axis mill with the table indexing between blades. The blade surfaces stay ruled, so a simple swarf-style pass removes them. Add twist and splitter blades and the ruled assumption breaks.

The tool decides what is possible before the machine does. Blade passages are narrow and deep, so the cutter diameter is capped by the gap between blades. A 6 mm ball tool in a 12 mm passage leaves almost no clearance for the shank, and the required length-to-diameter ratio climbs quickly.

A rule we use on the floor: keep the flute length under 5× the cutter diameter. Past that, deflection shows up as chatter marks and as a blade that measures thin at mid-height. If the passage forces a longer tool, reduce radial engagement and accept a slower pass rather than fighting the vibration.

Tapered tools help. A tapered ball cutter is stiff at the shank and small at the tip, so it reaches into a narrow fillet without the long slender body. For finishing impeller blades in aluminium, a tapered ball tool at 20,000 rpm and 0.3 mm stepover is a common starting point.

Material changes the numbers. Aluminium 6061 and 7075 cut freely and allow aggressive stepover. Titanium Ti-6Al-4V and Inconel hold heat at the cutting edge, so speeds drop and the tool wears on the flank. Stainless 17-4PH sits between the two. The geometry may be identical; the cycle time is not.

Blade thickness is where most impeller jobs go wrong. A 1.5 mm blade deflects under cutting force. Push the tool and the wall springs away, then springs back after the pass and leaves an oversized section in the middle of the blade. The part passes a quick check and fails a scan.

The fix is mechanical, not software. Take lighter radial cuts, use a sharp tool with a positive rake, and support the blade if the geometry allows a temporary web. On very thin blades we sometimes leave a sacrificial rib and cut it in a later operation.

Tolerance is stated on the drawing, but it is only meaningful per feature. On an impeller, the blade profile and the hub bore are not the same problem. A hub bore and locating diameter can hold ±0.005 mm on a good machine. A 1 mm freeform blade tip usually cannot, because the part moves while it is being cut.

A workable split: hold ±0.005 mm on bores, shoulders and mounting faces, and hold a profile tolerance on the blade itself. That matches how the part is inspected and how it works in service. A blade does not seal against anything, but it does have to balance.

The clip that makes the rounds is the finishing pass. Roughing is where the hours go. On a titanium impeller the bulk removal can take several times longer than the final profile pass, because the tool has to clear the passage in small radial steps without letting heat build up.

A typical sequence runs in three stages. First, rough the hub and open the passages with the largest tool that fits. Second, semi-finish the blade flanks to a uniform allowance, usually 0.3 to 0.5 mm. Third, finish the blade surface with a tapered ball tool at a small stepover.

Inspection closes the loop. We check raw material certificates before cutting, monitor the first article in process, and inspect 100% of parts before shipment, with reports on request. On impellers the useful report is a point cloud or a section scan against the CAD surface, not a single diameter reading.

Balancing is the step people forget. An impeller that spins needs mass symmetry, and machining removes material unevenly if the blades are cut in sequence. Cut blades in a balanced order, or plan a final balance operation into the routing.
