EDM Machining Mold Bullhorn Inserts

• 1
  What a Bullhorn Insert Does in a Mold
• 2
  How Spark Erosion Removes Hardened Steel
• 3
  When EDM Machining Mold Bullhorn Inserts Beats Milling
• 4
  Electrode Material, Wear, and the Orbit
• 5
  Flushing, Surface Finish, and the Recast Question
• 6
  Tolerance, Inspection, and Heat Treatment Order
• 7
  Milling vs Wire EDM vs Sinker EDM on a Bullhorn Insert

A bullhorn insert carries the gate and the first few millimeters of runner on a separate piece of steel. The horn shape splits one incoming melt stream into several balanced branches, and each tip feeds a cavity. Because the tips sit close to the part, they wear faster than the rest of the mold base. Toolmakers make them as replaceable inserts so a worn tip does not scrap a whole cavity plate.

Geometry is usually small and awkward. Tip radii of 0.3–1.0 mm, horn walls of 1.0–2.5 mm, and a tapered throat that opens at 3–8° toward the sprue. There is often a shut-off land where the insert meets the cavity plate, and that land has to seal under injection pressure. Deep ribs and narrow slots appear because the melt channel must stay round.

Typical materials are 1.2343 (H11), 1.2344 (H13), 420 stainless, 440C, or a precipitation-hardened grade like 17-4PH. All of them arrive pre-hardened at 48–54 HRC, which is exactly the range where carbide end mills start to complain. That single fact drives most of the process choice on this page.

• 1
  Tip radius0.3–1.0 mm is common; smaller tips need wire EDM or a fine sinker electrode.
• 2
  Horn wall1.0–2.5 mm of steel between channels, no room for a large cutter.
• 3
  Sealing landNeeds a sharp square corner, not a cutter radius.

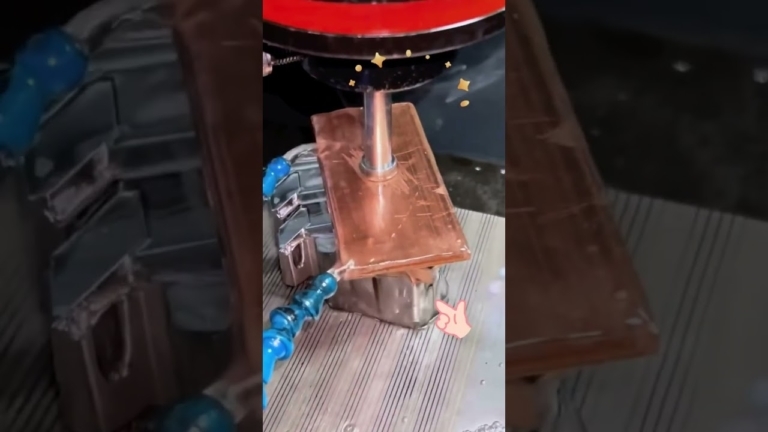

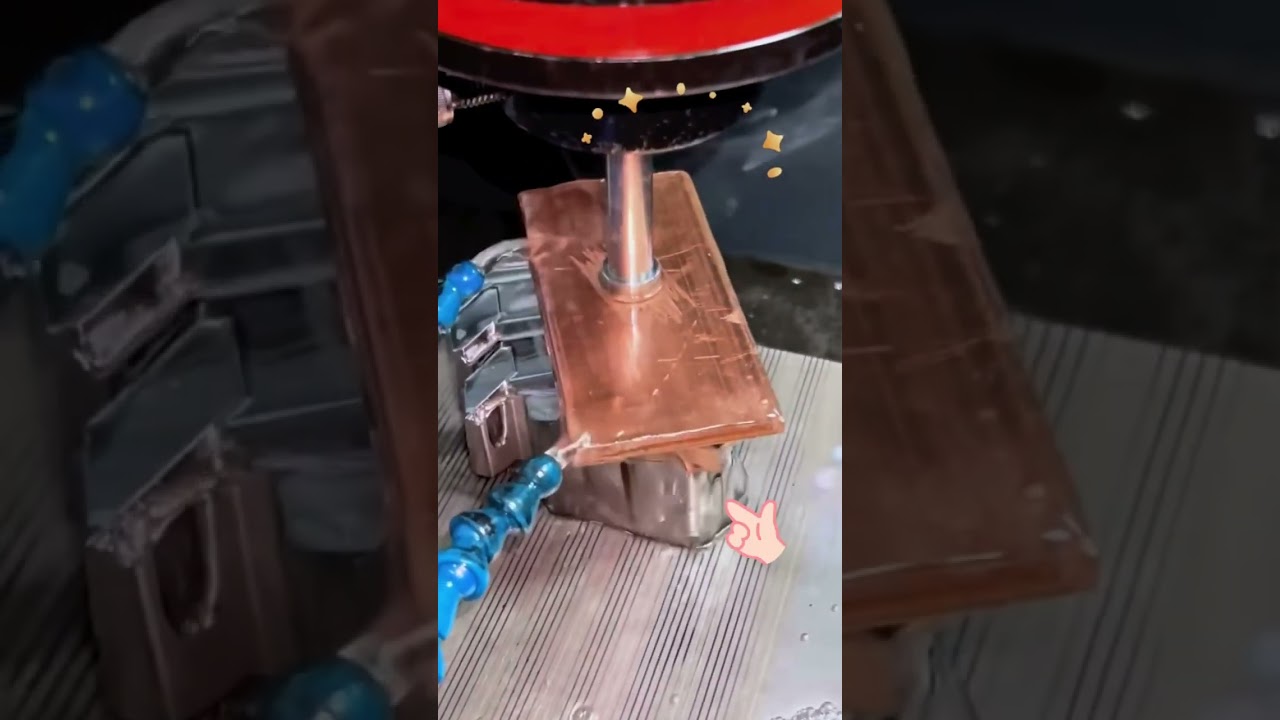

Sinker EDM does not cut. It erodes. A shaped electrode is fed into the workpiece while a dielectric fluid floods the gap, and a pulsed DC supply creates thousands of controlled sparks per second. Each spark melts and vaporizes a tiny crater, and the dielectric flushes the debris away before the next pulse. The electrode never touches the steel, so hardness stops mattering.

The gap is the whole game. Discharge occurs across roughly 0.02–0.10 mm depending on the current setting, and that gap is what determines the finished size. If flushing is poor, conductive sludge stays in the gap, sparks scatter, and you get arcing: a burned pit, a tapered wall, or a cracked electrode. Roughing runs at higher current and leaves a recast layer of about 5–25 μm. Finishing passes at low current remove most of it.

Wire EDM works on the same principle with a moving brass or coated wire instead of a shaped electrode. It is a 2-axis (or 4-axis tapered) process, so it cannot produce a true 3D horn, but it is unbeatable for the straight shut-off land, the through-slot, and the split line. Most bullhorn inserts are built with both processes on the same part.

• 1
  Spark gapAbout 0.02–0.10 mm; the electrode is undersized by that amount per side.
• 2
  Recast layer5–25 μm after roughing; removed by low-current finishing passes.
• 3
  Hardness effectNone. A 54 HRC insert erodes as easily as a 30 HRC one.

Choose EDM when the feature is deep, narrow, or already hardened. A 1.2 mm wide melt channel that runs 15 mm deep is a broken end mill waiting to happen on a milling machine, but it is a routine sinker job. The same applies to any internal corner that must be square. Milling always leaves the cutter radius, and a 0.4 mm corner radius on a sealing land can leak.

Choose milling first when the insert is still soft and the geometry is open. Roughing a pre-hardened block at 30–40 HRC with a 6 mm coated carbide cutter is fast and cheap, and it takes the bulk of the material away before EDM ever starts. On a typical bullhorn insert, milling removes 70–85% of the volume; EDM finishes the rest.

Skip EDM when the tolerance is loose and the feature is shallow. If a horn tip only needs ±0.05 mm and a 0.8 mm radius, a small-diameter end mill in a high-speed spindle will do it in a fraction of the time. EDM is slow by nature. Removing a cubic centimeter of hardened steel can take 30–90 minutes on a sinker, and the electrode has to be made first.

• 1
  Pick EDMSquare internal corners, deep narrow slots, hardened steel, sharp shut-offs.
• 2
  Pick millingOpen 3D surfaces, soft or pre-hardened stock, generous radii, fast turnaround.
• 3
  Combine bothMill the bulk while soft, heat treat, then EDM only the critical details.

Graphite and copper tungsten are the two workhorses. Fine-grain graphite erodes fast and is cheap to machine, but it wears quickly, so you need two or three electrodes for a finishing pass. Copper tungsten wears far less and holds a sharp edge on thin horn ribs, which matters when the electrode wall is under 1 mm. The trade-off is cost and slower cutting.

Wear shows up as a size change, not a shape change. If the electrode loses 0.03 mm on the sidewall over a roughing pass, the cavity grows by 0.03 mm unless you compensate. That is why roughing electrodes are deliberately undersized and finishing electrodes are measured after each use. A worn finishing electrode produces a horn tip that is too wide and a gate that runs hot.

The orbit is how the machine compensates. Instead of plunging straight, the electrode follows a small circular or planetary path that widens the cavity. Starting with a small orbit and stepping outward lets one electrode do rough and semi-finish work, and it improves flushing because the gap keeps moving. Set the orbit too large, though, and the corner radius grows with it. Square corners need a near-zero orbit and a dedicated finishing electrode.

• 1
  GraphiteFast, low cost, high wear. Use for roughing and large cavities.
• 2
  Copper tungstenLow wear, holds thin ribs, better for finishing and tight tolerances.
• 3
  Orbit size0.05–0.30 mm per side typical; larger orbit rounds internal corners.

Flushing decides whether the job runs or burns. Through-spindle flushing pushes clean dielectric down the electrode, which works when you can drill a flush hole. For blind horn tips, use side flushing or a vacuum pull on the workpiece. If neither is possible, jump flushing lifts the electrode every few seconds to let fresh fluid in. That costs cycle time but prevents arcing on deep ribs.

Surface finish is set by the finishing pass, not by the machine. Roughing leaves a matte, pitted surface around Ra 3.2–6.3 μm. Stepping down through semi-finish and finish passes can reach Ra 0.8–1.6 μm, and a final low-current pass with a fresh electrode can get to Ra 0.2–0.8 μm on a good day. Every step down adds time, so specify the finish you actually need on the melt channel, not on the whole insert.

The recast layer is a thin, hard, brittle skin left by the sparks. On a gate it can spall and drop debris into the melt stream, which shows up later as a cosmetic defect on the molded part. For medical and optical parts, finish passes should remove it entirely. A light polish or a bead blast on non-sealing surfaces is usually enough for structural parts.

• 1
  Roughing finishRa 3.2–6.3 μm, heavy recast, needs a finishing pass.
• 2
  Standard finishRa 0.8–1.6 μm, suitable for most melt channels.
• 3
  Fine finishRa 0.2–0.8 μm, low recast, used on gates and optical tooling.

A bullhorn insert is a stack of tolerances. The electrode is machined to ±0.005 mm, then it wears, then the machine positions it, then the spark gap adds its own variation. Holding ±0.005 mm on the finished insert is realistic on a modern sinker with a good electrode and a stable thermal environment. Holding it on a thin horn rib after three roughing electrodes have been used is not.

Heat treatment order matters more than most people expect. If you harden after EDM, the part distorts and you have to re-cut the critical features with a grinder or a second EDM pass. If you harden before EDM, the electrode has to survive a 50 HRC cut, which is normal but slower. Most shops rough machine, heat treat to 48–54 HRC, then wire and sinker the details.

Inspection follows the same logic. A toolmaker's microscope or a video measuring system checks tip radii and channel widths. A CMM checks the shut-off land and the mounting faces. Surface finish is checked with a portable roughness tester on the melt channel. We run 100% inspection before shipment, with raw material check, in-process monitoring, and a final report on request.

• 1
  Electrode tolerance±0.005 mm on critical features before any wear is counted.
• 2
  Heat treat48–54 HRC before EDM, so the finished geometry stays put.
• 3
  InspectionMicroscope for tips, CMM for lands, roughness tester for channels.
