The Five Main Functions of the Five Axis Machining Center

• 1
  Continuous Motion Keeps the Tool Normal to the Surface
• 2
  Collision Avoidance in Tight Pockets
• 3
  One Setup Covers Five Sides of the Part
• 4
  RTCP Keeps the Tool Tip Where the Program Says
• 5
  Short Runs and Design Iterations Without New Fixtures
• 6
  When the Extra Two Axes Do Not Pay Off
• 7
  Which Function You Actually Need

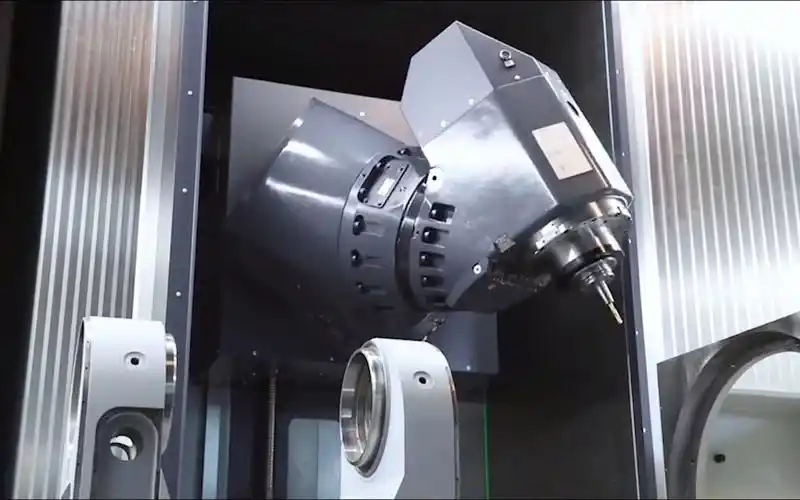

On a 3-axis machine the tool axis is fixed. When a surface tilts, the contact point between tool and material becomes an ellipse, so the cutting speed and chip load change across the pass. A five axis machining center rotates the tool or the part so the cutter stays close to normal to the surface. Ball nose marks shrink and the scallop height drops.

That matters on contoured work: turbine blade roots, impeller vanes, deep ribs in a mold cavity, bone plate undersides. On these parts the surface is not flat anywhere, and a fixed tool axis forces you to use a small stepover to hide the mismatch. Normal-to-surface cutting lets you open the stepover without leaving visible witness lines.

The gain is not free. Each additional rotary axis adds a small positioning error, and the machine has to interpolate five axes at once. On a good machine with a calibrated rotary table (Ø400 mm class), we hold ±0.005 mm on features that are reachable in one setup. On long, thin parts the rotary error stacks up and you should plan the fixture so the critical features sit closest to the table center.

• 1
  Best fitSculpted surfaces, blades, vanes, mold cores, medical implants
• 2
  Poor fitFlat plates with holes; a 3-axis machine is faster and cheaper

A 3-axis machine can only approach a feature from above. Shorter tools deflect less, but a short tool cannot reach the bottom of a deep cavity. So you use a long tool, slow the feed, and accept chatter. A five axis machining center tilts the head or the table to bring a short, stiff tool into the pocket at an angle. Cutting force drops, tool life goes up.

This is the function that most often decides whether a part is machinable at all. Undercuts, side ports, deep ribs with draft, hydraulic manifold cross-drillings, and impeller channels have features that no vertical tool can reach. Tilting the part 30° to 45° often exposes the feature without a special cutter.

Verify clearance in CAM before you commit. The holder, not the cutter, is usually what hits the wall. Model the full stack: collet nut, extension, and the spindle nose. If the simulation is clean, run a dry pass with the tool offset 5 mm away from the part and watch the rotary moves. That five-minute check catches most crashes.

• 1
  Watch the holderModel collet nut and extension, not just the cutter
• 2
  Dry run firstOffset 5 mm and watch all rotary moves before cutting

Every time you move a part to a new fixture you reintroduce locating error. On a 3-axis job with five machined faces you might touch the part three or four times. Each re-clamp adds a few thousandths of position error and a few hours of labor. A five axis machining center turns the part under the spindle instead, so all five faces come off one datum.

For a part with tight true position between faces, this is the difference between a stack of tolerances and a single datum. Position tolerance between two holes on opposite faces is far easier to hold when both holes are drilled in the same setup. The same logic applies to concentric bores, gearbox housings, and valve bodies.

The tradeoff is fixturing. You need a vise or tombstone that holds the blank rigidly while the table tilts, and you need enough clearance under the part for the tool to swing. Parts with a long overhang can vibrate when the table rotates 90°. In that case, add a tailstock or a steady rest, or split the job into two setups after all.

• 1
  Best fitHousings, valve bodies, manifolds, parts with true-position callouts
• 2
  Watch forLong overhangs that vibrate when the table tilts 90°

Rotating tool center point (RTCP) is the control function that compensates for the geometry of the rotary axes. Without it, the programmed point is the pivot center, not the tool tip. When the head tilts, the tip swings away from the commanded path by the tool length. RTCP corrects this in real time so the tip follows the path the CAM system posted.

The practical effect is shorter setup and fewer scrapped parts. You can change a tool, re-measure its length, and keep cutting without reposting the whole program. On a job that runs several tool changes per part, that saves a lot of air cutting and a lot of operator math.

RTCP depends on accurate kinematics. The control needs the pivot distance, the rotary offsets, and the tool length to be correct. If the machine has drifted or the rotary table was re-clamped after a service, the compensation is wrong and the error shows up as a taper on a nominally straight wall. Re-calibrate the kinematics after any work on the rotary axes.

• 1
  What it fixesTool-tip path drift when the head or table tilts
• 2
  When to re-checkAfter any service on the rotary axes or a table re-clamp

A five axis machining center can machine a part from a near-net blank with almost no dedicated fixturing. That makes it the natural choice for prototypes, bridge tooling, and low-volume runs where the design is still moving. When the CAD changes, you repost the program and cut. No new hard fixture, no new soft jaws for every revision.

This is why the process fits aerospace and medical development work so well. A bracket can go from print to first article in days, then be revised twice before the design freezes. The same machine that cut the prototype can run the pilot batch, so you do not have to re-qualify a different process.

It is not always the cheapest route. For a simple 2.5D part at 10,000 pieces, a 3-axis machine with a dedicated fixture will beat it on cycle time every week. Use the five axis for the parts where setup reduction and geometry complexity dominate, and hand the simple, high-volume work to the 3-axis cell.

• 1
  Best fitPrototypes, bridge tooling, pilot batches, evolving designs
• 2
  Poor fitSimple 2.5D parts at high volume; use a 3-axis cell

Adding rotary axes does not make a machine universally better. It adds moving mass, more error sources, and more programming time. If a part is prismatic, with all features reachable from one or two directions, a 3-axis or 4-axis machine will usually run it faster and cheaper. The five axis shines on geometry a fixed tool axis cannot reach.

Part size matters too. A five axis machine with a large trunnion can swing a part, but the working envelope shrinks as the part grows. A 4,000 mm long part may not fit the rotary table at all. For long, slender parts, a gantry or a mill-turn setup is often the better answer, even if it means more setups.

Surface finish calls also decide. Where a mold needs Ra 0.2–0.8 μm and a mirror polish, the normal-to-surface motion of five axis cutting helps. Where the callout is as-machined at Ra 1.6–3.2 μm on flat faces, it adds nothing. Match the process to the print, not the other way around.

• 1
  Skip five axis whenAll features face one or two directions, high volume, simple surfaces
• 2
  Choose five axis whenUndercuts, sculpted surfaces, tight true position between faces
