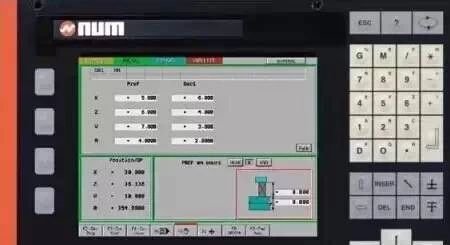

A CNC machine tool system is the control package that sits between your CAM output and the metal. It reads the program, interpolates the path, drives the servos and closes the position loop thousands of times per second. Everything the operator sees, from feed override to alarm text, comes from that package.

People often treat the control as a brand label on the door. It is closer to a translator. The same G-code can produce a stable cut on one control and chatter on another because the look-ahead buffer, acceleration limits and feedforward tuning are set differently.

Three functions matter most in daily work. Block processing speed sets how fast the control can read and execute the next line. Look-ahead depth decides how far ahead it plans deceleration into corners. Servo loop bandwidth decides how tightly the axis follows the commanded path under cutting load.

These three are not independent. A large look-ahead buffer on a slow processor just adds delay. High loop bandwidth on a loose mechanical axis amplifies vibration instead of removing it. When a machine behaves badly, the control is usually reporting a mechanical or programming problem, not creating one.

• 1
  Block processingLines per second the control can read and execute
• 2
  Look-aheadBlocks planned ahead for corner deceleration
• 3
  Loop bandwidthHow tightly the axis follows the commanded path
• 4
  FeedforwardReduces following error before it becomes a gouge

Fanuc dominates our shop floor and most contract machining worldwide. The 0i and 30i/31i families cover three-axis mills up to large five-axis centers. The reason is not marketing. Toolpath behavior is predictable across machines, macro B is well documented, and every operator we hire has seen the interface before.

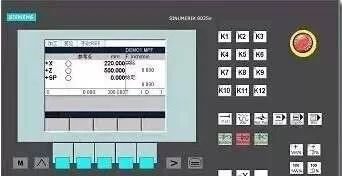

Siemens Sinumerik, mainly 828D and 840D sl, shows up where five-axis work is heavy. Its compressor and TRAORI functions handle tool center point management well, and the shop-floor programming is strong for complex geometry. Expect a steeper learning curve and a higher machine price.

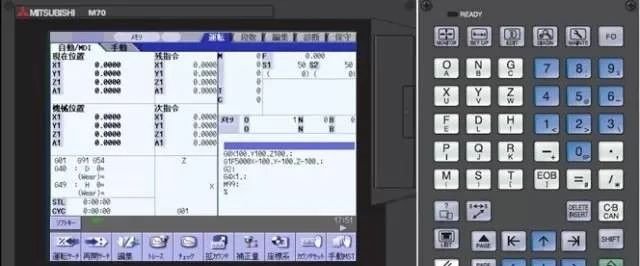

Mitsubishi M80 and M800 sit in the middle. They are common on Japanese-built machines and offer good value on three-axis and four-axis work. Documentation in English is thinner than Fanuc, so troubleshooting leans more on the machine builder.

Fagor and similar open-architecture controls appear onSpanish-built machines and on older retrofits. They are flexible and inexpensive to service, but post-processor support is narrower. Heidenhain TNC is the fifth common family, and it is the one many five-axis operators prefer for its conversational programming and cycle support.

• 1
  FanucWidest post support, predictable motion, easiest hiring
• 2
  SiemensStrong five-axis and TCP management, steeper curve
• 3
  MitsubishiGood value on 3- and 4-axis, thinner English docs
• 4
  HeidenhainConversational shop-floor programming, five-axis favorite

A closed-loop system compares commanded position with actual position and corrects the difference. The error signal drives the servo until the gap closes. Semi-closed loops read the motor encoder, so they never see backlash or ballscrew pitch error. Full-closed loops read a scale on the table or slide and catch that error directly.

For most aluminum and steel parts held to ±0.005 mm, semi-closed is enough if the machine is mechanically sound and thermally stable. Full-closed scales earn their cost on long travels, on machines that run hot, and on parts where the difference between motor position and table position matters.

The loop also sets the practical feed limit. Push feed too high and following error grows until the axis lags behind the commanded path. The control may alarm out, or it may simply cut an undersized corner. Neither shows up until inspection.

Feedforward is the usual fix. It predicts the required torque from the commanded acceleration and applies it before the error builds. That lets a machine run faster without loosening the loop or sacrificing corner accuracy.

• 1
  Semi-closedEncoder on the motor; blind to screw and backlash error
• 2
  Full-closedScale on the slide; catches mechanical error directly
• 3
  Following errorLag that grows with feed and shows as corner error

Linear interpolation moves two or more axes along a straight line. Circular interpolation fits an arc from a center point and radius. These are the basics, and on a three-axis job they are usually all you need.

The interesting behavior starts when the program asks for a shape the control cannot execute as written. A CAM system may output thousands of tiny linear segments to approximate a curve. The control has to blend them into continuous motion, or the machine stops and starts at every block.

Look-ahead does that blending. It reads ahead, plans deceleration into tight corners, and keeps the tool moving through the rest. A short buffer forces the machine to slow down more often. A long buffer on a slow processor adds lag, which is worse than slowing down.

Five-axis work adds rotary axes to the problem. The control must keep the tool tip on the programmed path while the table or head rotates. Tool center point management handles that math. Without it, the programmer has to compensate by hand, which is slow and error-prone.

• 1
  Linear and circularThe two interpolation modes behind most parts
• 2
  Segment blendingTurns CAM line soup into continuous motion
• 3
  TCP managementKeeps the tool tip on path as rotary axes move

A part belongs on the machine that cuts it correctly the first time, not the machine that is free. Three signals tell us a job is on the wrong control. The first is repeated surface finish variation on the same program, which usually points to look-ahead or servo tuning rather than the tool.

The second is corner rounding on parts that should hold a sharp edge. If the drawing calls for a defined radius and the control cannot decelerate fast enough, the corner will wash out. More look-ahead or a slower feed fixes it, but sometimes the fix is a different control.

The third is rotary axis error on five-axis work. If the tool tip drifts as the table rotates, the control may lack proper TCP management or the post may be wrong. We check the post first because it is cheaper to fix than the machine.

Moving a job is not free. It costs setup, a new post, and operator familiarity. We move a part only when the error is repeatable and the current control cannot reach the tolerance with reasonable parameters.

• 1
  Finish variationSuspect look-ahead or tuning before the tool
• 2
  Corner roundingControl cannot decelerate fast enough
• 3
  Rotary driftCheck the post before blaming the machine

Control choice affects how a job is quoted. A simple three-axis aluminum bracket can run on almost any Fanuc mill. A five-axis titanium housing with tight true position needs the right control and the right post, and that takes setup time before the first chip.

We run 127 high-precision CNC machines across three plants in Dongguan and Singapore, including 16 simultaneous five-axis centers and 16 mill-turn centers. Maximum processing size is 4,000 mm, with travels from 500 × 310 × 200 mm up to 4,000 × 400 × 150 mm and a Ø400 mm rotary table.

Quoting starts with the drawing, not the machine list. We look at tolerance, material, feature count and access direction, then pick the control family that can hold the callouts. Quotation and a free DFM analysis come back within 12 hours, and production can start within 24 hours.

Parts ship in 3–5 days on most jobs. Tolerances run to ±0.005 mm (±0.0002 in) with finishes from Ra 0.2–0.8 μm on fine work to Ra 1.6–3.2 μm as machined. Inspection is 100% before shipment, with reports on request.
