A CNC machine does one thing: it moves a spinning cutter along a path that a CAM programmer defined. The controller reads G-code, closes a position loop on each axis, and corrects the axis thousands of times per second. Nothing about that is mysterious. What feels like magic is the accuracy that comes out of a loop that simple.

The chain has four links. CAD defines the geometry. CAM turns that geometry into toolpaths and chooses tools. The machine executes those paths under load and heat. Metrology then confirms what came off the table. A weak link anywhere shows up as the same thing: a part that misses a dimension or a finish callout.

Take a 6061-T6 bracket with a ±0.05 mm bore and a flatness callout on one face. The programmer picks a 10 mm carbide end mill, sets a roughing stepover of 4 mm, and leaves 0.3 mm for a finishing pass. That leaves the question of how the part is held, which is where most of the real variation lives.

This page covers the mechanics that decide whether a design is easy or hard to machine: axis count, chip and heat behavior, tool wear, and fixturing. It does not repeat tolerance tables you can find anywhere. Instead it explains which numbers move when the process changes, so you can read a quote or a DFM note and know what is behind it.

A 3-axis mill moves X, Y and Z. The tool always comes down from one direction. That is enough for plates, housings with open pockets, and any part where every feature is reachable from the top or from a small number of sides. It is also the cheapest way to remove a cubic centimeter of aluminum.

A 4-axis machine adds rotation about one axis, usually A. The part turns while the tool cuts. This is how you drill a ring of holes on a Ø150 mm bolt circle without four separate setups, and how you cut helical slots in one pass. The gain is not speed. It is that the part never leaves the fixture, so the feature-to-feature relationship stays fixed.

A 5-axis machine adds a second rotary axis, so the tool can approach from almost any angle. Simultaneous 5-axis means all five axes move together while cutting, which is what lets a ball nose cutter sweep a curved surface with the tip at the right angle. That is the only practical way to machine an impeller blade, a deep cavity with undercuts, or a port with a changing cross-section.

The trade is real. Five-axis toolpaths are harder to verify, cycle times are often longer for simple shapes, and the machine costs more per hour. If every feature on your part points along one of three orthogonal directions, a 3-axis setup with a good fixture will hit ±0.005 mm and cost less. Reach for 5-axis when the geometry, not the tolerance, forces it.

• 1
  3-axis fitsPlates, open pockets, prismatic parts, features reachable from three or fewer directions.
• 2
  4-axis fitsCylindrical parts, bolt circles, helical slots, any part where one rotation replaces several setups.
• 3
  5-axis fitsImpellers, undercut cavities, organic surfaces, ports with shifting cross-sections.
• 4
  Watch the setup errorEvery refixturing step adds position error. Fewer setups usually beats a tighter machine spec.

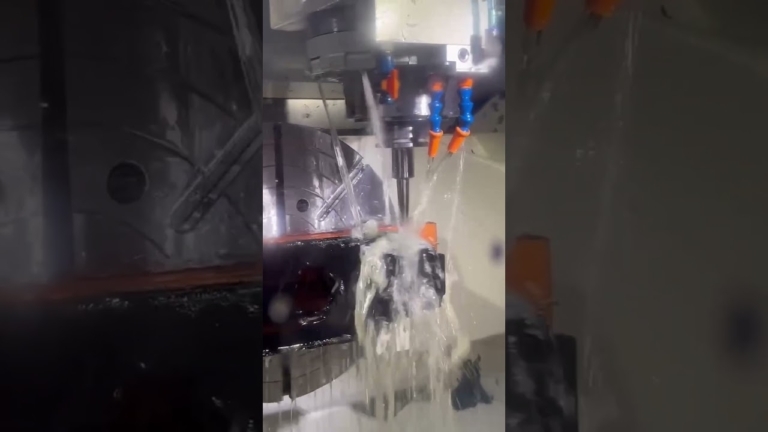

Cutting metal converts mechanical energy into heat at the tool tip. That heat has three places to go: into the chip, into the tool, and into the workpiece. You want almost all of it in the chip. When it goes into the part instead, the part expands, the cutter takes a different depth of cut than the program expects, and the finished size drifts.

Chip load controls this more than spindle speed does. Feed per tooth times number of teeth gives the chip thickness. A 12 mm three-flute cutter running at 0.08 mm per tooth produces a 0.08 mm chip that carries heat away with it. Drop the feed and the tool rubs instead of cutting. Rubbing generates heat with no chip to carry it, and edge life collapses.

Coolant does two jobs. It removes heat, and it clears chips from the cut zone. Recutting a chip doubles the load on the edge for an instant and leaves a mark on the surface. Through-spindle coolant at 70 bar is what makes deep hole drilling in 316 stainless predictable. Flood coolant is fine for shallow aluminum pockets. Air blast alone works for some plastics and for graphite.

Thermal growth is not small. Aluminum expands about 23 μm per meter per degree Celsius. A 300 mm part that warms 5 °C during roughing grows roughly 0.035 mm. That is larger than a ±0.005 mm tolerance. The fix is sequencing: rough, let the part cool, then finish. Skipping that step is a common reason a first article passes and the second one does not.

A carbide end mill does not fail suddenly. It wears on the flank, the edge rounds over, and cutting forces rise. Flank wear of 0.2 mm is a common limit for finishing. Past that, the tool pushes the material instead of shearing it, and Ra climbs from 0.8 μm toward 1.6 μm and beyond.

Three wear modes matter in production. Abrasive wear comes from hard particles in the alloy, such as the silicon in ADC12 or the carbides in tool steel. Adhesive wear happens when aluminum sticks to the edge and tears away, which is why aluminum-specific geometries with polished flutes exist. Chipping happens when the edge sees interrupted cuts or a hard entry angle.

Coating choice follows from that. TiAlN handles steel and stainless at high temperature. ZrN and DLC reduce aluminum sticking. Uncoated polished carbide is often best for pure aluminum. A coating that is wrong for the material can shorten life more than it extends it.

In a production run, tool life should be logged, not guessed. Record the number of parts per edge, the spindle load, and the finish at the end of the run. When a batch starts to drift, the log tells you whether to change the tool or change the program. That is how a process holds ±0.005 mm across thousands of parts rather than on the first ten.

• 1
  Roughing toolsAccept more wear. Change on load or on chip color, not on finish.
• 2
  Finishing toolsChange at 0.2 mm flank wear to protect the surface callout.
• 3
  AluminumPolished flutes and ZrN or DLC reduce built-up edge.
• 4
  Hardened steelTiAlN or AlTiN coatings hold the edge at higher temperatures.

A machine tool is stiff. A part held on two clamps over a thin web is not. When the cutter pushes, the part deflects, and the wall springs back after the tool passes. The result is a wall that is thicker at the bottom than the program says, or a chatter pattern that no speed change will remove.

Support the part where the cutting force goes. For a thin-wall aluminum housing, that often means soft jaws machined to the part profile, or a low-melt fixturing compound that fills the cavity. For a long shaft, it means a steady rest or a tailstock. For a plate with many holes, it can mean a vacuum table with a gasket layout that matches the part outline.

Workholding also sets access. A vise jaw that sits 15 mm from the cut zone lets the cutter reach the feature without a long tool. A long tool bends. Bending scales with the cube of the length-to-diameter ratio, so a 10 mm cutter hanging 100 mm out is roughly eight times less stiff than the same cutter hanging 50 mm out. Shorter is not a small improvement.

Before you accept a quote, ask how the part will be held. If the answer is vague, the tolerance is probably optimistic. On our floor, the setup sheet is written before the program is released, because the fixture often determines whether a feature is machinable at all.
