Combined Machine Tools System: Where It Pays Off on Real Parts
This page is for engineers and buyers deciding whether a combined machine tools system belongs in their part routing. It covers what the configuration does to setup count, datum control and tolerance stack-up, then shows the part shapes that benefit and the ones that do not.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Key takeaways

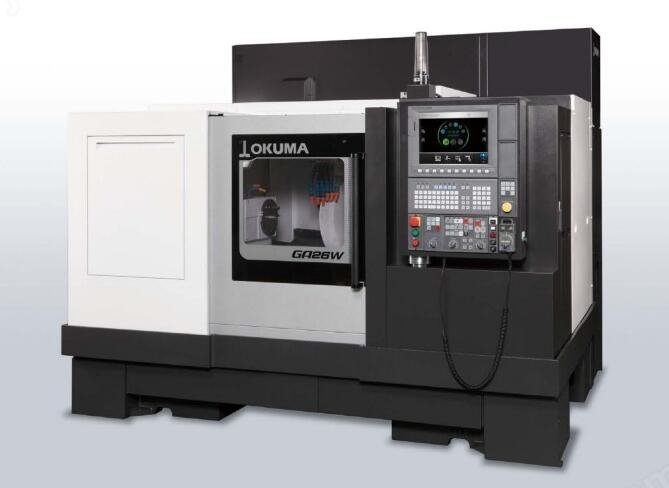

What a combined machine tools system actually is
A combined machine tools system puts more than one cutting process into a single machine envelope. Turning, milling, drilling, tapping and sometimes grinding share one spindle or one part position, so the workpiece stays clamped while different tools reach it. The machine may be a mill-turn center with a rotary table, a multitasking lathe with a Y axis and a subspindle, or a machining center with a turning table.
The reason this matters is not that the machine is fast. It is that the part is never released between operations. When a part moves from a lathe to a mill, it is unclamped, cleaned, re-chucked and re-zeroed. Each of those steps introduces a new datum and a new source of error. On a combined machine the datum set at the first cut is still valid at the last one.
For a shop, the configuration also changes scheduling. Instead of routing a part through three machines and waiting for each to free up, one machine finishes it. That shortens the queue, reduces work-in-progress sitting on shelves, and cuts the number of fixtures that have to be designed, built and stored.
The trade-off is real. A combined machine tools system is a larger capital item, its programs are longer to prove out, and it is not always the fastest way to make a simple round part. The question is always whether the part's geometry needs the operations to meet each other.
Which part shapes justify the configuration
Start with the drawing, not the machine list. If a part has features that are dimensioned from one another across different operation types, a combined machine tools system has a clear advantage. A housing with a turned bore, a milled face and a pattern of cross-drilled holes is the classic case. The bore-to-face perpendicularity and the hole pattern rotation are all carried by one setup.
Parts with long reach are another fit. A shaft with a milled flat, a keyway and an axial drilled passage at each end usually needs two lathe setups and a mill setup. On a multitasking machine with a subspindle, the part is picked up and finished in one program. Handling marks on the finished diameter drop, which matters on bearing seats and seal surfaces.
Thin-wall and flexible parts also benefit. Every re-clamping cycle risks distorting a wall that is already close to its elastic limit. Keeping the part in one chuck through roughing and finishing reduces the number of times it is loaded, and lets the shop leave material for a light final pass.
Where it stops paying: a plain bushing, a spacer, a simple flange. These need one operation type. A dedicated lathe will run them faster and cheaper, and a combined machine tools system just ties up capacity.
How setup count changes tolerance stack-up
Tolerance stack-up is arithmetic. If a bore and a mating face are machined in two setups, the position error of the second setup is added to the error of the first. Re-chucking a part on a three-jaw chuck can move the axis by a few hundredths of a millimeter unless the jaws are bored in place or the part is indicated.
On a combined machine tools system, the features that must relate to each other are cut without releasing the part. Position tolerance between a turned diameter and a milled slot is then governed by the machine's own axis accuracy, not by a fixture. That is why ±0.005 mm is achievable on the critical features and not on every dimension on the drawing.
The practical consequence is that you should mark which dimensions actually control function. Send the GD&T with the datums called out. If the engineer knows that a bore and a face are the A and B datums, the process plan will keep them in one setup and let the non-critical dimensions absorb the looser tolerance.
Be careful with thermal drift on long cycles. A combined operation can run for an hour or more on one part. Shops compensate by finishing critical features after a warm-up, or by splitting roughing and finishing so the finish cuts happen when the machine is thermally stable.
Matching machine travels to the part envelope
Travel decides what fits. A compact envelope of 500 × 500 × 450 mm covers most instrument, medical and electronics housings. A medium envelope of 750 × 1,150 × 550 mm or 600 × 600 × 600 mm takes larger plates and manifolds. For long parts, a 4,000 × 400 × 150 mm travel handles shafts, rails and structural members up to 4,000 mm.
Rotary capacity is the second number to check. A Ø400 mm rotary table suits most combined work on housings and covers. If the part is longer than the table diameter, the overhang needs support, and a tailstock or steady rest becomes part of the plan. Ask about this before quoting, because it changes the fixture cost.
Spindle interface matters as much as size. A machine that can hold both a turning tool and a milling arbor in the same turret gives more freedom in the process plan. Machines with a B-axis head can approach an angled face without a special fixture, which is often the difference between one setup and three.
Finally, count the tools. A combined program may need 20 to 40 tools. If the magazine is short, the program has to be split, and splitting the program usually means re-clamping the part, which defeats the purpose.
Cutting parameters that keep one-setup work stable
A combined cycle usually starts with heavy turning or face milling, then moves to lighter finishing. On aluminum 6061 and 7075, roughing at 2 to 4 mm depth of cut with a 0.15 to 0.25 mm per tooth feed is common on a rigid setup. Finishing passes drop to 0.2 to 0.5 mm depth with a 0.05 to 0.1 mm per tooth feed to hold Ra 0.8–1.6 μm.
Stainless 304 and 316 work-harden. Keep the feed per tooth high enough to stay under the hardened layer, typically 0.08 mm and up, and avoid dwelling. On 17-4PH in the H900 condition, light finishing passes with a sharp insert and generous coolant give better surface finish than slow speeds.
Titanium Ti-6Al-4V runs hot. Cutting speed stays low, 40 to 60 m/min for carbide, with high-pressure coolant aimed at the cutting edge. Heat that stays in the tool shortens its life and pushes the part out of tolerance.
In-process probing is worth the cycle time on combined work. A probe can check a datum or a critical bore between operations and let the control adjust the remaining offsets. That is how a one-setup plan holds ±0.005 mm across a long cycle without an operator re-indicating the part.
What to send a shop for an accurate routing
Send the 3D model and the 2D drawing with GD&T. The model shows geometry, but the drawing shows which dimensions control function. Without datums marked, the process engineer has to guess, and the guess usually lands on the conservative side, which means more setups than necessary.
State the material and condition. Aluminum 6061-T6 behaves differently from 7075-T6, and 17-4PH in the annealed state cuts very differently from the H900 condition. If the part will be heat treated after machining, say so, because distortion after treatment may force a post-treatment finishing pass on a critical bore.
Say how many parts and when. A one-off prototype and a 10,000-part run get different routings. On a combined machine tools system, the same program can often serve both, with the fixture designed for quick load and unload at volume.
Ask for a DFM review. A small change, such as opening a corner radius or moving a hole off a thin wall, can remove an operation. Shops that run combined machines see these opportunities quickly because they are already thinking about tool access from several directions.
Inspection strategy for one-setup parts
Inspection has to match the routing. If a feature was cut in one setup, measuring it in a separate fixture can add error that was never in the part. For critical bores and patterns, a CMM program that uses the same datums as the machining program gives the cleanest picture.
For tight features, use a bore gauge or an air gauge in the shop and keep the CMM for the layout. A CMM check takes time on a 40-feature housing, and the operator needs a fast answer on diameter to decide whether to adjust the offset.
Surface finish is often the first sign of trouble. If Ra drifts above the specified band on a finishing pass, the insert is worn or the coolant is not reaching the edge. Catching that on the machine is faster than finding it at final inspection.
Keep records with the part. GreatLight runs raw material checks, in-process monitoring and a final inspection before shipment, with reports available on request. On combined work, a short setup sheet listing the datums and the critical features helps the next operator or the customer's quality team follow the same logic.
When to use a combined machine tools system
Match the part to the routing before you commit to a machine.
| Part characteristic | Combined machine | Separate machines |
|---|---|---|
| Turning plus milling plus cross-drilling | One setup, datum held | Two or three setups, fixtures needed |
| Critical features on different operation types | Best fit | Stack-up risk grows |
| Plain round part, one operation type | Ties up capacity | Lathe is faster and cheaper |
| Frame longer than 2,000 mm | Check travel and support | Large mill may be simpler |
| Wall thickness under 1.5 mm | Fewer clamps, less distortion | Re-chucking risks spring-back |
| Volume above 10,000 parts | Review cycle time first | Dedicated cells often win |
| Prototype needing 3 iterations | Fast changeover, one program | Re-fixturing each revision |
The verdict
If your part needs two or more operation types to meet each other, pick a combined machine tools system and hold the critical features in one setup. If it is a plain round part or a frame too long for the envelope, pick the dedicated machine and save the capacity.
Questions engineers ask about combined machining
Can a combined machine tools system hold ±0.005 mm on every feature?
It holds that band on features cut in the same setup, where the machine's own axis accuracy governs the result.
Features that need an extra setup, a different fixture or a heat-treatment step will carry additional error. Send the GD&T so the process plan can keep the controlling dimensions together.
What part size fits a typical envelope?
Compact work up to 500 × 500 × 450 mm suits most instrument and medical housings. Medium envelopes of 750 × 1,150 × 550 mm or 600 × 600 × 600 mm cover larger plates and manifolds.
Long parts run up to 4,000 mm on a 4,000 × 400 × 150 mm travel. A Ø400 mm rotary table handles most round and indexable work.
Is one setup always cheaper?
Not always. Setup cost is only one part of the price. If the part needs one operation type and runs in high volume, a dedicated lathe or mill will usually beat a combined cycle on cost per part.
The combined routing wins when the alternative is two or three machines, extra fixtures and a tolerance stack-up you have to manage.
How does the shop handle heat treatment between operations?
If the part is heat treated, the critical features are typically roughed, treated, then finished. The finishing pass has to remove enough material to correct distortion without breaking through a case or coating.
Tell the shop the final condition up front. It changes the amount of stock left for finishing and may add a stress-relief step before the finish cuts.
What materials are routinely run?
Aluminum 6061, 7075, 2024 and 6082; stainless 303, 304, 316L, 17-4PH; steels 1018, 1045, 4140 and 4340; titanium Ti-6Al-4V; Inconel; and engineering plastics such as POM, PEEK and PC.
Material condition matters as much as the grade. Specify the temper or heat-treat state on the drawing.
How fast can a quote and a first part come back?
Quotation and a free DFM analysis come back within 12 hours, and production can start within 24 hours of approval. Parts ship in 3 to 5 days.
There is no minimum order quantity, so a single prototype and a 10,000-part run go through the same process planning. Uploads are kept confidential and an NDA is available on request.
