Daily Maintenance and Troubleshooting of Couplings Absorbing Vibrations
This page is written for maintenance engineers and buyers who keep rotating equipment running. It covers how couplings absorbing vibrations fail, which symptoms point to misalignment, wear or overload, and when a part is still serviceable. You will finish with a shift-level inspection routine and a clear replace-or-run decision.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Symptom, likely cause, and first action
Read the left column first. A single symptom can have two causes, so confirm before you touch the coupling.
| Symptom | Likely cause | First action |
|---|---|---|
| Rising vibration at running speed | Insert wear or loose key | Stop, check insert gap and key fit |
| Sideways shake at 1× rpm | Parallel misalignment | Shim the feet, re-check runout |
| Heat at the hub | Axial preload or no float | Restore the gap, check end float |
| Clunk on each start | Backlash in the insert | Measure gap, replace if over limit |
| Gray dust near the spider | Rubber breaking down | Replace the element, check alignment |
| Squeal above 2,000 rpm | Lubrication starved | Re-grease or swap to a dry element |
| Loose bolt witness marks | Torque loss or fatigue | Re-torque to spec, inspect threads |

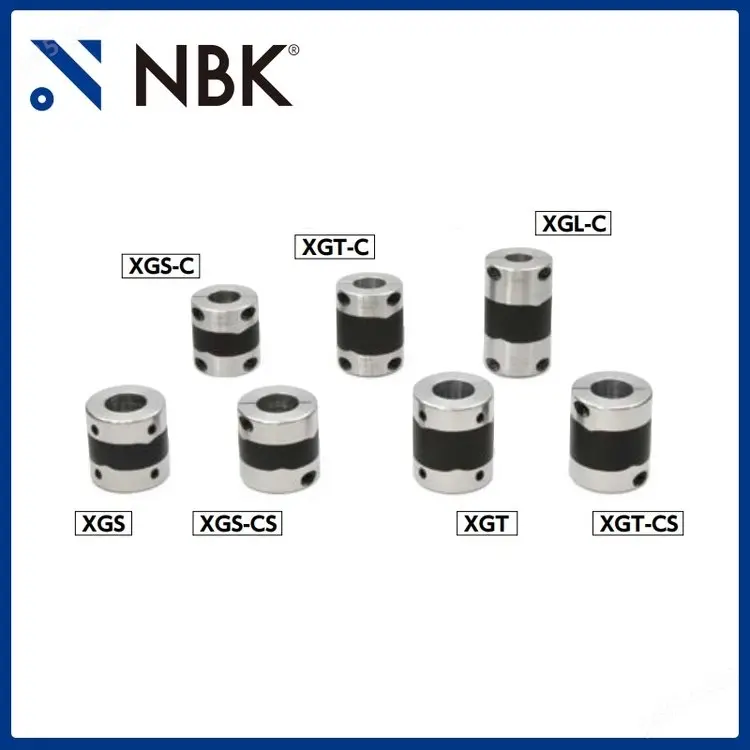

What couplings absorbing vibrations actually do
A flexible coupling sits between a motor and a driven shaft and takes up the small errors that no gearbox or bearing can absorb. It damps torsional spikes, tolerates a few tenths of a millimeter of misalignment, and keeps the drive train from shaking itself apart. Rubber, polyurethane and metal-spring elements all do that job, but each one fails in a different way.
Vibration damping is not the same as vibration isolation. The coupling reduces the shock that reaches the bearing and the gear teeth. It does not stop a machine frame from shaking. If the floor or the base plate is soft, no coupling element will hold the drive train steady.
That is why daily maintenance and troubleshooting of couplings absorbing vibrations starts with the shaft, not the coupling. Check runout at the hub before you blame the spider. A 0.10 mm side runout will wear a rubber element out in weeks, no matter how often you re-grease it.
Most couplings in our shop reach the machine as turned or milled hubs with a keyway, a clamp bore or a splined bore. Bore tolerance and keyway width matter more than the element material in the first month of service.
- 1DampingAbsorbs torsional shock between two shafts.
- 2MisalignmentCovers a small parallel and angular offset.
- 3FloatAllows axial travel on a hot shaft.
Is this coupling a fit for your drive, or not
A rubber-in-shear coupling fits a pump or a fan with a soft start and a small torque ripple. An elastomer element works well up to roughly 80 °C at the hub. Above that, the rubber hardens and cracks, and you will be changing it every quarter.
A metal disc or a metal bellows coupling fits a servo axis where you need high torsional stiffness and zero backlash. It does not damp much. If the axis has a torque spike, the shock travels into the gearbox instead.
A grid or a spring coupling fits a diesel or a reciprocating drive where the torque pulse is large and the speed is low. It is the part that gives under a shock load. It is also the part that needs grease, so it does not fit a wash-down area.
Skip a flexible coupling when the shafts are more than 1° out of line or the offset is over 0.5 mm. Fix the alignment with shims or a machined spacer first. A coupling is not a universal joint.
- 1Soft start, light loadRubber or polyurethane element.
- 2Servo, zero backlashMetal disc or bellows.
- 3Pulsing torqueGrid or spring coupling.
How these parts wear out, and the signs to log
Three wear modes cover most failures. The first is element fatigue, where the rubber or polyurethane takes a set and loses its shape. The second is fretting at the key or the clamp bore, which shows up as a dark stain and a loose fit. The third is bolt fatigue on a disc pack, which starts as a hairline crack at the washer face.
Log the vibration reading at the same point every shift, with the same instrument and the same speed. A jump of 2 mm/s on the bearing housing is a real change. A jump measured with a phone app is noise. Trend matters more than one number.
Temperature is the cheapest early warning. Touch the hub after a normal run and compare it to the last check. A hub that is 15 °C hotter than the bearing next to it has an alignment or a grease problem.
On a 24-hour line, set the element replacement by run hours. A polyurethane spider in a 1,500 rpm pump often lasts 8,000 to 12,000 hours. When you see cracks at the root of the lobe, plan the swap before it fails.
- 1FatigueElement takes a set, loses preload.
- 2FrettingDark stain and loose fit at the bore.
- 3CrackingHairline cracks at the disc bolt hole.
Alignment and torque limits that stop most failures
Check parallel offset with a dial indicator on the hub face and rotate both shafts together. Keep offset within 0.05 mm for a metal disc coupling and within 0.20 mm for a rubber element on a short shaft. Angular offset should stay under 0.5° for a disc pack and under 1° for a tire or sleeve coupling.
Torque is the other limit. Size the coupling on peak torque, not on running torque. A screw compressor can spike two to three times its nominal torque at start. The rubber element, not the hub, is the part that fails when you size on the average.
Speed matters as well. A coupling rated at 6,000 rpm with a balanced hub can run far above that. A keyed hub with a set screw has a lower limit, and an unbalanced key will shake the drive at 1× rpm.
Bore and keyway fit is the last limit. A keyway that is 0.05 mm wide lets the hub rock on the shaft, which wears the key and the bore together. Cut a new key to a light press fit instead of shimming the old one.
- 1Indicator checkRotate both shafts together, not one.
- 2Peak torqueSize on the start spike, not average.
- 3Keyway widthA loose key wears the bore.
Replace or re-machine: the decision on a worn hub
When the element is worn, swap it. When the bore or the keyway is worn, the decision is harder. Measure the bore with a bore gauge at three points. If the bore is more than 0.03 mm over size or the keyway is more than 0.05 mm wide, a new key will not hold for long.
A re-machined hub can work if the wall thickness still carries the torque and the new bore stays concentric with the element seat. That usually means one size up on the bore, a new key, and a re-check of balance. On a high-speed drive, re-balance the assembly after any bore work.
For a one-off repair, a new hub is often cheaper than the rework, especially in 303 or 316 stainless where machining time is long. For a large hub or a splined bore, rework can still make sense.
Do not weld a cracked hub or a cracked disc pack. The heat changes the material and the crack comes back at the edge of the weld. Replace the part and check the alignment that caused the crack.
- 1Bore over 0.03 mmReplace the hub.
- 2Keyway over 0.05 mmReplace the hub.
- 3Cracked discReplace, do not weld.
Spares, tolerances and what to keep on the shelf
Keep one spare element per drive size and one spare hub for the two most critical drives. A spare element that sits on a shelf for three years can harden, so check the date code and store it away from sunlight and ozone.
When you order a replacement, give the bore, the keyway width, the hub length and the element hardness. A 95 Shore A polyurethane spider and an 80 Shore A spider look the same on a shelf and behave very differently on a pump.
Machined hubs for these drives are usually held to ±0.005 mm on the bore and Ra 0.8–1.6 μm in the seat. That finish keeps the element from rotating in the hub. A rough bore will chew the element in a few hundred hours.
If a drive keeps eating elements, the coupling is a symptom, not the cause. Check the base plate, the soft foot and the pipe strain on the pump before you order a third element.
- 1ElementOne spare per drive size.
- 2HubOne spare for critical drives.
- 3HardnessSpecify Shore A, not just color.
Five-step daily maintenance and troubleshooting routine
About 15 minutes per drive. Do it before the line starts, while the machine is cold or at idle speed.
- 1Walk the drive and listenRun the machine at normal speed for 30 seconds. Listen for a clunk on each revolution or a squeal at high speed. Write down the speed and the sound. A once-per-turn knock points to a key or a loose bolt, not to the element.
- 2Check hub temperature by handTouch each hub and the bearing next to it. A hub that is hotter by 15 °C or more points to misalignment, axial preload or dry grease. Do not open a hot coupling; let it cool to below 40 °C first.
- 3Look for dust and crackingGray or black dust near the element means rubber breakdown. Look for cracks at the root of each lobe. If you can see three or more cracks, plan a replacement within the next shift block.
- 4Measure the offset gapUse a feeler gauge or a depth gauge at the element gap. Compare to the drawing value, often 0.5 to 2 mm depending on size. A gap that has closed to zero means the shaft has moved axially and the element is preloaded.
- 5Check bolts and keysCheck torque on every disc bolt and clamp screw with a torque wrench to the drawing value. Look for witness marks around the bolt head. Re-torque only to spec; over-torquing a small screw stretches it and it fails later.
- 6Log the readingRecord vibration, temperature, gap and any sound in the shift log. Compare with the last entry. A slow trend is easier to act on than a sudden failure at 2 a.m.
Questions we get from the shop floor
How often should I check a flexible coupling?
Check the hub temperature, the sound and the element gap every shift or at least once a day on a running line. Do a full alignment check every 2,000 hours or after any base plate work.
On a drive that runs 24 hours, pull the element at 8,000 hours and look for cracks at the lobe root. Replace it if you find three or more.
Can I run a coupling with a small crack in the element?
A single hairline crack at the outer edge can run until the next planned stop if the vibration reading has not changed. Log it and set a date.
Cracks that reach the root of a lobe, or a crack that grows between two shifts, mean the element is close to failure. Replace it before the next start.
Why does the new element fail in a few weeks?
Most early failures come from alignment, not from the part. Re-check parallel offset and angular offset with a dial indicator on both hubs.
The other common cause is the wrong hardness or the wrong gap. An element that is squeezed to zero gap has no room to flex and heats up until it fails.
What vibration level means I should stop the machine?
Set your own alarm from the baseline, not from a generic number. A rise of 2 mm/s on the bearing housing at running speed is a real change.
If the reading doubles in one shift, or you hear a new knock, stop the drive and inspect. A coupling that lets go can damage the shaft and the seal.
Do I need to re-balance after replacing the element?
If you only swap the element and mark the hubs, you can usually keep the balance. Match the mark on the hub to the mark on the shaft.
After any bore work, key replacement or hub change on a high-speed drive, re-balance the assembly. Record the balance grade with the machine file.
Can you machine replacement hubs to our drawing?
Yes. We machine hubs, spacers and keyed bores in aluminium, 303 or 316 stainless and 4140 steel, with bores held to ±0.005 mm and a seat finish of Ra 0.8–1.6 μm.
Send the drawing with bore, keyway width and element seat. We quote and return a DFM analysis within 12 hours, and there is no minimum order quantity.
