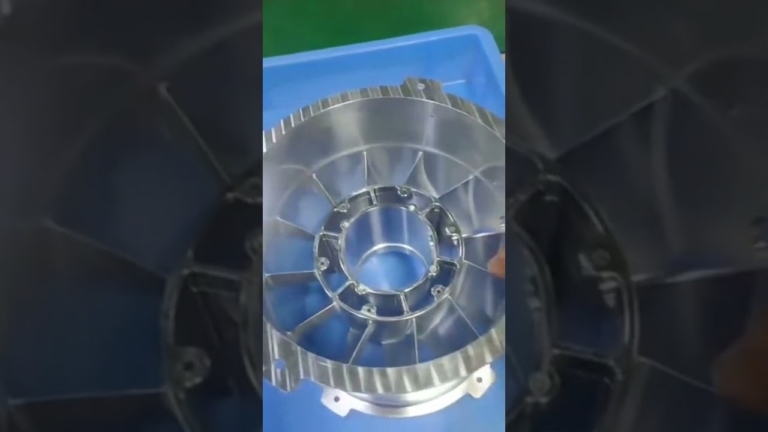

Custom CNC Machining of Impellers for Machinery and Equipment

• 1
  What matters most
• 2
  What an impeller actually asks of a CNC machine
• 3
  How 5-axis machining of impeller blades works in practice
• 4
  Material choice and its effect on the cut
• 5
  Tolerances, balance, and inspection
• 6
  When CNC milling is the wrong process
• 7
  Choosing the process for an impeller

An impeller is a set of curved blades that pushes fluid or gas outward or along an axis. Fans, pumps, compressors, and turbines all use them, and the geometry is what makes them hard to cut. The blade is twisted, often thin at the trailing edge, and it meets the hub and shroud at angles that no straight tool can reach from one direction.

That geometry is the whole problem. A 3-axis machine moves the cutter in X, Y, and Z only, so the tool axis never tilts. On a radial-blade fan wheel with straight, open blades, that is enough. On a backward-curved centrifugal impeller, the blade leans and twists along its length, and a fixed vertical tool leaves uncut material near the shroud fillet.

This is the boundary where cnc machining of impellers changes from a milling job into a tool-access problem. The question is not whether the machine is accurate. It is whether the tool shank and holder can physically reach the blade root without colliding with the next blade. That is decided by blade count, blade height, and the gap between blades.

A useful rule from the shop floor: if the minimum passage between two blades is wider than twice the tool diameter plus holder clearance, the job can often be done on a 3-axis or 4-axis machine. If it is narrower, you need a tilted tool axis, and that means 5-axis or a different process entirely.

Simultaneous 5-axis means the tool tip stays on the blade surface while the two rotary axes and three linear axes move together. The cutter is usually a ball nose or a barrel-shaped tool. A Ø10 mm ball nose leaves scallops that you sand out or blend; a barrel cutter with a large effective radius lays a wider, flatter path and can cut roughing time on long blades.

Roughing removes most of the volume. On an aluminium impeller blanked from 6061 bar, a Ø16 mm carbide end mill with 3-flute geometry and air blast can take 2-4 mm radial depth at 8,000-12,000 rpm on a rigid setup. The finishing pass is slower and lighter, often 0.2-0.5 mm stepover on the blade surface to hold the surface finish and avoid chatter on thin sections.

Tool access decides the setup. On an open impeller, blades can be finished from the front and the back with the part on a Ø400 mm rotary table. On a closed impeller with a shroud, the tool has to enter through the eye or the side gap, so the programmer has to check holder collision against the shroud at every tilt angle.

Fixture design matters as much as the toolpath. Thin blades deflect under cutting force. Support the hub with a dedicated soft jaw or a pot fixture, keep the overhang short, and check blade thickness before and after finishing. On a 1.5 mm trailing edge, a 0.05 mm deflection is visible on the CMM.

• 1
  Roughing2-4 mm radial depth, carbide end mill, air blast for aluminium.
• 2
  Semi-finish0.5-1.0 mm stepover to even out the load before the finish pass.
• 3
  Finish0.2-0.5 mm stepover, ball nose or barrel cutter, light depth of cut.
• 4
  VerificationCMM on blade profile, hub bore, and blade-to-blade spacing.

Most machinery and equipment impellers are aluminium or stainless. Aluminium 6061-T6 and 7075 cut fast and hold a good surface, which suits fan wheels and low-pressure pump rotors. Stainless 304, 316, and 17-4PH are common in pumps and food or chemical service, but they work-harden and need lower surface speed and a rigid setup.

Titanium TC4 (Ti-6Al-4V) and Inconel appear in high-temperature or high-speed turbomachinery. Both are slow to machine. Heat stays in the cutting zone, tool life drops, and a finishing pass that takes 40 minutes in aluminium can take several hours. If the design allows, an aluminium prototype for flow testing plus a final part in the specified alloy is a common route.

Surface finish requirements usually come from flow, not from looks. A pump impeller running at Ra 0.8-1.6 μm on the blade surface reduces friction loss compared with an as-machined Ra 1.6-3.2 μm surface. Polishing to Ra 0.2-0.8 μm helps on small, high-speed impellers, but it adds hand work and inspection time.

One practical point: material choice changes the acceptable blade thickness. A 1.0 mm trailing edge in aluminium can survive machining and service. The same edge in Inconel is difficult to cut without deflection and may need to be designed thicker and then blended.

The blade profile is usually the loosest callout on a machined impeller. A profile tolerance of ±0.1 mm on the blade surface is common for pump and fan duty, and it is measured against the 3D model. The tight callouts sit on the hub: bore diameter, bore-to-face squareness, and bore runout, often held at ±0.005 mm on a precision rotor.

Balance is a system property. Static balance depends on how evenly the blade masses sit around the hub, and dynamic balance depends on the bore axis being true. If the bore is drilled after the blades are finished and the part is not indicated in properly, the rotor will show a couple at speed that no balancing correction can remove.

Inspection follows the drawing. For a typical impeller we check the hub bore, the blade profile on a CMM, blade thickness at several heights, and the blade-to-blade angular spacing. Reports are available on request. 100% inspection before shipment is standard, with raw material check, in-process monitoring, and a final inspection step.

Keep the datum scheme simple. A single bore datum plus a face datum on the hub is easier to hold and easier to inspect than a scheme that references three blade surfaces. Datums that touch curved blades create arguments at the CMM, not better parts.

CNC milling wins when you need a handful of parts, a complex geometry, or a tight bore. It loses when the blade count is high, the passages are deep and narrow, or the wheel is large enough that stock removal dominates the price. A 600 mm diameter wheel with 24 thin blades is a casting or fabrication job, not a milling job.

There is also a geometry limit. A tool needs clearance behind the cutting edge. If a blade passage is 6 mm wide and the blade is 40 mm tall, the tool that fits is small and long, which means low rigidity, slow cutting, and a real risk of breaking tools inside the part. That is the point where we tell customers to change the design or the process.

Material can push the decision too. Inconel and titanium impellers with thin blades are expensive to mill and expensive to scrap. For those, a near-net shape from casting or additive manufacturing, followed by CNC machining of the bore, faces, and blade tips, often gives a better part at a lower risk.

None of this is a reason to avoid milling. It is a reason to check tool access and part size before the drawing is frozen. A short conversation at the design stage is cheaper than a redesign after the first article.
