Combining HIP with 3D printing for superior part performance
Hot isostatic pressing closes the gas pores that metal 3D printing leaves behind. This page explains the mechanism, the process window, and the part geometries where the extra step is worth paying for. Written for design engineers and buyers who need to decide before the drawing is released.
What HIP actually does to a printed metal part
Laser powder bed fusion and binder jetting both build a part by melting or sintering powder, layer by layer. The melt pool solidifies fast, and gas trapped in that pool becomes a pore. Some pores sit on the surface. Most sit inside, often below 50 µm across, and a CT scan may not flag them individually. They still cut fatigue life, because every pore is a stress riser.

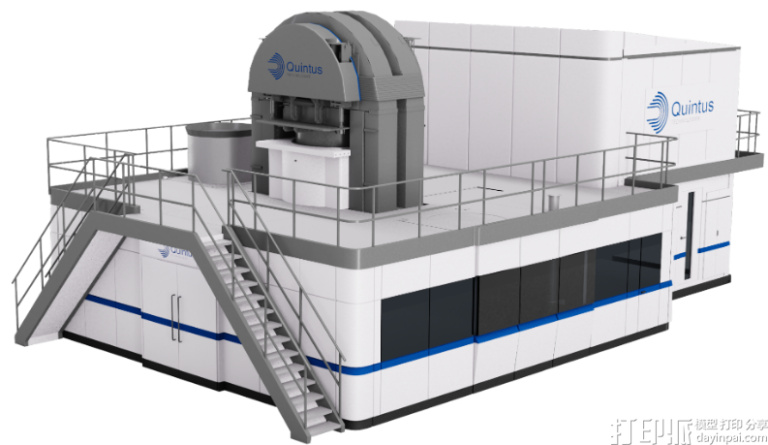

Hot isostatic pressing applies two things at once: high temperature and equal gas pressure from every direction. At 1,000–1,200 °C and 100–200 MPa in argon, the metal yields locally around each pore. The pore collapses and the walls diffusion-bond. This is not sintering. The part is already dense; HIP only removes what is left.
The pressure is isostatic, meaning it comes in evenly from all sides. There is no die and no direction of force. That matters for thin walls, internal channels, and lattice structures that would crush under a uniaxial press. The gas reaches internal passages as long as they connect to the surface. Sealed cavities cannot be densified.
- 1Driving forceSurface energy of the pore plus applied pressure.
- 2Rate limiterDiffusion. Time and temperature set how completely pores close.
- 3Not a fix forLack-of-fusion defects or oxide films. Those are bonding failures.
Setting temperature, pressure and hold time
The window is narrow for each alloy. Ti-6Al-4V is usually pressed around 920–950 °C, below the beta transus, to keep the fine alpha-beta structure that gives good fatigue strength. Aluminum alloys sit far lower, near 500 °C, because the melting point is low. Nickel superalloys such as Inconel 718 run around 1,120–1,180 °C and also get their solution treatment in the same cycle.
Pressure choice is more forgiving. Most shops run 100–150 MPa for titanium and aluminum, and up to 200 MPa for superalloys and tool steels. Higher pressure closes pores faster but does not fix a bad melt. If the print ran cold and left lack-of-fusion voids, no pressure setting will bond those flat, unmelted surfaces.
Hold time is typically 2–4 hours at temperature, then a controlled cool. A slow cool in the vessel can be a feature: it doubles as annealing and relieves residual stress from the build. Fast cooling, sometimes with forced gas, is used when the alloy needs a supersaturated state for later aging.
- 1Ti-6Al-4V920–950 °C, 100–150 MPa, 2–4 h.
- 2AlSi10MgAbout 500 °C. Keep well below the solidus.
- 3Inconel 7181,120–1,180 °C; often combined with solution anneal.
Which printed geometries benefit and which do not
Internal cooling channels are the clearest case. A channel that stays connected to the outside lets argon in and out, so the surrounding wall densifies. Aerospace and mold-tool inserts live on this. The limit is channel diameter: below roughly 0.5 mm the gas path may choke, and the channel itself can distort if the wall is thin and the temperature is high.
Lattice and gyroid structures behave differently. They densify well because every strut surface is exposed to the gas. But thin struts can sag or partially sinter to each other at high temperature. If a lattice is designed at 0.3 mm strut diameter, expect to lose some open area after the cycle.
Solid blocks with no internal access are the weak spot. A fully enclosed void cannot be reached by gas, so it stays a void. Design rules should keep every internal volume vented to the surface, or accept that the interior stays as printed.
- 1Vent the internalsAny trapped cavity should have a path to the surface.
- 2Mind thin wallsBelow about 1 mm, distortion risk rises with temperature.
What the cycle costs you in time and tolerance
HIP adds a furnace cycle, usually one to three days including ramp, hold, cool, and scheduling. It also shrinks the part slightly as pores close. For a part that is 99.5% dense after printing, total linear shrink is small, often under 0.3%, but it is not zero and it is not perfectly uniform near the surface.
That shrink matters if you are holding ±0.005 mm on a printed feature. The practical route is to HIP first, then machine the critical surfaces. Near-net printed stock plus a finishing pass on our 5-axis centers keeps the tight tolerances where they are needed and leaves the HIP benefit in the bulk material.
Surface finish changes too. After HIP, the skin may show a light oxide or a matte appearance depending on the gas and alloy. A subsequent bead blast, tumble, or machining pass restores the finish. Plan the finishing step after the press, not before.
- 1ShrinkSmall but real. Allow stock for a finishing cut.
- 2Order of operationsPrint, HIP, then machine and finish.
- 3SurfaceOxide or matte skin may need removal.
When HIP with 3D printing is worth the extra step
Match the part to the row that fits.
| Part situation | HIP benefit | Recommendation |
|---|---|---|
| Cyclic load, fatigue-critical | High. Pores are stress risers. | HIP, then machine critical surfaces. |
| Static bracket, low stress | Low. Porosity rarely governs. | Skip HIP, machine as printed. |
| Internal cooling channels | High if channels vent to surface. | HIP, verify gas path first. |
| Sealed internal cavity | None. Gas cannot reach the void. | Do not HIP. Redesign with a vent. |
| Thin lattice under 0.3 mm strut | Mixed. Densifies but may distort. | Test one build before committing. |
| Medical implant, Ti-6Al-4V | High. Required by most standards. | HIP per alloy spec, then finish. |
| Prototype for fit check only | None. Geometry is the goal. | Skip HIP to save a week. |
The rule we use on the floor
If the part sees cyclic load, a certified material spec, or internal channels that vent to the surface, HIP it before machining. If it is a static bracket, a fit-check prototype, or a sealed hollow body, skip the press and spend the time on the cut.
Questions engineers ask before the press
Does HIP fix lack-of-fusion defects from a cold print?
No. HIP closes gas pores, which have curved internal surfaces that can diffusion-bond under pressure. Lack-of-fusion voids are flat, unmelted regions with oxide on the faces. Pressure alone will not bond them.
The fix is upstream: raise laser power, slow the scan, or change hatch spacing so the melt pool overlaps. HIP is the last step, not the first repair.
Can I HIP a part with a sealed internal cavity?
The gas cannot reach a sealed void, so that volume stays as printed. In some cases the pressure differential can even collapse a thin-walled sealed cavity from the outside.
Design rule: every internal volume should have a vent path to the surface. A 1 mm vent hole is usually enough for argon to move in and out.
How much does the part shrink during the cycle?
For a part already above 99% density, linear shrink is typically small, often under 0.3%, and it is driven by the remaining pore volume rather than by the bulk metal.
If you need ±0.005 mm on a feature, HIP first and machine that feature after. That removes shrink from the tolerance stack entirely.
Is HIP the same as heat treatment?
No, though they can share a cycle. HIP uses gas pressure to close pores. Heat treatment changes microstructure, hardness, and residual stress.
Many alloys get both in one furnace run. Inconel 718, for example, is often HIP'd and solution-treated together, then aged separately.
What does HIP add to lead time?
A furnace cycle itself runs hours, but scheduling, ramp, and cool usually add one to three days depending on the alloy and the batch.
If the schedule is tight, tell us at quoting. We can sequence print, HIP, and machining so the finishing cut happens while the next batch is in the vessel.
Which alloys are commonly HIP'd after printing?
Ti-6Al-4V, Inconel 718, 17-4PH stainless, AlSi10Mg, and various tool steels are the usual candidates. Each has its own temperature and pressure window.
Cobalt-chrome and some nickel alloys also see routine HIP in medical and aerospace work. The alloy spec should state the cycle, not the shop.
