CNC Sliding Table Part: The Axis That Sets Machine Accuracy

• 1
  Key takeaways
• 2
  What a CNC sliding table actually does
• 3
  Guideway types and where each one fits
• 4
  Preload, stiffness and the errors you can measure
• 5
  When a sliding table design stops working
• 6
  Matching the guideway to the job

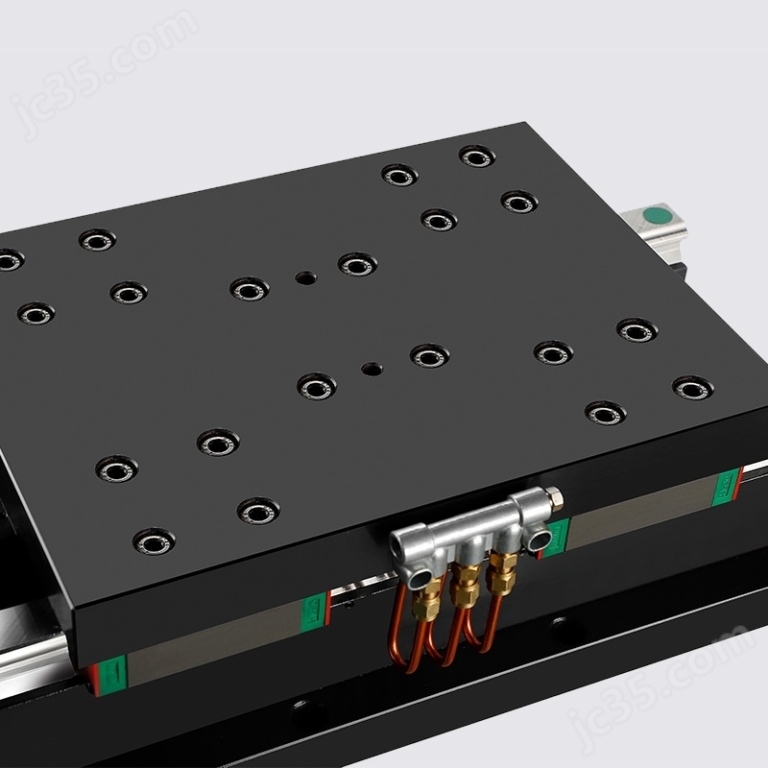

A CNC sliding table is the moving element of a linear axis. On a mill it usually carries the workpiece on the X and Y axes, and on a lathe it carries the turret or the tailstock. Its job sounds simple: move a mass along a straight line and hold position while a tool cuts. The difficulty is that both halves of that job fight each other. Fast movement wants low friction and low mass. Stable cutting wants high stiffness and high damping. Every design decision on the table trades one against the other.

The table is best understood as a closed loop rather than a single component. The guideway constrains motion in five degrees of freedom and leaves one free. The carriage or bearing block transfers load from the table into the guideway. The ballscrew or linear motor drives the table and also acts as a spring in series with the load. The feedback scale or encoder tells the control where the table actually is. An error in any one of these shows up at the tool tip as a dimensional error or a surface mark.

This is why two machines with the same nominal travel and the same control can hold very different tolerances. A table with a stiff guideway but a compliant screw mounting will deflect under a heavy radial cut. A table with a rigid drive but poor feedback resolution will hunt around the target position and leave a visible pattern on the finished surface. When we inspect a part that shows periodic surface marks, the axis loop is one of the first places we look.

At GreatLight we machine parts on 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers and 16 mill-turn centers. We hold ±0.005 mm on critical features and inspect 100% of parts before shipment. That level of control depends on the machine's linear axes behaving predictably across a full shift, not just on a cold morning check.

• 1
  GuidewayConstrains five degrees of freedom, leaves one free.
• 2
  CarriageTransfers cutting load from table into the guideway.
• 3
  DriveBallscrew or linear motor; acts as a spring in series.
• 4
  FeedbackScale or encoder closes the position loop.

Box ways are hardened and ground surfaces, usually on a cast iron base, that slide against each other with a lubricating film between them. Their contact area is large, so they damp vibration well and resist heavy interrupted cuts. The trade-off is friction. At low feed rates box ways can stick and then slip, which shows up as a jerky motion and a poor surface finish on light finishing passes. They also wear unevenly over years of use and need periodic adjustment of the gibs.

Linear rails use recirculating balls or rollers running on a hardened profile rail. Friction is low and roughly constant, so a rail-guided table can move at 0.1 mm/min without stick-slip and can rapid at 40 m/min or more. Stiffness is lower than a well-adjusted box way of the same size, and the contact is concentrated on a small number of rolling elements. For aluminium and light steel work at high speed, rails are usually the better answer. For heavy castings or hard steel with interrupted cuts, box ways still earn their place.

Roller rails sit between the two. They carry more load than ball rails of the same width because the contact is a line rather than a point, and they are stiffer in the load direction. They cost more and need cleaner lubrication. When a shop moves from ball rails to roller rails on a heavy cutting machine, the usual reason is chatter that would not go away with preload changes alone.

Hydrostatic and aerostatic tables remove solid contact altogether. A film of oil or air carries the load, so friction is near zero, damping is low, and the guideway does not wear. These tables appear on ultra-precision lathes and grinders where surface finish matters more than cycle time. They need a dedicated pump, filtration and thermal control, so they rarely make sense on a general-purpose milling job.

• 1
  Box waysHigh damping, high friction, best for heavy interrupted cuts.
• 2
  Ball railsLow friction, fast rapids, best for aluminium and finishing.
• 3
  Roller railsLine contact, higher load and stiffness than ball rails.
• 4
  HydrostaticNear-zero friction, needs pump and thermal control.

Preload removes clearance between the rolling elements and the raceway. Without preload, the table moves a few micrometres before the balls take load, and that lost motion appears as backlash at direction changes. Too little preload gives a soft, imprecise axis. Too much preload raises friction and heat, shortens bearing life, and can make the drive motor work harder than it should. Manufacturers publish a light, medium and heavy preload range for each rail size, and the choice should follow the cutting load, not the marketing grade.

Stiffness is not a single number. A table has axial stiffness along the drive direction, lateral stiffness across the guideway, and torsional stiffness about the drive axis. A heavy face-milling cut loads the table laterally and in torsion more than it loads it axially. This is why adding a bigger ballscrew sometimes does not fix a chatter problem: the weak point was the carriage spacing or the rail size, not the screw.

Thermal drift is the error that surprises people. A ballscrew 1,000 mm long grows about 12 μm per °C of temperature rise. If the screw runs 5 °C warmer than the scale after two hours of roughing, the axis has moved roughly 60 μm before the control knows anything is wrong. Machines handle this in different ways. Some mount the scale on the table so it expands with the workpiece. Some cool the screw with oil. Some simply warm up the machine for 30 minutes before the first cut and accept the residual drift.

The measurable symptoms of a weak loop are consistent. Backlash shows as a step at each direction reversal. Poor damping shows as chatter at a narrow spindle speed band. Thermal drift shows as a slow size change across a batch, always in the same direction. Feed drive tuning problems show as a rounded corner on a square pocket. Each symptom points to a different part of the loop.

• 1
  Backlash stepLost motion at direction change; check preload and screw nut.
• 2
  Chatter bandNarrow speed range; check damping and carriage spacing.
• 3
  Slow size driftSame direction across a batch; check thermal growth.
• 4
  Rounded cornerServo tuning or acceleration limit, not the guideway.

Every linear axis has a load limit, and it is usually reached through deflection rather than failure. A table rated for 500 kg of workpiece may still deflect too much if that load sits at the far end of the travel, because the overhang adds a moment the guideway must resist. Long travels make this worse. This is why a machine with 4,000 mm of X travel needs a different guideway arrangement than a machine with 500 mm, even if the part weight is the same.

Speed has a limit too. Above a certain velocity the recirculating elements in a ball rail cannot follow the raceway smoothly, and the rail starts to vibrate. Ball screws have a critical speed where the screw whips; it depends on diameter, length and end support. A screw that is fine at 800 mm between bearings may need a larger diameter or a rotating nut design at 2,000 mm. Linear motors avoid the screw entirely but need a scale along the full travel and produce heat in the magnet track.

Environment sets another boundary. Cast iron and steel guideways rust without lubrication, so a table running in a wet cutting environment needs way covers and automatic lubrication. A table in a cleanroom needs a different lubricant and often a bellows. A table exposed to fine abrasive dust will wear quickly unless the rail is sealed on all sides. These are not exotic conditions; they are the normal shop floor.

The practical rule is to match the table to the dominant load and the dominant accuracy requirement, then check the other two. If chip-to-chip time dominates, choose low-friction rails and light preload. If surface finish and tool life dominate, choose high damping and medium preload. If the part is large and heavy, check deflection at the extreme travel position before anything else.

• 1
  Load positionOverhang at travel ends adds a moment, not just weight.
• 2
  Speed limitsBall rail vibration and screw critical speed cap the axis.
• 3
  EnvironmentWet, dusty or cleanroom conditions change lubrication and sealing.
