CNC Roll Grinder: Why the Control Loop Beats Hand Feeding

• 1
  What a CNC roll grinder actually controls
• 2
  Crown, taper and the profiles a CNC roll grinder holds
• 3
  Batch consistency and why it drives cost down
• 4
  When a manual grinder is still the right tool
• 5
  Tolerances, finish and the numbers that matter
• 6
  How GreatLight approaches roll and roller work
• 7

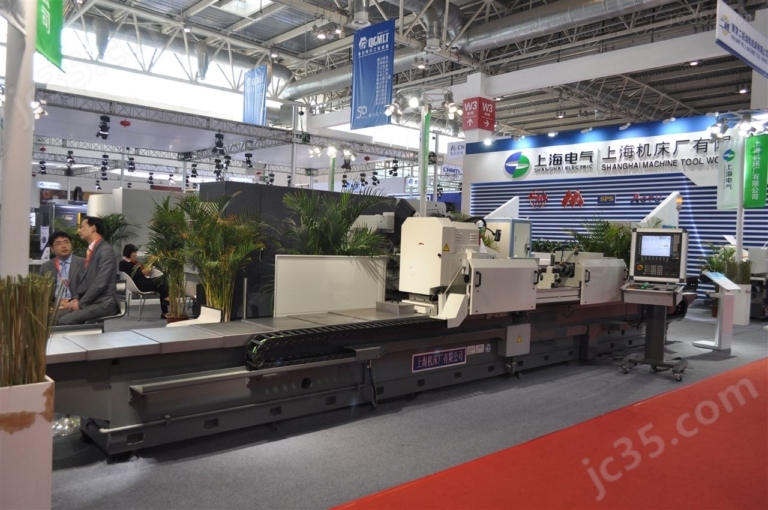

  CNC roll grinder vs manual roll grinder

A roll grinder does one job: take a cylindrical body of steel or cast iron and bring its diameter, crown and surface finish into a tolerance band. A manual machine does this with a handwheel on the cross slide and an operator's eye on a dial indicator. The operator reads the indicator, decides the infeed, cranks the wheel and listens to the wheel contact. Every one of those steps carries a small error.

The CNC version replaces the handwheel with a ballscrew driven by a servo motor. The controller knows the exact position of the wheel head, the work head and the carriage at every millisecond. Feed rates are programmed in mm/min, not felt through the wrist. That single change removes the largest error source in roll grinding: human feed variation over a 2 to 6 hour cycle.

The second control loop is the measuring loop. On a manual grinder, the operator stops the machine, swings in a micrometer or a caliper, records the reading and starts again. On a CNC roll grinder, an in-process gauge or a touch probe feeds the actual diameter back to the controller. The controller then corrects the next pass. The roll is no longer ground to a guess. It is ground to a number.

This matters most on long rolls. A paper mill roll can run 4,000 mm between centers. Over that length, a 0.02 mm taper that nobody notices at the headstock becomes a visible defect at the tailstock. A CNC controller compensates for bed sag, wheel wear and thermal drift along the full stroke, pass after pass.

• 1
  Feed axisServo ballscrew replaces the handwheel; position is known, not estimated.
• 2
  Measuring loopIn-process gauge corrects the next pass instead of the next setup.
• 3
  Length compensationBed sag and thermal drift are corrected across the full roll length.

Most rolls are not ground straight. Paper, steel and printing rolls are usually ground with a crown, a slight barrel shape that compensates for deflection under load. A crown might be 0.05 mm over a 3,000 mm face, or it might be a CVC or parabolic profile for a rolling mill. Hand-grinding a crown means the operator continuously adjusts the cross slide while the carriage moves. That is a two-hand job done by feel.

A CNC roll grinder generates the crown from the program. The controller interpolates the cross-slide position against the carriage position, so the profile is a mathematical curve, not an operator's approximation. Change the crown value in the program and the next roll comes out with the new profile. No re-setting of a template, no re-training of the operator's hand.

Taper is the other profile that separates the two methods. A taper of 0.01 mm over 1,000 mm is a normal roll requirement. On a manual machine, taper comes from bed alignment and operator consistency, and it drifts as the bed warms. On a CNC machine, the controller can apply a taper correction directly in the program. The correction is repeatable from the first roll to the hundredth.

The practical limit is not the controller. It is the machine's geometry. A worn bed, a loose steady rest or a spindle with runout will show up in the part no matter how good the program is. That is why a CNC roll grinder still needs a level foundation, a warm-up cycle and periodic geometry checks.

• 1
  CrownInterpolated from the program, not adjusted by hand during the pass.
• 2
  TaperCorrected in the program and repeatable across the batch.
• 3
  Profile changeA program edit, not a mechanical re-setup.

The efficiency gain from a CNC roll grinder is often described as speed. That is only half true. The bigger gain is consistency. A manual grinder can produce an excellent roll. It can produce a second excellent roll an hour later. Whether the tenth roll matches the first depends on the operator, the shift and how tired the operator is at hour six.

A CNC machine repeats the same program with the same feed, the same spark-out and the same measuring routine every cycle. The spread between rolls shrinks. For a plant that grinds 40 rolls a month, that means fewer rework loops, fewer re-grinds and less scrap on the roll body. The roll lasts longer because the diameter is not being reduced by corrective passes.

There is also a setup cost difference. Dressing the wheel, setting the steady rest and establishing the first cut can take a skilled operator 45 to 90 minutes on a manual machine. On a CNC machine, the same setup is faster because the positions are stored and recalled. The first-cut time drops, and it drops again on the next roll of the same family.

None of this removes the operator. Someone still has to mount the roll, balance it, choose the wheel, set the coolant and watch the first pass. The CNC machine moves the operator from cranking to monitoring. That is a different job, and it is usually a more reliable one.

• 1
  Roll-to-roll spreadSmaller because the program, not the wrist, sets the infeed.
• 2
  Setup recallStored positions cut first-cut time on repeat roll families.
• 3
  Operator roleShifts from hand feeding to process monitoring.

A CNC roll grinder is not the answer for every roll. If a shop grinds one damaged roll a month, or repairs rolls of many different sizes in small quantities, the programming and setup time can eat the cycle-time advantage. A skilled hand grinder with a good steady rest can bring a single roll back into service faster than a programmer can post a new profile.

Very small rolls are another case. A roll under 200 mm in diameter and under 500 mm long is often easier to grind on a manual or a cylindrical grinder with a simple fixture. The CNC machine's travel and steady rest are sized for larger work, and the setup overhead does not pay back.

Field repair is a third case. Rolls that are ground in place, on the machine that uses them, are usually done with portable equipment. A CNC roll grinder needs a foundation, a control cabinet and a stable thermal environment. It does not travel.

The decision usually comes down to volume and repeatability. If the same roll family comes back every few weeks, the CNC machine wins on consistency. If every roll is a different size and a different problem, the manual machine wins on flexibility.

• 1
  One-off repairManual setup is faster than programming a new profile.
• 2
  Small rollsUnder Ø200 mm × 500 mm, a cylindrical grinder is simpler.
• 3
  In-place grindingPortable equipment, not a foundation-mounted CNC machine.

Roll grinding tolerances are usually written as diameter, roundness, taper and surface finish. A typical steel mill roll might call for a diameter within ±0.025 mm, roundness within 0.01 mm, taper under 0.01 mm per 1,000 mm, and a finish between Ra 0.4 and Ra 0.8 μm. Those numbers are achievable on a CNC roll grinder with a dressed wheel and a stable setup.

Surface finish depends on more than the machine. Wheel grit, wheel hardness, dressing technique, coolant flow and spark-out time all matter. A CNC machine gives you repeatable control over the spark-out and the feed, which is exactly where finish is won or lost. A manual operator controls spark-out by counting seconds. A CNC machine controls it by program.

Roundness is where the steady rest and the work head show up. A roll that is ground without proper support will come out slightly lobed. The CNC controller cannot fix a bad steady rest. It can only repeat the error more consistently.

For tighter work, GreatLight holds ±0.005 mm on its 127 high-precision CNC machines, with finishes down to Ra 0.2–0.8 μm. That is the band where roll journals, bearing seats and hydraulic roll ends usually land.

• 1
  DiameterTypical roll callout is within ±0.025 mm.
• 2
  RoundnessSteady rest quality sets the floor, not the controller.
• 3
  FinishSpark-out control is where Ra 0.2–0.8 μm comes from.

GreatLight has been machining since 2011 and runs 3 wholly-owned plants across 7,600 m² in Dongguan and Singapore. The shop floor holds 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. Maximum processing size is 4,000 mm, with travels of 4,000 × 400 × 150 mm on the large frame.

For roll and roller components, the work usually involves a mix of turning, grinding and journal features. A mill-turn center can cut the roll body and the bearing seat in one setup, which keeps the concentricity between them. A separate grinder then finishes the body to the required Ra and crown.

Materials we see most often for roll work are 1045, 4140 and 4340 steel, plus 17-4PH and 316L stainless for corrosion-resistant rolls. Hardened rolls in 440C or tool steel are ground after heat treatment, which is where the CNC control loop earns its keep. Hard material removes the operator's ability to feel the cut, so the program has to be right.

Inspection is 100% before shipment, with raw material checks, in-process monitoring and a final report on request. For roll work, that report usually includes diameter, roundness, taper and Ra readings at several points along the face. Uploads are secure and confidential, and an NDA is available on request.

• 1
  Capacity127 CNC machines, 4,000 mm maximum processing size.
• 2
  One-setup workMill-turn keeps body and bearing seat concentric.
• 3
  Inspection100% before shipment, reports on request.
