cnc machiiningglcncmachining: How It Works and Where It Fits

• 1
  Key takeaways
• 2
  How the tool removes metal in cnc machiiningglcncmachining
• 3
  3, 4 and 5 axes: what each one can reach
• 4
  Where ±0.005 mm is realistic and where it is not
• 5
  Surface finish and material choices that change the process
• 6
  Choosing the right setup for the part

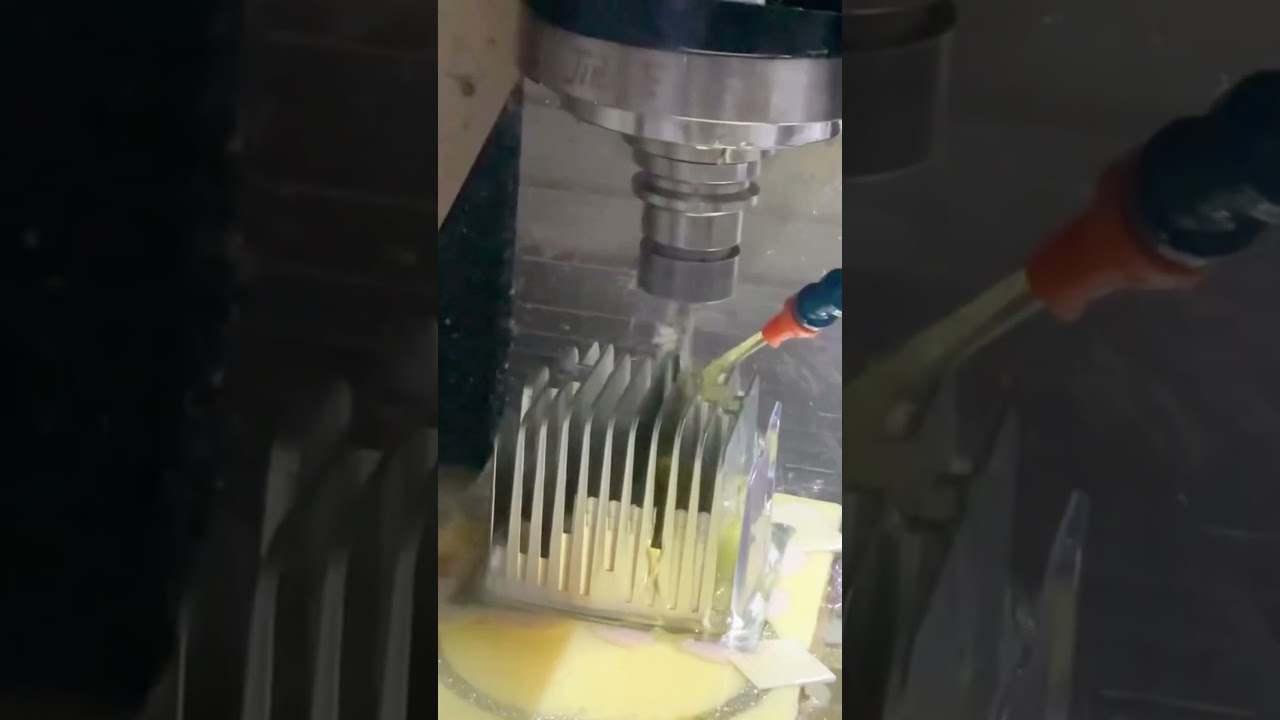

A machining center holds the workpiece in a vise or fixture and spins a cutter at a set surface speed. The controller reads G-code blocks and moves the axes along the path the CAM software calculated. Each block specifies position, feed rate, spindle speed and tool number. Nothing is ambiguous. The machine either reaches the coordinate or it alarms out.

Metal comes off as chips, not as a smooth shave. The cutter edge pushes into the material, shears a chip, and leaves a scallop behind. That scallop height sets the surface roughness you can measure with a profilometer. On aluminium at Ra 0.8–1.6 μm, the stepover and feed per tooth matter more than the spindle speed alone.

Cutting generates heat. Coolant carries most of it away, but the tool edge still sees 400–600 °C in steel. That heat softens the edge and drives flank wear. A worn tool rubs instead of cutting, and the part grows oversize. Tool change intervals are therefore a quality variable, not just a cost variable.

Rigidity decides whether the tolerance holds. A long tool hanging 4× its diameter out of the holder will deflect and chatter. A short, stubby tool in a shrink-fit holder cuts clean. This is why tool length and holder type belong in the process plan, not only in the CAM file.

• 1
  Chip loadFeed per tooth × teeth × rpm sets the removal rate and the chip thickness.
• 2
  DeflectionTool overhang beyond 4× diameter usually forces lighter passes.
• 3
  Thermal driftWarm spindles move the zero point; warm-up cycles reduce that error.
• 4
  WorkholdingA weak vise lets the part move, and the dimension follows the vise.

A 3-axis machine moves X, Y and Z only. The tool always points straight down. It handles plates, pockets, slots and most prismatic parts well, and it is the cheapest way to remove a lot of material. What it cannot reach is an undercut or a face that faces sideways without being repositioned.

A 4-axis machine adds rotation around one axis, usually A or B. The part turns while the tool stays put. This lets you machine four sides of a block in one setup, which removes three datum changes and their stacked error. Shafts with cross holes, impellers and cylindrical parts are typical work.

A 5-axis machine moves the tool or the table on two rotary axes at once. The cutter can approach a surface at an angle, so it can reach deep pockets with short tools and machine compound angles in a single pass. On our floor, 16 simultaneous 5-axis machining centers handle this class of work.

The tradeoff is programming and setup time. A 5-axis tool path takes longer to verify and simulate, and the machine costs more per hour. If a 3-axis setup can reach every face, use it. Reach for 5 axes when the geometry or the tolerance stack genuinely demands it.

• 1
  3-axisFlat faces, pockets, holes, profiles; cheapest per cubic cm removed.
• 2
  4-axisRotational parts and multi-side work in one fixturing.
• 3
  5-axisCompound angles, deep cavities, short-tool access, one-setup complex parts.
• 4
  Positioning3+2 (indexed) is often enough when cuts do not need continuous motion.

Tolerance is not a single number for the whole part. It is a local promise on a specific feature. We hold ±0.005 mm (±0.0002 in) on critical diameters, bore positions and mating faces when the material and geometry cooperate. A 300 mm long aluminium bracket with a thin wall will not hold that everywhere.

Material behaviour sets the floor. Aluminium 6061 and 7075 cut cleanly and hold tight limits. Stainless 316 work-hardens at the cut, so light passes and sharp tools are mandatory. Titanium TC4 (Ti-6Al-4V) moves during and after cutting because residual stress releases as material leaves. Inconel pushes tool wear hard.

Geometry matters just as much. A deep pocket with a 10:1 depth-to-diameter ratio forces a long, thin tool, and the finish degrades. A wall 0.8 mm thick will deflect under clamping and under cutting force. Both can be machined, but the achievable tolerance widens to ±0.02 mm or more.

Measurement closes the loop. A tolerance you cannot verify is a guess. Calipers and micrometers cover simple outside dimensions; a CMM or optical comparator covers position, profile and true position. We perform 100% inspection before shipment and can supply reports on request.

• 1
  Keep it localTight limits on one datum and a few mating features, not the whole drawing.
• 2
  Watch wallsBelow 1 mm wall thickness, expect more spring passes and slower feeds.
• 3
  Deep pocketsBeyond 6:1 depth-to-diameter, plan for reduced feed and extra tool changes.
• 4
  Sharp cornersAn internal vertical corner cannot be sharper than the cutter radius.

Surface finish is a process output, not a coating. As-machined surfaces sit around Ra 1.6–3.2 μm. A high-quality finish of Ra 0.8–1.6 μm comes from a finer stepover and a sharper tool. Fine finishes of Ra 0.2–0.8 μm usually need a separate finishing pass, a smaller nose radius, or a dedicated finishing strategy.

Material choice changes feeds, speeds and tooling. Aluminium runs fast with high rake angles and generous coolant. Stainless 303 and 304 need slower surface speeds and more rigid setups. Hardened 440C or 17-4PH may require carbide or ceramic inserts and lighter depths of cut. Plastics like POM and PEEK cut easily but melt if the feed is too low.

When a part needs a specific look or property, finishing follows machining. Anodizing, electroless nickel, zinc and powder coating all sit on top of the machined surface. Bead blasting and tumbling smooth edges but round sharp corners. Laser marking needs a minimum character height of 1.5 mm to stay legible.

The practical rule: decide the finish and material before you finalize tolerances. A Ra 0.4 μm requirement on a deep pocket in 316 stainless is a different quote than the same pocket in 6061 aluminium. Both are possible. Only one is cheap.

• 1
  As-machinedRa 1.6–3.2 μm; default for non-cosmetic functional faces.
• 2
  High finishRa 0.8–1.6 μm; typical for sealing and sliding surfaces.
• 3
  Fine finishRa 0.2–0.8 μm; adds a pass, a tool change and inspection time.
• 4
  CoatingsAnodizing and plating change dimensions by 5–25 μm; plan the tolerance.
