CNC Lathe Processing Thin Wall Parts: How Deflection Sets the Limit

• 1
  Why a Thin Wall Pushes Back Differently on the Lathe
• 2
  Wall-to-Diameter Ratios That Hold Up in Turning
• 3
  Heat, Residual Stress and the Distortion You Cannot See
• 4
  Tool Geometry, Speeds and Feeds That Reduce Radial Load
• 5
  Design Choices That Decide Whether the Part Is Machinable
• 6
  A Turning Sequence for a Thin Wall Tube
• 7
  Turning vs Milling for Thin Wall Geometry

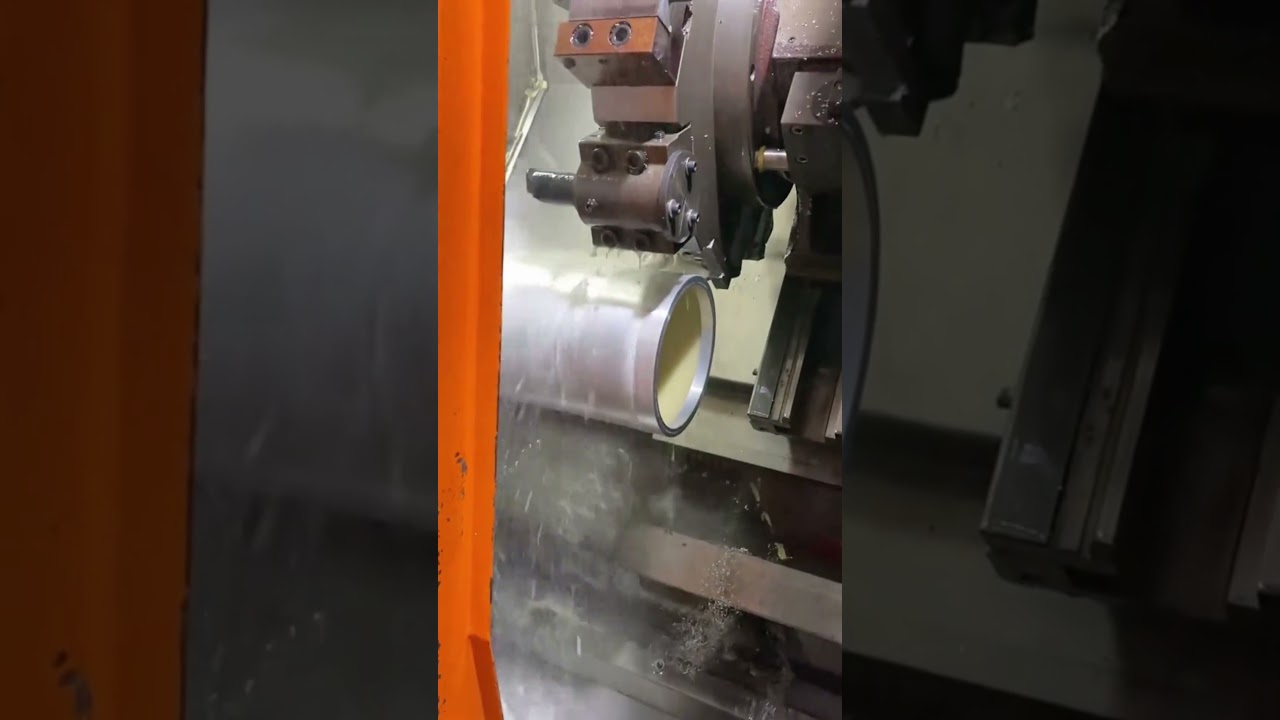

A solid bar fights the cutting tool with its full cross section. A thin wall tube has almost nothing to push back with. Radial cutting force pushes the wall inward at the tool tip, and the same wall springs back once the insert passes. That springback is the whole problem, and it grows as the wall gets thinner.

The stiffness of a cylindrical wall scales roughly with the cube of its thickness. Halve the wall and you lose about seven eighths of its resistance to radial load. Cutting force stays the same. So the deflection at the tool tip multiplies, and the finished bore ends up lobed instead of round.

Three things feed that deflection: cutting force, wall stiffness, and how the part is held. Change any one and the error moves. A three-jaw chuck on a thin ring squeezes it into a triangle, then the bore is turned round while the part sits distorted. Release the jaws and the triangle comes back, now built into the part.

The diameter also matters. A Ø200 mm tube with a 2 mm wall deflects far more than a Ø20 mm tube with the same wall, because the unsupported span is longer and the hoop is softer. Wall thickness alone tells you very little. The ratio of wall to diameter is the number worth checking.

• 1
  ForceRadial and tangential load at the insert tip, set by depth of cut and feed.
• 2
  StiffnessWall thickness cubed, plus any support from the fixture.
• 3
  RestraintChucking pressure, mandrel contact, and tailstock support.

Most shops treat a wall-to-diameter ratio of about 1:20 as the comfortable line for aluminum and mild steel. A Ø100 mm part with a 5 mm wall falls in that band. Below 1:40 the work gets difficult, and under 1:80 it usually needs a mandrel, a fill material, or a redesign.

The material moves that line. Aluminum 6061 and 7075 deflect more because the elastic modulus is around a third of steel, so a wall that works in 4140 may chatter in 6061. Titanium TC4 sits in between but work-hardens at the cut, which raises force and heat together.

Long parts fail earlier than short ones. A 300 mm long tube with a 2 mm wall will deflect under its own cutting load even when the ratio looks acceptable on paper. Length-to-diameter above about 5:1 usually needs a travelling steady or a follow rest.

Here is the practical test. Take the wall, divide by the outside diameter, and compare the length to the diameter. Two numbers, both on the drawing. That pair tells you more about machinability than the tolerance callout does.

• 1
  Above 1:20Standard turning practice, three-jaw chuck and soft jaws are enough.
• 2
  1:20 to 1:40Light depth of cut, sharp inserts, soft jaws, possibly a plug.
• 3
  Below 1:40Mandrel or fill support, or move the feature to a mill.

Cutting heat enters a thin wall faster than it can leave. The wall may reach 200 °C at the tool contact while the rest of the part stays cool, and the resulting expansion is not uniform. When the part cools, the bore is no longer the size the tool cut.

Residual stress is the quieter problem. Cold-drawn tube, extruded bar and welded blanks all carry internal stress from the way they were made. Remove material from one side and the balance shifts, so the part bends or the bore closes. This happens hours after machining, sometimes overnight.

The usual countermeasure is a stress relief pass. Rough the part, leave 0.5–1.0 mm on the walls, relieve stress, then finish. On aluminum that often means a natural aging pause or a low-temperature cycle. On steel it means a proper heat treat before the finishing cuts.

Coolant choice matters less than coolant delivery. High-pressure through-tool coolant reaches the insert tip where the heat is generated. Flood coolant mostly cools the chips and the outside of the part. On a deep thin wall bore, flood coolant can leave the cutting zone dry.

• 1
  Rough then relieveLeave 0.5–1.0 mm, relieve stress, then finish to size.
• 2
  Through-tool coolantReaches the insert tip, not just the chip and the OD.
• 3
  Wait before finishingLet the part reach room temperature before the final pass.

Radial force is what pushes the wall. A positive rake insert cuts with less radial push than a neutral or negative one, and a sharp edge with a small nose radius lowers it further. A 0.4 mm nose radius on a finishing insert is common for thin wall work. A 1.2 mm radius is not.

Depth of cut should be split. Taking 0.25 mm per side over several passes puts less peak load on the wall than one 1.5 mm pass, and the part recovers between passes. Feed stays moderate, around 0.05–0.15 mm per revolution for finishing, so the tool does not rub.

Spindle speed can go up on aluminum because the material cuts freely and the chip carries heat away. On stainless 316L and titanium TC4, high surface speed builds heat at the edge and pushes the wall. Slower speeds with a constant feed avoid rubbing and work hardening.

Boring bars need to be short and stiff. Overhang beyond four times the bar diameter invites chatter that has nothing to do with the part. If the bore is deep, a tuned boring bar with a damped shank is worth the setup time.

• 1
  Nose radius0.4 mm finishing insert keeps radial force low.
• 2
  Depth of cut0.25 mm per side per pass, not one heavy pass.
• 3
  Boring barKeep overhang under four times bar diameter.

A thin wall is often asked to do something a solid part could do better. Ribs, flanges and a thicker rim add stiffness without adding much weight. A short flange at each end of a tube can hold the wall round through turning and through the rest of the part's life.

Tolerances should match the function. A ±0.005 mm callout on a 0.8 mm wall is a measurement problem before it is a machining problem. The wall flexes under the gauge tip, so the reading depends on how you measure. Concentricity between the OD and bore is usually the number that matters.

The datum scheme deserves a second look. If the drawing datums the thin wall itself, every fixture has to squeeze the part to hold it. Datum a solid boss or an end face instead, and the wall stays free. That single change can remove a mandrel from the process.

Some features should not be turned at all. A slot through a thin wall, a flat on a tube, or a hole pattern around a soft ring are milling jobs. Splitting the part across a lathe and a mill adds a setup but often cuts scrap. On a run of 10,000 the fixture cost pays back.

• 1
  Add a flangeA rim at each end holds the wall round.
• 2
  Datum solid geometryReference a boss or face, not the flexible wall.
• 3
  Split the processTurn the round form, mill the slots and flats.
