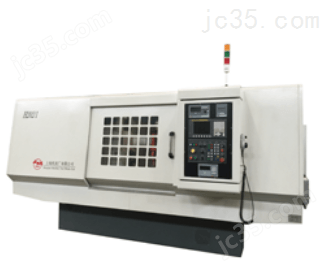

How a CNC groove grinder controls trajectory and feed
A CNC groove grinder cuts slots, keyways and seal grooves by moving a formed wheel along a programmed path while the controller meters feed. This page explains what the axes actually do, where the process holds tolerance and where it stops, so an engineer can judge whether a groove belongs on a grinder or a mill.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
What the axes do on a cnc groove grinder
A groove grinder does not rely on a shaped tool alone. The wheel profile sets the cross-section, but the controller decides where that profile travels along the part. With a two-axis machine the wheel head moves in X and Z while the workhead indexes the part. Adding a rotary table on a four-axis machine brings in a fourth motion, so a curved or helical groove can be ground without re-fixturing.
The trajectory is stored as a set of interpolated points. The controller blends them and drives the servo motors, so the wheel center follows the programmed path within the machine's positioning error. Any error in that path shows up directly as groove position error. There is no cutter compensation trick that hides a wrong trajectory.
Feed is the second variable, and it is easier to get wrong. Feed per revolution of the wheel sets the chip thickness at the contact zone. Too high and the wheel loads, burns the flank, or pushes the part away from the wheel. Too low and the abrasive rubs instead of cutting, which dulls the grain and raises temperature without removing material.
Rotary axes change the arithmetic. When the part turns under the wheel, the effective feed at the grind zone depends on the radius, so a single programmed feed rate gives different results at Ø20 mm and Ø200 mm. Most controllers handle this with an inverse-time feed or a constant surface speed mode. Confirm which mode is active before trusting a program.
- 1Linear axisMoves the wheel head along the groove length
- 2Rotary axisIndexes or contours the part for curved grooves
- 3Feed modeSets chip thickness at the contact zone
- 4InterpolationBlends points; error maps straight to position error
How the wheel and part interact at the contact zone
Grinding removes material with thousands of tiny cutting points, not one edge. Each abrasive grain takes a very small chip, and the wheel self-sharpens as dull grains fracture out of the bond. That is why a groove grinder can hold a fine finish, and also why the process behaves differently from milling.
Contact length matters more than most people expect. A deep, narrow groove wraps the wheel and lengthens the contact arc, which raises heat and forces coolant away from the cut. A shallow, wide groove has a short arc and runs cooler. Two grooves with the same depth but different width can need different wheels and different feed rates.
Wheel grade and grit do most of the work here. A softer bond releases dull grain faster and suits hard, heat-sensitive alloys such as 17-4PH or Inconel. A harder bond holds form longer and suits long production runs in 4140 or 1045. Picking the wrong direction gives either rapid wheel wear or burn on the groove flank.
Dressing is not optional. A glazed wheel stops cutting and starts rubbing, which shows up as a bright, polished groove floor and a size that drifts. Dressing restores the grain edges and re-establishes the wheel profile. The interval depends on material and stock removed, so track it per part number rather than per shift.
- 1Soft bondFaster grain release, cooler cut, shorter wheel life
- 2Hard bondHolds form longer, risks burn on hard alloys
- 3Deep narrow grooveLong contact arc, high heat, tight coolant need
- 4DressingRestores profile and cutting edges; log the interval
Fixturing and thermal drift that shift the path
The controller can only hold a path that the part actually follows. If the workpiece moves, the programmed trajectory becomes the wrong trajectory. For long shafts and thin plates, that is the most common source of groove position error, and it rarely shows up on the first part.
Support the part close to the groove. A shaft held only at both ends will deflect under grinding force, and the groove will be deeper in the middle of the cut than at the entry. Steady rests, V-blocks, or a tailstock reduce this. For thin plates, back the groove with a solid support or reduce depth per pass.
Heat grows the part and the machine. A spindle that has run for an hour is longer than a cold one, and a 300 mm steel part grows roughly 0.003 mm per 10 °C rise. On a ±0.005 mm groove that is a real fraction of the budget. Warm up the machine, then cut; do not judge size on a cold machine.
Clamping force also bends parts. Over-tightening a thin wall closes the groove slightly while clamped and springs back after release, so the measured width is right in the fixture and wrong on the bench. Measure after unclamping, or use light clamping with a support beneath the cut.
- 1Steady restCuts deflection on long shafts
- 2Warm-up cycleStabilizes spindle and axis growth before first cut
- 3Light clampingAvoids spring-back on thin walls
- 4Measure freeCheck size after the part is released
When grinding a groove is the right route
Grinding wins when the groove needs a hard, heat-treated surface and a fine finish. A hardened 58 HRC tool steel keyway cannot be milled with carbide at production speed, but a grinding wheel cuts it without annealing the edge. The same applies to seal grooves that must hold Ra 0.8–1.6 μm to seal properly.
Grinding also wins on form. A formed wheel produces the full groove cross-section in one pass, including radii and root fillets, with no tool marks to blend. That is hard to match with an end mill, where corner radius accuracy depends on the cutter and the tool path density.
Milling wins on speed and cost for soft material. An aluminum 6061 slot, a POM guide channel, or a wide shallow pocket is faster on a 3-axis mill, and the finish is usually good enough. Sending that work to a grinder adds setup time without buying accuracy the part does not need.
Size decides the rest. Grinding shines on narrow grooves, typically under 10 mm wide, and on deep slots where a small end mill would deflect. Once the groove is 20 mm wide and shallow, milling usually removes material faster. There is no fixed rule, but width-to-depth ratio is the number to look at first.
- 1Choose grindingHardened steel, fine finish, formed cross-section
- 2Choose millingSoft alloys, wide shallow slots, fast turnaround
- 3Watch ratioNarrow and deep favors grinding
- 4Check hardnessAbove roughly 45 HRC, grinding is often the only route
Setting feed, speed, and pass depth in practice
Start from the wheel, not the part. Wheel speed stays in the range marked on the wheel, and the controller holds it. Feed then follows from the chip thickness the bond can survive. Roughing passes take most of the stock, and a finishing pass of 0.02–0.05 mm removes the damaged layer left by roughing.
Use more, shallower passes on hard alloys. A single deep pass in 17-4PH or Inconel raises the temperature at the groove root and can leave a burnt or rehardened layer that later cracks. Two or three lighter passes cost cycle time but protect the metallurgy. In soft steel, fewer passes are fine.
Coolant direction matters as much as coolant type. Aim it into the contact arc, not at the outside of the wheel. High-pressure through-spindle coolant clears the arc and keeps the wheel from loading. Flood coolant aimed at the wrong spot leaves the cut zone dry and produces burn marks on one flank.
Check the first part fully before running the batch. Measure width, depth, position, and finish, then compare against the drawing. If the groove drifts on part five, the wheel has worn or glazed, and the fix is dressing, not a program edit. Trend the data so you can see it coming.
- 1Rough then finishLeave 0.02–0.05 mm for the finish pass
- 2Light passesTwo or three shallow cuts on hard alloys
- 3Coolant aimInto the arc, not at the wheel face
- 4First-part checkFull dimensional and finish measurement
How we hold groove tolerance in production
Our grinding and milling cells run on 127 high-precision CNC machines, including 16 simultaneous 5-axis machining centers and 12 four-axis mills. Groove features that need a formed wheel go on grinding equipment; wide slots on soft alloys go on a 3-axis or 4-axis mill. That split keeps cycle time honest.
Tolerance is quoted at ±0.005 mm when the drawing calls for it, and surfaces can be held at Ra 0.2–0.8 μm where the function needs it. Every part is inspected before shipment, with raw material checks, in-process monitoring, and a final inspection. Reports are available when the drawing or the quality plan requires them.
We have held ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022 certifications since the work began in 2011. That matters for groove work because it forces a documented wheel dressing interval, a calibration record for the measuring equipment, and traceability from the raw bar to the finished groove.
Upload a drawing and we return a quotation with a free DFM analysis within 12 hours. Production can start within 24 hours, and parts ship in 3–5 days. There is no minimum order quantity, so a single prototype and a 10,000-part run use the same process route and the same inspection plan.
- 1Route splitGrinding for hardened narrow grooves, milling for wide slots
- 2Inspection100% before shipment, reports on request
- 3TraceabilityRaw material through finished groove
- 4No MOQOne prototype or 10,000+ parts
Grinding versus milling for groove features
Compare by feature, not by machine preference.
| Feature | Grinding route | Milling route |
|---|---|---|
| Material hardness | Suits 45–62 HRC after heat treat | Best below 45 HRC |
| Typical groove width | Under 10 mm works well | Any width; wide slots are faster |
| Finish on flank | Ra 0.2–0.8 μm achievable | Ra 0.8–1.6 μm typical |
| Cross-section | Formed wheel in one pass | Needs radius cutter and passes |
| Setup time | Longer; wheel dressing and truing | Shorter; standard tool holders |
| Best volume | Medium to high, repeat parts | Prototypes and low volume |
| Main risk | Burn, wheel wear, thermal drift | Tool deflection, chatter |
Which route fits the groove
If the groove is narrow, deep, or cut into steel above 45 HRC and needs a fine flank finish, use a CNC groove grinder with a formed wheel and a controlled feed per revolution. If it is a wide, shallow slot in aluminum or plastic, mill it and skip the grinding setup.
Groove grinding questions engineers ask
Can a groove grinder hold position on a curved groove?
Yes, when a rotary axis is in the path and the controller interpolates it with the linear axes. The part is indexed or contoured while the wheel follows the profile, so no re-fixturing is needed between the straight and curved sections.
Accuracy depends on the rotary table and the backlash in it. On a Ø400 mm rotary table, even a small angular error becomes a visible position shift at the groove, so the table needs to be checked and compensated, not assumed.
How do I know if the wheel is glazing instead of cutting?
Look at the groove floor and listen to the cut. A glazed wheel produces a bright, polished floor, a higher pitch, and size that drifts slowly in one direction across a batch.
The fix is dressing, not a feed change. Log the dressing interval per material and part number so the next batch starts from a fresh wheel instead of an unknown one.
What causes burn marks on one flank of a groove?
Usually coolant aimed at the wrong place, or a single pass that is too deep for the material. The contact arc heats up, the coolant misses it, and the flank oxidizes.
Split the cut into two or three lighter passes and redirect the coolant into the contact arc. On 17-4PH and Inconel, that change alone often removes the burn.
Does grinding always give a better finish than milling?
Not always, but usually on hard material. A fine-grained wheel with a light finishing pass reaches Ra 0.2–0.8 μm on hardened steel, which milling cannot match without a separate finishing operation.
On aluminum or plastic, a good end mill with the right feed reaches Ra 1.6–3.2 μm, and that is enough for most guide channels and clearance slots.
How much stock should be left for the finishing pass?
Between 0.02 mm and 0.05 mm per side is a practical range. That is enough to remove the layer damaged by roughing without loading the wheel.
Below 0.02 mm the wheel tends to rub and glaze. Above 0.05 mm the finishing pass behaves like a roughing pass and leaves the same damaged layer you were trying to remove.
Can a groove grinder cut a groove into a heat-treated part?
Yes, that is one of its main advantages. A hardened part at 45–62 HRC can be ground without the softening that a milling cutter would cause from heat and tool wear.
The trade-off is cycle time and setup. The wheel must be dressed and trued before the run, and passes are lighter, so the route costs more per part than milling a soft blank.
