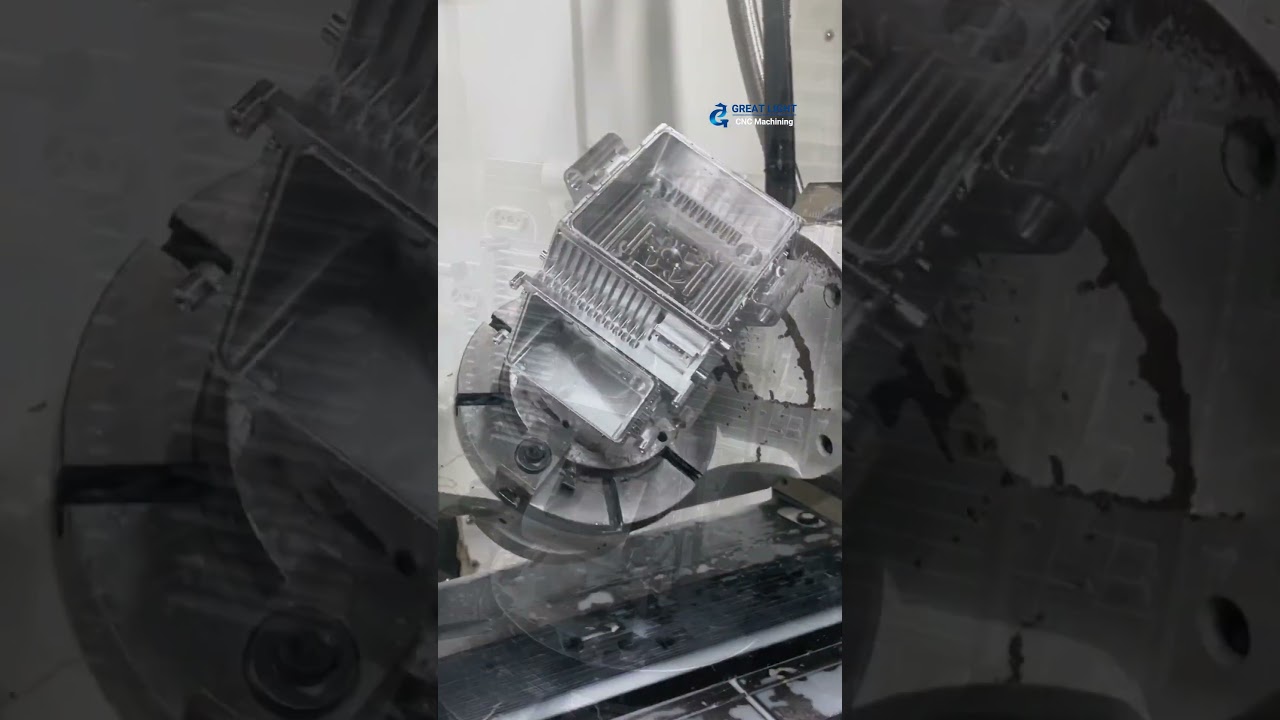

In a shop, a fixed surface is any face that is machined in one continuous setup and then used as the reference for everything else. It might be a sealing face on a pump housing, a mounting pad, a slide way, or the bottom of a fixture plate. The word fixed is not a coating or a finish. It describes how the face is held: the part does not move, the tool path is planned once, and the result is accepted or rejected as a whole.

That is why CNC fixed surface processing is less about removing metal and more about holding a decision. Once the face is cut, every later dimension is measured from it. A 0.01 mm error in the face becomes a 0.01 mm error in hole position, bore alignment and mating clearance. So the operator's job is not speed. It is repeating the same cut on part 1 and part 200.

The geometry looks simple on a print. In practice the tool tip meets a surface that is never uniform: cast skin, rolled scale, a weld bead, a previous roughing pass. Each one pushes back differently. Patience means watching chips, sound and load instead of trusting the first pass. Carefulness means writing down what worked so the next setup starts from data, not memory.

• 1
  One setup, one referenceThe face is cut and then used to locate everything else.
• 2
  Error stacks forwardFace error shows up in hole position and bore alignment.
• 3
  Repeatability beats speedPart 200 must match part 1 on the same surface.

A face mill does not shear a surface cleanly. Each insert enters, rubs, cuts and exits, leaving a scallop whose depth depends on feed per tooth and insert radius. On aluminium at 6061, a 63 mm face mill running 0.10 mm per tooth at 3,000 rpm leaves scallops you can feel with a fingernail. Drop to 0.06 mm per tooth and the same cutter leaves a pattern you can only see under raking light.

Rubbing is the quiet failure. When the insert edge is worn or the axial depth is under about 0.3 mm, the tool pushes the material instead of cutting it. Heat goes into the part, the face work-hardens, and the next pass cuts worse than the first. On stainless 316L this shows up fast: a shiny face with a hard skin and a size that drifts 0.02 mm over a 300 mm length.

Rigidity sets the ceiling. A 4,000 × 400 × 150 mm travel machine can face a long weldment, but overhang at the far end of the table still deflects. We keep face milling depth at 0.5–2.0 mm axial and 60–75% of cutter diameter radial for stable cuts, then finish with a light pass of 0.2–0.5 mm. Short tools, short holders, minimum stick-out.

Coolant choice changes the surface more than most people expect. Flood coolant clears chips and holds size on steel and stainless. On aluminium, high-pressure through-spindle coolant stops chip recutting, which is what actually tears a finished face. On cast iron we often run dry with air blast, because the graphite dust plus coolant turns into a paste that marks the surface.

• 1
  Feed per tooth controls scallop depth0.06 mm per tooth finishes cleaner than 0.10 mm on aluminium.
• 2
  Too light a cut rubsUnder 0.3 mm axial the edge pushes metal instead of shearing it.
• 3
  Keep stick-out shortDeflection at the tool tip copies straight onto the face.

A face cannot be flatter than the way it is held. Clamp a thin plate at four corners and the middle bows upward; face it and the middle springs back down when you release the clamps. The measured flatness is then worse than the cut suggested. This is the single most common cause of rejected fixed surfaces we see on incoming inspection.

The fix is usually mechanical, not programmatic. Support the part under the cutting zone, not just at the edges. Use a vacuum chuck or a magnetic table for thin plates and let the whole face carry the load. On a 3-axis machine with a Ø400 mm rotary table, a 4-jaw or a set of toe clamps with soft pads spreads force better than three hard points.

Residual stress matters on parts cut from plate or bar. Removing 3 mm from one side of a 20 mm plate releases internal stress and the part curls. Rough, then stress-relieve or let the part rest, then finish. For long parts we rough with 0.5 mm left on the face, unclamp, re-clamp lightly, and take the last pass at low depth.

Thin walls add a second problem. A 2 mm wall rings under the cutter and the face shows chatter marks spaced at the tool's natural frequency. Reducing radial engagement, adding a damped support or switching to a smaller cutter with higher spindle speed usually clears it. If none of that works, the part geometry is asking for a 5-axis approach with the wall supported from both sides.

• 1
  Support under the cutVacuum or magnetic tables spread clamping force across the face.
• 2
  Rough, rest, then finishReleasing stress before the final pass prevents curl on plate parts.
• 3
  Chatter is a stiffness signalMark spacing tracks the tool's natural frequency, not the feed.

A surface plate and a dial indicator still catch most problems. Sweep the face in a grid of at least nine points and record the high and low values. That gives you the real flatness number, not the one from the machine's probe on a clamped part. For faces longer than 500 mm, add points along the length and watch for a curve rather than a tilt.

Coordinate measuring machines give a better map but they measure at 20 °C in a metrology room. A part faced on a machine at 28 °C will shift as it cools. On aluminium that shift is roughly 0.023 mm per metre per degree Celsius, so a 1,000 mm part can move 0.16 mm across an 8 °C difference. Let parts stabilize before final inspection or accept that the number is a snapshot.

Surface finish needs its own instrument. A visual comparison plate is not enough when the print calls out Ra 0.8–1.6 μm. A portable skidded profilometer with a 0.8 mm cutoff reads the same face in three directions and shows whether the pattern is directional. Cross-hatch from a face mill reads differently lengthwise and crosswise; report both if the print is not specific.

Keep records tied to the setup. Spindle speed, feed per tooth, axial and radial depth, coolant mode, clamp layout and the measured result belong on one sheet. When part 200 drifts 0.015 mm, that sheet tells you whether the cutter wore, the material batch changed, or the fixture lost preload. Without it, you are guessing.

• 1
  Nine-point sweep minimumGrid the face and record high and low, not just one reading.
• 2
  Temperature moves the numberAluminium shifts about 0.023 mm per metre per degree Celsius.
• 3
  Report finish in two directionsFace-milled surfaces read differently along and across the pattern.
