A commercial embroidery machine is a high-cycle motion system. A single head can place 800 to 1,000 stitches per minute, and the hook rotates once per stitch. Over an eight-hour shift that is millions of engagements between the hook point, the needle, and the thread path. When any of those parts drifts out of tolerance, the failure shows up as skipped stitches, thread breaks or pattern shift, not as a clean mechanical break.

That is why the parts list for a CNC embroidery machine service looks less like a textile order and more like a small motion-control kit. You are buying hook assemblies, needle bars, presser feet, frame guides, timing cams, tensioner bodies, bobbins, and the brackets that hold the encoders and stepper motors. Most of these are turned or milled from bar stock, then heat treated or finished.

The buyer's problem is that these parts are not interchangeable across brands. A 12-head machine from one builder uses a different hook geometry than a 6-head machine from another, even when both look similar on the outside. So you cannot simply order a catalog part number. You need a supplier who will work from a drawing, a worn sample, or a measured scan of the original.

• 1
  Worn-out parts are the inputSend the failed part, not just a photo. A worn sample tells the machinist which surfaces carry load.
• 2
  Drawings beat memoryIf you have a 2D drawing with datum callouts, the quote comes back faster and with fewer assumptions.
• 3
  Reverse engineering is normalMost replacement parts are re-created from a physical sample because the OEM drawing is not released.

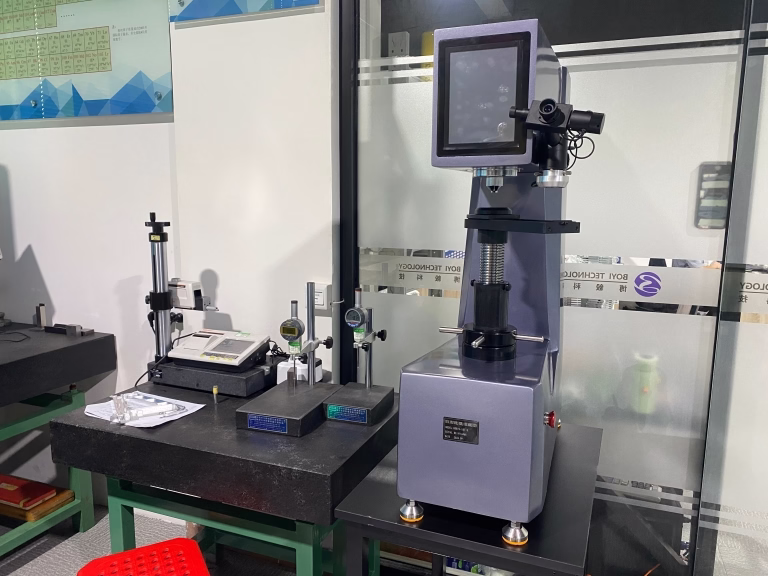

Tolerance alone does not predict how long a replacement part will last. A needle bar held to ±0.005 mm but machined with a rough surface will wear the bushing faster than a bar at ±0.02 mm with a polished journal. The number that matters is the combination: diameter tolerance, roundness, surface finish and hardness all act on the same wear pair.

For rotating or reciprocating parts, we usually machine to ±0.005 mm and finish to Ra 0.8–1.6 μm on the bearing surfaces. Sliding surfaces that carry fabric, such as frame guides, can run at Ra 1.6–3.2 μm as machined. Where the part rubs against thread at speed, a finer Ra 0.2–0.8 μm cuts friction and reduces the chance of thread fraying.

Hardness is the other half. A hook point that is too soft will dull within weeks; one that is too hard can chip when a needle strikes it. For 17-4PH stainless we specify the heat-treat condition by the application, not by a generic callout. Hardened tool steel suits cams and timing discs. Aluminum is fine for brackets and covers, but it should not be used where a steel part rubs against it under load.

• 1
  Bearing journals±0.005 mm diameter, roundness held within half the diameter band, Ra 0.8–1.6 μm.
• 2
  Thread contact surfacesRa 0.2–0.8 μm to reduce friction and fraying.
• 3
  Structural brackets±0.05 mm is usually enough unless the bracket sets a motor datum.

The choice between 3-axis, 4-axis, 5-axis and mill-turn is not a quality ranking. It is a question of how many setups the part needs and whether the geometry can be reached from one direction. A round tensioner body with a cross-hole is a natural fit for a mill-turn center: turn the OD, then drill and tap the cross-hole without re-chucking.

Parts with angled holes, contoured cams and undercut profiles usually need simultaneous 5-axis work. Trying to make these on a 3-axis machine forces multiple setups, and every re-clamp adds stack-up error. On a hook assembly, where the hook point has to sit at a specific angle relative to the shaft axis, that stack-up is exactly what causes missed stitches.

Size also guides the choice. Our work envelope runs up to 4,000 mm on the largest machines, which is far beyond any embroidery part. The practical constraint is the opposite: small parts need a spindle that can hold tolerance without chatter. A Ø6 mm needle bar journal is harder to hold than a 200 mm bracket, because tool deflection scales with the part, not with the machine.

• 1
  Mill-turn for round bodiesTensioner bodies, bobbins, bushings with cross features.
• 2
  5-axis for angled and contoured partsCams, hook assemblies, timing discs, complex brackets.
• 3
  3-axis for flat platesCovers, encoder brackets and mounting plates with simple holes.

Downtime is the cost that dominates this purchase. If a 10-head line is stopped, every day of waiting is lost production. So the first question to a supplier is not price, it is how fast they can return the first article and how fast they can ship a repeat order. A shop that quotes twelve hours and ships in three to five days is a very different risk profile from one that quotes in a week.

Order size should not be a barrier. Replacement parts are low-volume by nature. A supplier who insists on a large minimum order forces you to carry inventory you may never use. We run from one prototype to 10,000+ part runs, so a single hook assembly and a production batch go through the same quoting path.

Paperwork matters more than most buyers expect. Ask for the material certificate, the inspection report and the certificate numbers that apply to your industry. For textile machinery, ISO 9001:2015 is the baseline. If the same shop also serves automotive or medical customers, IATF 16949:2016 and ISO 13485:2016 tell you the process control is audited. ISO 27001:2022 covers how your drawings are handled, which matters when you send proprietary geometry.

• 1
  Quote and DFM reviewWithin 12 hours, including a manufacturability note on thin walls and tight radii.
• 2
  Production startCan begin within 24 hours once the drawing and material are confirmed.
• 3
  Inspection100% inspection before shipment, with reports available on request.

The most common trap is a quote built on an assumed material. If the supplier prices 6061 aluminum for a part that runs against steel under load, the part will gall and fail early. Make the material callout explicit on the drawing, and ask what the shop substituted if the price looks unusually low.

The second trap is missing datum information. A drawing without datums leaves the machinist to choose the reference surface, and the chosen surface may not be the one that mounts to the machine frame. On a needle bar or hook shaft, a 0.02 mm datum shift is enough to change stitch registration.

The third trap is skipping the first article. A supplier that ships a full batch without sending one sample for fit check is asking you to discover problems at the machine. The fourth is vague lead time. The fifth is no confidentiality agreement, which puts your proprietary geometry at risk when you share files with a new shop.

• 1
  Material substitutionConfirm the alloy and temper in writing before production.
• 2
  Missing datumsMark the mounting face and the functional axis on the drawing.
• 3
  No first articleFit one sample on a spare head before releasing the batch.
• 4
  Unclear lead timeGet the ship date in the quote, not in a verbal promise.
