Bridge Mold 20000 Shots Production

This class of tool is an injection mold cut to production geometry but built with materials and methods matched to a shorter life target. Instead of hardened H13 or S136, the core and cavity usually come out of aluminum 7075-T6 or pre-hardened steel such as P-20 or 718H.

The difference is not the shape of the part. It is the hardness of the steel, the cooling layout, and how much hand work goes into the shut-offs. A bridge tool still needs real parting lines, real ejector placement and a real runner system. What it skips is the long lead time of hardening, stress relief and multiple fitting cycles.

Interchangeable inserts are common. You can run a soft insert for early builds, then swap in a harder one once the design freezes. That keeps the base and frame reusable while the cavity sees the wear.

• 1
  Aluminum 7075-T6Fast to cut, good for low hundreds of thousands of cycles at low tonnage, poor for abrasive resins.
• 2
  Pre-hardened steelP-20 and 718H hold 20,000 shots without drama and accept repair welding.
• 3
  Hardened steelOnly worth it above the bridge window, when the design is locked.

Below roughly 5,000 shots, setup time and tool amortization still dominate the per-part cost. Above 100,000 shots, an aluminum cavity starts to show wear at gates and shut-offs, and dimensional drift shows up in the last dimensions you want to move. The 20000-shot mark is the middle ground where a well-machined tool pays for itself.

A pre-hardened steel bridge cavity reaches and passes 20,000 shots with normal upkeep. Aluminum will get there too if the resin is unfilled and the tonnage is modest, but it needs closer watching on the gate area.

The commercial argument is simple. You get production-grade resin, real shrinkage data and real surface finish before you commit to a hardened tool. If the design changes at shot 8,000, you have not lost a hardened cavity.

A 20,000-shot tool lives or dies on the core and cavity fit. Pocket depth, wall thickness and shut-off angles have to hold ±0.005 mm on the critical features, not just on the drawing's nominal dimensions. That is where 5-axis work earns its place.

Deep ribs and thin cores are the usual failure points. A 0.8 mm rib machined with a long reach tool will deflect if the stepover is wrong, and it will bend in the press. Simultaneous 5-axis lets us hold the tool shank short and tilt into corners instead of reaching straight down.

Cooling matters just as much. Baffles and bubbler circuits drilled on a 5-axis center follow the part contour. Uneven cooling warps the core, and a warped core drifts out of tolerance before shot 20,000.

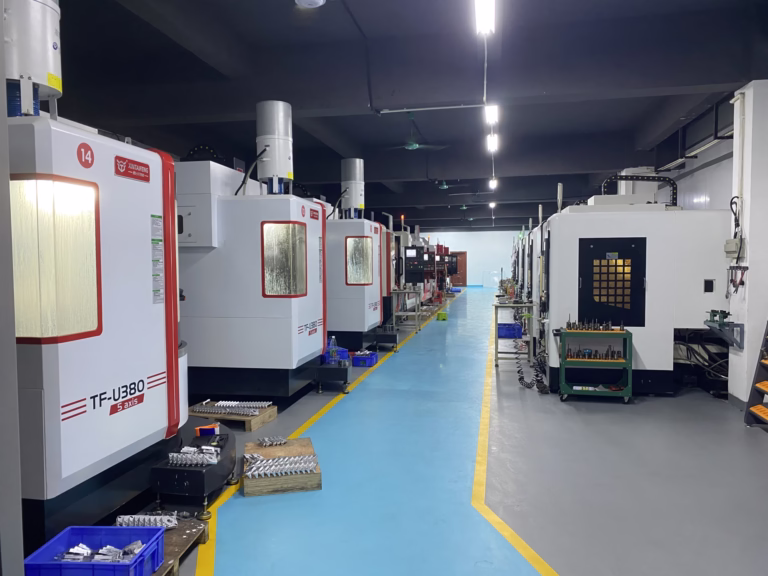

We cut tool steel and aluminum on the same floor, with 16 simultaneous 5-axis centers and 127 high-precision CNC machines across three plants. Maximum processing size is 4,000 mm, which covers most bridge tool plates and inserts.

• 1
  Tolerance±0.005 mm (±0.0002 in) on critical core and cavity features.
• 2
  FinishRa 0.8–1.6 μm on sealing and shut-off surfaces; Ra 0.2–0.8 μm where the part shows.
• 3
  InspectionRaw material check, in-process monitoring, final CMM report on request.

You cannot claim a 20000-shot tool until you have run the production resin through it. Simulated material hides shrinkage. Run the real grade, and measure the first-off parts against the drawing before anyone signs off.

A short capability run of 30 to 50 shots gives you the data that matters: cavity pressure, fill balance, cooling time, and where the part lands in tolerance. If dimensions drift inside that run, they will drift faster by shot 10,000.

Keep a baseline set of measured parts from the first run. When the tool comes back at shot 15,000 for a check, you compare against that baseline, not against a fresh nominal. Wear shows up as a trend, not a single bad part.

Bridge tools do not fail suddenly. They wear at the gate, the shut-offs and the ejector pins. A 500-shot visual check catches most of it before it becomes a scrap event.

Schedule a light service around shot 5,000 and shot 10,000. Polish the gate, check ejector wear, re-torque the plate stack. A cavity that has run 10,000 shots will need a touch-up on the parting line if you want the next 10,000 to stay clean.

Spare inserts pay for themselves. If the program is still moving, hold a spare cavity insert machined to the same nominal. Swapping an insert beats waiting on a repair when the line is running.

• 1
  Shot 500Visual check on gate and shut-offs; confirm no flash.
• 2
  Shot 5,000Polish gate, inspect ejectors, check plate stack torque.
• 3
  Shot 10,000Measure baseline dimensions, touch up parting line.
• 4
  Shot 15,000Full dimensional report against the first-off baseline set.
