A print-in-place model comes off the bed as one piece. The hinge, ball socket or pin is formed by a gap that stays open while the nozzle lays down each layer. Nothing is glued, screwed or snapped together after the fact.

That gap is the whole design. Set it too tight and the layers fuse into a solid block. Set it too loose and the joint flops with no holding force. On a 0.4 mm nozzle, most FDM printers need roughly 0.2 mm to 0.3 mm of radial clearance for a pivot that turns by hand, and 0.35 mm to 0.45 mm for a ball joint that must rotate in every direction.

Layer height matters as much as the gap. A 0.12 mm layer leaves a cleaner bore than a 0.28 mm layer, because the stair-stepping on the inner surface is smaller. When a joint binds, the fix is usually a finer layer, not a bigger gap.

Orientation decides whether the joint survives. A hinge that prints with its pin axis vertical gets a circular bore. Lay the same hinge flat and the bore becomes a teardrop, and the pin will not turn. Most designers print hinges standing up and accept the extra support on the arms.

• 1
  Pivot clearance0.2–0.3 mm radial for a hand-turned hinge on a 0.4 mm nozzle
• 2
  Ball socket0.35–0.45 mm, plus a slight chamfer at the socket mouth
• 3
  Layer height0.12–0.16 mm keeps the bore round enough to move
• 4
  Print orientationPin axis vertical, so the bore stays circular

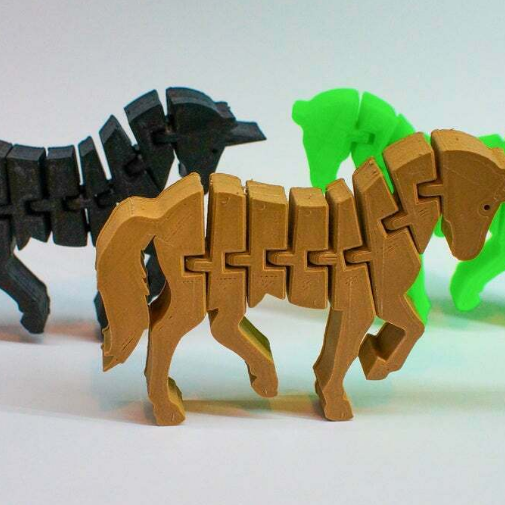

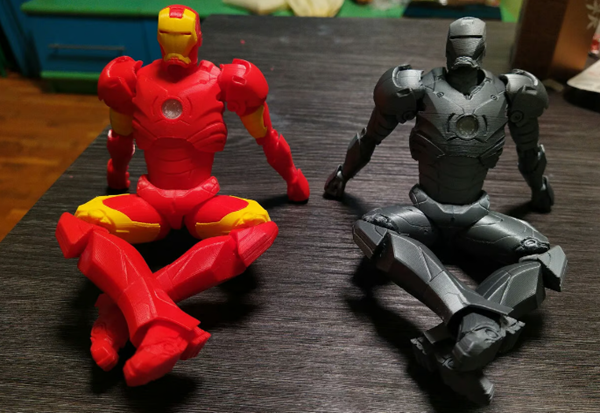

The five models below are all free, all print in place, and each one stresses a different part of the process. Print them in order and you will have a useful reference set for clearance, thin walls and flexible joints.

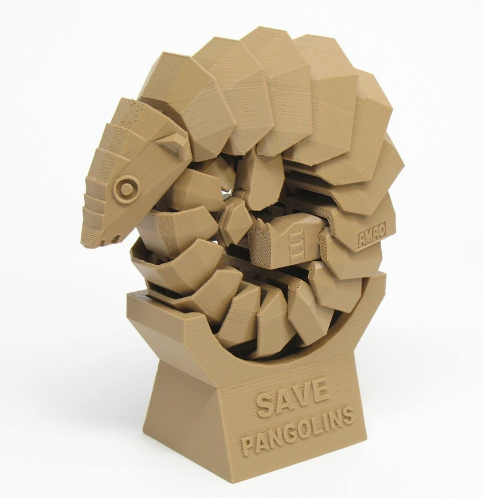

The pangolin is the classic segmented shell. Each scale is a separate plate linked to its neighbor, so the model flexes like a slinky. It is a good first test because the joint is a simple pin, and a 0.25 mm gap is enough at 0.16 mm layers. Print it in PLA at 15% infill and it will survive a lot of handling.

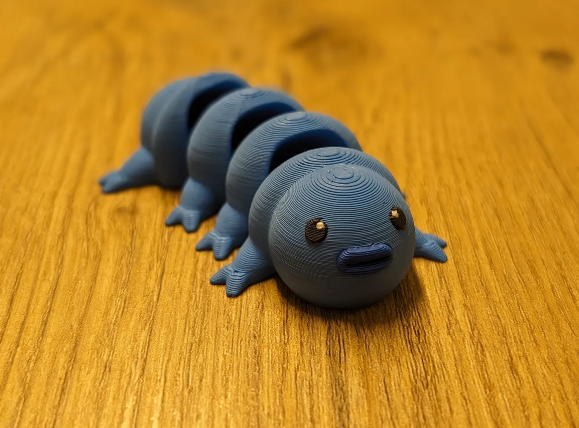

The tardigrade is smaller and harder. Its eight legs each carry several short segments, so the joints are close together and the walls between them are thin. This one exposes over-extrusion fast: a printer that pushes too much plastic will weld the leg joints shut. PETG at 0.12 mm layers is a safer choice than PLA.

The crystal dragon is the stress test for long chains. Dozens of segments run down the tail and neck, and a single fused link stops the whole model from moving. It also needs a large bed and a slow first layer. If you can print this one clean, your machine is dialed in.

The flexi-rex and the snake are the two beginner models. Both use the same ball-and-socket idea as the dragon but with fewer, larger joints, so a 0.3 mm gap works and the print finishes in a few hours. They are the right place to start if you have never printed a moving part.

• 1
  PangolinSegmented shell, simple pin joints, good first test
• 2
  TardigradeTiny legs, thin walls, exposes over-extrusion
• 3
  Crystal dragonLong joint chains, needs a well-tuned machine
• 4
  Flexi-rex / snakeLarge ball sockets, fast prints, beginner friendly

PLA is the easiest material for articulated prints. It is stiff, it holds a sharp bore, and it does not string across the gaps. The trade-off is brittleness: a thin pin on a pangolin scale can snap if the model is dropped. For a display piece that is fine.

PETG is tougher and slightly flexible, so the joints resist cracking. It also strings more, and a blob of string in a small socket will lock it. Drop the nozzle temperature by 5–10 °C and raise travel speed to control that. TPU is the third option: it lets a joint bend instead of rotate, which suits flexi models but makes precise clearance less important.

In the slicer, turn off any setting that fills small gaps. "Fill gaps between walls" and similar options push extra plastic into the joint and weld it shut. Also check the horizontal expansion value. A default of 0 mm is correct; a positive value shrinks the bore and a negative one loosens every joint on the plate.

Cooling needs to be strong. A joint is a thin, unsupported feature, and it must be solid before the next layer lands on it. Run the part cooling fan at full speed from layer two for PLA, and keep the print speed moderate on the joint layers.

• 1
  PLAStiffest bore, easiest to print, can be brittle
• 2
  PETGTougher joints, but stringing can lock small sockets
• 3
  TPUJoints flex rather than pivot, forgiving on clearance
• 4
  SlicerDisable gap fill, keep horizontal expansion at 0 mm

A printed joint carries light loads only. The pin in a print-in-place hinge is the same plastic as the arm, and its cross-section is limited by the layer height. Pull on it hard and it delaminates along the layer lines, which is the weakest direction in any FDM part.

The failure mode is predictable. A joint that sees repeated load will wear, because plastic on plastic has no bearing surface and no lubrication. Clearance grows, the joint gets sloppy, and the model stops holding a pose. That is fine for a desk model and not fine for a mechanism that runs every day.

Once a part needs to hold a load, keep a tight tolerance, or survive thousands of cycles, the design should move to machined metal. A 5-axis mill can cut a real hinge from 6061-T6 or 304 stainless with a press-fit pin, and the joint will keep its clearance. We hold ±0.005 mm on machined features and inspect every part before it ships.

The usual path is both processes on one project. Print the articulated prototype to check the range of motion and the look, then machine the load-bearing version in aluminum or steel once the geometry is settled. That keeps the cheap iteration on the printer and the durable part on the mill.
