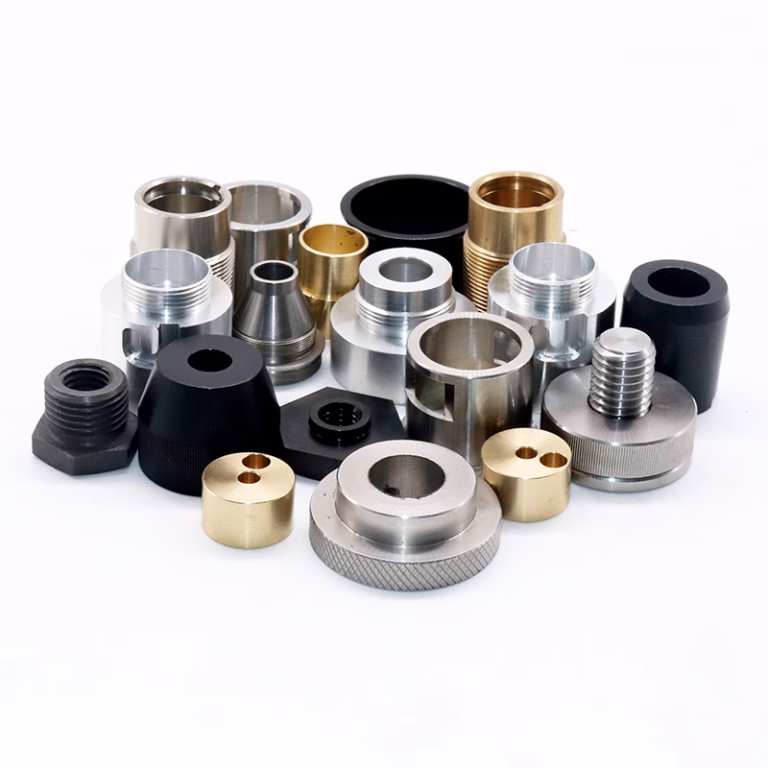

AM CNC Machines: How They Work and When to Use Them

AM stands for additive manufacturing. When engineers use the phrase AM CNC machines, they usually mean one of two setups: a CNC machine fitted with a directed energy deposition head that can add metal, or a production cell where a metal printer and a machining center sit in the same workflow and share a common coordinate system. Both exist, and they solve different problems.

The distinction matters because the additive step is rarely the finishing step. Laser powder bed fusion or directed energy deposition leaves a rough surface, internal stress, and a heat-affected zone. A spindle still has to remove the excess and bring critical faces into tolerance.

So the practical question is not which process wins. It is which features need which process, and in what order. A bracket with one internal cooling channel may only need the channel printed and every mating face machined. A mold insert with conformal cooling usually needs both, plus stress relief between steps.

• 1
  Deposition on a CNC platformLaser or arc head mounted on a machining center. Add and cut in one setup.
• 2
  Printer plus machining centerTwo machines, one drawing, one datum scheme. Parts move between them.
• 3
  Repair workWorn or damaged metal built back up, then re-machined to original dimensions.

In a hybrid machine, the sequence runs add, cool, then cut. The deposition head lays down a bead or a layer, the part cools enough to hold shape, and the spindle mills the top surface flat before the next layer goes down. Skipping that intermediate cut lets roughness stack up, and the final pass then has to remove more material than planned.

In a two-machine workflow, the printer finishes the near-net shape first, then the part goes to a machining center for datums and critical faces. This route is easier to schedule and easier to inspect, because each step is a separate operation with its own setup sheet. It also costs an extra setup and an extra queue.

Either way, the machining step decides final accuracy. Our machining centers hold ±0.005 mm on critical features, with surface finish down to Ra 0.2–0.8 μm when a sealing face or bearing bore calls for it. The additive step only decides how close the blank comes to that geometry.

• 1
  Leave stock on purposePlan 0.3–1.0 mm on faces the spindle will finish, depending on feature size.
• 2
  Pick datums before printingThe printed part must have a surface the machinist can hold and locate.
• 3
  Stress relief between stepsSkipping it lets the part move after the final cut.

Choose an additive plus CNC route when the part has internal channels, lattice regions, or geometry a cutter cannot reach from any angle. Conformal cooling in a mold insert is the classic case: the channel follows the cavity surface, and no drill or end mill can produce that path. The same logic applies to lightweight brackets with organic ribs.

Skip it when the part is mostly prismatic. A housing, a plate, a shaft, or a manifold with straight drilled passages is faster and cheaper as bar stock on a three-axis or five-axis machine. Printing a block and then cutting 90 percent of it away wastes powder, time, and money.

There is also a size limit. Our largest machining travel is 4,000 × 400 × 150 mm, and the medium envelope covers 750 × 1,150 × 550 mm. Printed blanks must fit the printer and still leave enough stock for the finishing passes, so a part near the machine limit is usually a poor candidate for a hybrid route.

Material choice narrows the field too. Titanium, Inconel, and some stainless grades print and machine well. Aluminium alloys such as 6061 and 7075 are common in both routes. Copper alloys are harder to print at good density, though beryllium copper and C110 are available in wrought form for straight machining.

A printed and machined part needs two sets of checks. The printed portion gets checked for density and internal defects, usually by CT scan or by sectioning a witness coupon built in the same run. The machined portion gets checked the same way as any other CNC part: dimensions, geometry, and surface finish.

We inspect 100 percent of parts before shipment, with raw material verification at the start, in-process monitoring during cutting, and a final inspection before packing. Reports are available on request, and the paperwork can follow the format your quality team already uses.

Certifications matter here because hybrid routes often land in regulated programs. We hold ISO 9001:2015, IATF 16949:2016 for automotive work, ISO 13485:2016 for medical devices, and ISO 27001:2022 for information security. Drawings and models stay confidential, and an NDA is available on request.
