Advantages and Application Prospects of Composite Processing Machine Tools

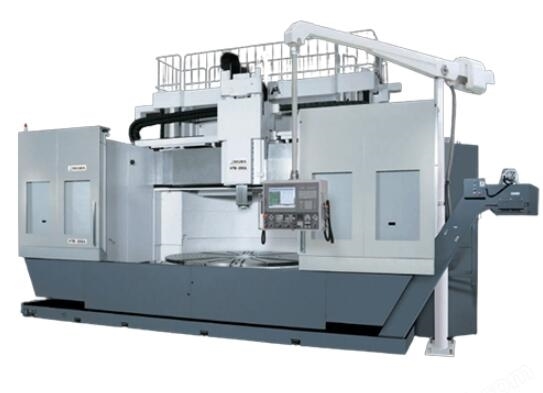

The term covers a family, not one machine. The common thread is that more than one cutting method happens on the same platform without releasing the part. A mill-turn center spins the workpiece on a C-axis spindle and brings a milling spindle to it. A 5-axis machining center tilts and rotates the part or the head so a single fixture reaches five faces. A grinding-capable turn-mill adds a wheel head for hard-turned surfaces.

On the shop floor the difference is simple. Conventional routing moves the part from lathe to mill to grinder, and each move re-clamps it. Composite routing keeps the datum. That single fact drives most of the accuracy and cost argument that follows.

Composite tools are not universal. They carry a higher hourly rate, need more skilled setup, and are less efficient than a dedicated machine when a part only ever needs one operation. The question is never whether composite is better. It is whether a given part benefits enough.

Every re-clamp introduces error. A three-operation part can pick up 0.02–0.05 mm of positional drift from fixture wear, chip contamination and operator handling. A composite machine holds concentricity and perpendicularity in one coordinate frame, so a bore and its mating face stay related to the same zero.

In practice, a turn-mill center holding ±0.005 mm can keep a bearing bore and its shoulder square within a few microns across the run. That matters for parts where a stack-up of two or three tolerances would otherwise eat the clearance.

The second effect is time. Loading, zeroing and first-article checking between operations often costs more than the cut itself on small parts. Removing two setups from a five-minute cycle can cut total floor-to-floor time by a third, even when the composite machine cuts slower per pass.

• 1
  ConcentricityTurn and mill from one spindle reference, no re-chuck error.
• 2
  DatumsOne zero for five faces; no re-zeroing between operations.
• 3
  Small partsSetup time dominates; fewer setups is the biggest win.
• 4
  Hard turningGrind-ready surfaces finished on the same platform.

Start with geometry. Parts with a rotational body plus off-axis features are the classic fit: valve bodies, pump housings, hydraulic manifolds, motor end bells, sensor housings. If a diameter and a bolt pattern share a centerline, a turn-mill center will do both without losing the relationship.

Then look at the tolerance chain. If two or three features stack up to a critical clearance, collapsing them into one setup removes the stack. If each feature has its own loose tolerance and no interaction, composite adds cost for little gain.

Then look at volume. Composite machines earn their rate on low to mid volume, roughly one to a few thousand parts, where fixture cost and setup time are spread thin. At high volume, dedicated machines with hard tooling usually win on cycle time, and the composite route becomes a prototyping or changeover tool instead.

• 1
  Good fitTurned body with milled flats, ports or bolt circles.
• 2
  Good fitThin-wall parts that distort when re-clamped.
• 3
  Poor fitFlat plates needing only 2.5D milling.
• 4
  Poor fitVery high volume with stable, simple geometry.

Aluminum 6061-T6 and 7075 cut cleanly on turn-mill centers. The risk is chip evacuation in deep pockets, since the milling spindle sits off the main axis and chips fall back into the cut. Through-spindle coolant and program pauses for clearing solve most of it.

Stainless 304 and 17-4PH work well but demand rigid setups. The payoff is real: a single setup avoids re-indicating a hardened or work-hardened surface, which is where most scrapped stainless parts come from. Titanium TC4 and Inconel need lower surface speed and more coolant, and the composite platform helps because thermal growth from repeated clamping is removed.

Plastics and composites are a different case. PEEK and carbon fibre generate dust rather than chips, so extraction matters more than rigidity. Composite machine tools with enclosed work zones and vacuum extraction handle these well, but the tooling and feeds are closer to composite machining than metal cutting.

Demand is moving toward smaller batches with more variants. EV drivetrain housings, robot joints, medical instrument bodies and aerospace brackets all share that pattern: complex geometry, modest volume, tight tolerance. Composite machine tools fit that shape of work better than a line of single-purpose machines.

The second driver is additive and hybrid platforms. A machine that deposits metal and then mills it back to tolerance removes the blank-sourcing step for near-net parts. The advantages and application prospects of composite processing are widening here, though the technology is still maturing for production volumes.

For buyers, the practical shift is in quoting. Instead of pricing operations separately, ask for a route comparison: how many setups, which datums, what inspection holds the critical features. That conversation exposes whether composite processing saves money on your part or just sounds modern.
