A Conception Universal Mold for Deep Formation of Aviation Sheet

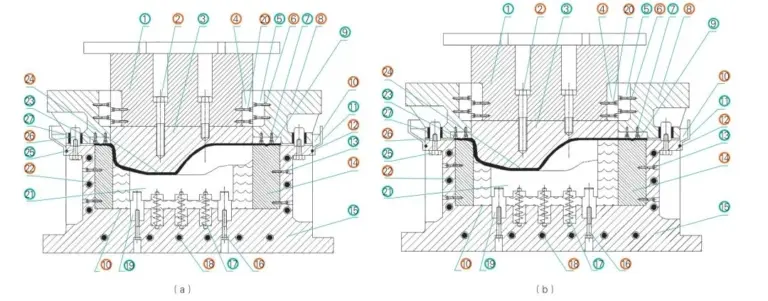

A universal mold is a reconfigurable forming setup rather than a single fixed die. The lower cavity is built from replaceable inserts or a blank holder ring, while the upper punch is a modular head that can be swapped between jobs. The same frame handles a family of parts that share a similar draw ratio and blank outline, so the tooling cost is spread across several part numbers instead of one.

This is the core of the conception universal mold depth idea. Depth is not a fixed value; it is a range the tool can reach before the sheet tears or wrinkles. On a flexible frame, that range is set by the blank holder pressure, the punch radius, and the draw ratio you allow. Change those three and the same frame covers a new depth.

The trade-off is real. A dedicated die holds tighter wall thickness and better springback control because every surface is cut for one geometry. A universal frame is more forgiving to set up but needs more trial blanks to dial in. For low-to-mid volume aviation work, the flexibility usually pays back before the dedicated die would even be finished.

Setup time on a reconfigurable frame runs longer than dropping a dedicated die into a press. That is the cost you accept. In return, you avoid cutting a new cavity every time a bracket, fairing, or access panel changes by 15 mm.

• 1
  Blank holder ringControls material flow into the cavity; the main lever on wrinkle vs tear.
• 2
  Modular punchSwappable head sets the inner radius and the effective draw depth.
• 3
  Draw ratioKeep it under roughly 1.8 for most aviation aluminum to avoid tearing.
• 4
  SpringbackHigher on a flexible frame; plan a sizing or restrike step.

Hydraulic forming replaces the rigid upper punch with pressurized fluid. The sheet is clamped over the lower cavity and fluid pushes it down into the form. Because the pressure is uniform, the material stretches more evenly than it would under a hard punch, which reduces the local thinning that causes cracks at the punch nose.

The uniform load also means one flexible cavity can form a wider family of shapes. A hard punch must match the part contour; fluid does not. This is what makes the universal concept practical for aviation sheet, where part counts per number are low and geometry changes are frequent.

Aviation sheet grades behave differently under fluid pressure. 2024 aluminum draws well but work-hardens fast, so depth per pass is limited. 5052 and 5083 are more forgiving and take deeper draws before you need an anneal. Titanium Ti-6Al-4V needs heat and slow strain rates, so hydraulic forming at room temperature is usually a no-go.

Fluid pressure is not a cure for bad geometry. A sharp internal corner or an abrupt flange still concentrates strain. The tool design has to round those transitions regardless of how the load is applied.

Pick a universal frame when the part family shares a blank outline, the draw depth stays inside one range, and the annual quantity does not justify a dedicated die. Access panels, small fairings, brackets with a formed web, and duct sections are typical fits. These parts change often and arrive in small batches.

Stay with a dedicated die when wall thickness tolerance is tight, when the part has a deep narrow pocket, or when the surface finish is cosmetic and cannot tolerate restrike marks. A hard punch gives you a predictable surface and a repeatable wall. A flexible frame trades some of that for coverage.

The deciding number is usually the break-even quantity. Below it, the flexible frame wins on total cost. Above it, the dedicated die wins on cycle time and consistency. The exact break-even depends on your part, but the logic holds: count setup hours against die lead time.

One more check. If the part needs a trimmed flange to a precise contour after forming, add that operation to the plan. Forming and trimming are separate steps, and a universal mold does not remove the trim fixture.

For a part family that mixes 5052 and 2024 blanks, the same frame can often run both. The 2024 job just needs more passes and an anneal between them. That mix is exactly where the conception universal mold depth approach earns its keep.
