5 Axis Machining for Lamp Molds in Automotive

A headlamp lens is a freeform surface. Its optical core carries dozens of facets, each set at its own angle to bend light into a beam pattern. A taillamp light guide is worse: a long curved channel with a polished side wall that must stay within a tight surface finish or the light leaks unevenly. Cutting those faces on a 3-axis machine means the tool always points straight down Z.

When the tool cannot tilt, the machinist has two options. Use a ball nose small enough to reach into the steep walls, which slows the cycle and leaves a scallop pattern. Or split the cavity into several setups, reposition the block, and re-datum each time. Every re-setup adds a stack of position error, and on an optical surface even 0.01 mm of mismatch shows up as a visible line in the molded part.

A 5-axis machine adds two rotary axes, so the tool can stay normal to the surface as it sweeps. The same cutter reaches the side walls of a deep reflector pocket and the flat seating face in one continuous pass. The block stays clamped. The datum stays valid.

• 1
  Freeform optical surfacesFaceted reflectors and lens cores with varying draft angles.
• 2
  Deep, narrow pocketsReflector cups where a short tool must tilt to clear the wall.
• 3
  Polished side wallsLight-guide channels that cannot carry visible tool marks.
• 4
  UndercutsSnap features and mounting bosses that hide behind a face.

Setup count is where lamp molds get expensive. A typical 3-axis route for a two-cavity headlamp insert might be five or six operations: rough the back, flip, rough the cavity, semi-finish, finish, then a separate pass for the mounting plate. Each flip means indicating the block again. The moldmaker absorbs that time, and the stack-up can drift a few hundredths of a millimeter across the cavity.

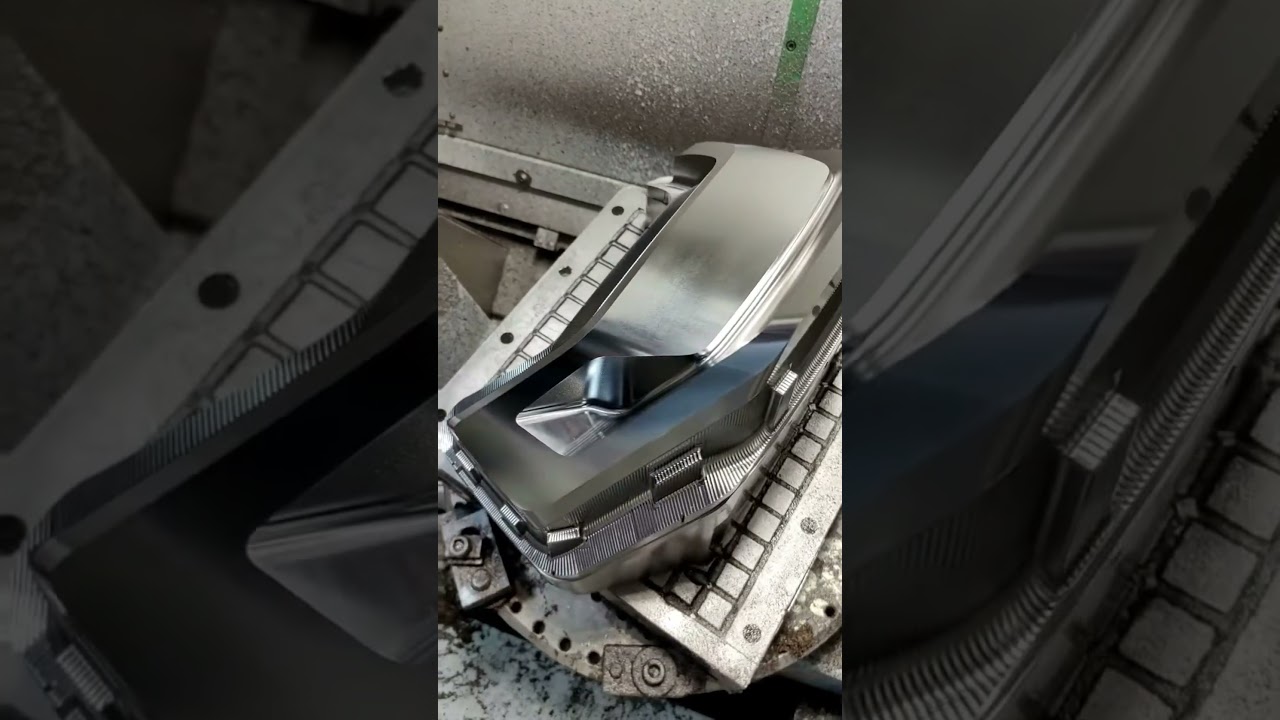

On a simultaneous 5-axis center, a Ø400 mm rotary table holds the block and rotates it under the spindle. Roughing, semi-finishing, and finishing of the cavity and the back face happen in one program. We keep one datum for the whole part, so the optical surface and the mounting features share the same reference. That matters when the insert has to drop into a mold base with existing water lines and ejector holes.

There is a practical limit. Blocks longer than the machine travel have to be split. Our largest 5-axis travel is 4,000 × 400 × 150 mm, and the mid-size machines run 750 × 1,150 × 550 mm or 600 × 600 × 600 mm. A full headlamp mold base is usually bigger than any of those, so the work is normally cut as separate inserts and cores rather than one block.

Most production lamp molds are cut from tool steel or pre-hardened steel such as 1.2343-type grades, P20, or 718. Hardness drives tool choice and stepover. At 30–40 HRC we can still cut with carbide, but we reduce the stepover on finishing passes to hold the surface. Above 45 HRC the insert usually arrives already heat treated, and the finishing pass becomes slow and shallow.

Aluminum is common for prototype molds and bridge tooling. 6061-T6 and 7075 machine quickly, take a fine finish, and let the tooling engineer test a lens geometry before committing to steel. For light-guide inserts where thermal conductivity helps the cycle, copper alloys such as beryllium copper or C110 are sometimes used. Copper cuts cleanly at high spindle speed but it is abrasive on the tool edge, so we watch flank wear between parts.

Nickel alloys and titanium appear less often in lamp tooling, mostly in fixture plates or hot-runner hardware. They are machinable on the same 5-axis centers but at much lower feed rates, and the quote reflects that. If the geometry is only mildly complex, cutting Inconel on a 5-axis machine is hard to justify.

• 1
  Pre-hardened steelRough before hardening, finish after, plan two machining stages.
• 2
  Aluminum prototype molds6061-T6 or 7075 for fit checks and short runs.
• 3
  Copper light-guide insertsGood heat transfer, but check tool wear on long programs.

An optical surface is only as good as its last pass. On the polished side of a light guide, the mold surface is transferred directly to the plastic, so any milling scallop becomes a light-scattering defect. We aim for Ra 0.2–0.8 μm on optical faces and Ra 0.8–1.6 μm on structural faces of the same insert. That split keeps the cycle realistic: there is no reason to burn finishing time on a boss that never sees light.

The 5-axis strategy helps here in a specific way. Because the tool stays near normal to the surface, the effective stepover is consistent across a curved wall. On a 3-axis pass the same stepover produces a wider scallop where the surface tilts away from Z. The molder then has to polish more, and hand polishing on a faceted reflector is where geometry quietly drifts.

Some inserts still go to a polishing bench after machining, especially where the finish callout is below what a cutter can hold. We would rather tell a customer that up front than quote a machining-only finish that will not pass a light test.

A flat lens core with parallel ribs does not need five axes. It runs faster on a 3-axis machine, the programming is simpler, and the hourly rate is lower. The same goes for mold base plates, ejector plates, and spacer blocks. Putting simple work on a 5-axis center just raises the price.

Very large mold bases are another limit. If the insert cannot be split and still hold its optical alignment, the part may not fit our travels. In that case we would machine it as separate inserts and let the moldmaker assemble them, which is how most large headlamp tools are built anyway.

Finally, geometry is not the only factor. If the surface finish is achieved by hand polish regardless of the toolpath, the 5-axis benefit shrinks to setup count and cycle time. That is still a real saving, but it is smaller than the saving on a deep faceted reflector. We compare both routes before quoting rather than defaulting to five axes.
