3D Printed Infinite Flow Toys: Design, Print, and Fit

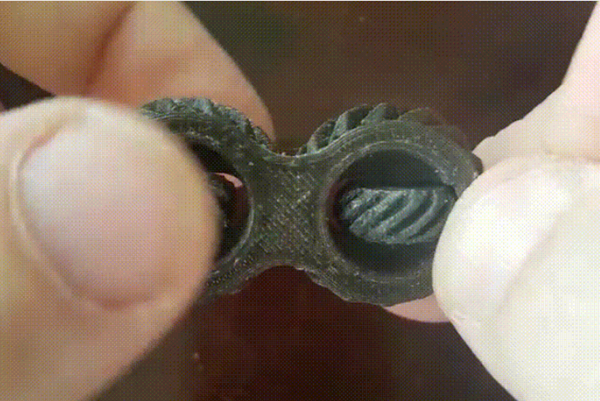

An infinite flow toy is a closed track with a set of loose balls or rollers inside it. Tip the body and gravity pulls the rollers along the channel. The track is a continuous loop, so the rollers keep circulating instead of collecting at one end. That is the whole mechanism.

The motion looks continuous because the track has no end stop. Each roller pushes the next one around the bend, and the loop returns them to the start. A printed version usually splits into two halves that snap or bolt together around the rollers.

The part that decides whether the toy feels smooth or gritty is not the shape of the track. It is the clearance between the roller and the channel wall, plus the friction of the printed surface they slide against.

• 1
  Track profileA shallow U or rounded rectangle keeps rollers centered.
• 2
  Roller countMore rollers means steadier motion but higher friction.
• 3
  Wall clearance0.2–0.4 mm on FDM; 0.1–0.2 mm on resin.
• 4
  Racetrack lengthLonger loops feel calmer and move slower.

Layer lines are the main enemy. On a typical 0.4 mm nozzle at 0.2 mm layer height, the top of each layer creates a small ridge that the rollers ride over. Reduce layer height to 0.1–0.12 mm on the track faces and the ridges get small enough to slide past.

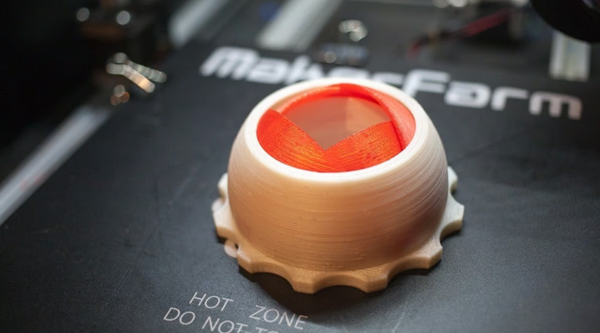

Print the two body halves flat on the bed so the track face is either the top or the bottom layer. Printing a track wall vertically puts stair-stepping right where the rollers run. If your model cannot be oriented that way, consider splitting the track into a printed shell plus a separate insert.

Material choice matters more than people expect. PLA is stiff and prints clean, but it creeps under constant load and gets brittle in cold rooms. PETG is tougher but strings into the channel. ABS or ASA sand smooth with acetone vapor, which flattens layer lines nicely. Nylon is the best sliding surface but absorbs moisture and needs dry filament.

For rollers, do not print them hollow. A solid roller has more mass and rolls further per tilt, which makes the motion feel less twitchy.

• 1
  Nozzle0.4 mm is fine; 0.6 mm speeds up the body only.
• 2
  Layer height0.10–0.12 mm on track faces.
• 3
  Infill40–60% on the body, 100% on rollers.
• 4
  Post-processVapor smoothing or light sanding on the channel.

Most failed prints of this design fail for one of two reasons. The first is too little clearance. FDM printers routinely print holes 0.1–0.2 mm undersize, so a nominal 0.3 mm gap can close to nearly zero after the first few layers. Model the clearance larger than the drawing suggests and test one half before printing the full body.

The second reason is warping. A long flat body with thin walls curls at the corners, and a curled half will pinch the track. Print with a brim on ABS and ASA, keep the chamber closed, and orient the longest dimension along the bed's X axis where the printer is most accurate.

If you plan to sell these, printed units vary. Two printers running the same file can produce tracks that feel different by hand. That is normal for FDM and it is the point where many makers switch to a machined or cast body with printed or purchased rollers.

• 1
  Test couponPrint one half, measure the channel, then commit.
• 2
  Hole shrinkageExpect 0.1–0.2 mm undersize on FDM.
• 3
  Warp controlBrim plus enclosed chamber for ABS and ASA.
• 4
  AssemblyM3 screws with heat-set inserts hold better than snap fits.

Printed toys are cheap to iterate but slow to produce in volume. A print farm running 20 units a day still cannot match a molded or machined run for consistency, and unit cost does not drop with quantity the way it does for other processes.

If the loop body is going to be handled daily, dropped, or used as a desk object in an office, an aluminum body changes the feel completely. Machined 6061-T6 with an anodized finish resists wear at the track wall and holds its clearance over thousands of cycles. The rollers can stay printed or move to acetal or brass, depending on the weight you want.

We machine housings like this on 3-axis and 4-axis mills, and the track profile is usually a simple ball-end or bull-nose pass. A two-piece body with a dowel-pin register holds the channel alignment better than any printed snap fit. Tolerances of ±0.005 mm are achievable on the pin bores, and the sliding surfaces can be held at Ra 0.8–1.6 μm.

The trade-off is setup cost. One prototype is expensive compared to a print. At a few hundred units, the numbers flip.

• 1
  Aluminum body6061-T6, anodized, wears well at the track.
• 2
  RollersPOM or brass for weight, printed nylon for quiet.
• 3
  RegisterDowel pins keep the two halves aligned.
• 4
  FinishBead blast plus clear anodize looks like a product.

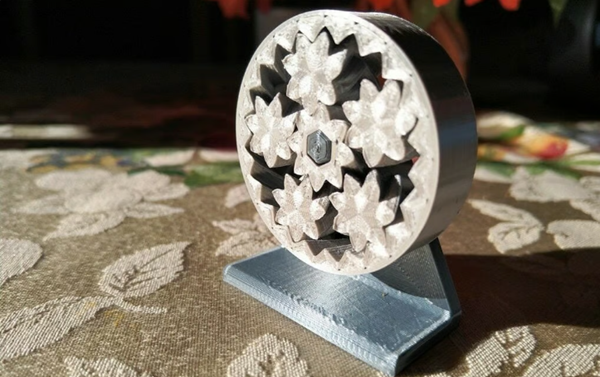

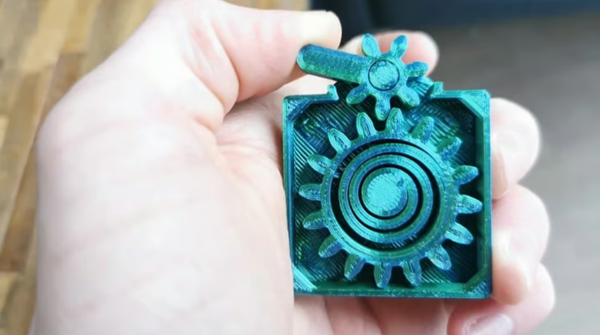

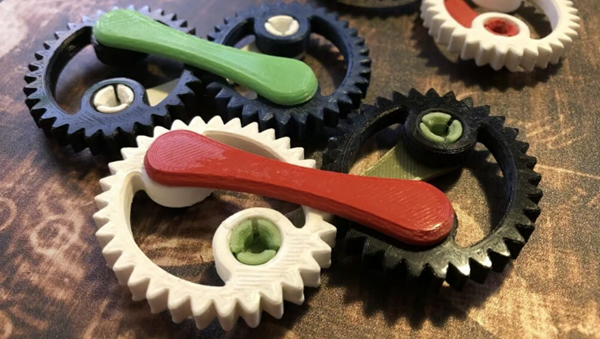

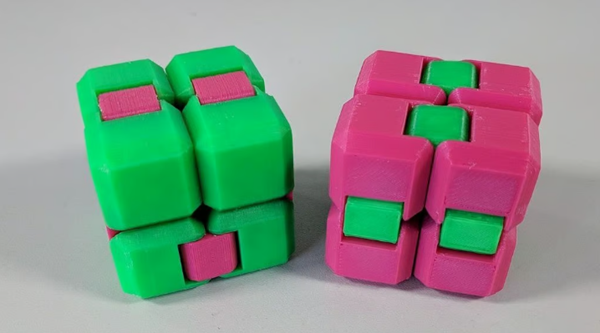

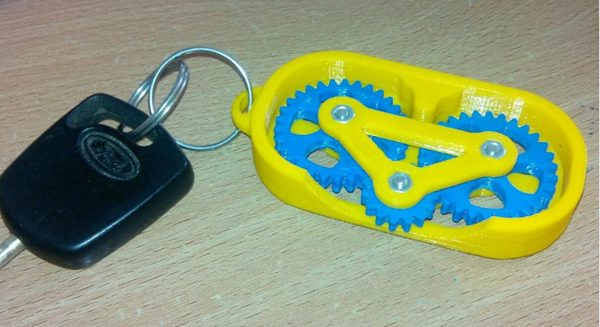

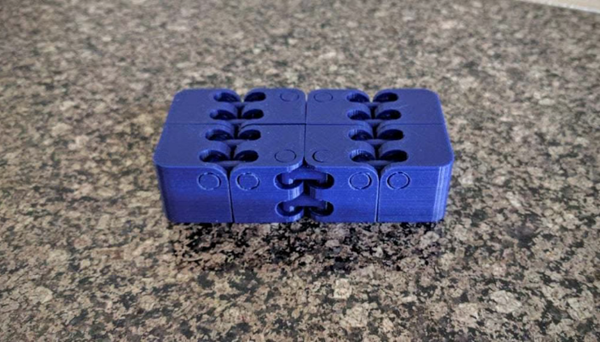

Free model repositories carry thousands of these loops under names like marble run, fidget loop, or infinity cube. Search terms matter less than the file itself. Open the model in a slicer and look at the wall thickness before you print. Thin walls under 1.2 mm will flex and pinch the channel.

Check whether the designer modeled clearance or expects the slicer to handle it. Some files are drawn at nominal size with zero gap, which only works on resin. Others include a test fit in the download. If there is no test coupon, cut a 30 mm section of the track and print that first.

Also check the license. Many free models are non-commercial. If you intend to sell the toy, read the terms or design your own loop around the same mechanism, which is not protected.

• 1
  Wall thicknessKeep track walls at 1.5 mm or thicker.
• 2
  Test couponPrint a 30 mm track section before the body.
• 3
  LicenseCheck non-commercial terms before selling.
• 4
  File formatSTEP gives you more control than STL.
