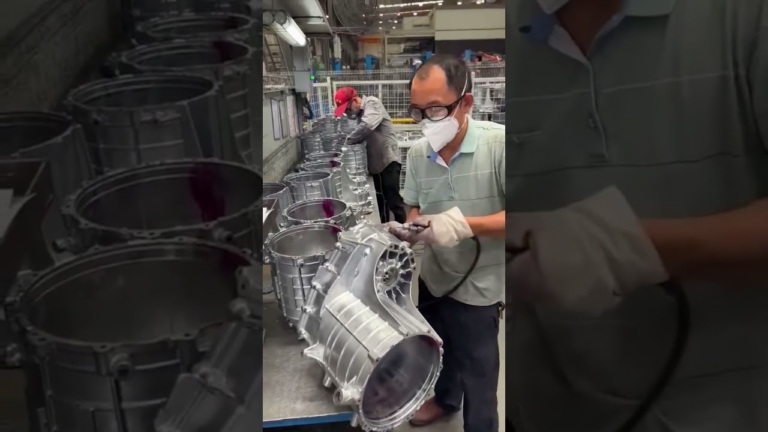

f0 9f 9a 97why Die Casting and CNC Belong Together for Car Engine Parts

This page explains what the die casting contributes, what the CNC operation has to fix, and how to decide the split before tooling is cut. Written for engineers and buyers sourcing aluminum engine housings, covers and brackets.

ADC12 / A380±0.005 mmIATF 16949From 1 part to 10,000+
Custom Auto Spare Parts 5 Axis CNC Machining Engine Parts
Scope

What this page covers

Where the casting stops and the machining starts, and the numbers that decide it.

The split

Why Engine Parts Are Cast First and Machined Second

Die casting pours molten aluminum into a steel die and lets it solidify in the shape of the part. It is fast, it repeats, and it can put ribs, bosses and cooling passages where a machined-from-solid part would need hours of cutter time. For an engine cover or a timing case, that is the difference between a 40-second cycle and a 40-minute one.

The catch is that the casting is only near-net. Draft has to be added so the part releases. Walls vary with flow. Tool wear drifts the die over a run. A sealing face on a die casting might land within ±0.2 mm, which is fine for a bracket and useless for a head mating surface.

CNC machining closes that gap. The casting arrives as a stable, stress-relieved blank with the right mass and the rough geometry already in it. The mill then cuts only the features that carry tolerance: bore diameters, bolt patterns, gasket faces, oil galleries and bearing seats.

That division of labor is the whole argument. The casting buys shape and volume. The machining buys accuracy. Neither one does the other's job well, and programs that try to force it usually pay for the mistake twice.

Tolerance

Which Features the CNC Operation Has to Own

Not every surface needs a finish pass. Sorting the part into three groups before programming keeps cycle time honest and prevents over-machining that adds cost without adding function.

Critical features are the ones a leak test or a torque spec will catch. Main bearing bores, cylinder head decks, injector seats and oil seal journals live here. These are machined to ±0.005 mm where the drawing calls for it, with surface finish held at Ra 0.8–1.6 μm on sealing faces.

Semi-critical features are locating and fastening surfaces. Motor mount pads, sensor bosses and cover flanges need flatness and hole position, not micron-level size. A single finishing pass holds them.

Cosmetic and clearance surfaces usually stay as cast. Machining a rib that nobody measures adds minutes per part and removes the skin that protects the casting. Leave it alone unless the drawing says otherwise.

  • 1
    CriticalBearing bores, decks, seal journals, injector seats
  • 2
    Semi-criticalMount pads, sensor bosses, cover flanges
  • 3
    As castRibs, webbing, internal clearance walls
Reference

Machining Plan by Engine Part Type

A starting point for quoting; final numbers depend on drawing and lot size.

PartTypical alloyKey machined featureHold to
Timing coverADC12Gasket face, bolt holes, seal bore±0.02 mm, Ra 1.6 μm
Oil pump housingA380Gear pocket, shaft bore±0.01 mm, Ra 0.8 μm
Intake manifoldA380Flange flatness, injector bores±0.05 mm, Ra 3.2 μm
Water pump bodyADC12Impeller bore, seal seat±0.01 mm, Ra 0.8 μm
Bracket / mountADC12Hole pattern, pad flatness±0.05 mm, Ra 3.2 μm
Valve coverA380Sealing rail, spark plug bores±0.03 mm, Ra 1.6 μm
Fixtures

Workholding and Datum Strategy on Castings

A casting is not a billet. Its outer skin is uneven, and clamping on a raw surface pushes the part out of position before the first cut. The usual fix is a two-operation plan: first op holds on three rough pads and machines the datums, second op clamps on those datums and cuts everything that matters.

Datum choice drives stack-up. Picking a cast boss as a primary datum means every downstream feature inherits the die's variation. Picking a machined surface means the CNC controls its own error budget, which is the point of machining in the first place.

On a 5-axis center, we can often reach five faces in two setups instead of four, because the rotary table indexes the part without a re-clamp. For a housing with bores on three sides, that removes two datum transfers and the error that comes with each one.

Porosity is the other workholding risk. A clamp over a gas pocket can collapse a thin wall. Wall thickness under 2.5 mm near a clamp point deserves a callout on the setup sheet.

Materials

Alloy Selection for Cast Engine Components

ADC12 and A380 cover most engine castings. Both flow well, both take a machined finish, and both are common enough that die cost is competitive. The choice usually comes down to thermal duty and pressure tightness.

ADC12 has good fluidity and fills thin sections, which suits covers and housings with long, narrow ribs. A380 is slightly stronger and machines a little cleaner on tapped holes, so it shows up more on pump bodies and parts that see vibration.

Magnesium AZ91D is worth considering when mass is the driver, but it needs different handling on the shop floor and different corrosion protection. For a first article, aluminum is usually the faster path.

We machine aluminum grades including 6061, 7075, ADC12 and A380, plus stainless and steel when an engine part is cut from solid rather than cast.

Volume

When the Pair Makes Sense and When It Does Not

The die casting plus CNC route pays off when the part has geometry that would be slow to cut from billet and a volume high enough to amortize the die. A few thousand parts a year is usually the tipping point, though complex shapes can justify tooling well below that.

Below a few hundred parts, cutting from solid 6061 or 7075 is often cheaper. There is no die to build, no tooling lead time, and design changes cost nothing but a new program. For prototypes and low-volume engine builds, that is the right call.

A third option sits between them. Vacuum casting gives a production-like part for fit checks and dyno work without a hardened die. It is a way to validate the design before committing to tooling.

The practical test is simple. Count the features that need machining, look at the wall sections and ribs, and compare the annual volume against the die cost. If the casting removes more than half the cutter time and volume is steady, cast first.

FAQs

Common Questions

What tolerance can a die casting hold before machining?

A well-run aluminum die casting typically holds ±0.1 mm on controlled dimensions, and looser on dimensions that cross the parting line.

That is fine for non-functional geometry. Anything that seals, locates a bearing or takes a torque spec should be machined after casting.

Do you machine castings supplied by the customer?

Yes. We machine customer-supplied castings as well as parts we cast ourselves.

Send the drawing, the alloy and a few sample parts. We check stock condition, datum availability and wall thickness before quoting.

How do you handle porosity found during machining?

Porosity that opens into a sealing face or a pressure passage is a reject. We inspect raw material, monitor in process and do a final check before shipment, with reports on request.

If a pocket shows up repeatedly, the fix belongs upstream in the die: gate position, shot profile or venting.

What surface finish can you hold on a machined casting?

Ra 0.8–1.6 μm on sealing faces and Ra 1.6–3.2 μm on general machined surfaces are routine, with Ra 0.2–0.8 μm available when a drawing calls for it.

Cast skins that are not machined keep their as-cast texture, usually Ra 3.2 μm or coarser.

Can you start production before the die is finished?

We can quote and return a DFM analysis within 12 hours, and production can start within 24 hours once the drawing and stock are settled.

Parts typically ship in 3–5 days for machined work. Die lead time is separate and depends on the tooling schedule.

Is there a minimum order quantity?

No minimum. We run from one prototype to 10,000+ part runs.

Uploads are kept secure and confidential, and an NDA is available on request.
