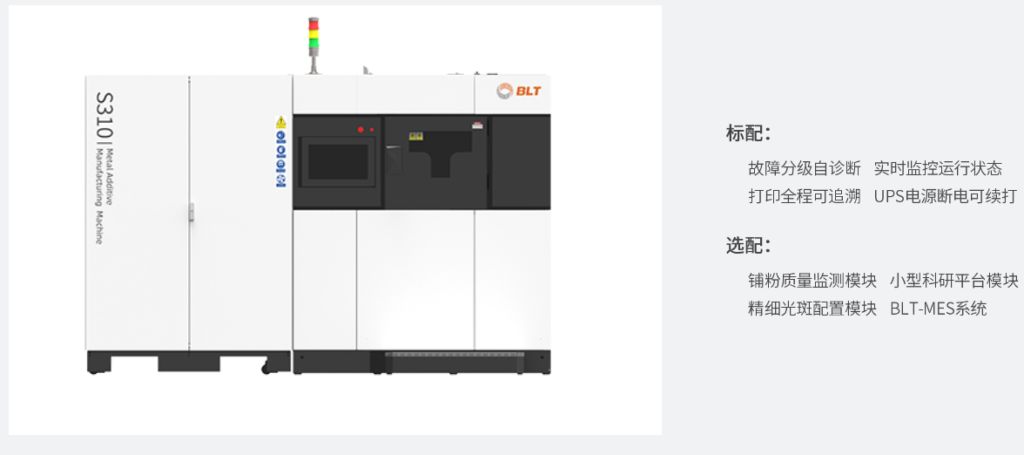

Product Introduction of BLT-S310 Metal 3D Printer

Product Introduction of BLT-S310 Metal 3D Printer

Product Introduction of BLT-S310 Metal 3D Printer

Material support: titanium alloy, aluminum alloy, high temperature alloy, stainless steel, high strength steel, cast steel, copper alloy.
Forming size: 250mm × 250mm × 400mm (L × D × H)
Laser power: 500 W; 500W × 2

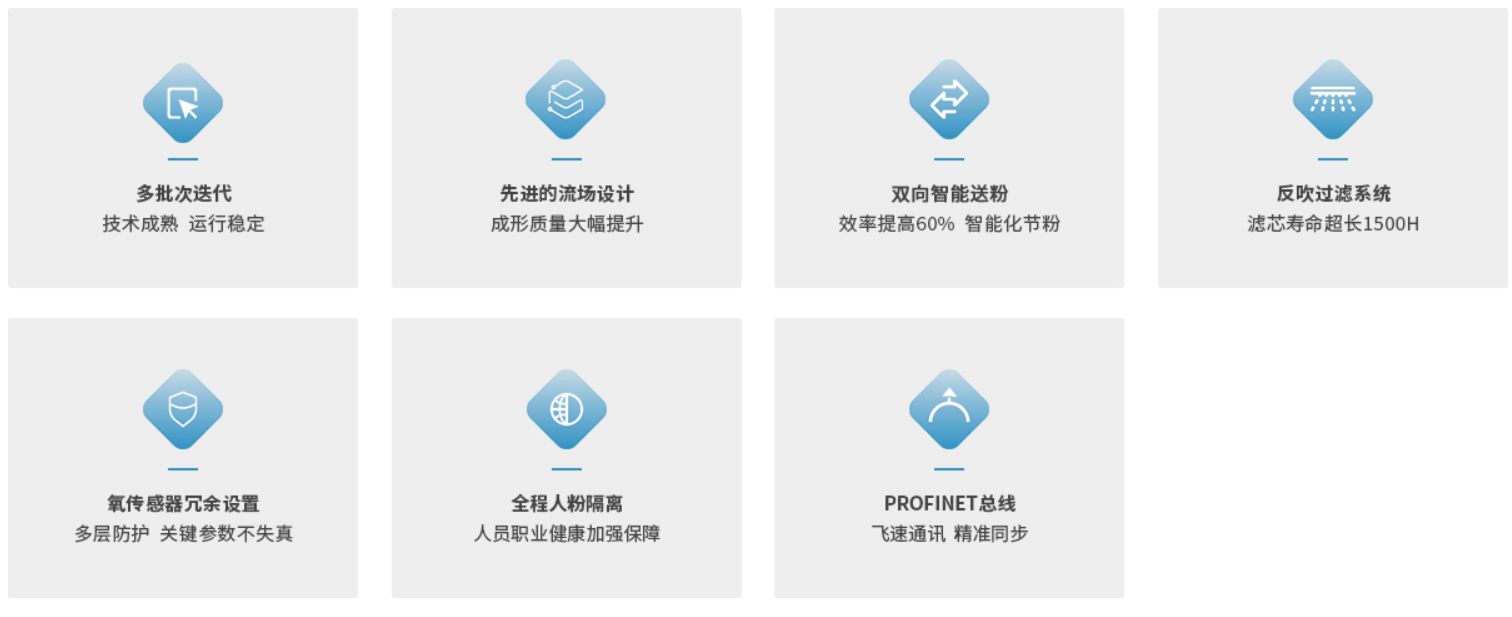

Functional advantages:

1729497147 287 Product Introduction of BLT S310 Metal 3D Printer

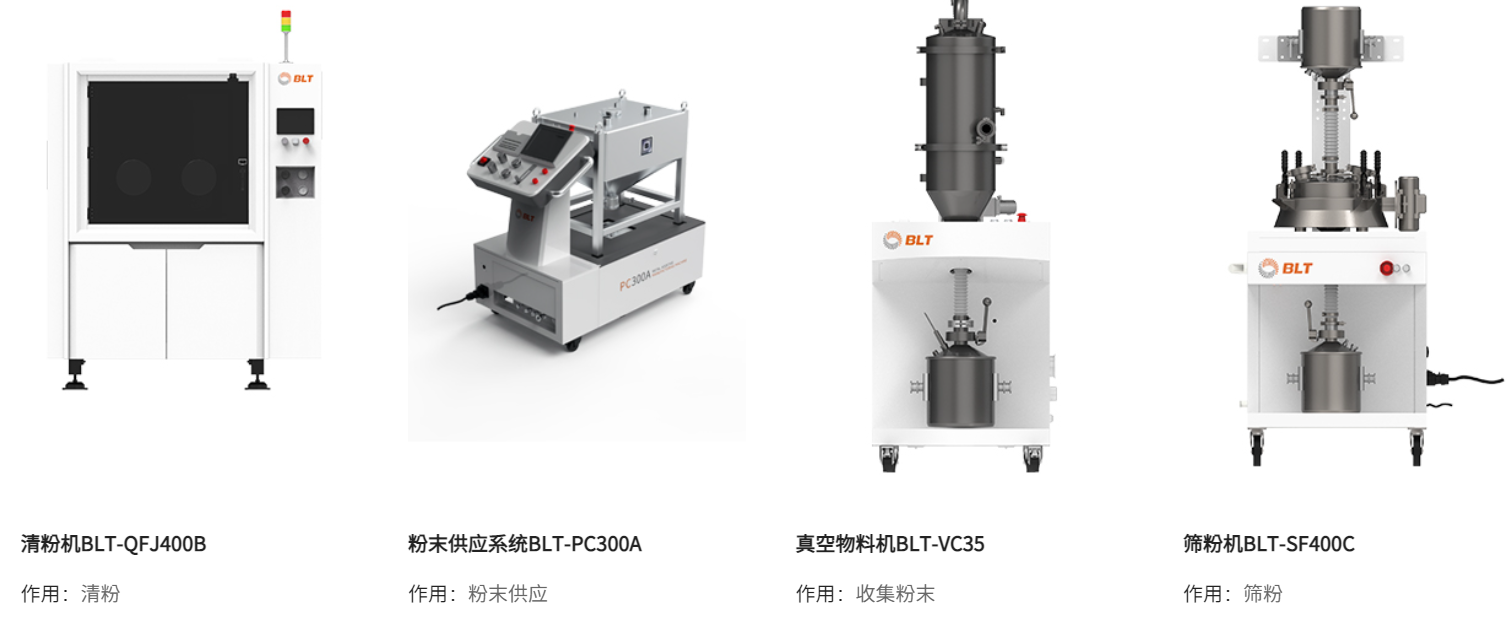

Auxiliary support machines:

1729497148 438 Product Introduction of BLT S310 Metal 3D Printer

Daguang focuses on providing solutions such as precision CNC machining services (3-axis, 4-axis, 5-axis machining), CNC milling, and rapid prototyping services.

Product Introduction of UM600MT Metal 3D Printer

Product Introduction of UM600MT Metal 3D Printer

Product Introduction of UM600MT Metal 3D Printer

Used in aerospace, medical, automobile, electronics, molds, scientific research institutes, etc.

Hardware support:Cast steel, stainless steel, high temperature alloy, aluminum alloy, titanium alloy, etc.
Forming dimensions:400 mm × 600 mm × 500 mm (excluding substrate thickness)
Laser power:500W×2

Equipment overview:

The UM600MT adopts powder loading, dual laser and dual galvanometer scanning configurations, and can intelligently distribute powder in both directions to achieve continuous and uninterrupted production, greatly improving work efficiency and production capacity. production, and helping customers achieve the industrialization of additive manufacturing.

Equipment parameters:

Forming size

400 mm × 600 mm × 500 mm (excluding substrate thickness)

laser

IPG 500W × 2

Spot diameter

80-120μm (adjustable)

Scanning galvanometer

Scanlab × 2

Scan speed

Maximum 14 m/s

Forming speed

5-50cm³/h (related to part shape, size, material and printing parameters)

Layer thickness range

20-100m

Inert gas consumption

Ar or N2, ≤10L/min

Control of oxygen content

≤100ppm

Powder delivery method

Superior powder fall, two-way variable speed powder spread

Substrate heating

200℃, control accuracy ±2℃

Scraper type

Ceramic scraper, rubber scraper, high speed steel scraper (optional)

Printing by graft

support

Quality control

CCD real-time monitoring, APP remote printing monitoring (optional)

optional materials

Various high temperature alloys, stainless steel, cast steel, aluminum alloy, titanium alloy, etc.

Power Requirements

AC 380 V ± 5%, 50 Hz, 25 kW, three-phase five-wire system

Equipment size

5350 mm × 1760 mm × 3350 mm (length x width x height)

Equipment weight

Around 9000kg

application software

Magic, etc. ;

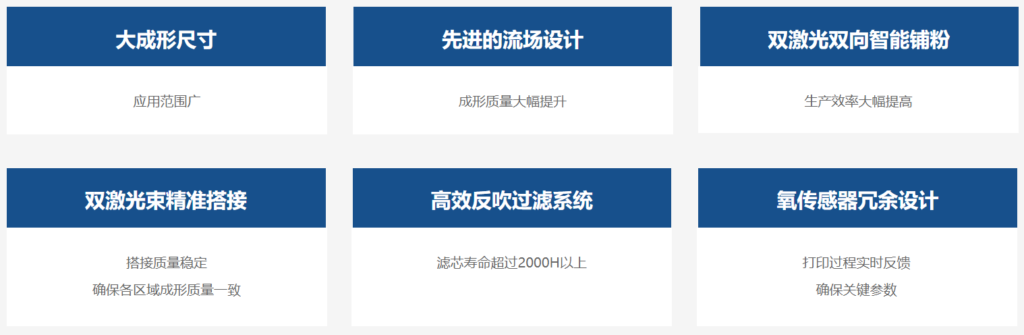

Functional advantages:

Daguang focuses on providing solutions such as precision CNC machining services (3-axis, 4-axis, 5-axis machining), CNC milling, and rapid prototyping services.
